In high-volume or demanding industrial manufacturing, controlling dimensional tolerances within ±0.003 mm (3 microns) during continuous 5-axis CNC machining is an exceptionally challenging task. This is particularly true in the automotive industry for components like complex impellers and turbine blades, where freeform surfaces and thin-walled structures introduce multiple variables.
Maintaining micron-level precision tolerances consistently requires systematic engineering management across machine rigidity, tooling control, process parameters, and workshop environment. Over the past 26 years, Dawang Precision has developed a mature high-speed milling and tolerance control framework, backed by our facility of over 400 advanced machining centers, including German Roeders and Japanese Mazak 5-axis machines. From a practical engineering perspective, this article shares our core control points for stably delivering ±0.003 mm tolerances in production.
In 5-axis machining, the addition of rotational axes (such as A, B, or C axes) complicates the machine structure and tool paths. When target tolerances tighten to ±0.003 mm, minor physical variations typically overlooked in standard machining escalate into dimensional deviation risks. These risks primarily stem from several factors:
Thermal Displacement of Structural Components: Friction from high-speed spindles, high-frequency reversing of servo motors, and ambient workshop temperature fluctuations cause micron-level thermal expansion in the machine bed and axis systems. Specifically, axial thermal drift of the spindle can easily exceed 0.005 mm if unmanaged, directly breaching the ±0.003 mm limit.
Tool Deflection Caused by Cutting Forces: Automotive impellers or thin-walled blades are often made of difficult-to-machine materials like stainless steel or titanium alloys. Due to heavy cutting resistance, micro end mills with high length-to-diameter ratios are prone to elastic deformation under radial forces. Even a few microns of tool deflection will compromise the profile accuracy of freeform surfaces.
Cumulative Kinematic Errors and Sourcing Strategy: 5-axis simultaneous machining relies on synchronized interpolation between linear and rotational axes. Any geometric misalignment in the rotational axes—such as non-orthogonal centerlines or center-of-rotation drift—will be multiplied along extended component features, such as the tips of impeller blades.

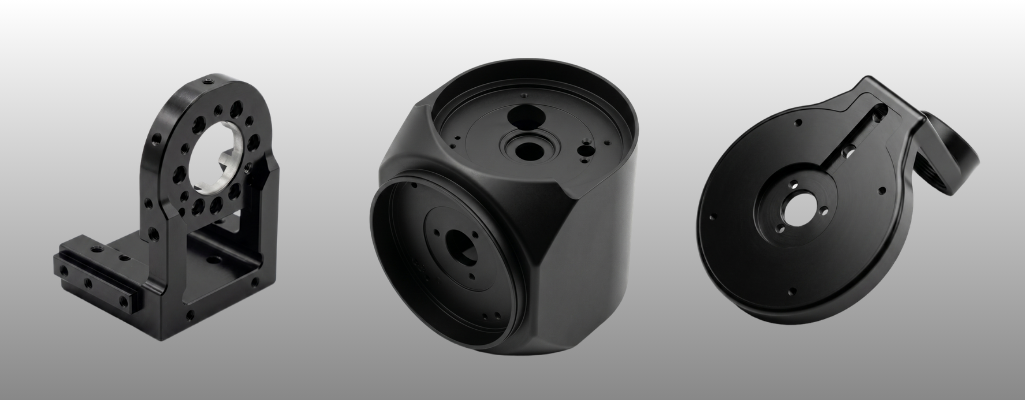

In actual procurement and technical reviews, hardware engineers frequently raise a critical question: "I need to maintain a strict ±0.003mm tolerance for a rotary actuator housing. Should I source a supplier with 5-axis indexing (3+2 axis) or continuous 5-axis simultaneous milling capabilities?"
Dawang Precision’s engineering experience indicates that the choice depends entirely on the component's geometric features:
Opt for 5-Axis Indexing (3+2 Axis): If the strict ±0.003mm tolerance features of the actuator housing—such as critical bearing bores, highly coaxial inner diameters, or precision seal grooves—are distributed across different planes or specific angles, but the features themselves are regular geometries, indexing is highly recommended. In this mode, the machine locks the rotational axes (A/B/C) mechanically after positioning, turning into a highly rigid 3-axis state for cutting. By eliminating the compound errors inherent in dynamic interpolation, this approach makes it much easier to deliver ±0.003mm dimensional tolerances across multiple faces.
Choose Continuous 5-Axis Simultaneous Milling: If the housing features continuously varying surfaces, such as complex fluid channels, weight-reduction organic geometries, or non-linear transition edges, the tool must cut while the rotational axes are in motion. Holding a 3-micron tolerance during dynamic interpolation places extreme demands on the machine's geometric accuracy, RTCP (Rotational Tool Center Point) tracking algorithms, and dynamic tool rigidity.
Localized Resonance in Thin-Walled Structures (Thin-Wall Chatter): The leading and trailing edges of complex impellers are often extremely thin. As material is removed during cutting, the local rigidity of the workpiece decreases. Periodic tool engagement can easily induce high-frequency resonance (chatter), leaving visible marks that ruin both the surface finish and the final dimensional accuracy.
To overcome these physical constraints and ensure repeatability across production batches, Dawang Precision standardizes high-speed milling (HSM) parameters and implements a comprehensive closed-loop manufacturing control system.
We replace traditional heavy-cut milling with high spindle speeds ranging from 24,000 to 42,000 RPM, paired with minimal radial depth of cut (Ae) and axial depth of cut (Ap).
Reduced Cutting Forces: At high cutting speeds, the shear angle of the material increases before chip formation, significantly reducing cutting resistance and minimizing radial tool deflection.
Heat Dissipation: In high-speed machining, most of the frictional heat is carried away by the rapidly evacuated chips. Very little thermal energy transfers to the workpiece or the spindle, effectively suppressing material thermal deformation.
We utilize advanced CAM software (such as HyperMILL) to optimize toolpaths with trochoidal milling or arc interpolation, preventing the tool from abrupt direction changes at blade roots or deep cavity corners of the actuator housing. Maintaining a constant chip load per tooth eliminates cutting force spikes, which is vital for preserving freeform surface profiles.
For high-precision machining, we mandate shrink-fit tool holders over conventional collet chucks. Utilizing thermal expansion to clamp solid carbide tools creates a seamless, rigid tool-holder assembly, keeping radial runout under 1.0 μm. Additionally, all tool assemblies undergo G2.5 grade dynamic balancing to minimize spindle micro-vibrations at high RPMs.
High-Precision Alignment: Before machining, an integrated radio probe checks and aligns the workpiece coordinate system.
Real-Time Compensation: During the machining cycle, an in-machine laser tool setter monitors axial tool wear and thermal elongation, automatically feeding data back to the CNC system for real-time offset compensation.
Regular RTCP Calibration: We calibrate the machine’s 5-axis RTCP (Rotational Tool Center Point) weekly to maintain multi-axis interpolation accuracy at the micron level.
A 3-micron tolerance window is highly sensitive to temperature fluctuations. Our precision machining workshop maintains a strict, 24/7 climate-controlled environment at 20°C ±0.5°C. Furthermore, the machine foundations are isolated from workshop floor vibrations to block external mechanical noise.
Machine rigidity and feedback accuracy are prerequisites for executing high-precision toolpaths. Dawang Precision’s facility of over 400 advanced machining centers provides both the capacity needed for consistency in mass production and the technical foundation required for micron-level tolerances.
For high-precision components like automotive impellers, turbine blades, and precision actuator housings, we rely primarily on our specialized 5-axis machining fleets:

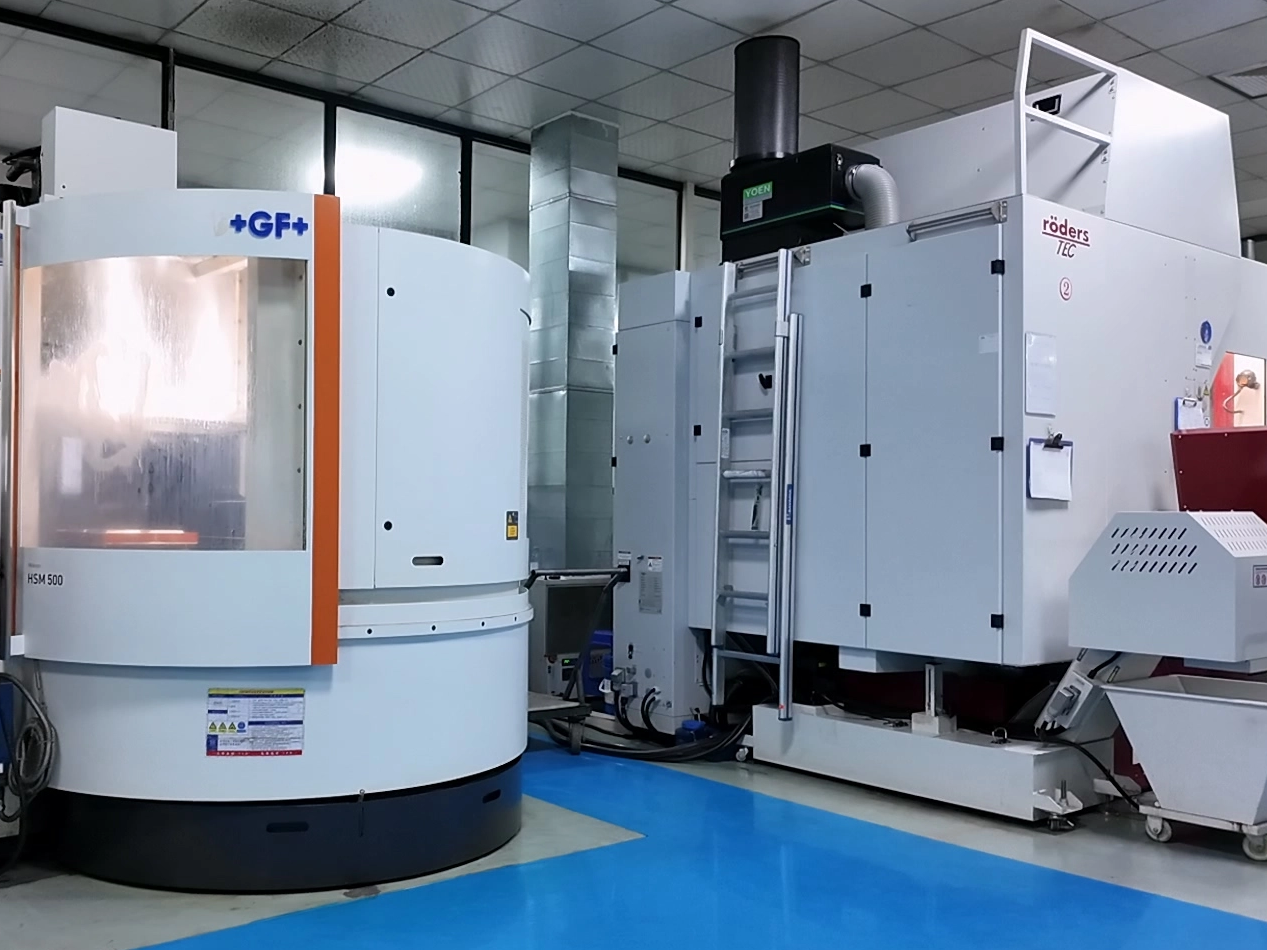

German Roeders 5-Axis Machining Centers: Equipped with linear motors on all axes, these machines completely eliminate the mechanical wear and backlash associated with traditional ball screws. Paired with nano-resolution optical scales, they execute minute feed compensations, delivering stable profile accuracy on complex freeform surfaces or simultaneous features.
Japanese Mazak 5-Axis Machining Centers: Featuring highly rigid cast-iron beds and intelligent Thermal Shield technology, these systems automatically predict and compensate for temperature shifts. They are ideal for parts requiring both substantial material removal and tight dimensional tolerances, allowing multi-sided precision machining (perfect for 3+2 axis multi-face indexing) in a single setup to eliminate secondary clamping errors.
With 26 years of manufacturing experience, we have accumulated comprehensive cutting data for various metals—including aluminum, titanium, stainless steel, and nickel-based superalloys—across diverse multi-axis interpolation paths. Combining large-scale equipment infrastructure with data-driven manufacturing processes allows us to maintain stable tolerance bands throughout the entire production lifecycle.
Achieving a stable ±0.003 mm precision tolerance requires the careful synchronization of high-end machinery, optimized process parameters, rigid tooling systems, and strict environmental controls. Whether using 3+2 indexing for multi-sided complex hole patterns or 5-axis simultaneous milling for continuous freeform profiles, Dawang Precision leverages its extensive equipment capacity and engineering experience to help hardware engineers worldwide solve complex machining challenges for fluid machinery and compact housing components.
If your next project (such as a rotary actuator housing or complex impeller) involves strict dimensional tolerances or complex geometries, our engineering team is here to assist.
Please send your STEP or PDF drawings directly to our engineering team at peng@dawangprecision.com. Our senior engineers will provide a complimentary, detailed Design for Manufacturability (DFM) assessment within 24 hours, offering actionable recommendations on manufacturing feasibility (evaluating whether to use 3+2 indexing or a 5-axis simultaneous path), toolpath optimization, and cost reduction.
Q1: How do you accurately measure a ±0.003 mm tolerance on complex curved surfaces?
A1: We use high-precision Coordinate Measuring Machines (CMM) with scanning probes in a temperature-controlled metrology lab. For freeform profiles like impellers, blue-light 3D scanning is used to compare dense point clouds directly against the design CAD model.
Q2: Which metals are the easiest or hardest to achieve a 3-micron tolerance?
A2: Aerospace aluminum (e.g., 6061-T6) is easy to machine but has a high thermal expansion coefficient, requiring strict temperature control. Titanium and stainless steel are thermally stable but generate high cutting forces, requiring high-speed milling paired with real-time tool wear compensation.
Q3: How do you prevent dimensional drift during high-volume production batches?
A3: In-machine laser tool setters automatically detect tool wear and thermal elongation after fixed cycles, applying real-time drift compensation to the CNC controller. We also track Cpk indices via SPC software and strictly standardize raw material hardness batches.
Q4: Does specifying a ±0.003 mm tolerance significantly impact manufacturing cost and lead time?
A4: Yes. Micron-level precision demands linear-driven machines, shrink-fit tooling, slower finishing feed rates, and 100% CMM inspection. We recommend specifying 3-micron tolerances only on critical functional features like bearing seats and seal grooves.
Q5: Can standard clamping methods hold a tight 3-micron tolerance for housing components?
A5: No. Standard vises cause non-uniform clamping pressure, leading to micro-deformation once the part is released. Custom hydraulic or pneumatic fixtures are mandatory to apply constant clamping forces precisely on pre-engineered datum surfaces.
