Injection Mold Making
Custom injection molds engineered around your part geometry, plastic material, tolerance, surface finish and production requirements.
close
Choose Your Site
Global
Social Media
Custom Mold Solutions Built Around Your Product and Production Volume
We select the tooling structure, mold steel, cavity configuration and cooling strategy according to your material, annual demand, surface requirements, tolerance targets and expected mold life.
Custom injection molds engineered around your part geometry, plastic material, tolerance, surface finish and production requirements.
Cost-effective rapid molds for prototype validation, design testing, bridge production and lower-volume plastic part manufacturing.
Durable production molds designed for stable cycle times, consistent part quality and medium- to high-volume manufacturing.

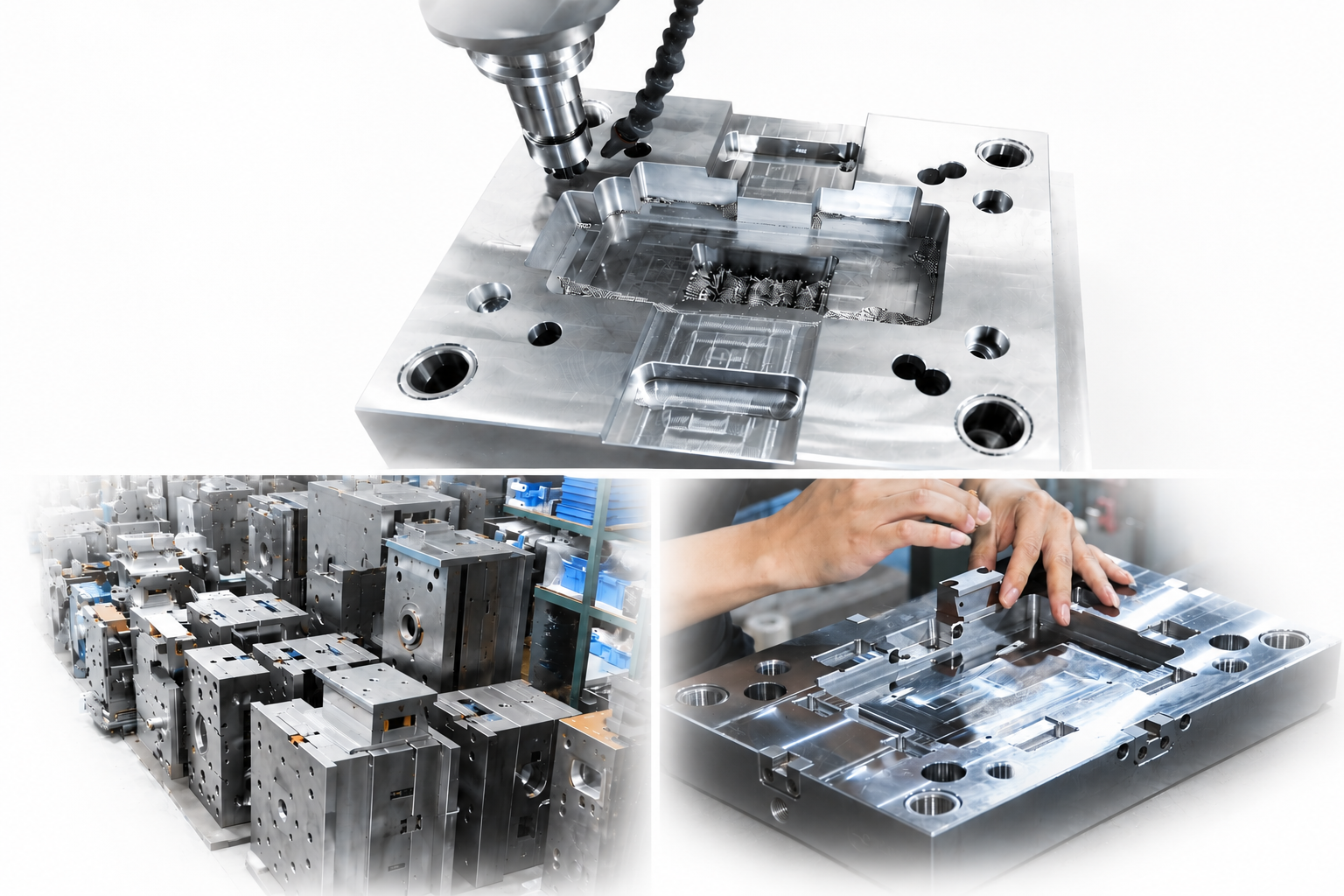

Precision machining of mold cores, cavities, inserts, sliders, lifters and other critical tooling components.
Multi-cavity and family mold solutions developed to improve output, reduce unit cost and support efficient production.
Mold maintenance, component replacement, engineering changes and tooling optimization for existing injection molds.
A Controlled Workflow from Drawing Review to Mold Trial
From engineering review to production release, every mold follows a controlled manufacturing workflow.

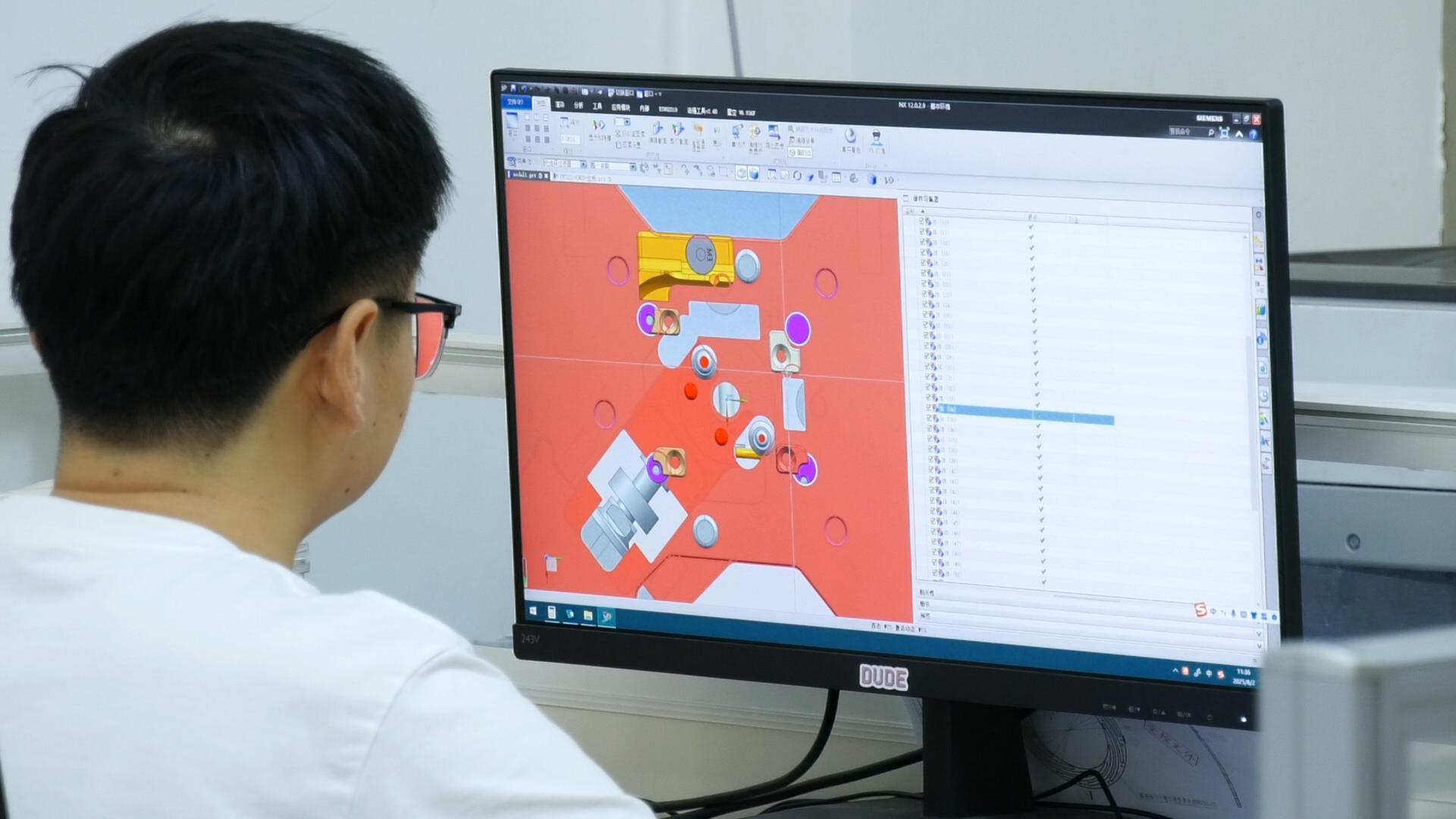

Drawing Review
Risk Evaluation
Structure Planning
Material Choice
Core & Cavity
Complex Features
Polishing & Texture
Component Check
T1 Validation
Dimension Check
Process Improve
Final Delivery
Common Mold Materials for Different Production Requirements
Mold steel is selected according to plastic material, annual production volume, required surface finish, corrosion resistance, dimensional stability and expected mold life.
| Mold Steel | Hardness | Typical Applications | Mold Life | Recommendation |
|---|---|---|---|---|
| P20 | 28–34 HRC | General-purpose injection molds, household products, automotive interior parts and medium-volume production. | 300,000–500,000 shots | Recommended for cost-effective standard production molds. |
| 718H | 33–38 HRC | Automotive components, appliance housings, medium-to-large molds and applications requiring improved polishability. | 500,000–800,000 shots | Recommended for durable molds with stable machining performance. |
| NAK80 | 37–43 HRC | High-gloss plastic parts, optical housings, consumer electronics and molds requiring mirror polishing. | 500,000–800,000 shots | Recommended for excellent surface finish and dimensional stability. |
| S136 | 48–52 HRC | Transparent plastic parts, medical-related housings, corrosive resins and high-polish precision applications. | 800,000–1,000,000+ shots | Recommended for corrosion resistance, cleanliness and long mold life. |
| H13 | 48–52 HRC | High-temperature tooling, die casting molds, hot runner components and wear-resistant mold inserts. | 800,000–1,000,000+ shots | Recommended for high heat, impact resistance and demanding production. |
Frequently Asked Questions About Custom Mold Manufacturing
Find practical answers about custom injection mold design, tooling cost, mold steel, lead time, precision, mold life, quality inspection and production support.
