Quick Answer

CNC turned parts are precision components produced by rotating a workpiece against computer-controlled cutting tools. CNC turning is best suited to cylindrical parts such as bushings, shafts, pins, screws, connectors, and fittings. Part quality depends on material machinability, geometry, tolerance allocation, workholding, cutting strategy, and surface finish. For engineers, the key is to apply tight tolerances only where function requires them and design critical features for stable, repeatable machining.

This guide explains the design features, materials, tolerances, surface finishes, and manufacturing challenges that matter when sourcing CNC turned parts.

What Are CNC Turned Parts?

CNC turned parts are components manufactured primarily on CNC lathes or turning centers. The workpiece rotates around its centerline while cutting tools remove material to produce diameters, shoulders, bores, tapers, grooves, and threads.

Typical turned components include bushings, shafts, pins, screws, electrical connectors, and hydraulic or pneumatic fittings.

Turning is most efficient when critical features share a common axis. Modern turning centers with live tooling can also produce cross-holes, flats, slots, and other secondary features in the same setup.

Keeping related features in one setup can reduce accumulated positioning error and improve relationships between diameters, bores, shoulders, and threads.

Key Design Features of CNC Turned Parts

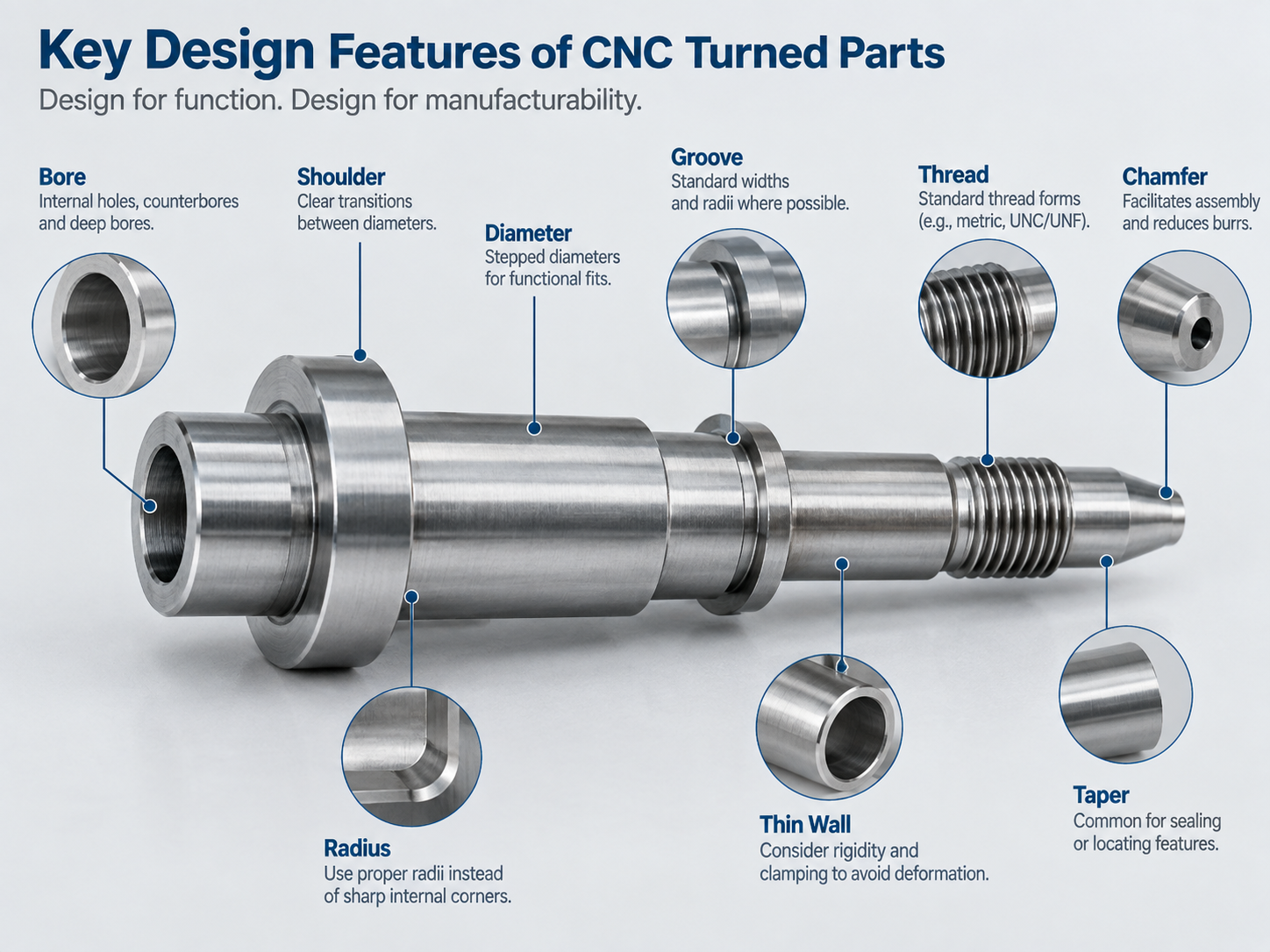

CNC turned parts design features showing diameters, shoulders, grooves, threads, bores, and radii.png

Good turned-part design starts with function. Identify which surfaces locate, rotate, seal, carry load, or control assembly before assigning tolerances.

Diameters and Shoulders

Stepped diameters are common on machined shafts, bushings, pins, and fittings. Where function allows, use practical corner radii or reliefs instead of sharp internal corners. This improves tool access and allows stronger cutting tools.

Thin Walls

Thin-wall CNC lathe parts can deform from chuck pressure, cutting forces, or heat. The risk increases with thinner walls and longer unsupported sections.

Rather than using a universal minimum wall thickness, evaluate:

Material stiffness + wall thickness + unsupported length + clamping force + tolerance

Soft jaws, controlled chuck pressure, balanced roughing, and light finishing passes can help reduce deformation.

Holes and Bores

Deep, small-diameter holes are more difficult than shallow bores because chip evacuation, coolant delivery, heat, and tool deflection become harder to control as the depth-to-diameter ratio increases.

If only part of a bore controls fit, apply the tight tolerance to that functional section rather than the full depth.

Grooves and Threads

Use standard groove widths, practical root radii, and standard thread forms whenever possible. Non-standard or unnecessarily deep features may require special tools and longer cycle times without improving part function.

What Materials Are Best for CNC Turned Parts?

Material choice affects strength and corrosion resistance, but also cutting forces, chip formation, tool wear, dimensional stability, and total machining cost.

Material

Key Characteristics

Typical Applications

Aluminum 6061/7075

Lightweight, good machinability

Connectors, spacers, shafts

Stainless Steel 303

Good corrosion resistance and machinability

Fittings, fasteners

Stainless Steel 304/316

High corrosion resistance, harder to machine

Fluid and industrial components

Carbon/Alloy Steel

High strength, heat-treatable

Shafts, pins

Brass

Excellent machinability and repeatability

Connectors, fittings

Copper

High conductivity

Electrical parts

POM/Acetal

Low friction, good stability

Bushings, rollers

PEEK

Heat and chemical resistance

High-performance components

The cheapest material is not always the lowest-cost choice. A difficult-to-machine alloy may require slower cutting, more tool changes, or additional finishing.

For precision turned parts, material selection should balance functional performance with machinability and production cost.

What Tolerances Are Practical for CNC Turned Parts?

CNC turning tolerances and GD&T for precision turned shafts and critical machined features.png

There is no universal CNC turning tolerance. Achievable accuracy depends on material, diameter, geometry, feature length, machine stability, tooling, and inspection method.

For many non-critical turned features, ±0.05 to ±0.10 mm can be practical starting points. Tighter tolerances are possible on selected features when required, but they generally increase machining and inspection effort.

A better approach is function-based tolerance allocation:

Feature

Recommended Control

Clearance/non-critical feature

General machining tolerance

Locating or assembly feature

Controlled dimensional tolerance

Bearing or sealing surface

Tight dimensional and surface control

Rotating relationship

Appropriate GD&T

For example, a shaft may have many dimensions while only two bearing journals determine its functional fit. Tightening every dimension increases cost without improving performance.

For machined shafts and other rotating components, diameter alone may not be sufficient. Straightness, circular runout, total runout, cylindricity, or perpendicularity may better describe the functional requirement.

What Surface Finish Do CNC Turned Parts Need?

Surface roughness affects friction, wear, sealing, fatigue behavior, coating adhesion, and appearance.

Surface Roughness

Typical Use

Standard machined

Non-critical surfaces

Ra 3.2 μm

General mechanical features

Ra 1.6 μm

Precision mating surfaces and shafts

Ra 0.8 μm or finer

Selected bearing or sealing surfaces

These are practical engineering references, not universal capability limits.

Finer surfaces typically require controlled finishing feeds, stable workholding, suitable tool geometry, and sometimes grinding or polishing. Therefore, specify low Ra values only where they provide functional value.

Common secondary finishes for turned metal parts include anodizing, hard anodizing, passivation, electroless nickel plating, zinc plating, black oxide, grinding, and polishing.

For precision fits, drawings should clearly state whether dimensions apply before or after coating, because coating thickness can affect final size.

Common CNC Turning Challenges and Solutions

The most difficult turning projects usually involve a combination of challenging geometry, material behavior, and tight tolerances.

Long and Slender Shafts

High length-to-diameter ratios reduce rigidity and can cause chatter, taper, straightness error, and inconsistent surface finish.

Solution: Reduce unsupported length where possible, use appropriate support such as a tailstock or steady rest, minimize radial cutting forces, and use stable finishing parameters.

Thin-Wall Deformation

Bushings, sleeves, and connectors may distort under clamping pressure or after material is removed.

Solution: Use soft jaws or larger contact areas, control chuck pressure, separate roughing and finishing, and inspect critical dimensions after unclamping.

Stainless Steel Tool Wear

Stainless steels such as 304 and 316 generate heat and may work-harden under unstable cutting conditions.

Solution: Use appropriate carbide tooling, maintain positive cutting action, avoid unnecessary dwell, and control cutting speed, feed, depth of cut, and coolant as one machining system.

Deep-Hole Machining

Deep bores increase the risk of poor chip evacuation, tool deflection, and dimensional error.

Solution: Depending on geometry, use through-tool coolant, peck drilling, specialized drills, or boring/reaming to establish the final diameter.

Production Tolerance Drift

A successful prototype does not guarantee stable production. Tool wear, temperature, stock variation, and insert changes can shift dimensions during longer runs.

Solution: Use first-article inspection, tool-life management, in-process measurement, offset compensation, and SPC where critical dimensions justify statistical control.

For procurement teams, repeatable process capability matters more than one perfect sample.

How Do Machining Parameters Affect Precision Turned Parts?

There is no single ideal cutting speed or feed for all CNC turned parts.

The correct process depends on:

Material → diameter → tooling → rigidity → workholding → coolant → tolerance → surface finish

Roughing should prioritize stable material removal and chip control, while finishing should focus on dimensional consistency, low cutting forces, tool condition, and surface quality.

This distinction is especially important for thin-wall bushings, long shafts, precision pins, and sealing components.

Simply reducing feed rate does not always improve accuracy. Poor workholding, excessive tool overhang, thermal drift, or inadequate rigidity may be the real cause of dimensional variation.

Typical Applications of CNC Turned Parts

Bushings require controlled ID/OD relationships, roundness, wall stability, and wear-resistant surfaces.

Shafts often require accurate bearing journals, shoulders, grooves, straightness, and runout control.

Pins typically need consistent diameter, straightness, and reliable mating fits.

Screws may combine threads, shoulders, undercuts, and custom head features.

Connectors commonly use brass, aluminum, stainless steel, or copper and may require threads, grooves, plating, and sealing features.

Fittings often combine internal bores, threads, sealing cones, and hex features for hydraulic or pneumatic systems.

How to Reduce CNC Turned Parts Cost

Cost reduction should begin during DFM rather than after production starts.

The most effective strategies are to:

· Apply tight tolerances only to functional features.

· Select standard bar-stock sizes where possible.

· Avoid unnecessarily deep bores and narrow grooves.

· Use standard threads and tooling-friendly radii.

· Keep related critical features in one setup where practical.

· Specify fine surface finishes only where function requires them.

The purpose of DFM is not to reduce part performance. It is to remove manufacturing requirements that increase cost without adding functional value.

What Should You Include in a CNC Turned Parts RFQ?

For accurate quotation and manufacturing review, provide the supplier with:

· STEP or other 3D CAD file

· PDF engineering drawing

· Material and grade

· Required quantity

· Critical tolerances and GD&T

· Surface roughness

· Heat treatment or coating

· Inspection requirements

The 3D model defines geometry, while the 2D drawing communicates critical manufacturing requirements that may not be obvious from CAD alone.

A capable supplier should also be able to explain how it will control workholding, difficult geometry, critical tolerances, inspection, and production repeatability—not simply confirm that the part can be machined.

Dawang Precision has 26 years of precision manufacturing experience and more than 400 advanced machine tools, including Röders and Mazak five-axis equipment. Our engineering approach combines machining, process planning, tolerance analysis, inspection, and DFM review according to each project's requirements.

FAQs About CNC Turned Parts

Q1:What are CNC turned parts?

CNC turned parts are components produced on CNC lathes or turning centers by rotating the workpiece while cutting tools remove material. Typical examples include shafts, bushings, pins, screws, connectors, and fittings.

Q2:What materials can be used for CNC turned parts?

Common materials include aluminum, stainless steel, carbon and alloy steel, brass, copper, POM, and PEEK. The best material depends on mechanical requirements, environment, machinability, and cost.

Q3:What tolerances can CNC turning achieve?

Tolerance capability depends on material, geometry, diameter, machine stability, and inspection method. General features may use approximately ±0.05–0.10 mm, while tighter tolerances can be applied to selected critical features when required.

Q4:What surface finish can CNC turned parts achieve?

Ra 3.2 μm is suitable for many general mechanical surfaces, while Ra 1.6 μm or finer may be specified for precision mating, bearing, or sealing surfaces. Requirements should be based on function.

Q5:What parts are best suited for CNC turning?

CNC turning is ideal for rotational components such as bushings, shafts, pins, screws, connectors, fittings, sleeves, spacers, and other parts dominated by cylindrical features.

Q6:How can I reduce the cost of precision turned parts?

Use standard materials and stock sizes, avoid unnecessary tight tolerances, simplify deep or narrow features, standardize threads, and specify premium surface finishes only on functional surfaces.
