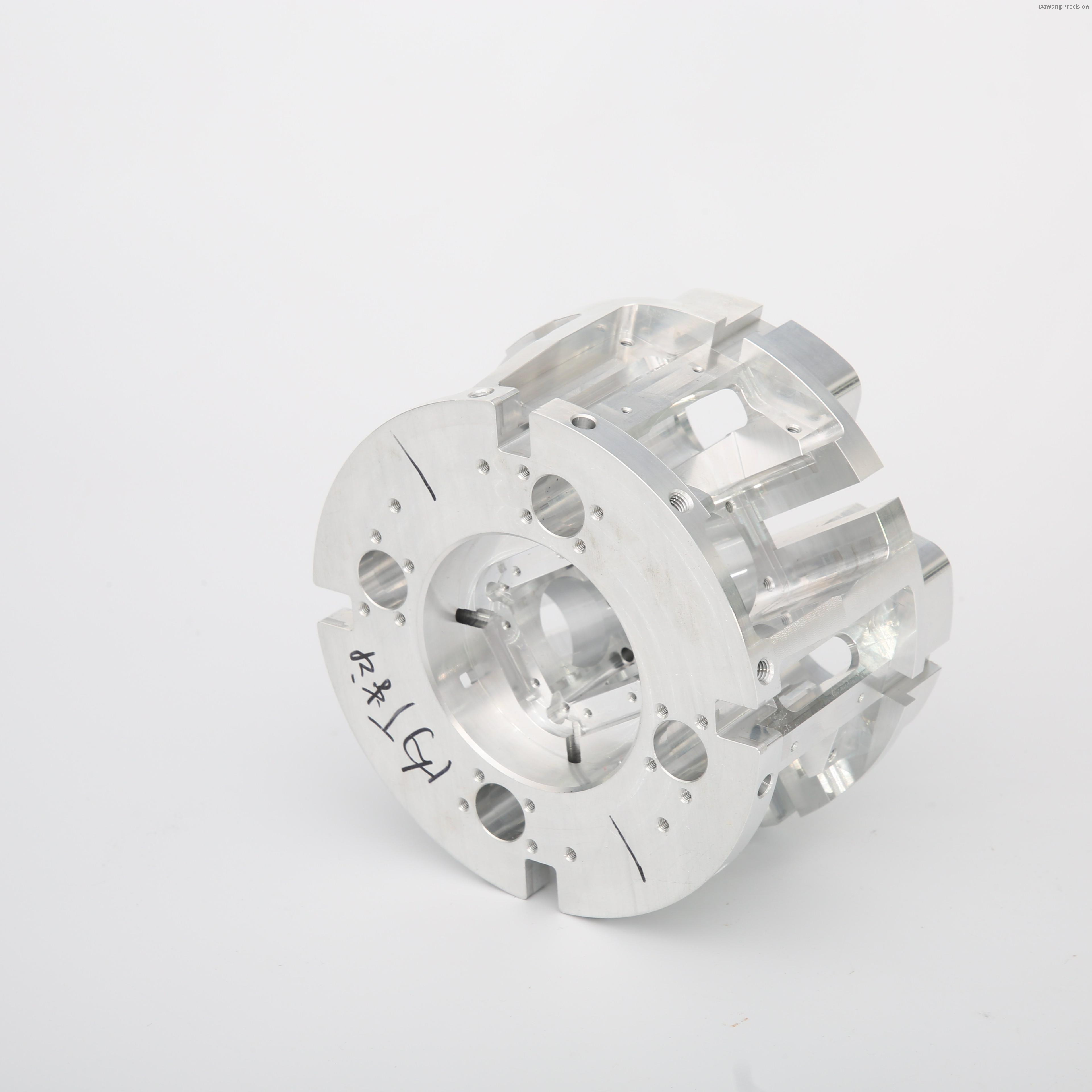

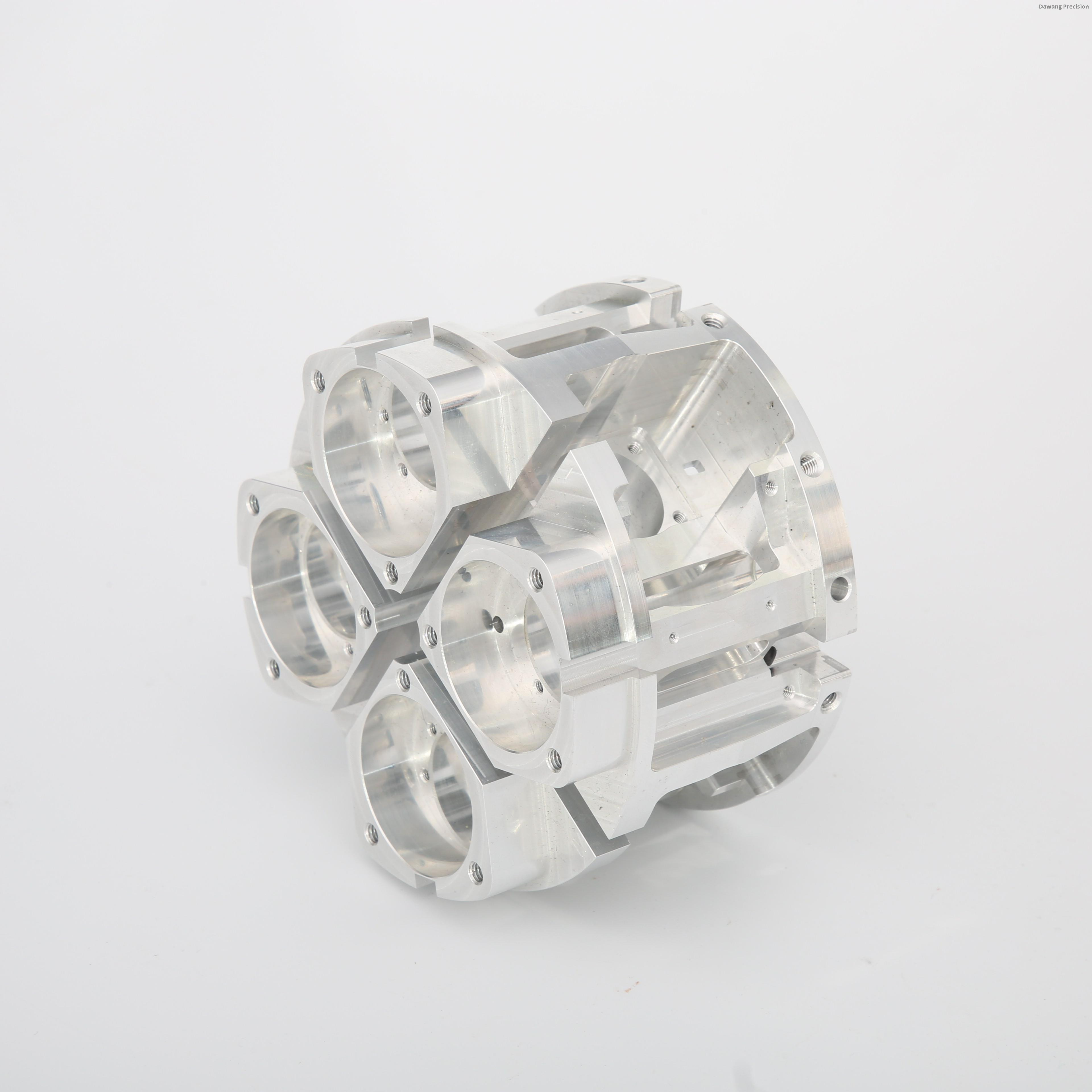

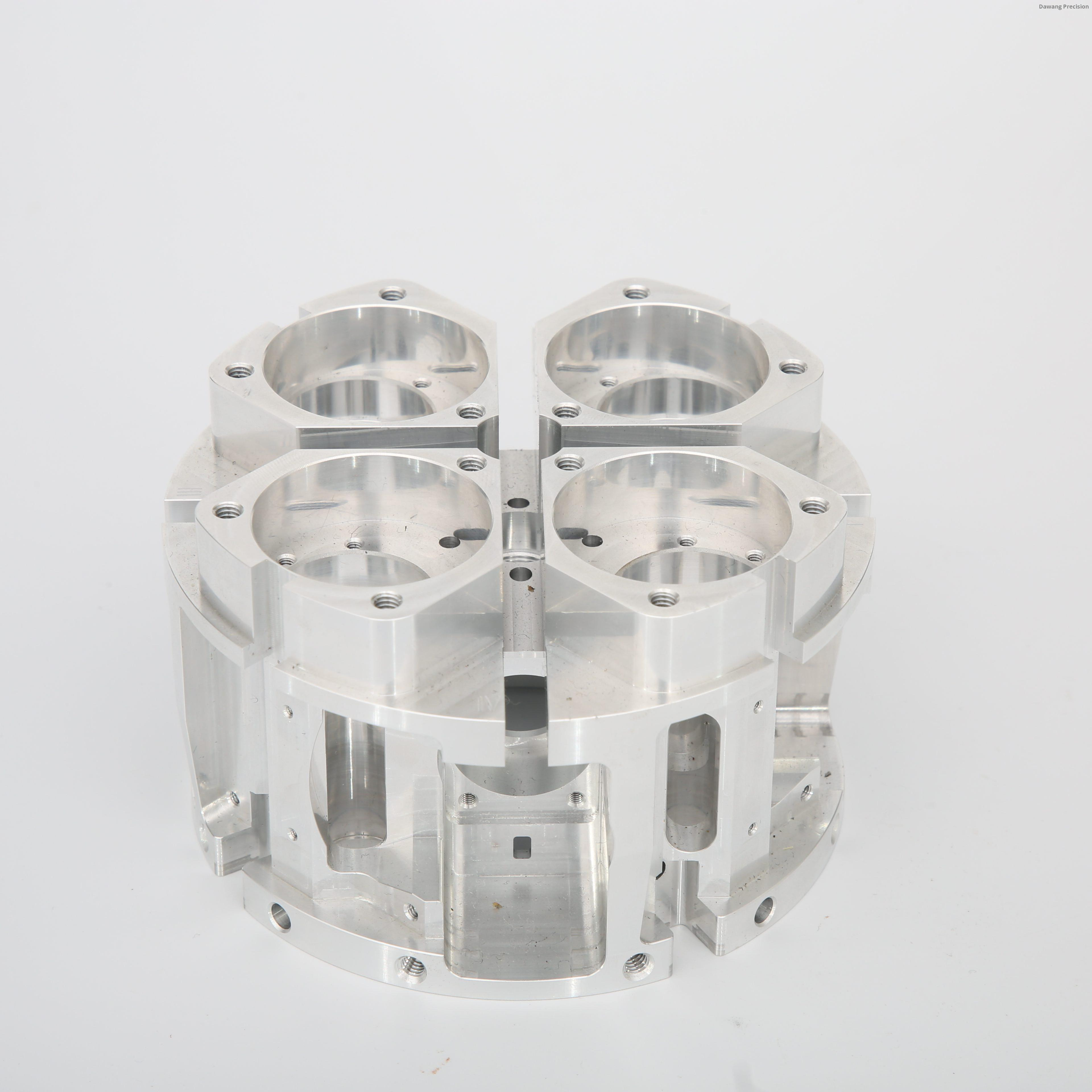

Precision CNC Machined Multi-Port Manifold Housing

Product Overview

Backed by 26 years of specialized CNC machining experience and full ISO 9001, ISO 14001, IATF 16949, ISO 13485 certifications, Dawang Precision designs and manufactures industry-leading Precision CNC Machined Multi-Port Manifold Housing for industrial equipment manufacturers and system integrators requiring robust fluid and gas control solutions. Our aluminum hydraulic manifold block is precision-engineered from high-strength 6061-T6/7075-T6 aluminum alloy, featuring multiple precision-machined ports and optimized internal flow channels to deliver stable, efficient fluid distribution for hydraulic and pneumatic systems. Fabricated via advanced 5-axis CNC machining, our 5-axis CNC machined fluid distribution housing achieves a tight ±0.01mm tolerance, ensuring leak-proof sealing, balanced pressure control, and long-term reliable performance even in high-pressure operating environments. We offer full end-to-end customization, from internal flow path design to port layout, material selection, and surface finishing, with free project quotations provided within 24 hours upon receipt of your CAD drawings or samples.

Dawang Precision manufactures custom multi-port manifold housings with advanced 5-axis CNC machining. This aluminum block features multiple precision cylinders and internal channels for efficient fluid or gas distribution—ideal for hydraulic valves, pneumatic systems, and industrial pumps requiring high pressure handling and reliable sealing.

Fully customizable for your port layout, material, and flow requirements.

Features & Benefits

Precision Flow Distribution & Minimal Pressure Loss

Our custom fluid control manifold housing features precision-engineered internal flow channels and multi-port layout, ensuring balanced fluid distribution across all outlets with minimal pressure drop. This optimized design maximizes system efficiency, reduces energy consumption, and ensures consistent performance of your hydraulic or pneumatic equipment.

High-Pressure Resistance & Leak-Proof Reliability

The reinforced structure and ultra-precision machining of our high-pressure pneumatic manifold deliver exceptional pressure resistance, withstanding demanding loads of continuous high-pressure hydraulic and pneumatic operations. The ±0.01mm machining tolerance ensures perfect sealing surface mating, eliminating fluid leakage risk and reducing system maintenance and downtime for your operations.

Lightweight High-Strength Aluminum Construction

Crafted from premium 6061-T6/7075-T6 aluminum alloy, our precision ported manifold housing offers an unmatched balance of high structural strength and lightweight design, reducing overall system weight without compromising pressure capacity or durability. This makes it ideal for weight-sensitive applications in aerospace, automotive, and mobile equipment.

Superior Corrosion & Wear Protection

The anodized surface finish of our industrial aluminum fluid manifold provides excellent corrosion and abrasion resistance, protecting components from harsh chemicals, extreme temperatures, and abrasive operating conditions, extending fluid control system service life in demanding industrial environments.

Fully Customizable Flow Path & Port Configuration

We provide complete design flexibility to customize port count, port size, internal channel geometry, mounting hole positions, and material specifications to perfectly match your unique flow control requirements, ensuring seamless integration into your existing hydraulic or pneumatic systems.

Applications of Precision CNC Machined Multi-Port Manifold Housing

Our Precision CNC Machined Multi-Port Manifold Housing is extensively used by industrial equipment manufacturers and system integrators across core sectors, including hydraulic and pneumatic multi-way valve systems for industrial automation, industrial pump cylinder blocks and fluid power transmission equipment, aerospace fuel delivery and on-board fluid control systems, automotive fluid distribution and transmission control systems, as well as new energy, robotics, and medical device fluid and gas control applications.

This type of product can be applied to:

• Hydraulic and pneumatic multi-way valves

• Industrial pump cylinder blocks

• Aerospace fuel/fluid manifolds

• Automotive fluid distribution systems
