Vacuum casting rapid prototyping is a manufacturing process that uses silicone molds and polyurethane materials to produce functional prototype parts with production-like appearance, mechanical properties, and surface quality. It is widely used for enclosure prototypes, pre-production testing, and low-volume manufacturing. Depending on part geometry and material selection, vacuum casting can typically achieve dimensional accuracy of approximately ±0.15–0.30 mm and support prototype runs from 10 to 100+ parts.
In modern product development, engineering teams need more than a visual sample. They need functional prototypes that accurately represent the final product’s performance, assembly requirements, and user experience before investing in mass production.
For industries such as consumer electronics, industrial automation, medical devices, and robotics, prototype parts are often required for design validation, assembly testing, and customer approval.
Traditional injection molding is ideal for high-volume production but requires significant upfront tooling investment. CNC machining provides excellent precision but can become expensive when producing complex plastic geometries or multiple design iterations.
This is where vacuum casting rapid prototyping provides an efficient bridge between product development and production.
By combining silicone molds with polyurethane casting technology, manufacturers can quickly produce functional prototype parts that closely simulate final production components in appearance, material performance, and overall quality.
Dawang Precision has 26 years of precision manufacturing experience and operates more than 400 advanced machines, including Röders and Mazak five-axis machining centers. We provide integrated solutions from prototype development to low-volume manufacturing.
Vacuum casting is a manufacturing process that creates silicone molds from a master model and uses polyurethane resin injection under vacuum conditions to produce prototype parts.
The process begins with a high-precision master model. This master pattern can be produced through CNC machining, SLA 3D printing, or other precision prototyping methods. The surface quality and dimensional accuracy of the master model directly influence the final prototype results.
After the master model is completed, engineers create a flexible silicone mold around it. Compared with traditional metal tooling, silicone molds offer lower production costs while providing excellent reproduction of complex surfaces, fine details, and intricate geometries.
During the casting stage, polyurethane resin is mixed, degassed, and injected into the silicone mold inside a vacuum chamber. The vacuum environment reduces trapped air and improves internal consistency, surface finish, and overall part quality.
After curing, demolding, and finishing processes, the final prototype parts are ready for functional testing, assembly validation, and customer evaluation.
One of the biggest advantages of vacuum casting is the ability to use different polyurethane materials to simulate production plastics.
For example, ABS-like polyurethane is commonly used for electronic housings and industrial components, while PC-like materials provide improved heat resistance and impact performance. Flexible polyurethane can replicate rubber-like characteristics for seals, grips, and soft-touch components.
This material flexibility allows engineering teams to perform realistic testing before committing to production tooling.
For projects requiring dozens or hundreds of prototype units, vacuum casting offers a better balance between cost, speed, and product realism compared with other rapid prototyping methods.
Industry suppliers commonly indicate that silicone molds can typically support approximately 15–30 casting cycles, depending on part geometry, material selection, and quality requirements.

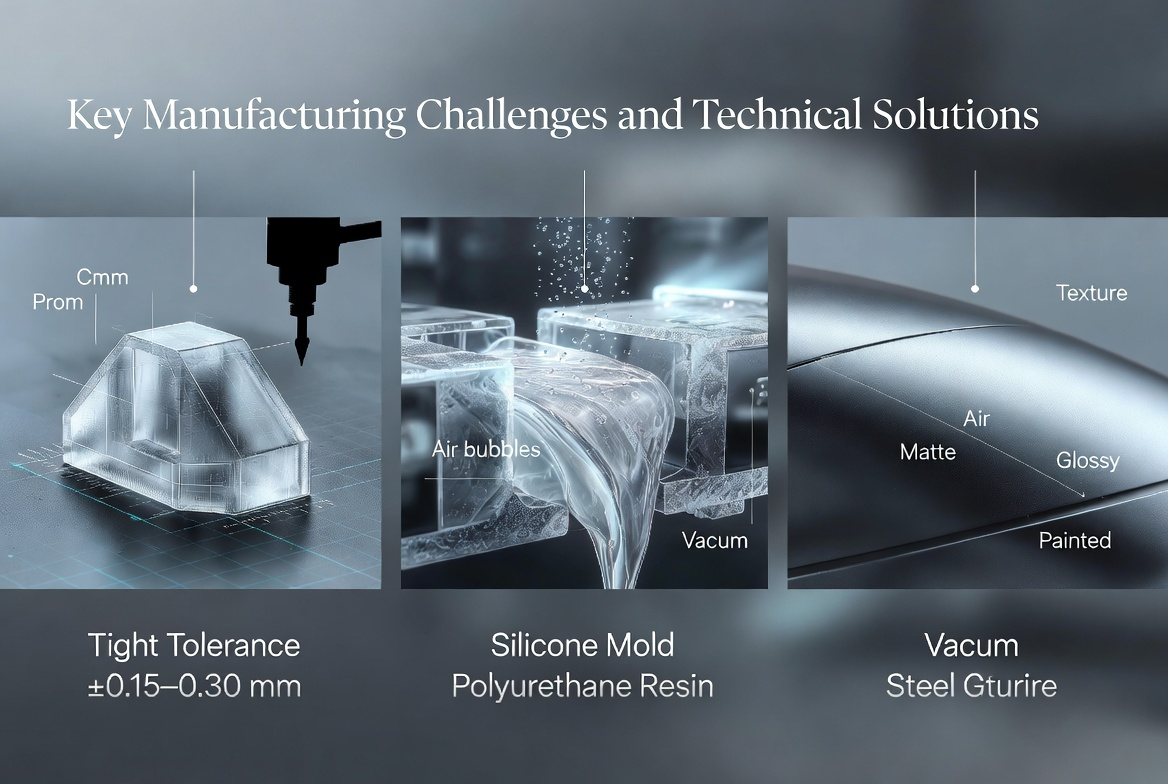

During vacuum casting, silicone mold shrinkage and resin curing behavior may influence final part dimensions.
For products requiring precise assembly, such as electronic enclosures and industrial components, dimensional variation can affect fit, function, and testing results.
At Dawang Precision, dimensional control is achieved through master model verification, mold compensation design, process optimization, and CMM inspection.
Depending on part complexity and material characteristics, vacuum casting can typically achieve tolerances around ±0.15–0.30 mm.
During polyurethane casting, trapped air can create internal voids or surface imperfections that affect appearance and mechanical performance.
To improve prototype consistency, the manufacturing process requires careful control of:
· Resin vacuum degassing
· Material mixing ratios
· Injection speed
· Mold venting design
These process controls help ensure prototype parts meet functional testing requirements.
For enclosure prototypes, appearance is often as important as mechanical performance.
Through high-quality master model preparation, optimized silicone mold production, and professional finishing processes, vacuum cast parts can achieve:
· Smooth cosmetic surfaces
· Textured finishes
· Painted appearances
· Production-like visual quality
This allows engineering teams to evaluate both product function and appearance before mass production.
Vacuum casting is widely used in industries where companies need realistic prototypes before production.
In consumer electronics, it is commonly applied to smart device housings, control panels, and product enclosures. In industrial applications, it supports equipment covers, automation components, and robotic structures.
During the pre-production stage, companies can use vacuum cast prototypes for assembly testing, performance validation, and customer approval without immediately investing in expensive injection molds.

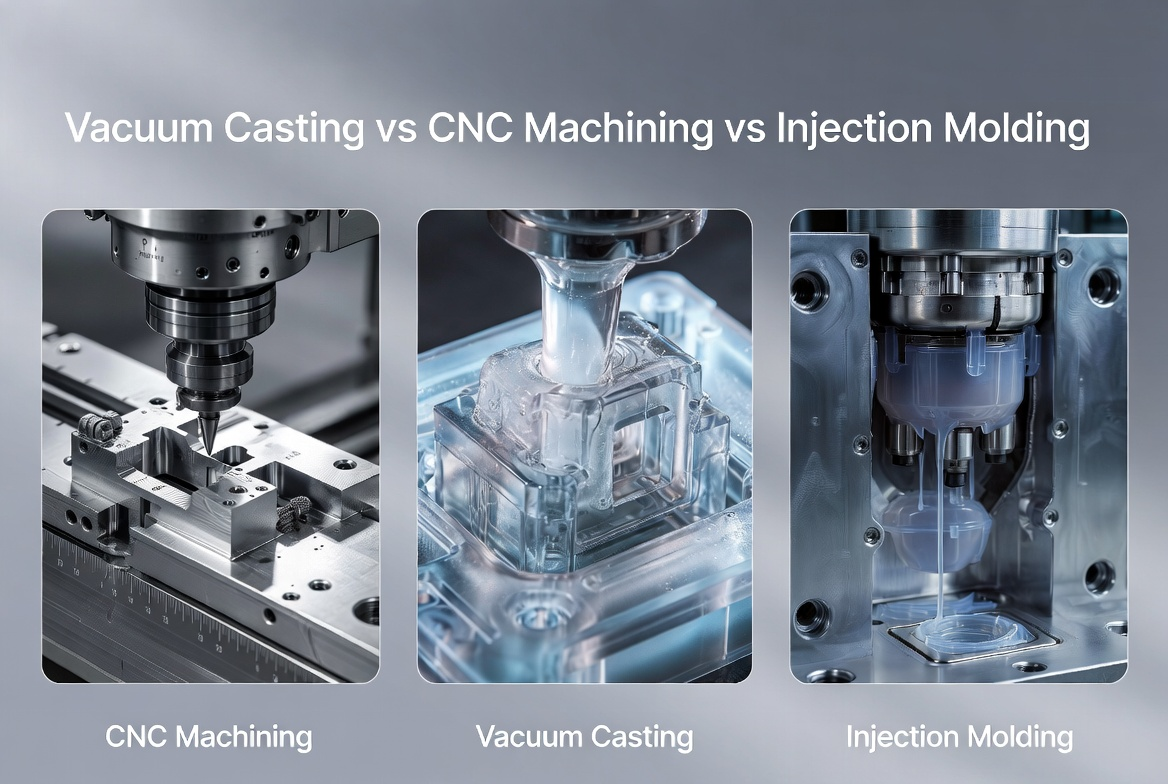

Different manufacturing processes serve different product development stages.
CNC machining is often preferred for high-precision prototypes and metal components due to its accuracy and material flexibility.
Injection molding is the best solution for large-scale production because it provides the lowest unit cost at high volumes, although it requires significant tooling investment.
Vacuum casting fills the gap between prototyping and production by providing realistic, low-volume prototype parts with lower tooling costs and faster development cycles.

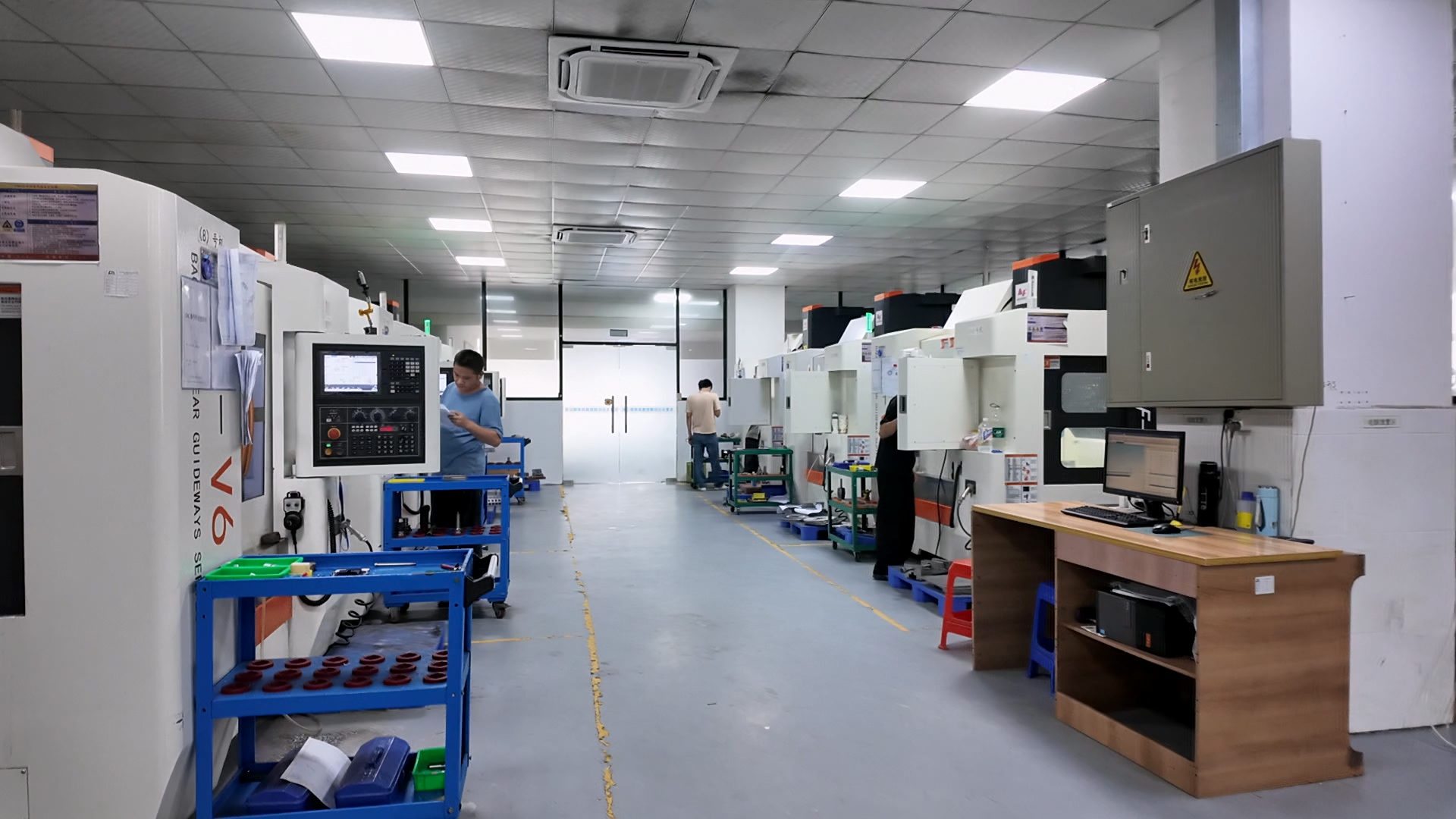

Successful prototype manufacturing requires more than advanced equipment. It requires engineering expertise, process control, and manufacturing experience.
Dawang Precision combines precision CNC machining, rapid prototyping, and low-volume production capabilities to support complete product development requirements, including:
· Master model development
· Vacuum casting production
· Surface finishing
· Dimensional inspection
With 26 years of manufacturing experience, more than 400 advanced machines, and five-axis machining capabilities from Röders and Mazak, we help global customers reduce development risks and accelerate product launches.
For companies requiring functional validation, enclosure testing, and low-volume prototype production, vacuum casting rapid prototyping provides an efficient and reliable manufacturing solution.
Through advanced polyurethane casting, precision silicone molds, and strict process control, companies can obtain production-like prototype parts before committing to full-scale manufacturing.
Send your STEP or PDF drawings to the Dawang Precision engineering team today. We provide a free DFM (Design for Manufacturing) evaluation and respond within 24 hours with professional recommendations for your vacuum casting and low-volume prototype manufacturing needs.
