Visual Prototype Finishing: SLA 3D Printing and Clear Polycarbonate Polishing for High-Quality Visual Prototypes

Quick Answer

Visual prototype finishing combines SLA 3D printing, CNC machining, clear polycarbonate polishing, and professional surface treatment to transform basic prototypes into production-like visual models. By improving surface quality, optical clarity, and cosmetic appearance, advanced finishing processes help engineers validate product designs, evaluate materials, and present realistic prototypes before mass production.

Why Visual Prototype Finishing Matters in Product Development

In modern product development, prototypes are no longer used only for dimensional verification or basic functional testing. For industries such as consumer electronics, automotive design, medical devices, and smart hardware, prototypes have become an important tool for design reviews, customer presentations, and market validation.

A standard prototype may confirm geometry, but it often cannot represent the final product’s appearance, surface texture, transparency, or premium feel.

This is especially important for products where visual perception directly influences purchasing decisions. A smartphone enclosure, automotive interior component, or transparent display cover must not only fit correctly—it must also look and feel like the final product.

This is why visual prototype finishing has become a critical stage between rapid prototyping and production manufacturing.

By combining SLA 3D printing, clear polycarbonate prototype machining, polishing, and professional painting, manufacturers can create high-quality visual prototypes that closely replicate production parts.

Dawang Precision provides integrated prototype manufacturing solutions supported by more than 26 years of precision manufacturing experience. With over 400 advanced machines, including Röders high-speed machining centers and Mazak five-axis machining centers, we help global customers transform product concepts into production-ready prototypes.

SLA 3D Printing for High-Detail Visual Prototypes

SLA (Stereolithography) 3D printing uses ultraviolet light to cure liquid photopolymer resin layer by layer. According to industry references such as Wikipedia, SLA remains one of the most widely adopted additive manufacturing technologies because of its ability to produce smooth surfaces, fine details, and complex geometries.

For early product development, SLA 3D printing offers significant advantages:

· Fast prototype production

· Excellent detail reproduction

· Complex design freedom

· Reduced development cost

However, freshly printed SLA parts are rarely suitable for premium visual presentation.

Common issues include:

· Visible layer lines

· Support marks

· Resin surface texture

· Limited transparency

· Uneven gloss

To achieve production-like appearance, additional visual prototype finishing processes are required.

Manufacturing Challenges in Visual Prototype Finishing

Challenge 1: Achieving Production-Level Surface Quality

One of the biggest challenges in SLA prototype finishing is removing printing characteristics while maintaining dimensional accuracy.

For example, a consumer electronics housing prototype may contain thin walls, curved surfaces, and detailed features that must remain accurate after finishing.

A professional finishing workflow typically includes:

· Resin cleaning after printing

· UV post-curing

· Support removal

· Surface sanding

· Primer preparation

· Final coating or painting

At Dawang Precision, engineers evaluate part geometry before production to determine the appropriate finishing process and prevent excessive material removal during post-processing.

This ensures the prototype maintains both visual quality and functional accuracy.

Clear Polycarbonate Prototype Machining and Polishing

Transparent components require a higher level of manufacturing control.

Clear polycarbonate (PC) is widely used in prototype applications because of its excellent:

· Impact resistance

· Heat resistance

· Mechanical durability

· Optical performance

Typical applications include:

· Automotive lighting components

· Transparent covers

· Display windows

· Optical housings

However, manufacturing clear PC prototypes requires specialized expertise.

During CNC machining, improper cutting conditions can create:

· Tool marks

· Surface scratches

· Stress whitening

· Reduced transparency

Therefore, controlling machining parameters and polishing methods is essential.

Advanced Manufacturing Process for Clear Polycarbonate Parts

Precision CNC Machining

The first step in clear polycarbonate prototype production is precision machining.

Engineers optimize:

· Cutting speed

· Feed rate

· Tool selection

· Cooling method

to reduce heat generation and prevent surface damage.

For complex transparent components, five-axis machining can improve surface consistency by reducing multiple setups and maintaining accurate tool paths.

Progressive Polishing Process

After machining, transparent PC components require multiple polishing stages.

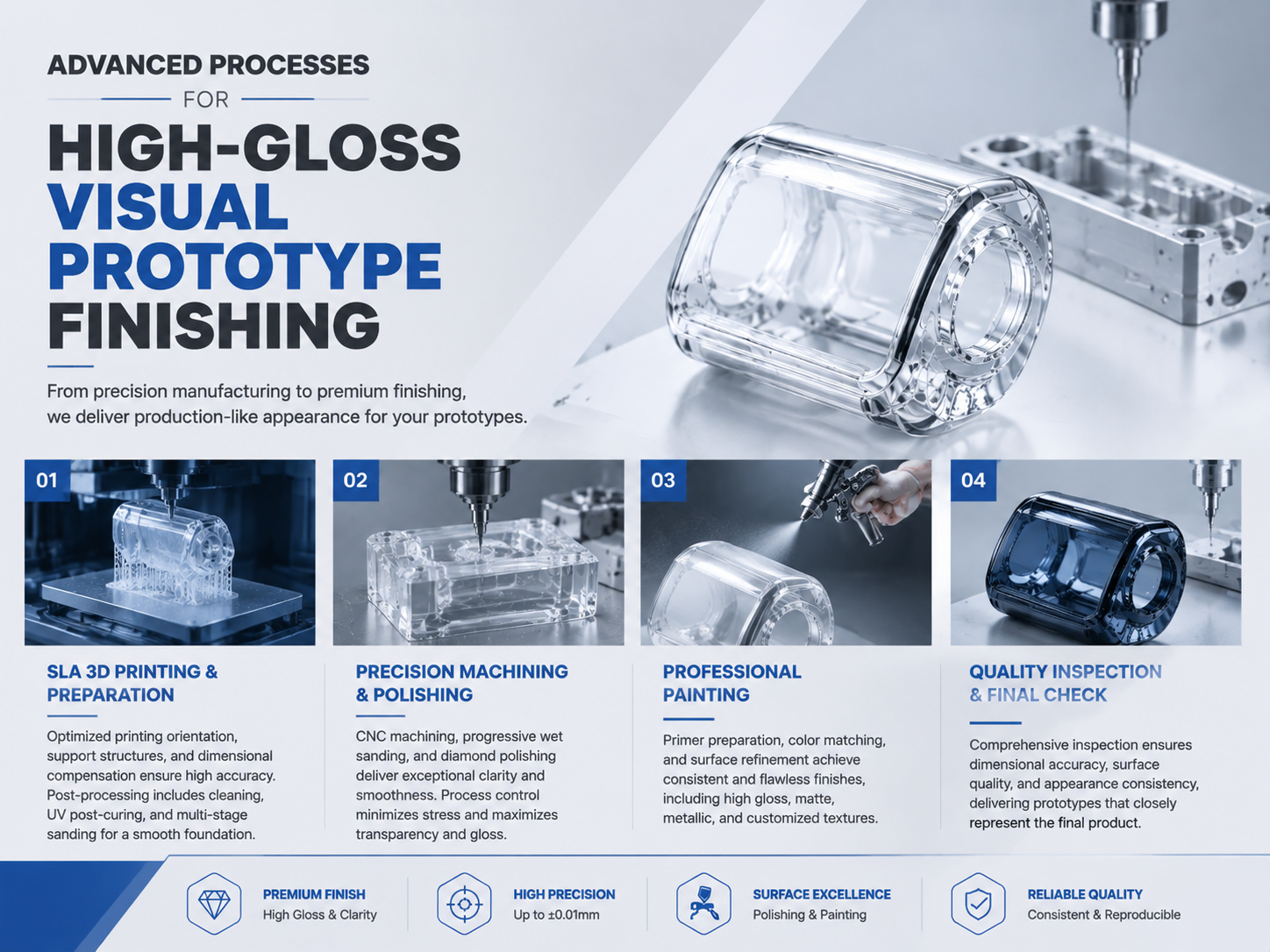

A typical process includes:

1. Surface inspection after machining

2. Progressive wet sanding

3. Fine surface refinement

4. Diamond polishing

5. Optical appearance inspection

This process removes machining marks and improves transparency, allowing prototypes to better represent final production components.

For applications such as automotive lighting or transparent electronic windows, surface quality directly affects how designers evaluate the final product.

Professional Prototype Painting and Cosmetic Finishing

For premium consumer products and automotive design concepts, painting is often the final step in visual prototype manufacturing.

Professional prototype painting can reproduce production-like finishes, including:

· High gloss surfaces

· Matte textures

· Metallic coatings

· Custom colors

The process typically includes:

· Surface preparation

· Primer application

· Color matching

· Protective coating

This allows design teams to review prototypes under realistic lighting conditions before investing in production tooling.

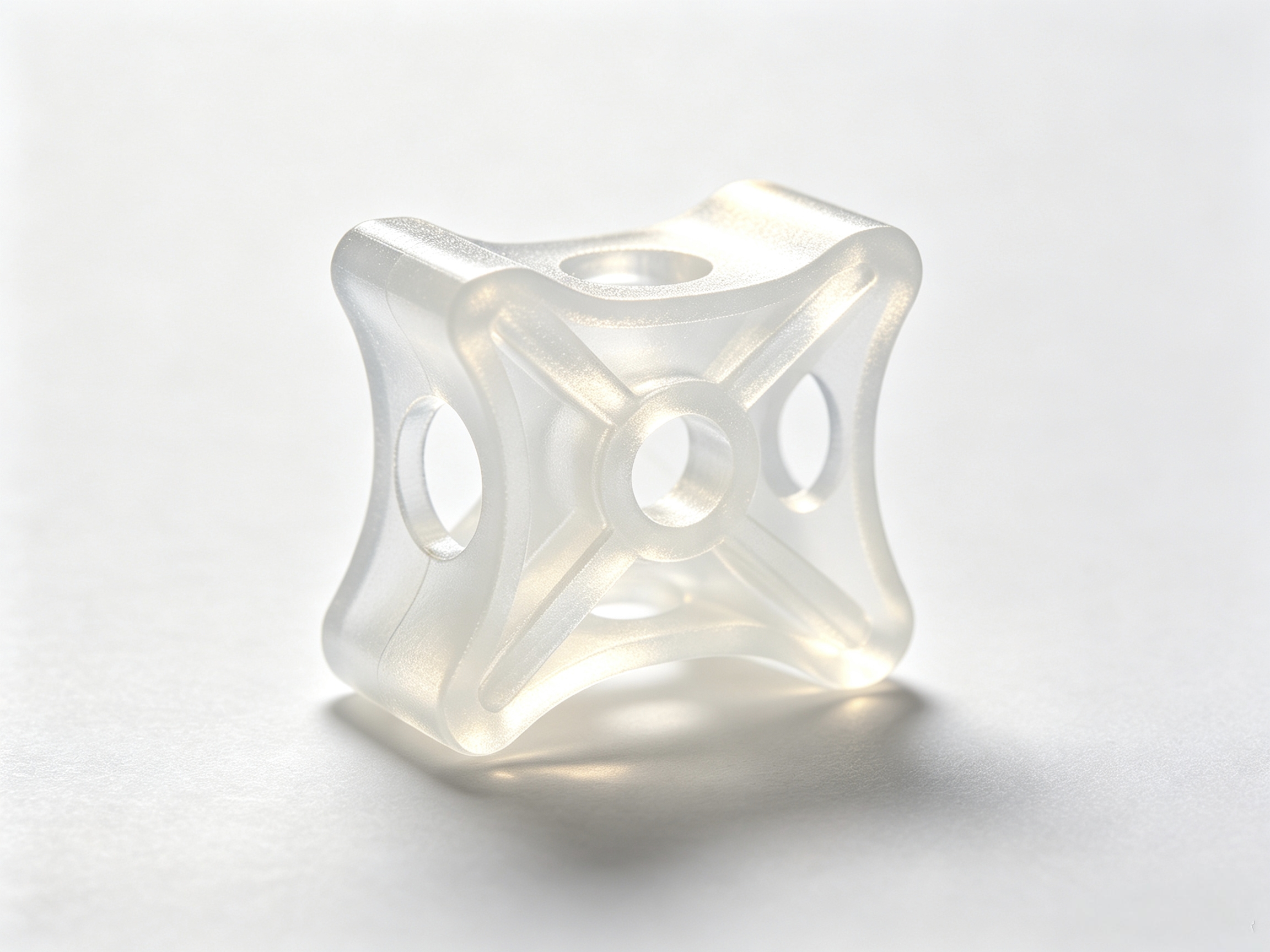

Precision Control for High-Quality Visual Prototypes

High-quality visual prototypes require more than attractive appearance. They must also meet engineering requirements.

Dawang Precision combines cosmetic finishing with precision manufacturing control through:

· CNC machining inspection

· Dimensional verification

· Surface quality evaluation

· Assembly testing

Our machining capabilities can achieve tolerances up to ±0.01 mm, while surface finishing capability can reach approximately Ra 0.2–0.8 μm depending on project requirements.

By balancing appearance, accuracy, and functionality, we help customers evaluate designs more realistically before mass production.

Applications of Visual Prototype Finishing

Consumer Electronics Prototypes

In consumer electronics development, high-quality prototypes are commonly used for:

· Smart device housings

· Transparent display windows

· Wearable products

· Smart hardware components

These prototypes allow engineering and design teams to evaluate:

· Product appearance

· Material selection

· User experience

· Brand presentation

before production begins.

Automotive and EV Prototype Manufacturing

Automotive companies increasingly rely on realistic prototypes for design validation.

Applications include:

· Interior components

· Lighting assemblies

· Transparent decorative parts

· EV concept models

For companies searching for an EV prototype machining supplier, advanced visual prototype finishing provides a realistic way to evaluate vehicle concepts before expensive tooling investment.

Why Choose Dawang Precision?

Dawang Precision provides complete visual prototype manufacturing solutions, including:

· SLA 3D printing

· CNC precision machining

· Five-axis machining

· Clear polycarbonate polishing

· Prototype painting

· Surface finishing

· Quality inspection

With:

· 26 years of precision manufacturing experience

· 400+ advanced machines

· Röders high-speed machining centers

· Mazak five-axis machining capabilities

we support global companies from initial concept validation to low-volume prototype production.

Whether you need a single presentation model, engineering validation prototype, or small-batch production parts, our engineering team can recommend the most efficient manufacturing approach.

Request a Free DFM Evaluation

If you are developing consumer electronics products, automotive concepts, EV prototypes, or high-precision visual models, send your STEP or PDF drawings to the Dawang Precision engineering team.

We provide a free DFM (Design for Manufacturability) evaluation, including:

· Material recommendations

· Manufacturing process optimization

· Surface finishing suggestions

· Cost improvement opportunities

Our engineers will respond within 24 hours to help you transform your product concepts into high-quality visual prototypes faster and more efficiently.
