Why ISO 13485 Compliance is Crucial for Medical Device Contract Manufacturing

Quick Answer

ISO 13485 is crucial for medical device contract manufacturing because it provides a quality management framework specifically designed for the medical device industry. For medical CNC machining, this means more than achieving dimensional accuracy. It establishes controls for materials, traceability, production processes, risk management, inspection, nonconforming products, and documented quality records.

For OEMs outsourcing medical devices and surgical tools, choosing an ISO 13485 certified contract manufacturing partner can reduce supplier risk and provide greater confidence that critical components can be produced consistently and documented throughout the manufacturing process.

Since February 2, 2026, the FDA's Quality Management System Regulation (QMSR) has incorporated ISO 13485:2016 into its medical device quality system framework, making the standard even more relevant for manufacturers serving the U.S. market.

What Does ISO 13485 Mean for Medical CNC Machining?

ISO 13485:2016 is an international quality management standard specifically developed for organizations involved in the medical device lifecycle. Unlike a general manufacturing quality system, it places greater emphasis on regulatory requirements, risk management, process control, traceability, and documented evidence.

This distinction is important when CNC machining is part of a regulated medical device supply chain.

A supplier may be able to machine a component to ±0.01 mm, but dimensional accuracy alone does not demonstrate that the manufacturing process is controlled sufficiently for a medical application.

A qualified medical CNC supplier should also be able to answer:

· Where did the material come from?

· Can the material lot be traced?

· How are critical dimensions controlled?

· How are process changes reviewed?

· How are nonconforming parts isolated?

· What inspection records are maintained?

· How is supplier and process risk managed?

· Can production results be reproduced from one batch to another?

These are the areas where an ISO 13485 quality management system becomes valuable.

Why ISO 13485 Matters in Medical Device Contract Manufacturing

Medical components often combine demanding technical requirements with strict quality expectations.

For example, a surgical tool may require tight dimensional tolerances, controlled surface finish, burr-free edges, corrosion-resistant material, and high cleanliness. A medical device housing may require precise interfaces while maintaining consistent performance across thousands of production cycles.

This creates several interconnected manufacturing risks.

The key point is that medical CNC machining is a controlled manufacturing process, not simply a precision machining operation.

Key Challenges in Medical CNC Machining

1. Maintaining Tight and Repeatable Tolerances

Medical components frequently contain small bores, thin walls, complex profiles, precision threads, and multiple mating surfaces.

The challenge is not only achieving a tolerance once, but maintaining it throughout production.

Tool wear, thermal expansion, cutting forces, fixture repeatability, and material movement can all affect final dimensions.

For critical features, manufacturers may combine optimized machining parameters, stable fixturing, in-process checks, tool-life control, and final CMM inspection.

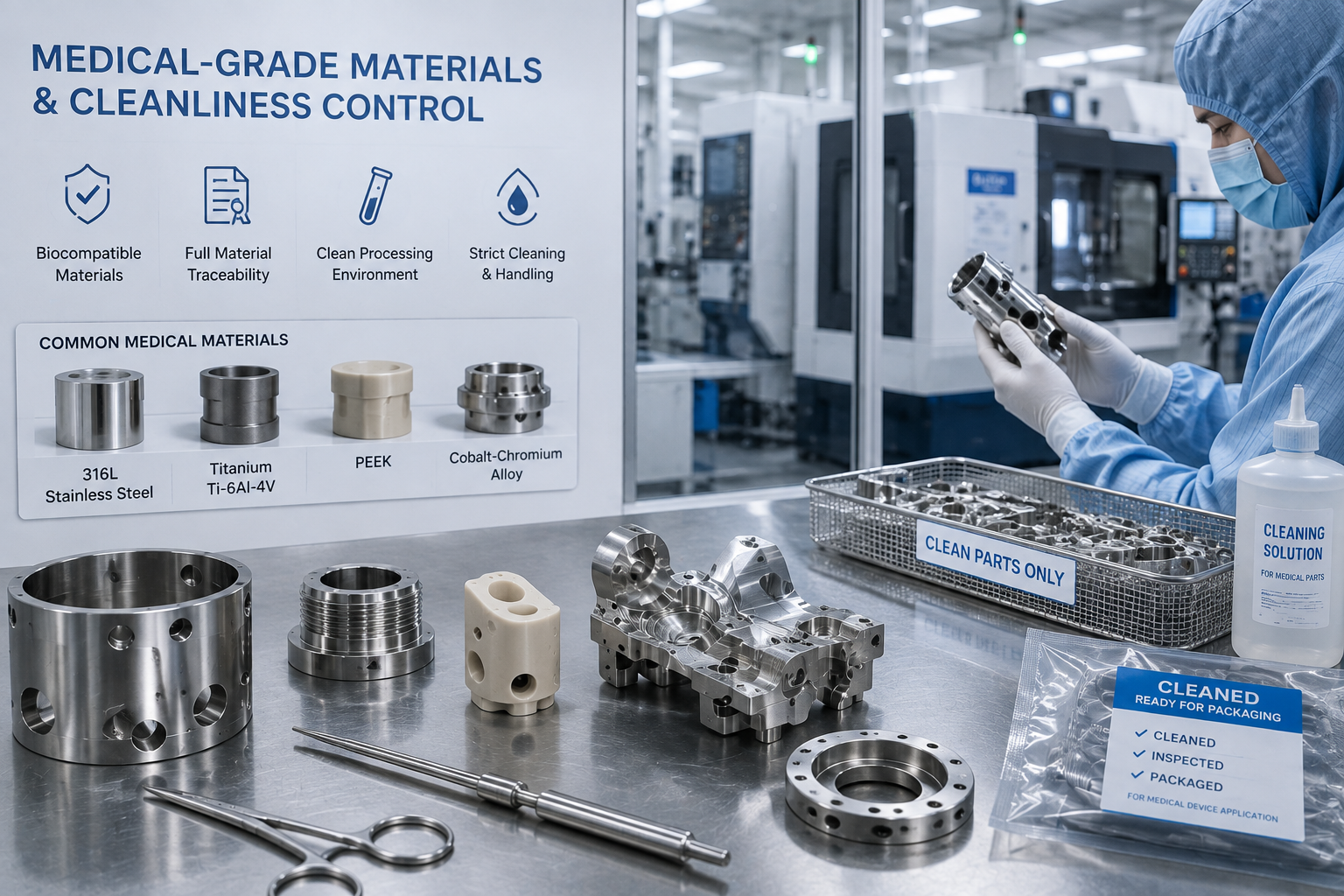

2. Controlling Medical-Grade Materials

Material selection depends heavily on the intended medical application.

Common materials for medical CNC machining include:

· 316L stainless steel

· Titanium alloys such as Ti-6Al-4V

· Medical-grade PEEK

· Cobalt-chromium alloys

· Application-specific aluminum alloys

For components requiring contact with the human body or exposure to demanding sterilization environments, material selection must be evaluated against the device's functional and regulatory requirements.

Material certificates and lot traceability are equally important. A controlled process should make it possible to connect the material used to a specific production order.

3. Achieving the Required Cleanliness

Precision does not end when machining is complete.

CNC operations can introduce:

· Cutting oil

· Metal chips

· Burrs

· Particles

· Residual coolant

· Handling contamination

For medical applications, cleaning and handling therefore need to be considered as part of the manufacturing process.

Depending on the application, controlled deburring, cleaning, inspection, handling, and packaging may be required before the component moves to the next manufacturing stage.

4. Maintaining Process Consistency

Prototype production and repeat production create different manufacturing challenges.

A component may pass inspection during a prototype run but show variation when production volume increases.

Process documentation, controlled work instructions, defined inspection criteria, equipment calibration, and supplier controls help reduce this variation.

This is one reason an ISO 13485 certified manufacturer can provide more value than a supplier that focuses only on final inspection.

Technical Solutions for Medical CNC Manufacturing

Control Machining Parameters at the Process Level

Machining parameters should be established according to the material, geometry, tooling, and tolerance requirements.

Important variables include:

· Spindle speed

· Feed rate

· Cutting depth

· Tool geometry

· Coolant conditions

· Workholding strategy

· Tool-life limits

· Finishing sequence

For thin-wall medical components, excessive cutting force can cause deformation. A controlled strategy may involve staged roughing, leaving sufficient material for finishing, stable fixturing, and low-load finishing passes.

For titanium and other difficult-to-machine materials, controlling heat generation and tool wear is equally important.

The objective is to establish a stable process window rather than simply selecting the fastest cutting parameters.

Use Process-Based Tolerance Control

A critical tolerance should be considered throughout the machining sequence:

Material → Fixturing → Rough Machining → Semi-Finishing → Finishing → Inspection

For demanding components, manufacturers may use:

· In-process inspection

· CMM measurement

· Optical inspection

· Dedicated fixtures

· Tool wear monitoring

· Controlled finishing operations

This approach helps prevent tolerance problems from being discovered only after the entire batch has been completed.

Build Traceability Into Production

Traceability is one of the most important considerations when selecting a medical contract manufacturer.

A controlled production record may connect:

Material lot → Work order → CNC process → Inspection results → Nonconformance records → Final release

This provides objective manufacturing evidence if a customer needs to investigate a dimensional issue, material question, process deviation, or production batch.

ISO 13485 vs. ISO 9001 for Medical CNC Manufacturing

ISO 9001 is a general quality management standard applicable across many industries. ISO 13485 is specifically designed around medical device quality and regulatory requirements.

For a supplier machining components used in medical devices, ISO 13485 is therefore more directly aligned with the quality expectations of the medical device supply chain.

However, certification should not be confused with product approval. ISO 13485 certification demonstrates conformity of the quality management system; it does not mean an individual medical device or component is automatically FDA approved or cleared.

How to Choose an ISO 13485 Certified CNC Contract Manufacturer

When evaluating a supplier, do not stop at the certification certificate.

Ask these practical questions:

Can the supplier provide material traceability?

Material certificates and production records should be linked to the appropriate manufacturing lot.

How are critical tolerances inspected?

Look for appropriate equipment such as CMMs, optical measurement systems, calibrated gauges, and documented inspection procedures.

How are process changes controlled?

Changes to tooling, materials, suppliers, machining parameters, or inspection methods should follow a defined review process.

How are nonconforming parts handled?

A mature QMS should define how nonconforming products are identified, segregated, investigated, and dispositioned.

How is cleanliness controlled?

The supplier should be able to explain how machining residues, burrs, particles, cleaning, handling, and packaging are controlled according to the application's requirements.

These questions help distinguish an ISO 13485 certified manufacturer with a functioning quality system from a supplier simply displaying a certification logo.

Medical CNC Machining at Dawang Precision

Dawang Precision operates an ISO 13485 certified medical device quality management system for precision manufacturing applications.

With 26 years of machining experience and more than 400 advanced machine tools, including five-axis CNC equipment from Röders and Mazak, the company supports complex precision components for demanding applications.

For medical projects, the manufacturing focus includes medical-grade materials, material traceability, dimensional control, and stringent cleanliness requirements.

The goal is to provide medical device manufacturers with a controlled CNC production process rather than simply supplying individually inspected parts.

FAQ

Q1:Is ISO 13485 required for medical CNC machining?

Not every CNC supplier is legally required to be ISO 13485 certified. However, certification provides evidence that the supplier operates a quality management system specifically designed for medical device manufacturing and regulatory requirements.

Q2:Does ISO 13485 mean a medical CNC part is FDA approved?

No. ISO 13485 certification applies to the manufacturer's quality management system. It does not automatically approve or clear an individual medical device or component.

Q3:What materials are used for medical CNC machining?

Common materials include 316L stainless steel, titanium alloys, medical-grade PEEK, cobalt-chromium alloys, and application-specific engineering materials. The correct material depends on the device's function and intended use.

Q4:How are tight tolerances controlled in medical CNC machining?

Manufacturers can combine controlled machining parameters, stable fixturing, tool-life management, in-process inspection, CMM measurement, and controlled finishing operations to maintain critical dimensions.

Q5:Why is cleanliness important for medical CNC parts?

Machining can leave behind oils, chips, burrs, and particles. Controlled cleaning, deburring, handling, and packaging help ensure that components meet the cleanliness requirements defined for their intended application.
