5-Axis Machining for Optical Parts: Meeting Extreme Alignment Requirements in Optical Instrument Manufacturing

Quick Answer

5-axis machining for optical parts enables manufacturers to produce complex optical components with higher alignment accuracy, fewer machining setups, and improved structural stability. By maintaining consistent reference datums and reducing tolerance stack-up, advanced 5-axis CNC machining is widely used for optical instruments, laser equipment housings, and precision optical assemblies that require extreme alignment requirements.

Why 5-Axis Machining Is Critical for Optical Parts Manufacturing

In optical manufacturing, precision is not only about achieving dimensional accuracy. The real challenge is maintaining the correct relationship between multiple functional surfaces throughout the entire assembly.

Optical instruments, imaging systems, and laser equipment housings often contain complex structures that support lenses, sensors, mirrors, and optical modules. Even a small deviation between mounting surfaces can influence optical axis alignment, beam positioning accuracy, and long-term system reliability.

This is why engineers increasingly rely on 5-axis CNC machining for optical components. Unlike traditional machining methods that require multiple repositioning operations, 5-axis machining allows complex geometries to be manufactured in fewer setups while maintaining higher feature-to-feature accuracy.

According to Wikipedia, 5-axis machining enables cutting tools to approach a workpiece from multiple directions, making it suitable for manufacturing complex geometries that are difficult to produce with conventional machining processes.

For engineering teams looking for a high precision 5-axis machining manufacturer, machining capability alone is not enough. A reliable supplier must also provide stable processes, advanced inspection methods, and manufacturing experience with alignment-critical components.

Why Optical Parts Require Extreme Alignment Accuracy

Optical components often require much more than simple dimensional control. Their performance depends on the relationship between multiple precision features, including:

· Precision alignment bores

· Multi-angle mounting surfaces

· Internal cavities

· Thin-wall structures

· Reference datums

· Integrated cooling channels

For example, a laser equipment housing may contain several mounting interfaces that must maintain accurate positioning relative to the optical axis.

A small positional deviation can affect:

· Laser beam stability

· Lens positioning accuracy

· Optical calibration

· System repeatability

For this reason, precision machining for optical instrument housings requires strict control over geometric tolerances, including:

· Parallelism

· Perpendicularity

· Concentricity

· Flatness

· Position accuracy

Why Traditional CNC Machining Can Be Challenging for Optical Components

Traditional 3-axis machining usually requires multiple fixture changes when producing complex optical parts.

A typical process may include:

1. Machining the external profile

2. Repositioning the component for angled features

3. Machining internal mounting surfaces

4. Completing secondary operations

Every repositioning step introduces additional positioning variation.

For general mechanical components, these errors may remain acceptable. However, for optical applications, accumulated tolerance errors can directly affect system performance.

This tolerance stack-up is one of the main reasons manufacturers choose 5-axis machining for optical parts.

By keeping the workpiece fixed while allowing the cutting tool to move along multiple axes, 5-axis machining reduces setup-related errors and improves overall geometric consistency.

Key Manufacturing Challenges for Optical Instrument and Laser Housings

1. Maintaining Structural Integrity During Machining

Many optical housings require lightweight structures while maintaining high rigidity.

Materials such as:

· Aluminum alloys

· Titanium

· Stainless steel

are commonly selected because they provide a balance between weight reduction, strength, and thermal stability.

However, thin-wall designs and complex cavities create machining challenges.

Excessive cutting forces may cause:

· Part deformation

· Residual stress

· Dimensional instability

Maintaining structural integrity requires optimized machining strategies, including:

· Proper tool selection

· Controlled cutting parameters

· Reduced vibration

· Stable fixturing

2. Achieving Extreme Alignment Requirements

Meeting optical alignment requirements requires more than using a high-accuracy machine tool.

A complete manufacturing process must include:

· Stable workholding solutions

· Optimized CAM programming

· Controlled machining parameters

· Continuous dimensional verification

Advanced 5-axis machining helps maintain the positional relationship between critical features by reducing unnecessary setups.

3. Controlling Surface Finish and Thermal Stability

Surface quality also plays an important role in optical applications.

Poor machining conditions may create:

· Tool marks

· Surface irregularities

· Thermal deformation

· Reduced assembly accuracy

During high-speed milling, engineers must carefully balance:

· Spindle speed

· Feed rate

· Cutting depth

· Cooling strategy

Stable thermal control helps maintain consistent dimensions throughout production.

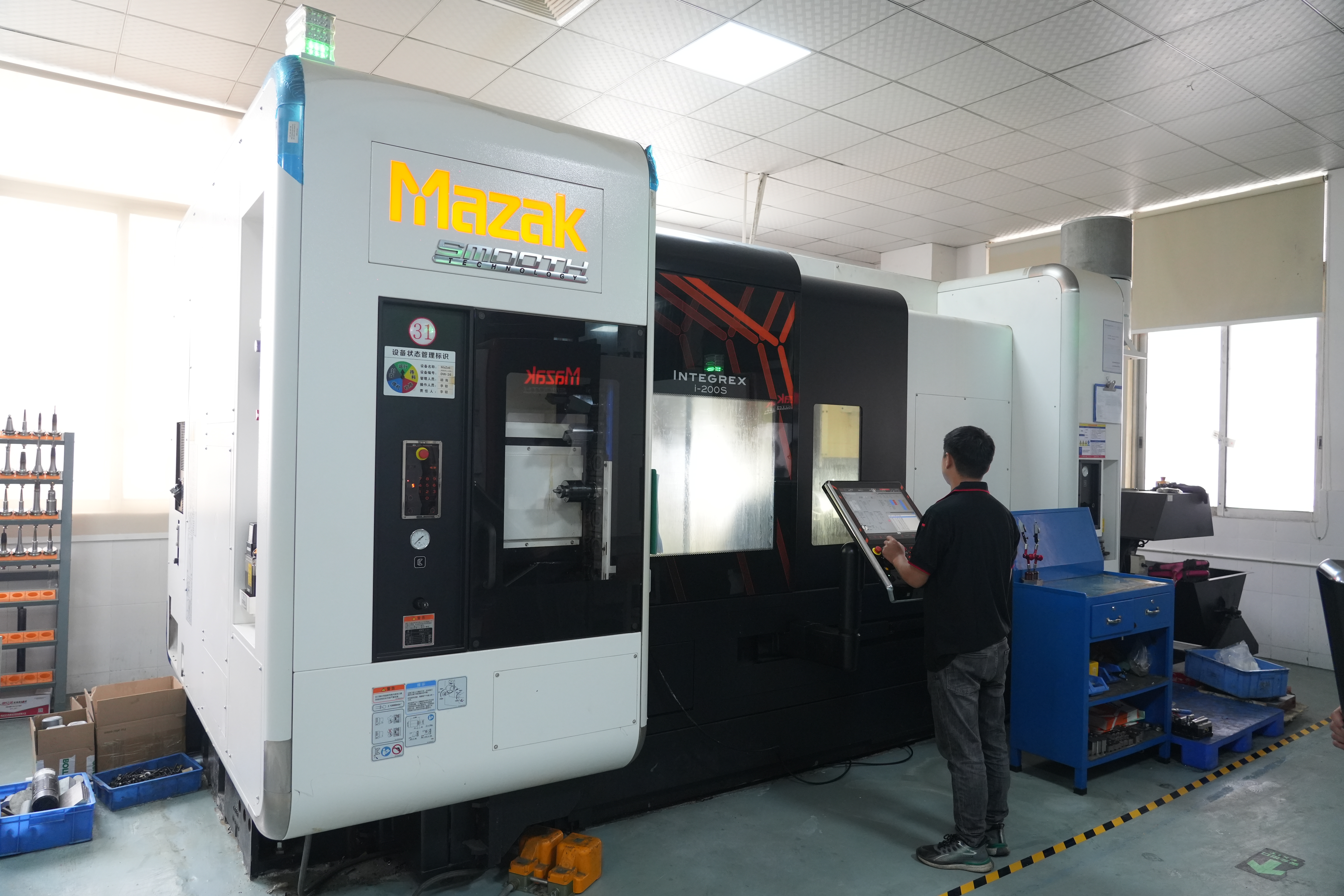

How 5-Axis Machining Improves Optical Component Manufacturing

One-Setup Machining Improves Alignment Accuracy

The biggest advantage of 5-axis machining is the ability to complete multiple complex features in fewer setups.

Benefits include:

· Reduced fixture errors

· Consistent reference points

· Improved feature-to-feature accuracy

· Shorter production cycles

This is especially valuable for optical housings where multiple mounting surfaces must remain precisely aligned.

Advanced Toolpath Strategies Improve Machining Stability

Modern CAM software allows smooth multi-axis tool movement, reducing sudden changes in cutting force.

This helps achieve:

· Lower vibration

· Better surface finish

· More consistent machining results

For CNC machining for laser equipment parts, stable toolpath control is essential because even small variations can influence final assembly performanceModern CAM software allows smooth multi-axis tool movement, reducing sudden changes in cutting force.

This helps achieve:

· Lower vibration

· Better surface finish

· More consistent machining results

For CNC machining for laser equipment parts, stable toolpath control is essential because even small variations can influence final assembly performance

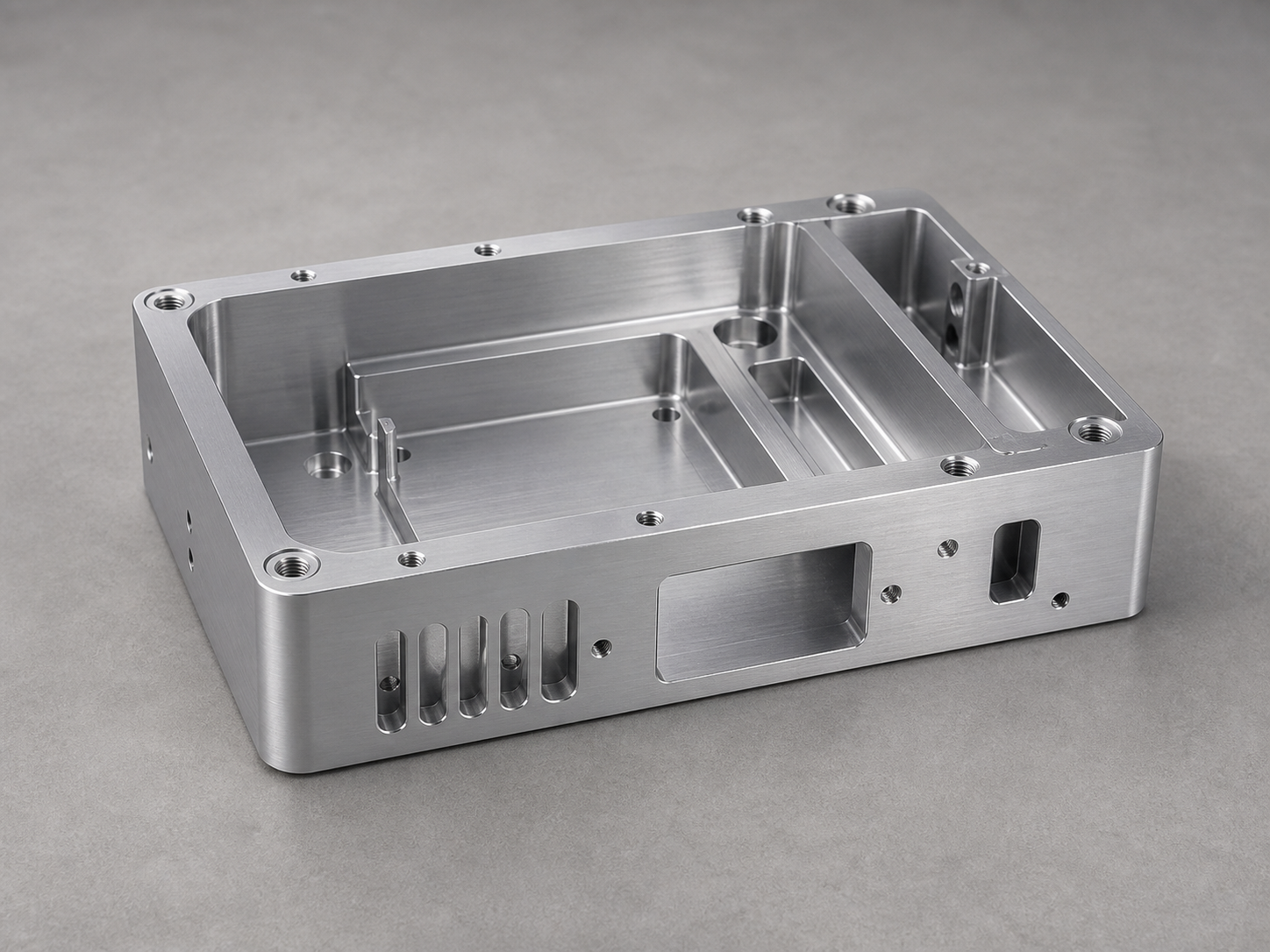

Manufacturing Example: 5-Axis Machining of an Aluminum Laser Housing

A typical application involves manufacturing an aluminum housing used in a precision laser system.

Manufacturing Challenges:

The component required:

· Multiple angled mounting surfaces

· Thin-wall structures

· Accurate optical alignment features

· High rigidity after machining

Using conventional CNC machining would require several fixture changes, increasing the risk of alignment deviation.

5-Axis Machining Solution:

The manufacturing process included:

· One-setup 5-axis milling

· Optimized high-speed machining parameters

· Precision fixture design

· CMM dimensional verification

Result:

The process improved:

· Alignment consistency between mounting features

· Structural stability of the housing

· Repeatability during batch production

This type of application demonstrates why 5-axis machining has become an important solution for optical instruments and laser equipment housings.

Quality Control for Precision Optical Machining

For optical components, inspection must focus not only on individual dimensions but also on the relationship between critical features.

A professional CNC manufacturing process typically includes:

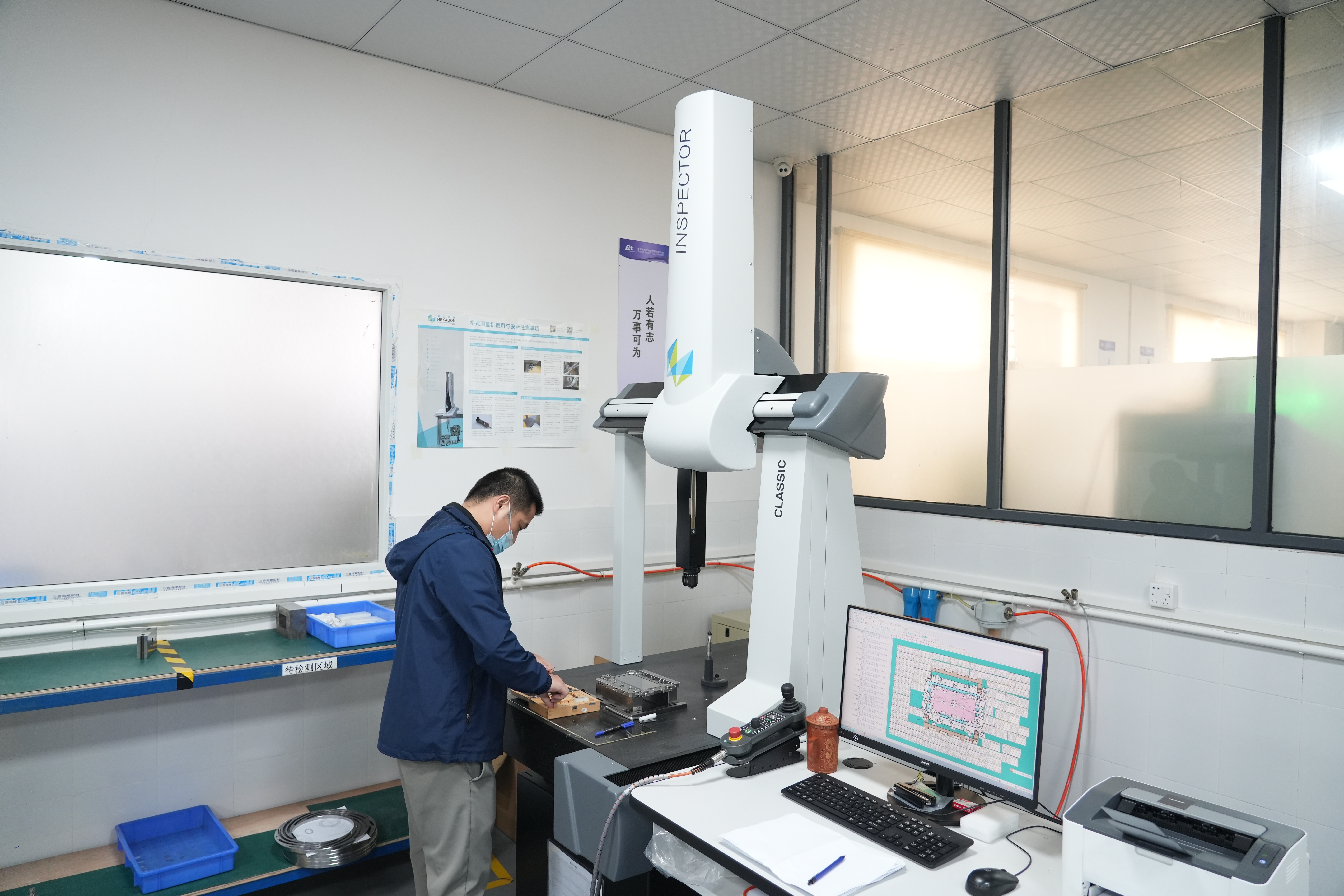

CMM Inspection

Coordinate Measuring Machines (CMM) verify:

· Hole positions

· Alignment surfaces

· Geometric tolerances

· Complex 3D profiles

According to measurement practices promoted by organizations such as National Institute of Standards and Technology, accurate measurement systems are essential for maintaining consistency in precision manufacturing.

Other quality processes include:

· First Article Inspection

· Process verification

· Dimensional reports

· Final quality inspection

Applications of 5-Axis Machining for Optical Parts

Advanced 5-axis machining is widely used in industries requiring high precision and reliability, including:

· Optical instruments

· Laser equipment housings

· Imaging systems

· Semiconductor inspection equipment

· Medical optical devices

· Industrial automation systems

For engineering teams developing next-generation optical products, choosing the right machining process can directly influence product performance and manufacturing reliability.

Conclusion: Precision Starts with the Right Manufacturing Process

Manufacturing optical components requires more than standard CNC capability. It requires advanced machining technology, controlled processes, and a deep understanding of alignment-critical applications.

Through 5-axis machining for optical parts, optimized milling strategies, structural integrity control, and advanced inspection systems, manufacturers can achieve the precision required for optical instruments and laser equipment housings.

For companies developing complex optical components, partnering with an experienced high precision 5-axis machining manufacturer can help reduce production risks and ensure reliable long-term performance.

Frequently Asked Questions About 5-Axis Machining for Optical Parts

Q1:Why is 5-axis machining preferred for optical components?

5-axis machining reduces the number of setups required, minimizing alignment errors and improving accuracy for complex optical components with multiple angled surfaces.

Q2:What materials are commonly used for optical housings?

Common materials include aluminum alloys, stainless steel, titanium, and engineering plastics. Material selection depends on weight requirements, thermal stability, and structural integrity.

Q3:How do manufacturers verify optical alignment accuracy?

Manufacturers use CMM inspection, dimensional reports, and process verification methods to confirm that critical alignment features meet engineering requirements.
