Views: 0 Author: Linda Publish Time: 2026-09-23 Origin: Site
Anodized finishes improve the corrosion resistance, surface durability, and appearance of CNC machined aluminum parts. The most common options are Type II anodizing, Type III hard anodizing, and clear or dyed anodized finishes.
Type II anodizing is widely used when corrosion protection, appearance, and color flexibility are important. Type III hard anodizing produces a thicker, harder surface for applications exposed to wear and abrasion. A clear anodized aluminum finish preserves the natural metallic appearance of aluminum while adding surface protection.
For precision CNC parts, anodizing should be considered during DFM because coating thickness, masking, surface preparation, and critical dimensions can affect the final part.
Anodizing is an electrochemical process that converts the aluminum surface into a controlled aluminum oxide layer. Unlike paint, the coating is formed from the aluminum substrate itself.

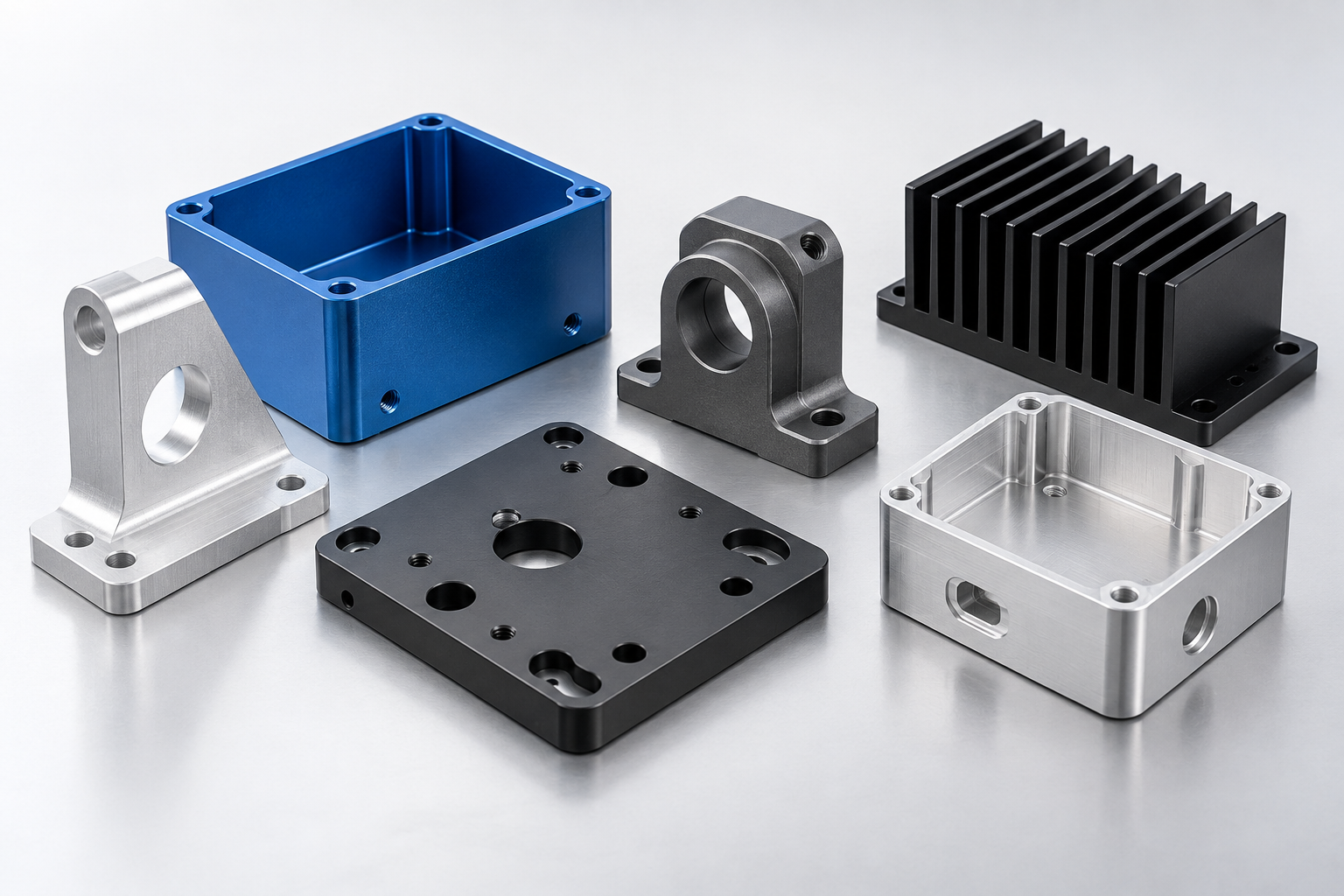

The main anodizing options used for precision aluminum parts include:
Finish | Main Characteristics | Typical Applications |
Type I | Thin anodized layer, minimal dimensional impact | Aerospace, precision components |
Type II | Corrosion protection, color flexibility | Automotive, electronics, industrial parts |
Type III | Thick, hard, wear-resistant surface | Aerospace, automotive, machinery |
Clear anodized | Natural aluminum appearance | Housings, brackets, electronic parts |
Colored anodized | Dyed anodized surface | Automotive, electronics, consumer products |
The actual coating thickness and performance depend on the aluminum alloy and finishing specification, so the drawing should define the required process rather than relying only on a general finish description.
Type II anodizing provides a practical balance between corrosion resistance, appearance, cost, and dimensional control. It also supports a wide range of colors, including black, blue, red, and other dyed finishes.
It is commonly used for:
· Automotive brackets and sensor mounts
· Electronic housings
· Mounting plates
· Covers and heat sinks
· Industrial equipment components
Type II is generally suitable when a part needs environmental protection and a controlled appearance but is not exposed to severe mechanical wear.

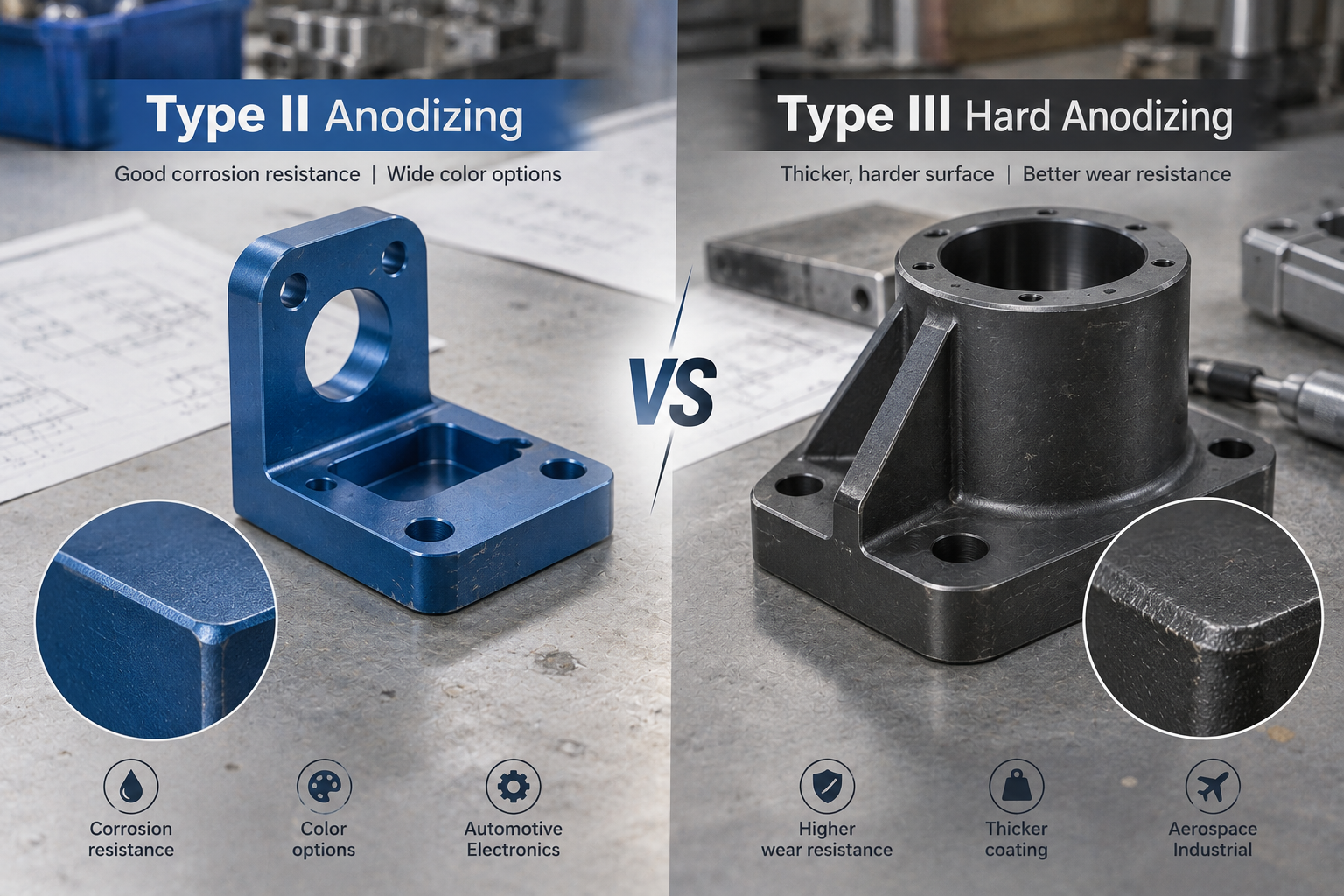

Type III hard anodizing, also called hardcoat anodizing, creates a harder and thicker oxide layer. It is selected when wear resistance is more important than color flexibility or minimum coating thickness.
Typical applications include:
· Aerospace hardware
· Automotive mechanical components
· Industrial tooling
· Hydraulic components
· High-wear precision assemblies
Because Type III creates a thicker coating, its dimensional effect needs to be considered for bores, threads, mating surfaces, and other critical features.
Requirement | Recommended Direction |
General corrosion protection | Type II |
Multiple color options | Type II |
Natural aluminum appearance | Clear anodizing |
High wear resistance | Type III hard anodizing |
Precision mating features | Review masking and dimensional allowance |
Automotive/electronic housings | Type II or clear anodizing |
The correct choice depends on the part's operating environment rather than simply selecting the thickest coating.
A clear anodized aluminum finish creates an oxide layer without adding a conventional dye, allowing the natural metallic appearance of aluminum to remain visible.
It is commonly specified for:
· Electronic enclosures
· Automotive sensor brackets
· Aluminum covers
· Precision mounting plates
· Industrial equipment
· Aerospace components
The final appearance depends on the aluminum alloy and surface preparation. Machining marks, scratches, blasting, polishing, and different surface roughness levels can all influence the final appearance.
For production parts where appearance matters, the drawing should define the required finish and cosmetic acceptance criteria rather than simply specifying "clear anodized."
For precision aluminum components, the main challenge is maintaining the relationship between CNC machining accuracy and the final anodized condition.
Anodizing adds an oxide layer to the surface. Critical holes, threads, slots, and mating surfaces may therefore require masking or dimensional compensation.
The CNC dimension should not automatically be treated as the final post-anodizing dimension.
Thin ribs, deep pockets, and lightweight structures can deform during machining. Stable workholding, controlled cutting parameters, and an appropriate machining sequence are important when tight tolerances are required.
The anodized finish reflects the condition of the machined surface. Tool marks, burrs, scratches, and inconsistent surface preparation can remain visible after finishing.
6061-T6 and 7075-T6 are both widely used for precision aluminum components, but alloy composition can affect anodizing response and color consistency.
For repeat production, keeping the material grade and finishing process consistent helps maintain appearance and performance between lots.
A reliable anodized component should be engineered as one process chain rather than separate machining and finishing operations.
DFM review: Identify critical dimensions, mating surfaces, threads, cosmetic areas, and features that may require masking before production.
Machining control: Cutting speed, feed rate, depth of cut, tool geometry, and tool wear should be controlled according to the aluminum alloy and part geometry.
5-axis machining: Complex parts with angled holes, curved surfaces, and multiple datum relationships can benefit from 5-axis machining, reducing repositioning and improving access to difficult features.
Inspection: Depending on the application, dimensional inspection may include CMM measurement, thread and bore inspection, surface roughness checks, flatness verification, and coating inspection.
The objective is to ensure that the part meets requirements after anodizing, not only immediately after CNC machining.

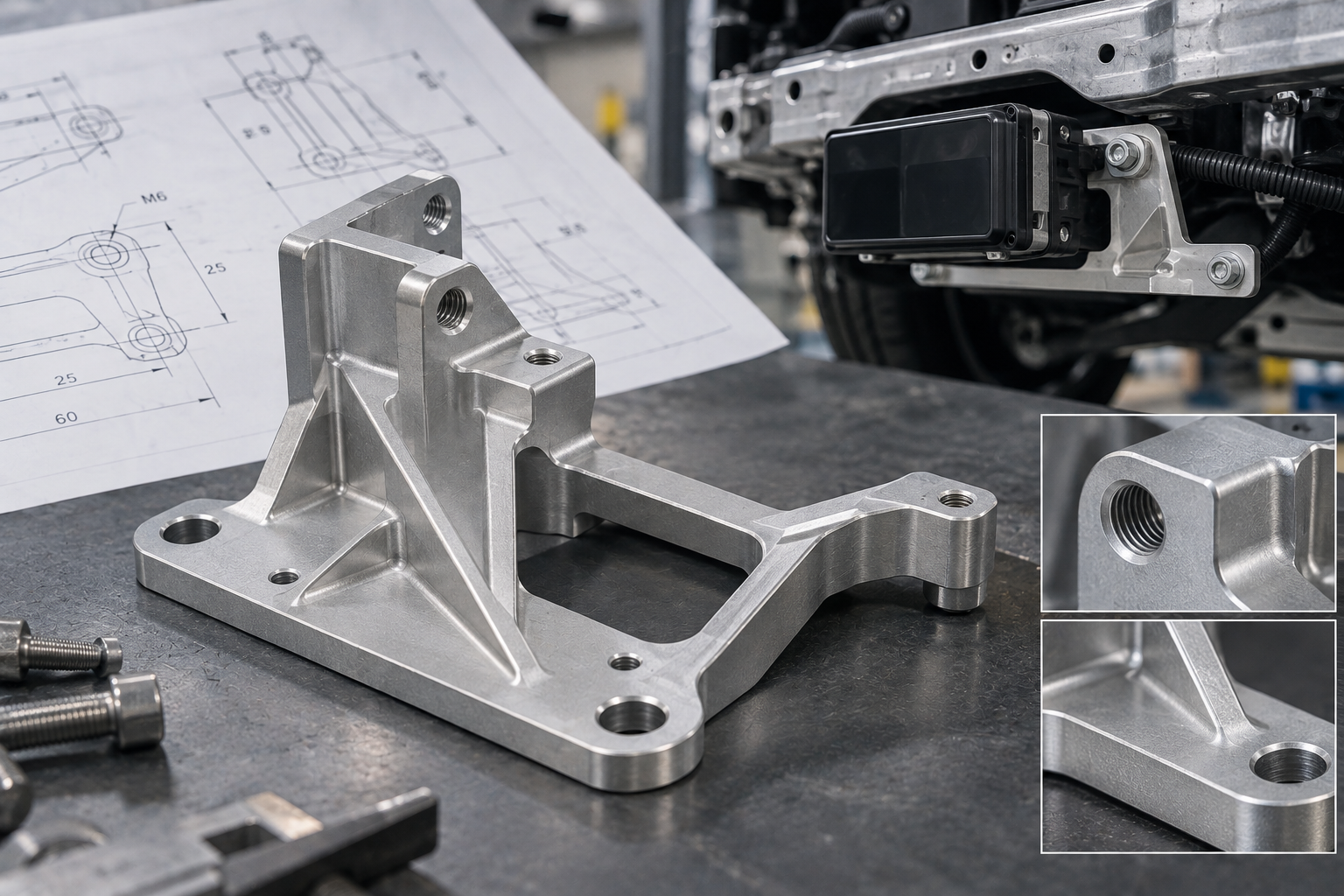

A representative automotive application involves a 6061-T6 aluminum sensor bracket used to mount an ADAS module to a vehicle chassis structure.
The bracket combines thin ribs, threaded holes, and a contoured mounting surface. The customer required:
· ±0.05 mm positional tolerance on two M6 holes
· 40,000 pieces/month
· Ra 0.8 μm on the mounting face
· Clear Type II anodizing
· Lot-level material and inspection traceability
· Stable weekly delivery for JIT assembly
The production process begins with DFM review of the STEP/PDF drawing. Roughing removes bulk material while controlled finishing passes establish the critical mounting surfaces and hole locations.
Tool-life monitoring and in-process inspection help reduce dimensional drift during high-volume production. Critical features can be verified using precision gauges and CMM inspection according to the customer's quality requirements.
After CNC machining, the brackets receive a clear Type II anodized finish through a qualified finishing process. Critical threads and mating features are reviewed in advance to determine masking or dimensional compensation requirements.
Requirement | Result |
Material | 6061-T6 aluminum |
Hole positional tolerance | ±0.05 mm |
Production volume | 40,000 pcs/month |
Mounting-face roughness | Ra 0.8 μm |
Surface treatment | Clear Type II anodizing |
Quality control | FAI + dimensional inspection |
Traceability | Material to finished lot |
This example demonstrates why anodizing requirements should be included in the initial manufacturing plan instead of being treated as a final cosmetic step.
Aerospace components often require low weight, corrosion protection, dimensional stability, and surface durability. Depending on the application, Type II or Type III anodizing may be considered for brackets, housings, fixtures, and support components.
Automotive applications include sensor brackets, electronic housings, motor housings, mounting plates, covers, heat sinks, and EV components. Type II anodizing is commonly considered when corrosion protection and appearance are required.
Electronic housings, heat sinks, instrument enclosures, and mounting structures often use clear or colored anodized finishes for a combination of appearance, corrosion protection, and surface durability.
Avoid vague notes such as "anodize black." A production drawing should define:
· Aluminum alloy and temper
· Anodizing type
· Coating thickness or applicable specification
· Color or clear finish
· Masking requirements
· Critical dimensions after finishing
· Surface roughness
· Cosmetic acceptance criteria
For precision parts, specifying the final condition after anodizing helps prevent dimensional problems during production.
Planning a CNC machined aluminum component with Type II anodizing, Type III hard anodizing, or a clear anodized aluminum finish?
Send your STEP or PDF drawings to the Dawang Precision engineering team for a free DFM evaluation.
Our engineers will review the geometry, material, tolerances, machining strategy, and anodizing requirements and reply within 24 hours.
Choosing the right anodized finish depends on the aluminum part's material, operating environment, appearance requirements, wear resistance, and dimensional tolerances. Type II anodizing is a versatile option for corrosion protection and appearance, while Type III hard anodizing is better suited to high-wear applications. A clear anodized aluminum finish provides surface protection while maintaining the natural look of aluminum.
For precision CNC machined parts, anodizing should be considered from the beginning of the manufacturing process. Reviewing critical dimensions, surface preparation, masking, and finishing requirements during DFM helps ensure the final anodized component meets its functional and cosmetic requirements across automotive, aerospace, and electronics applications.
Yes. Anodizing forms an oxide layer on the aluminum surface, so it can affect the final dimensions of holes, threads, bores, and mating surfaces. For tight-tolerance parts, the expected coating thickness should be considered during DFM, and critical features may require masking or machining compensation.
Type II anodizing is commonly selected for corrosion protection, appearance, and color flexibility. Type III hard anodizing creates a thicker and harder surface and is better suited to parts exposed to significant wear or abrasion. The appropriate finish depends on the component's operating environment and dimensional requirements.
Yes. 6061-T6 aluminum is widely used for CNC machined parts and generally responds well to anodizing. It can be finished with clear or dyed Type II anodizing and, depending on the application, Type III hard anodizing. Alloy composition and surface preparation can affect the final color and appearance.
Yes. A clear anodized aluminum finish provides corrosion protection while preserving the natural metallic appearance of aluminum. It is commonly used for electronic housings, automotive brackets, mounting plates, and other precision components where both appearance and dimensional control matter.
Type III hard anodizing generally provides greater wear and abrasion resistance than Type II anodizing because it produces a thicker, harder oxide layer. It is often considered for aerospace hardware, automotive mechanical components, tooling, and other parts exposed to repeated friction.
For most CNC machined aluminum components, the part is machined first and anodized afterward. This allows the required geometry and surface features to be produced before finishing. However, critical dimensions, threads, mating surfaces, and masked areas should be reviewed during DFM because anodizing can affect the final dimensional condition.
