Views: 0 Author: Linda Publish Time: 2026-09-22 Origin: Site
Anodized aluminum is aluminum that has been electrochemically treated to form a controlled oxide layer on its surface. Compared with untreated aluminum, anodizing improves corrosion resistance, surface hardness, wear resistance, and appearance while providing options for coloring and surface protection.
For CNC machined parts, 6061-T6 is widely used because it offers a good balance of machinability, strength, and corrosion resistance. 7075-T6 is preferred when higher strength-to-weight performance is required. However, alloy selection, machining strategy, anodizing type, masking, and final inspection all affect the finished part.
Anodizing is an electrochemical surface treatment rather than a conventional coating. During the process, the aluminum part acts as the anode in an electrolytic bath, creating a controlled aluminum oxide layer on its surface.

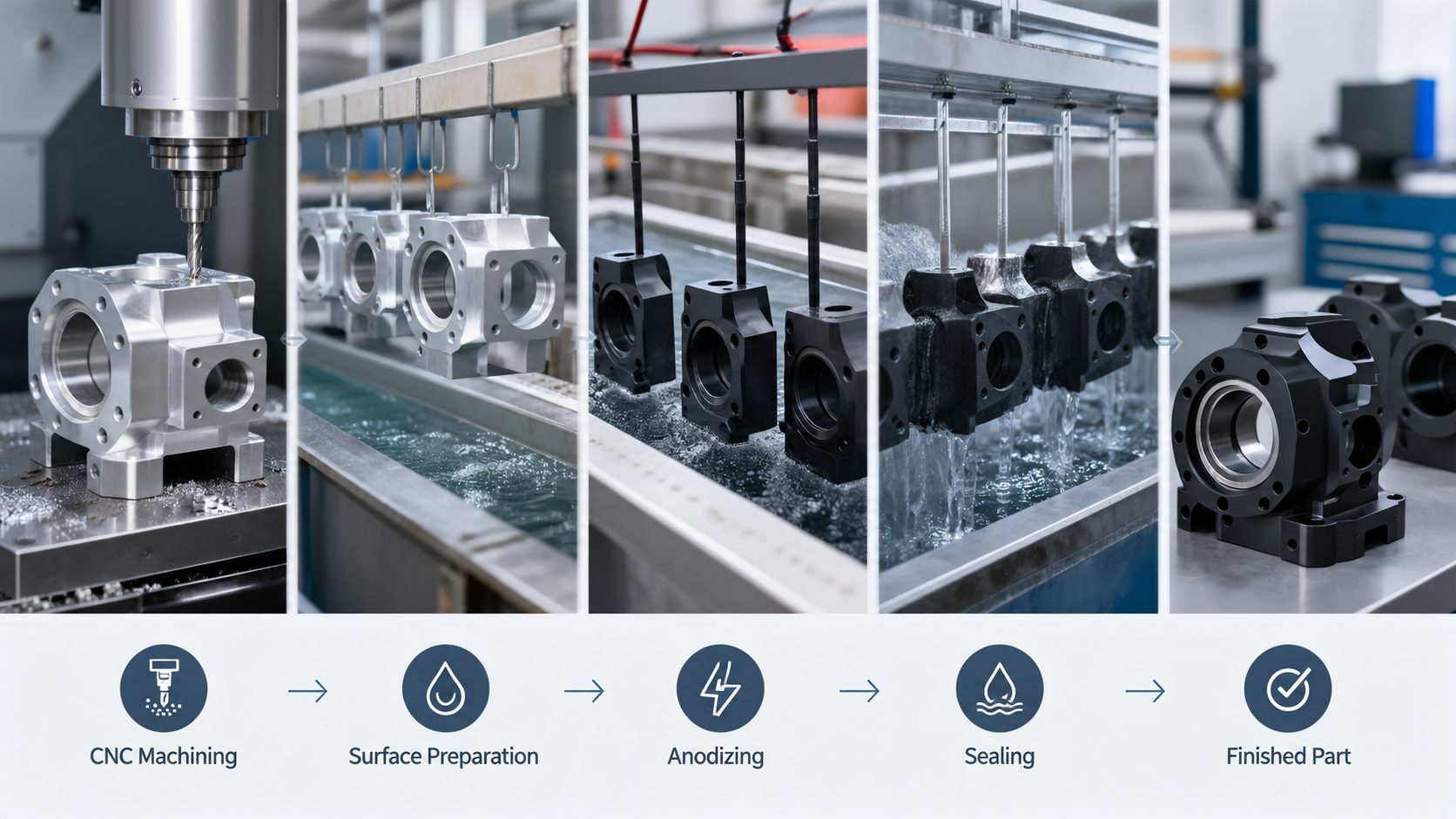

A typical anodizing process includes:
1. Surface cleaning and preparation
2. Electrochemical oxidation
3. Coloring when required
4. Sealing to improve corrosion resistance
The resulting oxide layer is integrated with the aluminum surface, which helps reduce peeling and provides better surface durability than many conventional coatings.
For precision CNC parts, anodizing should be considered during the design and machining stage rather than added after machining as an isolated finishing step.
Type | Typical Characteristics | Common Applications |
Type I | Thin oxide layer, often used for basic protection | General industrial parts |
Type II | Moderate thickness, good corrosion and appearance | CNC housings, brackets, consumer products |
Type III | Hard anodizing with higher wear resistance | Wear surfaces, mechanical components |
The appropriate anodizing type depends on the part's environment, dimensional requirements, appearance, and wear conditions.
The aluminum alloy has a major influence on both machining performance and anodizing results.
Alloy | Main Advantage | Typical CNC Applications |
6061-T6 | Balanced strength and machinability | Housings, brackets, frames |
7075-T6/T651 | High strength-to-weight ratio | Robotics, aerospace, structural parts |
6063 | Good appearance and extrusion performance | Profiles and architectural components |
5052 | Good corrosion resistance and formability | Enclosures and sheet components |
6061-T6 is one of the most common choices for CNC machined aluminum parts. It provides predictable machining behavior and generally produces consistent anodized surfaces.
For applications requiring moderate strength, corrosion resistance, and a controlled appearance, 6061 anodizing is often a practical solution.
7075-T6 provides higher strength than 6061 and is often selected for lightweight structural components. It is common in aerospace and robotics applications where reducing weight without sacrificing mechanical performance is important.
However, 7075 can produce different anodizing characteristics from 6061, so the alloy and required surface appearance should be discussed with the machining and finishing supplier before production.
Anodizing cast aluminum can be more challenging than anodizing wrought alloys.
Casting alloys may contain higher levels of silicon and other alloying elements. These differences can affect surface appearance, color uniformity, and coating consistency after anodizing.
For cast CNC components, engineers should therefore consider:
· Alloy composition
· Casting surface condition
· Machining allowance
· Required cosmetic appearance
· Anodizing specification
If appearance is critical, producing a sample or first article before full production can help confirm the expected finish.
The anodic oxide layer provides a protective barrier against environmental exposure. This makes anodized aluminum useful for outdoor equipment, transportation components, and industrial housings.
Hard anodizing can provide substantially greater surface hardness than untreated aluminum, making it useful for components exposed to repeated contact or abrasion.
Anodizing can produce natural, black, and other controlled finishes. Surface preparation before anodizing has a major influence on the final appearance.
The oxide layer is electrically insulating, which can be useful for certain housings and electrical components. However, electrical contact areas may need to be masked.
One of the most important considerations when manufacturing anodized CNC parts is dimensional change.
Because anodizing adds an oxide layer to the surface, critical features such as bearing bores, threaded holes, shafts, seals, sliding surfaces, and mating interfaces may require special treatment.
A reliable process normally considers:
· Machining allowance: Leave appropriate material where finishing can affect critical dimensions.
· Masking: Protect threads, electrical contact points, bearing seats, or other surfaces that should remain untreated.
· Datum control: Maintain consistent datums throughout multi-face machining.
· Drawing requirements: Clearly identify anodizing type, color, thickness, masking, and critical tolerances.
· Final inspection: Measure critical features after finishing rather than relying only on pre-anodizing inspection.
For high-precision assemblies, the machining and anodizing processes should therefore be planned together.
Thin aluminum walls can deform because of cutting forces and residual stress. Rough machining followed by controlled finishing can help stabilize the geometry.
Complex housings may require machining from several orientations. Five-axis machining can reduce repositioning and improve positional consistency between critical features.
Large amounts of material removal can release internal stress and affect dimensions. A staged roughing and finishing strategy helps control this risk.
Anodizing appearance can vary with alloy, surface roughness, pretreatment, and processing conditions. Cosmetic requirements should therefore be defined before production.

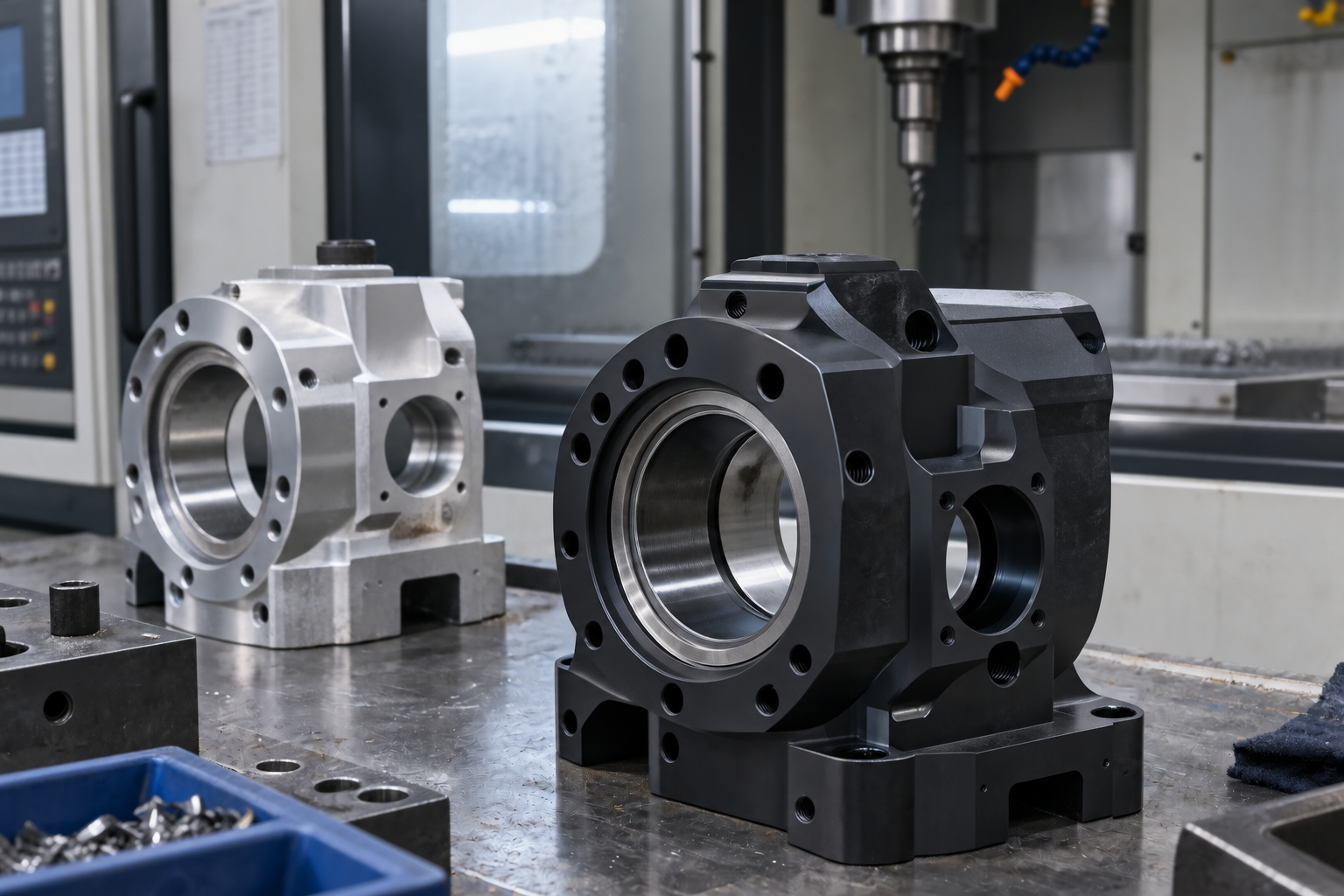

A 7075-T6 aluminum robot reducer housing provides a useful reference for precision robotic components. The part was produced using 5-axis CNC machining, with black anodizing applied after machining.
Requirement | Example |
Material | 7075-T6 aluminum |
Process | 5-axis CNC milling |
Quantity | 30 pcs |
Critical tolerance | ±0.01 mm |
Surface finish | Black anodizing |
Key requirements | Bearing accuracy and multi-face dimensional control |
The reducer housing combines multiple precision features within a relatively compact structure. Bearing-related bores and mounting surfaces need to maintain their positional relationship across different machining faces.
The use of 7075-T6 provides high strength with low weight, but the part also requires careful control during material removal. Aggressive rough machining can release internal stress and cause dimensional movement, which is particularly important when critical features are held to tight tolerances.
Anodizing adds another consideration. Since the surface treatment affects the final dimensions, the machining process must account for critical interfaces before the part enters finishing.
A practical manufacturing strategy is to establish stable datums first, then use 5-axis CNC machining to reduce unnecessary repositioning between critical surfaces. Rough machining and finishing are separated to improve dimensional stability, while bearing-related features receive controlled finishing operations.
Before anodizing, critical dimensions and surfaces are reviewed to determine whether masking or additional machining allowance is required. After black anodizing, the finished housing is inspected again to verify the critical dimensions and mating features.
This approach demonstrates an important principle for robotic components: CNC machining and anodizing should be planned as one dimensional-control process rather than as two independent operations.
Dawang Precision integrates CNC machining, finishing, and inspection into the manufacturing plan.
The typical workflow is:
DFM Review → CNC Machining → Anodizing → Final Inspection
With 27 years of manufacturing experience and more than 400 advanced machine tools, Dawang supports complex aluminum components using equipment including Röders and Mazak five-axis machines.
For critical parts, the engineering process focuses on:
· Reviewing material and geometry before machining
· Establishing machining datums and tolerances
· Using controlled roughing and finishing strategies
· Planning masking and anodizing requirements in advance
· Inspecting critical dimensions after finishing
Aerospace components often require low weight, corrosion resistance, and controlled surface properties. 6061 and 7075 alloys can be used for housings, brackets, structural components, and other machined parts depending on the application.
Anodized aluminum is used for lightweight brackets, housings, structural components, and other parts requiring corrosion and wear resistance.
Common examples include equipment housings, fixtures, brackets, mechanical frames, and machine components.
Robotic components benefit from aluminum's low density and high strength-to-weight ratio. Anodizing can add corrosion and wear protection to housings, structural components, and joint-related parts.
Before sending a CNC aluminum part for production, specify:
Item | What to Define |
Alloy | 6061, 7075, or other grade |
Anodizing | Type, thickness, color |
Critical dimensions | Bearing fits, threads, mating surfaces |
Masking | Areas that must remain untreated |
Surface finish | Required machining roughness |
Inspection | Critical dimensions and final inspection requirements |
Clear specifications reduce the risk of dimensional or cosmetic issues during production.
Yes. 6061-T6 is widely used for anodized CNC parts because it combines good machinability, strength, corrosion resistance, and generally consistent anodizing performance.
Yes. 7075 can be anodized and is commonly selected for high-strength lightweight components. The required finish and dimensional requirements should be considered during process planning.
Yes. The oxide layer can affect dimensions. Critical bores, threads, mating surfaces, and other precision features may require masking or machining allowances.
Type II is commonly used for general corrosion protection and appearance, while Type III, or hard anodizing, is typically selected when higher wear resistance and surface hardness are required.
It is the anodizing of cast aluminum components. Because casting alloy composition and surface characteristics can vary, appearance and coating consistency may require additional process control.
Anodized aluminum combines the lightweight characteristics of aluminum with improved corrosion resistance, surface durability, and appearance. 6061 anodizing is widely used for general CNC components, while 7075 is suitable for applications requiring higher strength-to-weight performance.
For precision parts, however, successful anodizing depends on more than selecting an alloy. CNC machining strategy, tolerance control, masking, surface preparation, anodizing specifications, and final inspection must work together.
