As humanoid robots transition rapidly from laboratory prototypes to commercial applications, the demand for high-performance structural components continues to grow. These systems not only require lightweight design, but also demand exceptional mechanical strength, extremely tight tolerances, and long-term durability under dynamic motion conditions.
This is where precision CNC machining has become a critical manufacturing technology for next-generation humanoid robot development.
Today’s humanoid robot parts manufacturers face increasingly complex engineering challenges, particularly in achieving the balance between weight reduction and structural rigidity, while maintaining assembly precision across multi-axis geometries.
One of the most critical requirements in humanoid robotics is achieving lightweight structures without compromising mechanical strength.
Humanoid robots require:
Reduced overall weight to improve energy efficiency
High rigidity to support dynamic walking and load-bearing joints
Optimized stress distribution under repetitive motion cycles
Materials such as 7075 aluminum, magnesium alloys, and titanium are widely used due to their excellent strength-to-weight ratios.
However, machining these materials into complex geometries introduces challenges such as deformation, thermal distortion, and residual stress.
Humanoid robots contain multiple load-bearing structures, including:
Hip joints
Knee assemblies
Shoulder actuators
Spine-like structural frames
These components require high-strength CNC-machined structures that ensure consistent mechanical performance.
Key challenges include:
Fatigue resistance under cyclic loading
Vibration control during walking and running
Local reinforcement without increasing overall weight
To address these issues, engineers often combine topology optimization with precision CNC machining.
Humanoid robot systems rely on highly integrated multi-component assemblies, where even minor deviations can affect motion accuracy.
Typical requirements include:
Tolerances ranging from ±0.01 mm to ±0.005 mm
Precise alignment of bearing seats, motor mounts, and joint housings
Minimal backlash in transmission systems
This makes precision CNC machining essential for ensuring consistent assembly accuracy in both prototyping and mass production.
Most humanoid robot components feature complex geometries, such as:
Deep cavities
Freeform curved surfaces
Internal lightweight lattice structures
Multi-angle joint interfaces
As a result, 5-axis and even 7-axis CNC machining centers are commonly used.
Advantages include:
Reduced setup and fixturing time
Higher geometric accuracy
Ability to machine complex integrated structures in a single setup
This significantly improves production efficiency and consistency.
Professional humanoid robot parts manufacturers typically select materials based on:
Load-bearing requirements
Weight optimization
Wear resistance
Machinability
Common solutions include:
7075-T6 aluminum for structural frames
Titanium alloys for high-stress joints
Engineering plastics such as PEEK and PA12 for lightweight components
Modern production relies heavily on:
5-axis simultaneous CNC machining
High-speed spindle cutting
Micro-feed control systems
Real-time tool compensation
These technologies ensure consistent precision even for complex robotic geometries.
To ensure dimensional stability, manufacturers apply:
Thermal stress relief after rough machining
Vibratory finishing for surface consistency
Anodizing or hard coating for durability
Precision grinding for final tolerances
These processes are essential for maintaining long-term structural reliability.
Before machining, engineers optimize:
Wall thickness distribution
Internal cavity structures
Load path reinforcement
Standardized assembly interfaces
This helps reduce manufacturing cost while improving structural performance.
Precision CNC-machined components are widely used in:
Bipedal robot skeletal frames
Joint actuator housings
Load-bearing robotic arms
Torque transmission systems
Sensor integration brackets
These applications require extremely high reliability, especially in dynamic motion environment
To better illustrate how advanced manufacturing methods are applied in real humanoid robotics projects, the following OEM case demonstrates a high-performance robot arm structural component produced using a hybrid approach.

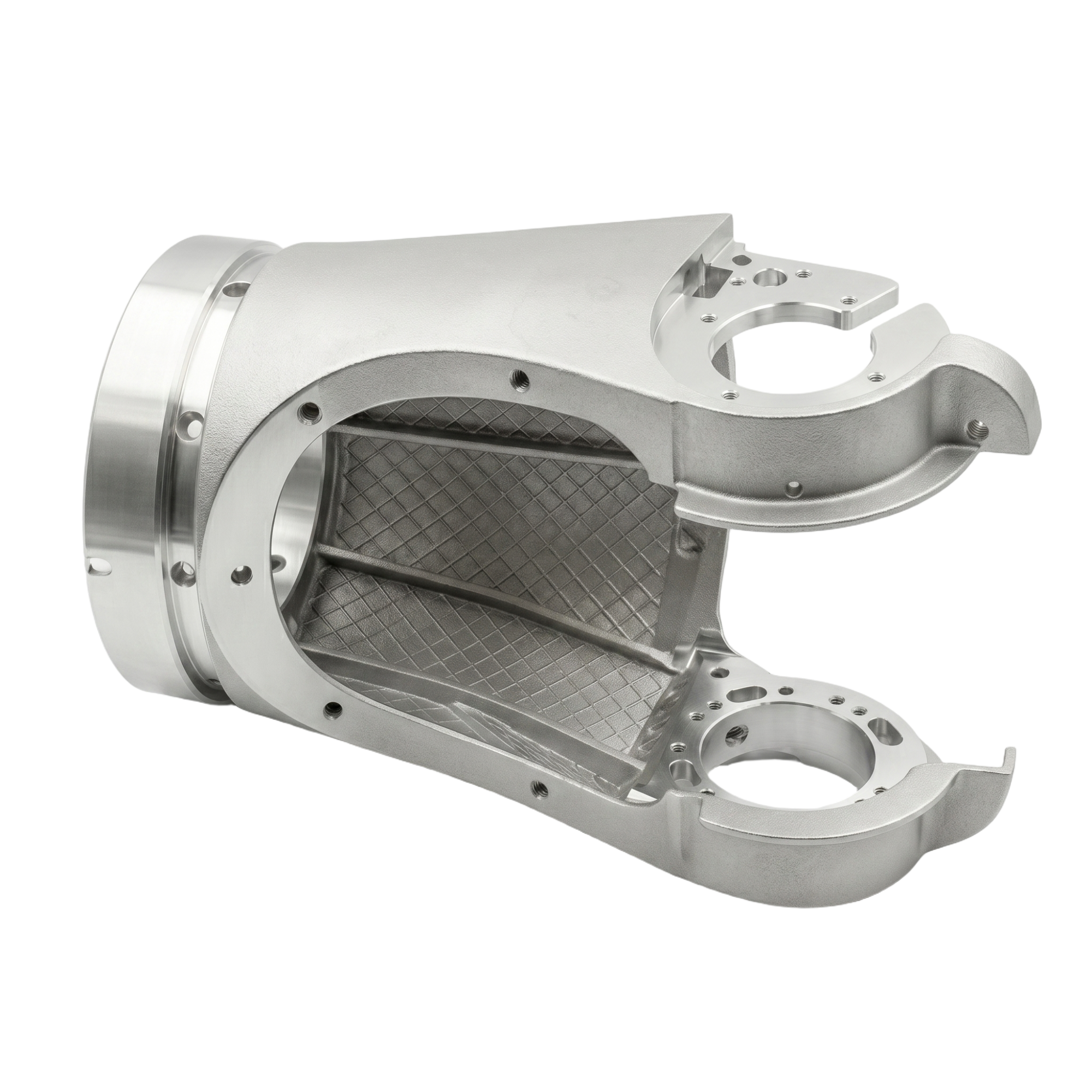

This component is a titanium structural arm part designed for a humanoid robot system, developed for an OEM robotics client requiring both extreme lightweight performance and high mechanical strength.
Due to its complex internal geometry and structural load requirements, the part was manufactured using a hybrid process combining metal 3D printing and precision CNC machining. This approach is increasingly adopted in advanced humanoid robotics applications where traditional machining alone is insufficient.
In this solution, CNC machining plays a critical role in ensuring final dimensional accuracy and functional performance.
The humanoid robot arm structure required a strict balance between:
Lightweight design for improved motion efficiency
High structural strength under repeated load cycles
Tight assembly tolerances within robotic joint systems
Complex internal geometries that cannot be fully achieved through CNC machining alone
The OEM client specified:
High stiffness-to-weight ratio
Critical assembly tolerance of ±0.01 mm
Stable mechanical performance under continuous robotic motion
Titanium alloy was used as the base material
Complex internal lattice and hollow structures were built in a single process
Significant weight reduction was achieved while maintaining structural integrity
Critical functional surfaces were precisely machined after printing
Bearing seats, mounting interfaces, and joint connection areas were finished to high accuracy
Achieved ±0.01 mm tolerance for assembly-critical features
Surface refinement improved overall finish quality
Stress relief enhanced long-term dimensional stability
Final surface treatment ensured durability and consistency for robotic applications
The final component achieved:
Significant weight reduction compared to full CNC machining
High structural strength suitable for humanoid robotic motion systems
Precise assembly fit within ±0.01 mm tolerance
Optimized internal topology for improved load distribution
This case demonstrates how high-strength structural components benefit from the combination of additive manufacturing and CNC finishing to meet advanced humanoid robotics requirements.
This type of component is widely used in:
Humanoid robot arm structures
Bipedal robotic motion systems
High-load robotic joint assemblies
OEM robotic prototype development
It is particularly suitable for robotics OEM clients requiring rapid iteration, lightweight optimization, and high-precision functional validation.
Compared with casting or standalone additive manufacturing, CNC machining offers:
Higher dimensional accuracy
Superior surface finish
Better material integrity retention
Faster prototyping cycles
Reliable mass production capability
For most high-end humanoid robotics projects, CNC machining remains the core manufacturing technology.
Q1: What materials are best for humanoid robot parts?
Common materials include 7075 aluminum, titanium alloys, magnesium alloys, and engineering plastics such as PEEK, depending on strength and weight requirements.
Q2: What tolerances are required for robotic structural components?
Critical joints and assembly interfaces typically require tolerances between ±0.01 mm and ±0.005 mm to ensure precise motion and alignment.
Q3: Can CNC machining produce lightweight robot frames?
Yes. Through topology optimization and advanced 5-axis machining, CNC can produce lightweight yet highly rigid aluminum structures.
Q4: Do you support prototype robot part manufacturing?
Yes. CNC machining is ideal for rapid prototyping, enabling fast iteration from design validation to functional testing.
As humanoid robotics continues to evolve, manufacturing requirements are becoming increasingly demanding. Precision CNC machining remains one of the most reliable methods for producing high-performance structural components that balance lightweight design, structural strength, and assembly accuracy.
A professional humanoid robot parts manufacturer must combine advanced multi-axis machining capabilities with material engineering and DFM optimization to meet the performance requirements of next-generation robotics systems.
