Lightweighting Robots: Injection Molded High-Strength Plastic Gearboxes and Brackets

Quick Answer

High-strength plastic injection molding can reduce the weight of industrial robotic components while maintaining the stiffness, dimensional stability, wear resistance, and repeatability required for mechanical assemblies.

For robot brackets, lightweight gearboxes, gear carriers, housings, and secondary transmission components, fiber-reinforced plastics such as glass-filled PA can provide a high stiffness-to-weight ratio. POM, PBT, PPS, and PEEK may be considered when low friction, wear resistance, temperature stability, or higher mechanical performance is required.

The key is not simply replacing metal with plastic. Successful lightweighting depends on material selection, structural geometry, mold design, injection parameters, shrinkage control, and functional tolerances being developed as one system.

Why Lightweighting Matters in Industrial Robotics

Reducing mass in moving robotic assemblies can improve the balance between payload, acceleration, actuator load, and energy consumption.

This makes engineered plastics attractive for components that do not carry the entire primary structural load. Injection molding can also integrate ribs, bosses, mounting features, cable guides, and other functions into a single component, reducing part count and assembly complexity.

Typical applications include:

· Robot brackets and sensor mounts

· Lightweight gearbox housings

· Gear carriers and secondary gears

· Motor and actuator housings

· Gripper components

· Cable-management components

For high-torque shafts, primary load paths, or extreme-temperature applications, metal may remain the better choice. The engineering objective is to place each material where it provides the best performance-to-weight ratio.

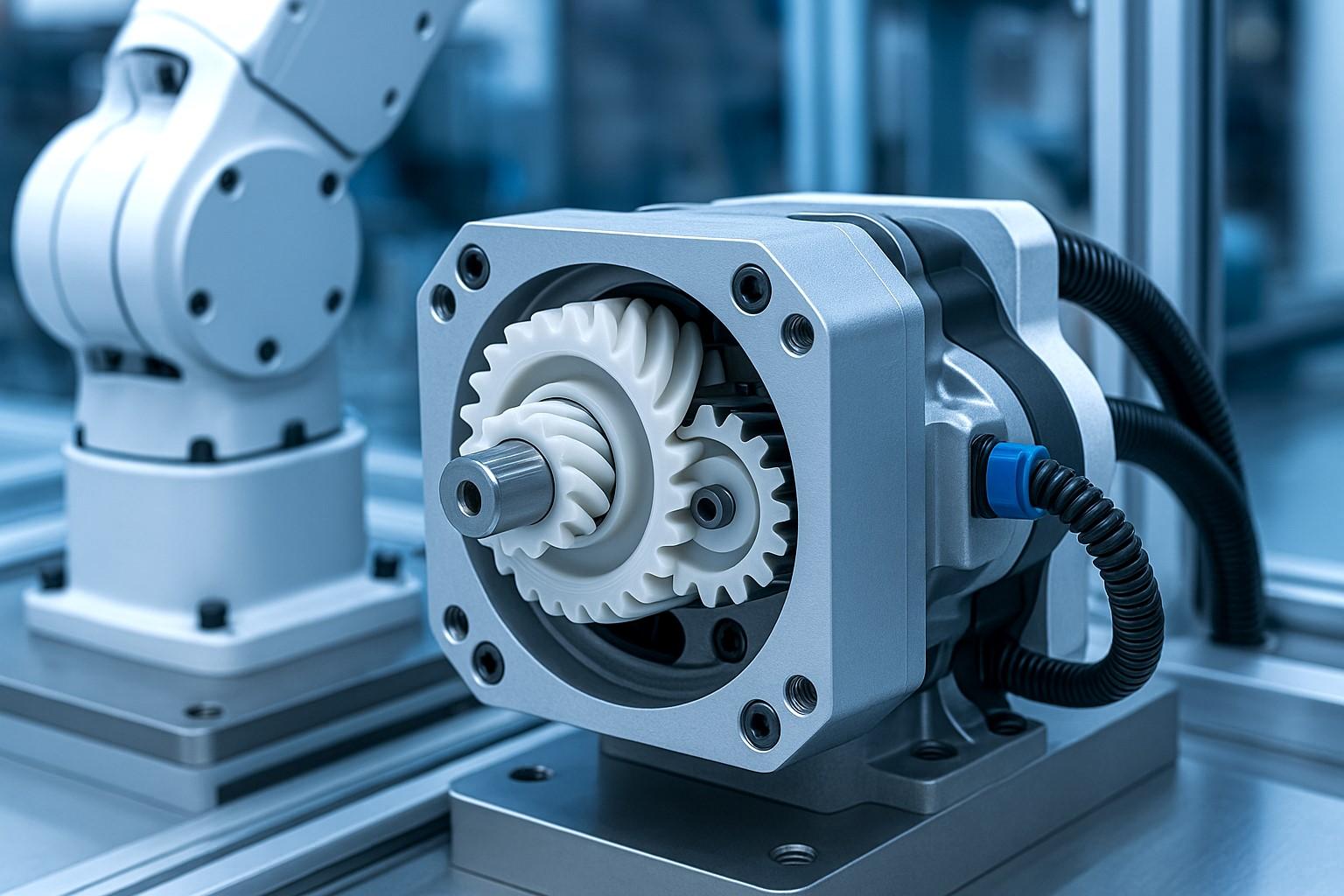

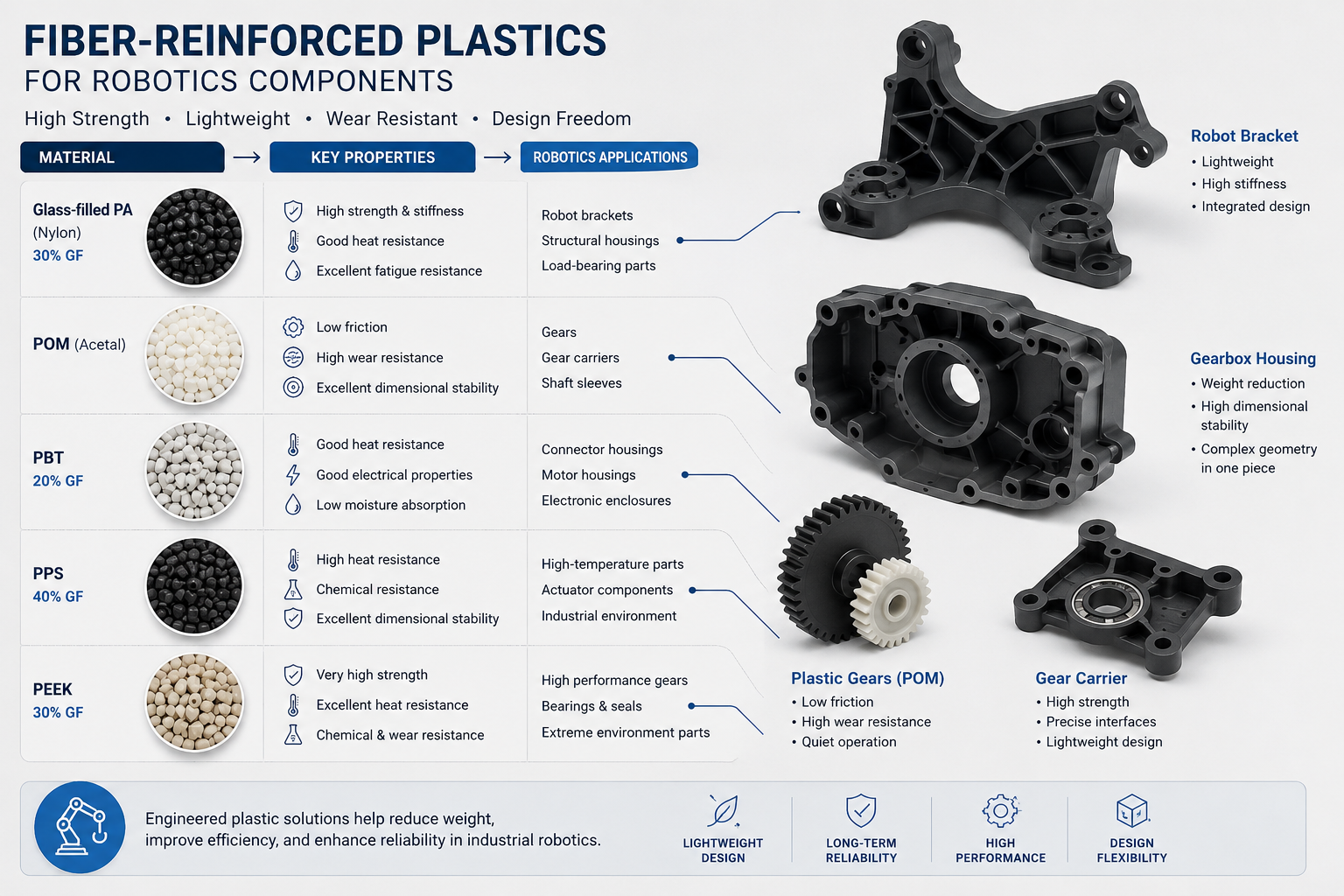

Material Selection for High-Strength Plastic Injection Molding

The best polymer depends on load, temperature, moisture, friction, wear, dimensional requirements, and production volume.

Fiber-reinforced plastics can increase stiffness without simply increasing wall thickness. However, fiber orientation also creates directional mechanical and shrinkage behavior, making gate location and flow analysis important during DFM.

For a robot bracket, glass-filled PA may be a strong candidate when stiffness and low mass are priorities. For a precision gear, POM may be more appropriate when low friction and wear resistance dominate.

Key Engineering Challenges

1. Increasing Stiffness Without Increasing Weight

Simply making a plastic wall thicker can add mass while increasing the risk of sink marks, internal stress, differential shrinkage, and longer cooling cycles.

A more efficient design uses:

· Optimized wall thickness

· Structural ribs

· Gussets

· Local reinforcement

· Load-path-oriented geometry

The rib layout should follow the actual force direction rather than being added uniformly around the component.

2. Maintaining Gearbox Alignment

A molded gearbox housing may contain several critical interfaces:

· Bearing bores

· Gear shaft locations

· Motor mounting surfaces

· Dowel holes

· Fastener patterns

· Sealing surfaces

Not every dimension needs the same tolerance.

The critical tolerance chain should instead focus on the features that control bearing fit, shaft alignment, gear center distance, and assembly repeatability.

This functional approach prevents unnecessary tight tolerances on non-critical features while protecting the performance of the gearbox.

3. Controlling Gear Accuracy and Backlash

Plastic gear performance depends on more than cavity accuracy.

Final geometry can be affected by:

· Resin shrinkage

· Mold temperature

· Packing pressure

· Cooling rate

· Fiber orientation

· Moisture content

· Operating temperature

Backlash must also be evaluated at the system level. Excessive backlash can increase positioning error and noise, while insufficient clearance can cause friction and tooth interference.

For this reason, gear geometry, material behavior, housing alignment, and operating conditions should be evaluated together.

4. Managing Shrinkage and Warpage

Uneven wall thickness, fiber orientation, packing, and cooling can produce differential shrinkage.

In a lightweight gearbox, even moderate deformation can affect bearing alignment or mounting flatness.

Therefore, warpage prevention should begin with part geometry and mold-flow planning, not only with adjustments to the molding machine after production starts.

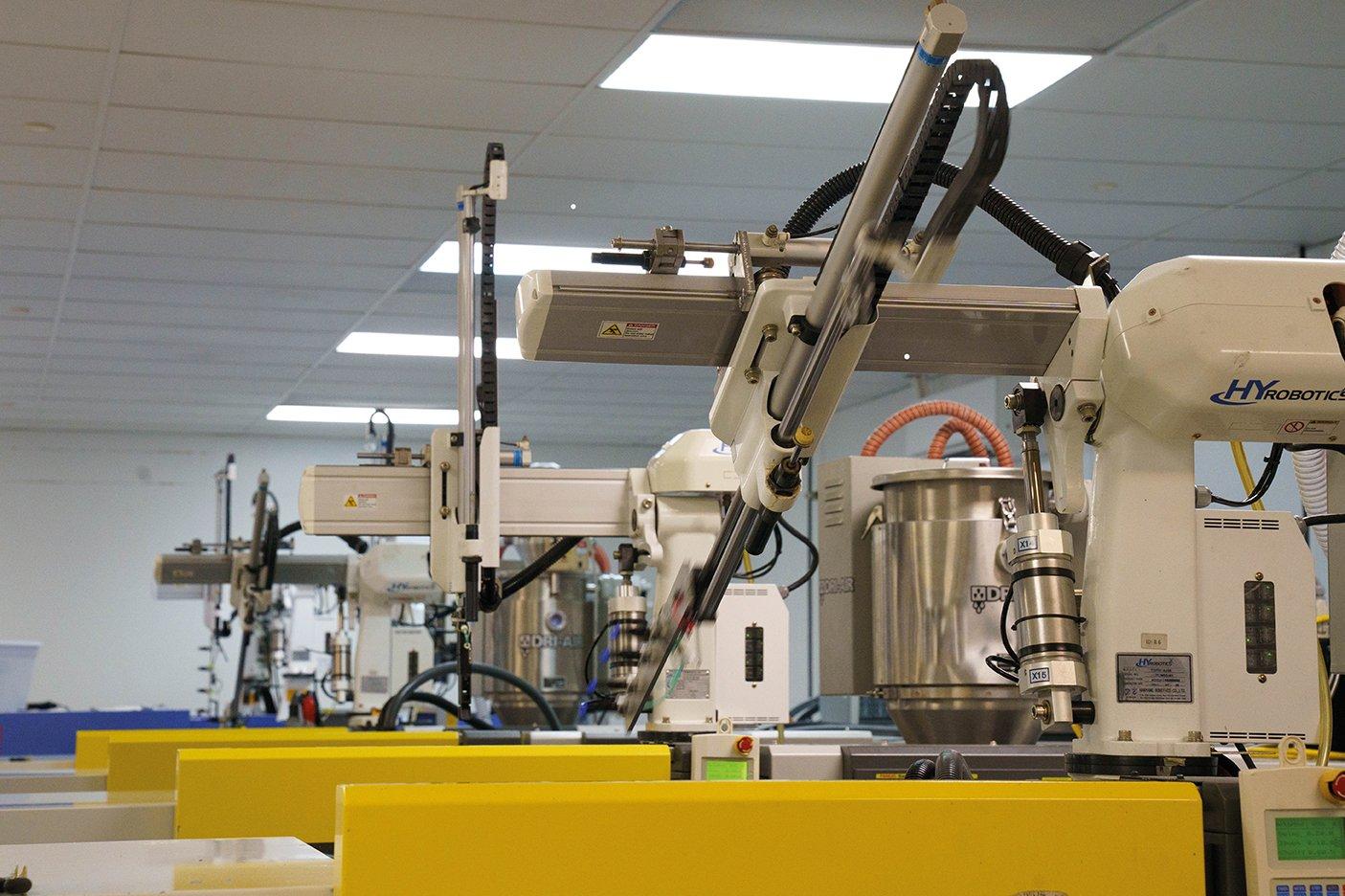

Technical Solutions: Injection Process Control

Once material and geometry are established, process parameters determine whether the component can be produced consistently.

For reinforced materials, gate position is particularly important because it influences fiber orientation and therefore local stiffness and shrinkage.

Process validation should establish a repeatable operating window rather than relying on a single machine setting.

DFM for Robot Brackets and Lightweight Gearboxes

DFM should be completed before tooling begins.

A robotics component should be reviewed for:

Wall thickness: Keep sections as uniform as practical and avoid unnecessary material accumulation.

Ribs and bosses: Add structural reinforcement without creating excessive local thickness.

Draft: Provide sufficient draft for reliable ejection without compromising functional surfaces.

Gate location: Consider flow length, weld lines, fiber orientation, and structural loading.

Parting line: Avoid placing critical bearing or sealing interfaces directly on unfavorable parting-line conditions.

Ejection: Position ejectors to prevent distortion of thin or precision features.

Tolerance strategy: Separate critical functional dimensions from non-critical cosmetic dimensions.

A strong DFM process connects four variables:

Material → Geometry → Mold → Process

This is especially important for fiber-reinforced plastics because material behavior and mold design directly influence the final dimensional result.

Engineering Example: Lightweight Robot Gearbox Housing

Consider a robot gearbox housing originally designed as a multi-piece machined aluminum assembly.

A DFM review identifies several non-load-bearing areas that can be converted to reinforced polymer. Instead of increasing wall thickness, the redesign introduces structural ribs and integrated mounting bosses.

The engineering team then:

1. Selects a suitable fiber-reinforced polymer.

2. Defines bearing bores and shaft locations as critical features.

3. Optimizes gate placement around functional load paths.

4. Evaluates shrinkage and warpage risks.

5. Validates the molded housing through dimensional and assembly inspection.

The objective is not simply to make the housing lighter. It is to reduce mass and part complexity while maintaining the interfaces that determine gearbox performance.

This illustrates why lightweighting is fundamentally a system-design problem rather than a material-substitution exercise.

Plastic vs. Aluminum for Robotic Components

Plastic does not have to replace metal everywhere.

A practical hybrid architecture can use metal for shafts, high-torque interfaces, and primary load paths, while using reinforced plastics for housings, brackets, carriers, covers, and secondary mechanisms.

Quality Control for Industrial Robotics Components

Quality inspection should focus on the features that determine function.

For a gearbox housing, typical critical characteristics include:

· Bearing bore dimensions

· Shaft center distances

· Hole position

· Mounting flatness

· Critical wall dimensions

· Overall warpage

Visual inspection can identify molding defects such as flash, short shots, sink marks, burn marks, and visible weld-line problems.

For precision projects, first-article inspection and dimensional verification help confirm that the molding process consistently meets the defined functional requirements.

The goal is not to apply the tightest tolerance everywhere. It is to control the dimensions that determine assembly, alignment, and robotic motion.

Prototype Tooling to Production

Robotics components often require several design iterations before production.

A practical development path is:

CAD → DFM → Prototype Tooling → Functional Testing → Design Optimization → Production Tooling → Volume Production

Prototype injection molding provides a better representation of production material behavior than appearance-only prototypes, allowing engineers to evaluate stiffness, fit, gear backlash, thermal deformation, and assembly interfaces before committing to production tooling.

This is particularly valuable for complex lightweight gearboxes and robot brackets, where small geometric changes can influence mechanical performance.

FAQ: Plastic Injection Molding for Robotics

Q1:What is the best plastic for injection molded robot brackets?

Glass-filled PA is often considered when high stiffness, low weight, and structural performance are required. The final choice should also consider temperature, moisture, fatigue, impact, and dimensional stability.

Q2:Can glass-filled nylon replace aluminum in robot brackets?

In selected applications, yes. It is most suitable when the bracket requires a high stiffness-to-weight ratio but does not carry extreme structural or thermal loads.

Q3:Can plastic injection molding be used for gearbox housings?

Yes. Reinforced polymers can be used for many gearbox housings, carriers, covers, and secondary transmission components. Bearing alignment, shrinkage, warpage, and thermal expansion must be controlled.

Q4:How do you control warpage in injection molded robotics parts?

Start with uniform wall thickness, appropriate rib geometry, balanced gating, controlled packing, and balanced cooling. Material-specific shrinkage and fiber orientation should also be considered during DFM.

Q5:Are plastic gears suitable for industrial robotics?

They can be suitable for selected robotic mechanisms and secondary transmissions. Gear material, tooth geometry, backlash, wear, temperature, and mating-component tolerances must be evaluated together.

Get a Free DFM Review for Your Robotics Component

Developing a robot bracket, lightweight gearbox, plastic gear, actuator housing, or other industrial robotics component?

Send your STEP or PDF drawing to the Dawang Precision engineering team for a free DFM evaluation.

Our engineers can review:

· Material and fiber-reinforced plastic selection

· Wall thickness and rib design

· Gate and parting-line strategy

· Critical tolerances and datum structure

· Gear and bearing interfaces

· Shrinkage and warpage risks

· Opportunities to reduce weight and tooling complexity

With 26 years of manufacturing experience and 400+ advanced machine tools, including Röders and Mazak five-axis machining centers, Dawang Precision supports precision tooling and manufacturing requirements for demanding industrial components.

Send your STEP/PDF files today. Our engineering team will review your design and respond within 24 hours.
