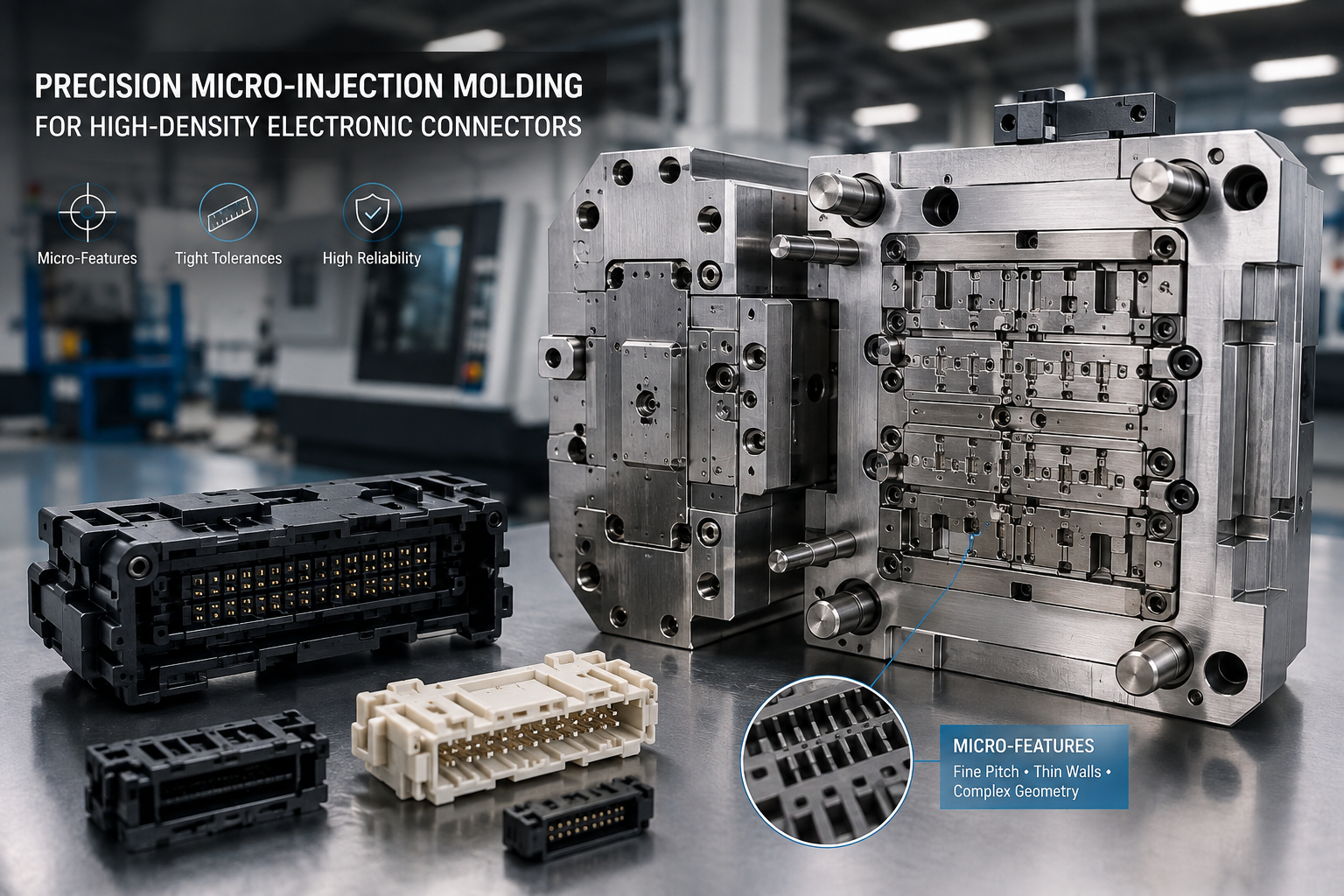

Precision Micro-Injection Molding for High-Density Electronic Connectors

Quick Answer

Micro-injection molding is a precision manufacturing process for producing miniature plastic components with complex micro-features, high-density geometries, and tight tolerances. For electronic connectors, the main challenge is not simply reducing part size. Thin walls, narrow terminal cavities, polymer flow, shrinkage, mold alignment, and tolerance stack-up must remain stable throughout production.

For high-density electronic connectors used in 5G telecommunications and micro-electronics, a reliable process combines DFM analysis, precision tooling, controlled molding parameters, material conditioning, and targeted inspection.

The objective is to achieve repeatable dimensional and functional performance—not simply produce a dimensionally correct first article.

What Is Micro-Injection Molding?

Micro-injection molding is a specialized injection molding process for miniature components or parts containing extremely small features.

A component does not need to be microscopic overall to require micro-molding. A connector housing with thin insulating walls, fine-pitch cavities, miniature locking structures, or narrow retention slots can create the same manufacturing challenges.

Typical micro-features in electronic connector housings include:

· Fine-pitch terminal cavities

· Thin insulating walls

· Micro retention slots

· Locating ribs

· Polarization features

· Miniature locking structures

· Precision terminal alignment surfaces

At this scale, relatively small changes in material temperature, injection pressure, mold alignment, or cooling conditions can affect feature replication and dimensional stability.

This makes micro-injection molding fundamentally a process-control problem as much as a tooling problem.

Key Challenges in High-Density Electronic Connector Molding

1. Filling Thin-Wall Micro-Features

High-density connectors often combine narrow flow paths with thin insulating walls.

As molten polymer travels through these sections, it loses heat and encounters increasing flow resistance. If the filling conditions are not properly balanced, manufacturers may encounter:

· Short shots

· Incomplete feature replication

· Weld lines

· Flash

· Burn marks

· Dimensional variation

Injection speed, melt temperature, mold temperature, and pressure must therefore be optimized as a system.

For micro-molding, the usable process window can be considerably narrower than that of conventional injection molding.

2. Controlling Tight Tolerances and Tolerance Stack-Up

Connector performance depends on the relationship between multiple features rather than a single dimension.

For example:

Terminal pitch → cavity position → housing geometry → terminal alignment → mating performance

A small positional deviation at several interfaces can accumulate and affect assembly.

A better approach is to identify critical-to-function dimensions and assign tolerances according to their actual impact on connector performance.

This avoids the common mistake of specifying extremely tight tolerances on every dimension when only a limited number of features actually require that level of precision.

Engineering Solutions for Precision Micro-Injection Molding

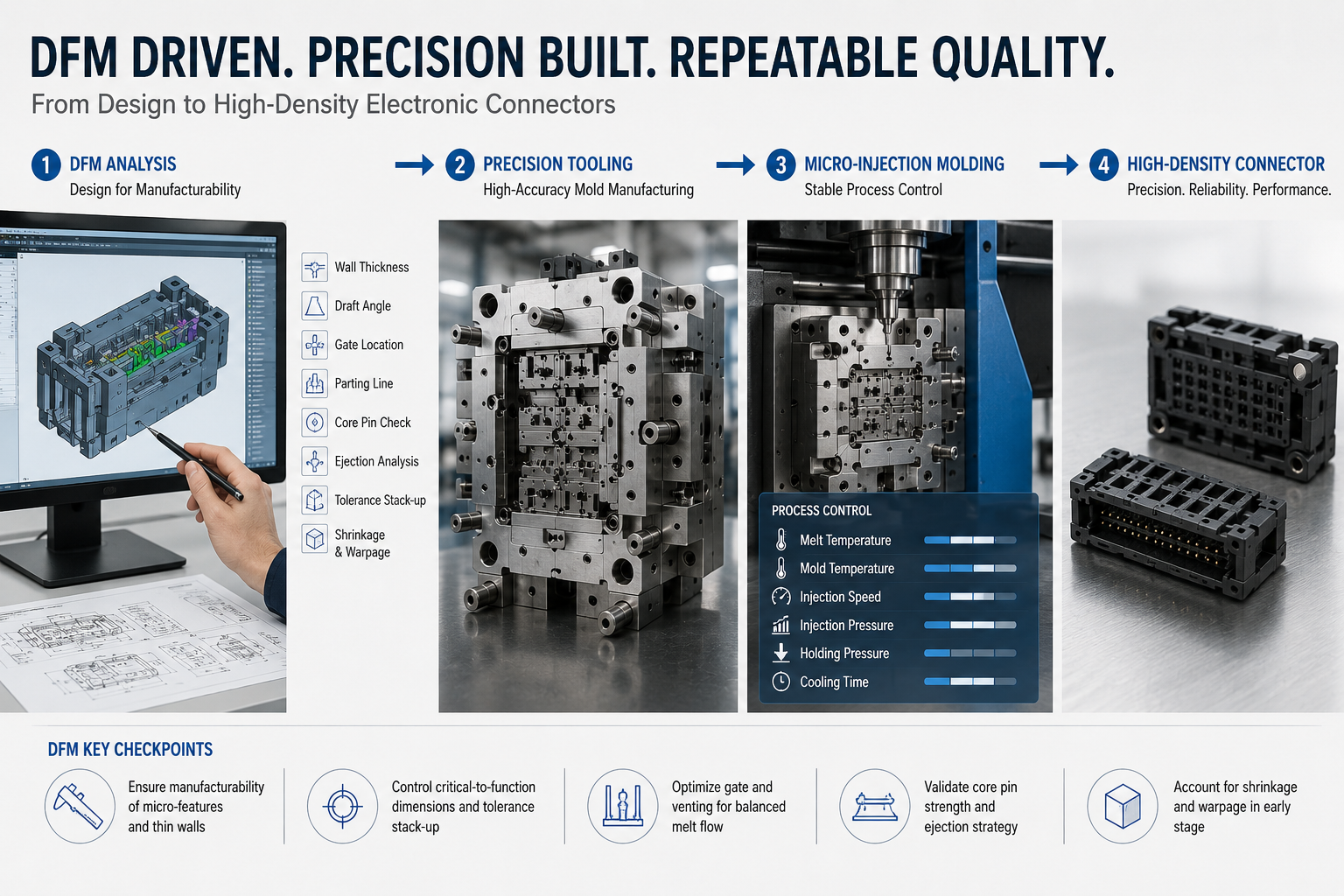

1. DFM Before Tooling

For high-density electronic connectors, Design for Manufacturability (DFM) should begin before mold construction.

A production-oriented DFM review should examine:

· Minimum wall thickness

· Micro-feature geometry

· Draft and ejection

· Parting-line location

· Gate position

· Venting

· Core-pin strength

· Polymer flow direction

· Shrinkage

· Warpage risk

· Critical dimensions

· Tolerance stack-up

The key question is not:

Can this component be molded?

It is:

Can it be molded repeatedly within its functional requirements at production volume?

This distinction is particularly important for micro-molded connectors because a design that works during prototyping may still be unstable during high-volume production.

2. Optimize Injection Parameters

Micro-injection molding does not have a universal parameter recipe. The process must be developed around the resin, geometry, mold design, and required tolerances.

Injection Speed

Higher injection speed can help maintain melt temperature during thin-wall filling. Excessive speed, however, may increase shear, pressure, and flash risk.

Melt and Mold Temperature

Stable temperature control supports consistent polymer flow and micro-feature replication while reducing dimensional variation.

Holding Pressure

Holding pressure compensates for volumetric shrinkage during cooling. Insufficient pressure can cause dimensional loss, while excessive pressure can stress delicate features.

Cooling Time

Thin walls and miniature retention features can deform if the component is ejected before sufficient dimensional stability is achieved.

Therefore, cooling should be optimized for repeatability, not simply minimum cycle time.

Material Conditioning

Engineering polymers can be sensitive to moisture and processing history. Proper resin drying and conditioning are particularly important when the molded component has very small dimensions and tight functional tolerances.

Material Selection for Electronic Micro-Molding

Material selection affects both molding behavior and connector performance.

Common engineering polymers include:

· LCP — suitable for many fine-feature electronic applications

· PBT — used where dimensional and electrical performance are required

· PA — useful for applications requiring mechanical strength

· PPS — suitable for demanding thermal and chemical environments

Depending on the application, engineers may also evaluate flame resistance, dielectric properties, moisture absorption, temperature resistance, chemical resistance, and dimensional stability.

For high-density connectors, material selection should therefore be based on the complete electrical, mechanical, thermal, and environmental specification, rather than flow characteristics alone.

Precision Tooling and Process Control

In micro-injection molding, mold accuracy directly affects molded-part accuracy.

Critical tooling variables include:

· Cavity and core dimensions

· Core-pin positioning

· Parting-line alignment

· Gate geometry

· Micro-venting

· Surface finish

· Ejection strategy

Depending on the geometry, precision mold components may require a combination of CNC machining, EDM, grinding, and polishing.

During production, process monitoring should focus on variables such as:

Melt temperature → Mold temperature → Injection speed → Injection pressure → Holding pressure → Cooling time

Dimensional and visual inspection then verifies critical features and identifies defects such as flash, short shots, burrs, burn marks, and damaged micro-features.

The most effective approach is to connect inspection results back to process conditions rather than relying exclusively on final-part inspection.

Micro-Injection Molding Applications

5G Telecommunications

The continued miniaturization of communication hardware creates demand for compact interconnect components.

Potential applications include:

· RF connector housings

· Fine-pitch board connectors

· Fiber-optic connector components

· Compact communication modules

· Antenna-related components

For these parts, dimensional consistency can directly influence alignment, mating, and assembly reliability.

Micro-Electronics

Micro-injection molding is also applicable to:

· FPC connectors

· Board-to-board connectors

· Sensor components

· Wearable electronics

· Smartphone connectors

· Miniature electromechanical assemblies

The common requirement is not simply small size, but repeatable geometry within a limited assembly envelope.

When Should You Choose Micro-Injection Molding?

Micro-injection molding is generally attractive when a project combines:

· Miniature geometry

· Complex micro-features

· High production volume

· Tight tolerances

· Repeatable dimensional performance

· Engineering-grade polymers

· Automated assembly

For early prototypes or very low quantities, CNC micromachining or additive manufacturing may be more economical.

Once geometry is validated and production volume increases, micro-injection molding can provide better repeatability, cycle efficiency, and unit economics.

The manufacturing method should therefore be selected according to:

Geometry + Volume + Material + Tolerance + Assembly Requirements

—not part size alone.

Engineering Example: Fine-Pitch Connector Housing

Consider a compact connector housing containing multiple closely spaced terminal cavities.

The primary manufacturing risks are not necessarily the overall housing dimensions. The more critical factors are:

1. Cavity-to-cavity positional accuracy

2. Thin wall filling

3. Core-pin strength

4. Polymer shrinkage

5. Terminal retention

6. Final tolerance stack-up

A production-oriented approach would first identify the terminal pitch and mating interface as CTQ dimensions. DFM would then evaluate wall thickness, gate location, ejection, core-pin geometry, and expected shrinkage before mold fabrication.

During production, process parameters would be stabilized around the validated filling and cooling window, while optical or dimensional inspection would monitor the critical connector features.

This approach shifts quality control from “inspect the finished part” to “design and control the process that produces the finished part.”

That distinction becomes increasingly important as connector pitch decreases.

FAQ: Micro-Injection Molding for Electronic Connectors

Q1:What is micro-injection molding used for?

It is used for miniature plastic components and parts containing extremely small features, including electronic connectors, sensors, medical components, and miniature electromechanical assemblies.

Q2:What materials are commonly used?

LCP, PBT, PA, PPS, and other engineering polymers can be considered depending on electrical, mechanical, thermal, dimensional, and environmental requirements.

Q3:How are tight tolerances controlled?

Through precision tooling, DFM, material conditioning, controlled molding parameters, shrinkage compensation, and targeted dimensional inspection of critical features.

Q4:Why is DFM important for micro-molded connectors?

DFM identifies risks such as thin walls, weak core pins, difficult ejection, poor gate placement, shrinkage, warpage, and tolerance stack-up before the mold is manufactured.

Q5:Is micro-injection molding suitable for 5G telecommunications?

Yes. It can be suitable for miniature connector housings, fine-pitch interconnects, RF-related components, and other compact components used in telecommunications and micro-electronics.
