Micro-Machining for Dexterous Robot Hands: Tight Tolerances for Miniature Components

Views: 0     Author: Linda     Publish Time: 2026-08-14      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

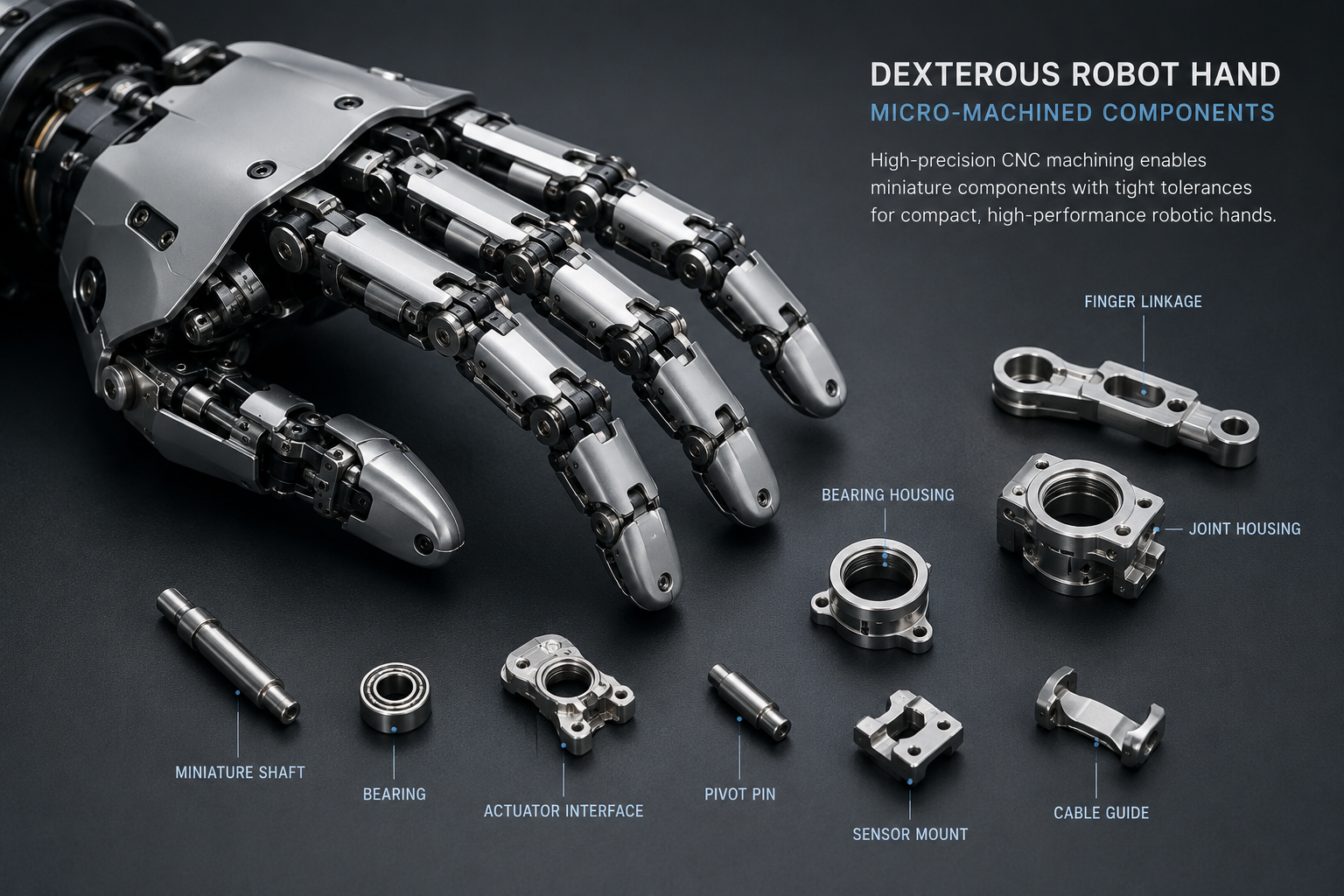

Micro-machined miniature components for dexterous robot hands.png

Quick Answer

Micro-machining robot hands requires precise control of miniature features, dimensional tolerances, surface finish, and feature-to-feature alignment. Components such as dexterous fingers, miniature joint housings, shafts, bearing seats, actuator interfaces, and sensor mounts must remain accurate despite compact geometries and lightweight structures.

Reliable production depends on the entire machining process—not simply using smaller cutting tools. Tool rigidity, cutting parameters, workholding, machining sequence, thermal stability, 5-axis positioning, and CMM inspection all contribute to consistent micro-tolerances.

For applications such as robotic surgery and advanced automation, these factors can directly affect joint alignment, backlash, friction, repeatability, and assembly performance.

Why Micro-Machining Matters for Dexterous Robot Hands

Dexterous robot hands combine multiple mechanical functions within a very limited space. A single finger may contain articulated joints, miniature bearings, shafts, actuator connections, sensor interfaces, and cable-routing features.

This creates a demanding combination of:

· Compact geometry

· Low structural weight

· Complex surfaces

· Small functional features

· Tight assembly requirements

A small dimensional deviation in one functional feature can influence the alignment or clearance of the complete joint.

For this reason, successful micro-machining focuses not only on individual dimensions, but also on the relationship between functional features.

For example, the position of a bearing bore relative to the joint axis can be more important to assembly performance than the bore diameter alone.

Key Challenges in Machining Miniature Robot Components

Tool Deflection and Micro-Feature Accuracy

Small-diameter cutters are inherently more sensitive to deflection and vibration. Excessive tool stick-out, cutting engagement, or machining force can lead to dimensional variation and unstable surface finish.

Typical risk areas include:

· Narrow slots and pockets

· Small bores

· Fine internal radii

· Thin ribs and walls

· Small mounting features

The objective is to maintain a stable cutting load while preserving tool rigidity and dimensional control.

Deformation of Lightweight Structures

Lightweighting is important for robotic fingers and joint structures, but aggressive material removal can make thin sections difficult to fixture and finish consistently.

The main risks include:

Risk

Potential result

Excessive clamping force

Local deformation

High cutting force

Wall or rib deflection

Uneven material removal

Dimensional movement

Poor machining sequence

Loss of structural stability

Excessive heat

Dimensional variation

A controlled roughing, semi-finishing, and finishing strategy helps preserve rigidity around critical features.

Tolerance Stack-Up

Miniature robot assemblies contain multiple interacting components. A typical joint may involve a bearing seat, shaft, mounting surface, and fastener pattern.

Even if individual dimensions are within specification, accumulated variation can affect the assembled mechanism.

This makes datum selection, positional accuracy, concentricity, and feature-to-feature alignment important considerations when defining micro-tolerances.

Technical Solutions for Stable Micro-Machining

The machining strategy should be developed around the smallest functional feature while maintaining sufficient tool rigidity.

Manufacturing factor

Recommended approach

Main objective

Tool diameter

Use the largest practical cutter

Improve rigidity

Tool stick-out

Keep it as short as possible

Reduce deflection

Radial engagement

Control cutting load

Improve dimensional stability

Feed and spindle speed

Match material and tooling data

Maintain stable cutting

Workholding

Support thin sections appropriately

Reduce deformation

Machining sequence

Rough → semi-finish → finish

Protect critical geometry

Chip evacuation

Maintain effective coolant or air flow

Reduce recutting and heat

Tool condition

Monitor wear on micro-tools

Maintain consistency

There is no universal cutting parameter for every micro-machining application. Actual spindle speed, feed, depth of cut, and tool engagement should be validated according to cutter diameter, material, coating, machine capability, and tool-manufacturer recommendations.

For miniature features, controlling cutting engagement and tool deflection is often more important than simply maximizing material removal.

When 5-Axis CNC Machining Makes a Difference

Many dexterous fingers contain compound curves, angled surfaces, undercuts, and features distributed across multiple faces.

5-axis CNC machining can provide more favorable tool orientations while reducing the number of setups.

Its practical advantages include:

· Better access to complex surfaces

· Fewer repositioning operations

· Reduced setup-related positioning errors

· More consistent machining of curved structures

· Better control of relationships between functional features

For miniature robotic components, the advantage of 5-axis machining is therefore not simply producing complex geometry. It can also help maintain feature alignment within a consistent coordinate system.

When multiple precision features share the same functional datum structure, reducing unnecessary setups can be particularly valuable.

Controlling Micro-Tolerances and Surface Quality

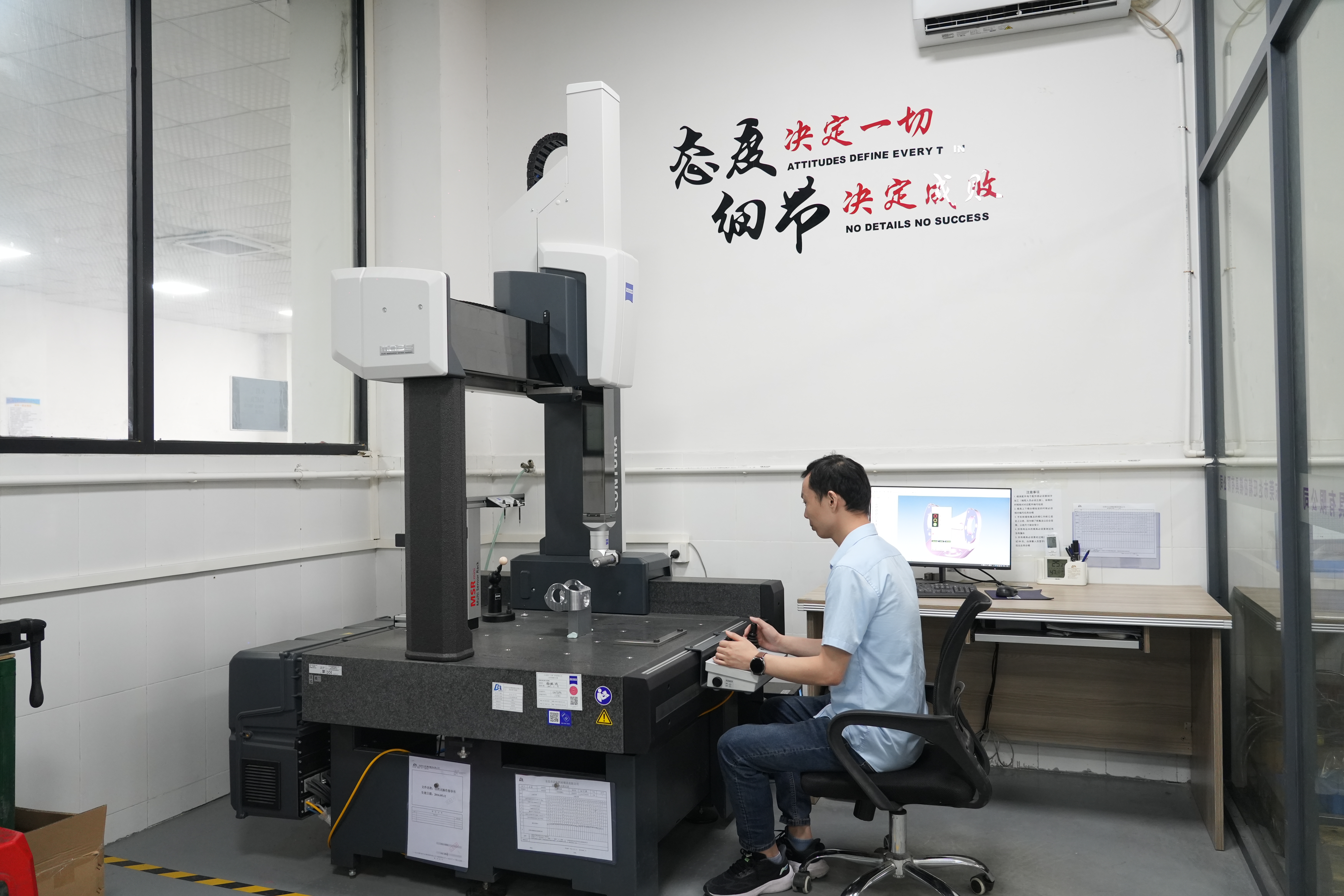

CMM inspection of tight-tolerance miniature robot components.jpg

Tight-tolerance machining should be considered from process planning through final inspection.

Functional Datums

Critical dimensions should reference datums that reflect how the component will be assembled.

For a miniature finger joint, the bearing seat, shaft axis, mounting interface, and fastener pattern may all need to be controlled relative to the primary functional reference.

Machining Sequence

A typical precision process may follow:

Rough machining → Semi-finishing → Precision finishing → Deburring → Surface treatment → Final inspection

For thin-wall components, retaining controlled material during rough machining and removing it during final finishing can help reduce deformation.

Thermal Stability

At miniature dimensions, temperature changes can influence both machining and measurement. Stabilizing the machine, workpiece, and inspection environment is particularly important when verifying critical dimensions.

Inspection Strategy

CMM inspection can evaluate both dimensional accuracy and geometric relationships.

Inspection item

Functional purpose

Bore diameter

Bearing or shaft fit

Position

Joint alignment

Concentricity

Rotating components

Flatness

Mounting interfaces

Parallelism

Controlled mechanical movement

Surface roughness

Contact and friction behavior

For example, confirming the diameter of a bearing bore does not prove that the bore is correctly positioned relative to the joint axis.

For robotic mechanisms, both conditions may be critical.

Material Selection for Miniature Robot Components

Material selection affects weight, stiffness, machinability, wear, and dimensional stability.

Material

Key advantage

Potential application

6061-T6 Aluminum

Lightweight and machinable

Housings and brackets

7075-T6 Aluminum

High strength-to-weight ratio

Lightweight structures

Titanium

High strength and low density

Critical structural parts

Stainless Steel

Strength and wear resistance

Shafts and precision interfaces

PEEK

Low weight and engineering-plastic properties

Insulating or low-friction components

For lightweight miniature components, aluminum and titanium are common options. Stainless steel and engineering plastics can be selected where wear, friction, electrical insulation, chemical resistance, or other application-specific requirements become more important.

Applications in Robotic Surgery and Advanced Automation

Robotic Surgery

Robotic surgical systems require compact mechanisms capable of controlled movement within restricted spaces.

Precision-machined components can include:

· Miniature joints

· Instrument linkages

· Small shafts

· End-effector components

· Sensor interfaces

· Compact housings

In these systems, dimensional consistency can influence assembly accuracy and repeatable movement.

Advanced Automation

Compact robotic grippers, inspection mechanisms, collaborative robots, and specialized end effectors increasingly rely on miniature mechanical assemblies.

Consistent manufacturing helps support:

· Repeatable assembly

· Accurate joint movement

· Stable alignment

· Higher production yield

· Long-term mechanical reliability

DFM Considerations for Micro-Machined Parts

Many micro-machining challenges can be reduced before the first part is manufactured.

Engineers should consider:

· Internal radii: Avoid unnecessarily small radii when a larger radius is functionally acceptable.

· Tolerance allocation: Reserve the tightest tolerances for bearing seats, shafts, alignment features, and other critical interfaces.

· Tool accessibility: Provide sufficient access for cutters, drills, and inspection equipment.

· Wall thickness: Avoid unsupported thin sections that are difficult to fixture and finish.

· Lightweighting: Balance material removal with machining rigidity rather than optimizing only for CAD weight.

The goal is not to make every feature extremely precise. It is to place precision where it directly contributes to the performance of the robotic mechanism.

Frequently Asked Questions

Q1:What tolerances can be achieved when machining miniature robot-hand components?

The achievable tolerance depends on the material, feature size, geometry, machine capability, tooling, and inspection method. Critical features such as bearing bores, shafts, and alignment interfaces should be assigned tighter tolerances based on their functional requirements rather than applying unnecessarily tight tolerances to the entire component.

Q2:What materials are commonly used for dexterous robot hand components?

Common materials include 6061-T6 and 7075-T6 aluminum, titanium, stainless steel, and engineering plastics such as PEEK. Aluminum is often selected for lightweight structures, while titanium and stainless steel may be preferred where higher strength or wear resistance is required. PEEK can be considered for applications requiring low weight, electrical insulation, or low-friction characteristics.

Q3:Is 5-axis CNC machining necessary for miniature robot fingers?

Not every robot-hand component requires 5-axis machining. However, 5-axis CNC can be beneficial for parts with complex curves, angled surfaces, undercuts, and multiple functional features distributed across several faces. Reducing setups can also help maintain positional relationships between critical features.

Q4:How are tight tolerances verified on miniature robotic components?

Depending on the requirements, inspection may include CMM measurement, dimensional inspection, positional accuracy, concentricity, flatness, parallelism, and surface roughness measurement. For critical robot-hand components, inspection should verify the relationship between functional features, not only individual dimensions.

Q5:How can I determine whether my robot-hand component is suitable for CNC micro-machining?

A DFM review can identify potential issues before production, including minimum feature size, tool accessibility, wall thickness, tolerance allocation, material selection, workholding, machining sequence, and inspection requirements. Sending a STEP or PDF drawing to the engineering team is an effective way to evaluate manufacturability before machining begins.

Get a Free DFM Review for Your Robot-Hand Components

For miniature robotic components, manufacturability should be evaluated before production begins.

Dawang Precision brings 26 years of CNC manufacturing experience, more than 400 advanced machine tools, and experience machining lightweight humanoid robot joint structures and tight-tolerance interfaces.

Send your STEP or PDF drawings to the engineering team for a free DFM evaluation. We can review:

· Micro-machining feasibility

· Critical tolerances and GD&T

· Tool accessibility

· Lightweight structural features

· Material and process selection

· Workholding strategy

· Inspection requirements

Send your STEP/PDF drawings today and receive an engineering response within 24 hours.
