Hard Anodizing and Coating Solutions for Heavy-Duty Robot Joint Components

How Surface Finishing Improves Wear Resistance, Friction Performance, and Assembly Reliability

Quick Answer

The right robot joint component finish is critical for heavy-duty robotic systems because joint components must withstand repeated loads, movement, friction, and environmental exposure while maintaining precise assembly dimensions. For CNC-machined aluminum robot joints, hard anodizing is widely used to improve surface hardness, wear resistance, and corrosion protection without adding the weight associated with conventional metal coatings.

However, surface treatment cannot be selected independently from machining. Coating thickness, bearing bores, threaded holes, mating surfaces, surface roughness, and dimensional tolerances should all be considered before CNC machining begins. For precision robotic joints, the most reliable approach is to engineer the CNC machining and finishing processes as one integrated manufacturing process.

Why Robot Joint Component Finish Matters

Robot joints are among the most mechanically demanding parts in a robotic system. Unlike static structural components, joint housings, gear carriers, motor mounts, and linkage components are exposed to repeated motion and cyclic loading.

Heavy-duty robot joints may experience:

· High torque and cyclic loads

· Repeated rotational or oscillating movement

· Contact and sliding wear

· Vibration and impact

· Strict alignment requirements

· Long operating cycles

These conditions make surface engineering an important part of component design.

For aluminum robot joints, a suitable surface finish can help improve:

Therefore, when engineers search for the best finish for robot joint components, they should evaluate the coating together with material selection, machining accuracy, surface roughness, and operating conditions.

What Makes Heavy-Duty Robot Joints Difficult to Finish?

1. High Cyclic Loads and Surface Wear

Robot joints continuously transmit mechanical forces between motors, gears, bearings, and structural links.

Humanoid robot joints such as hip, knee, shoulder, and elbow assemblies can be particularly demanding because the same components may repeatedly accelerate, decelerate, and reverse direction.

Aluminum alloys such as 6061-T6 and 7075-T6 are attractive for these applications because they provide a high strength-to-weight ratio. However, untreated aluminum has limited surface hardness compared with many steels.

For this reason, hard anodized aluminum robot joint components can provide a useful combination of lightweight construction and improved surface durability.

2. Tight-Tolerance Interfaces

Robot joints often contain several precision interfaces within a relatively small component.

Examples include:

· Bearing bores

· Shaft locations

· Gear mounting features

· Motor interfaces

· Dowel holes

· Threaded holes

· Precision mating surfaces

The challenge is that anodizing changes the surface condition and dimensions of the machined part.

Hard anodizing therefore needs to be considered during the initial DFM stage rather than added after machining specifications have already been finalized.

3. Lightweight Structures Can Be More Difficult to Machine

Reducing robot weight often requires:

· Thin-wall sections

· Deep pockets

· Rib structures

· Complex curved surfaces

· Material removal around load-bearing areas

These features can reduce structural rigidity during CNC machining and increase the risk of deformation.

For complex robot joint housings, five-axis machining can reduce the number of setups and improve access to multiple surfaces while helping maintain the positional relationship between critical features.

What Is Hard Anodizing for Aluminum Robot Parts?

Hard anodizing, commonly referred to as Type III anodizing, is an electrochemical process that converts the aluminum surface into an aluminum oxide layer.

Unlike paint or conventional plated coatings, the anodic layer is formed from the aluminum substrate itself.

According to the Aluminum Anodizers Council, Type III hardcoat anodizing is intended for applications requiring high abrasion resistance and durability. The AAC reference guide identifies typical Type III coating thicknesses from approximately 0.0005 to 0.0045 inches (12.7–114.3 μm), depending on the specification and application.

The actual achievable coating thickness depends on factors including:

· Aluminum alloy

· Surface condition

· Electrolyte chemistry

· Electrical parameters

· Processing time

· Required coating performance

Therefore, coating thickness should be specified according to the functional requirements of the robot joint rather than selected as a generic value.

How Hard Anodizing Improves Robot Joint Performance

Wear Resistance

Wear resistance is one of the primary reasons engineers select hard anodizing for aluminum mechanical components.

The hard anodic oxide layer provides a more durable surface than untreated aluminum, helping protect components exposed to repeated contact and abrasion.

This is particularly relevant to:

· Robot joint housings

· Gear carriers

· Actuator brackets

· Structural linkage components

For engineers investigating how to improve wear resistance of aluminum robot parts, hard anodizing can be an effective solution when the substrate material and operating environment are appropriate.

Friction Reduction and Wear Control

Friction performance requires more careful consideration than simply selecting a coating.

Hard anodizing can provide favorable friction and wear behavior, but the actual coefficient of friction depends on several factors, including:

· Counterface material

· Surface roughness

· Lubrication

· Contact pressure

· Sliding velocity

· Temperature

· Anodizing conditions

Consequently, friction reduction should be treated as a system-level design objective rather than an automatic property of every hard anodized surface.

For moving robot joints, engineers should evaluate the complete contact pair and lubrication strategy.

Corrosion Protection

Robotic equipment can operate in environments containing moisture, cleaning chemicals, or industrial contaminants.

Hard anodizing creates a protective oxide layer that can improve the corrosion resistance of aluminum components.

Where additional environmental protection is required, sealing or other compatible finishing processes may be considered depending on the application.

CNC Machining and Hard Anodizing: How to Control Dimensions

A major challenge in manufacturing CNC machined robotic joint parts with tight tolerances is controlling dimensions before and after surface treatment.

1. Coating Allowance

The design should account for the specified anodizing thickness.

Critical dimensions should not simply be machined to the final nominal size and then sent for coating.

Instead, engineers should determine:

· Required final dimension

· Coating specification

· Expected dimensional change

· Required machining allowance

2. Bearing Bores

Bearing seats are often among the most critical features in a robot joint.

Depending on the design, engineers may specify:

· Controlled anodizing

· Masking

· Post-anodizing machining

· Alternative surface treatment

The correct solution depends on the required fit and whether the anodized surface itself is functional.

3. Threads and Small Holes

Threaded holes and small precision holes may require masking or additional dimensional consideration.

Blind holes also require careful attention to:

· Chemical drainage

· Coating coverage

· Cleaning

· Residual processing fluids

These details should be identified during DFM rather than discovered after production.

4. Surface Roughness

Surface roughness should be specified according to function.

A bearing interface, sealing surface, and external structural surface do not necessarily require the same finish.

Over-specifying surface roughness can increase machining cost without improving robot performance.

Engineering Design Guide for Robot Joint Finishing

This integrated approach is particularly important for precision CNC machining for humanoid robot joints, where weight reduction and assembly accuracy must be achieved simultaneously.

Choosing the Right Aluminum and Surface Finish

Material selection and finishing should be evaluated together.

For lightweight robotic structures, aluminum is often preferred when reducing moving mass is important.

However, the best material depends on:

· Joint load

· Weight target

· Machinability

· Corrosion environment

· Required surface treatment

· Cost

· Assembly requirements

Hard Anodizing vs Other Coating Options

For aluminum robot joint components where low mass, durability, and corrosion protection are all important, hard anodizing is often a strong starting point.

It is not, however, a universal solution. Components exposed to extreme sliding wear, high contact pressure, or specialized chemical environments may require a different coating or material combination.

When Should Engineers Choose Hard Anodizing?

Hard anodizing is particularly suitable when a robot joint component requires:

· Lightweight aluminum construction

· Improved surface hardness

· High abrasion resistance

· Corrosion protection

· Controlled surface durability

· Minimal added coating weight

It should be evaluated more carefully when the component contains highly loaded sliding interfaces, extremely tight functional fits, or surfaces where the anodized layer could interfere with assembly.

The key is to specify the functional surface requirement first and then select the finishing process.

DFM Considerations for Production Robot Joint Components

For complex robotic components, surface finishing should be included in the engineering review before production.

A DFM review should confirm:

1. Material and temper

2. Critical dimensional tolerances

3. Surface roughness requirements

4. Hard anodizing specification

5. Coating thickness

6. Masking requirements

7. Bearing and mating interfaces

8. Inspection requirements

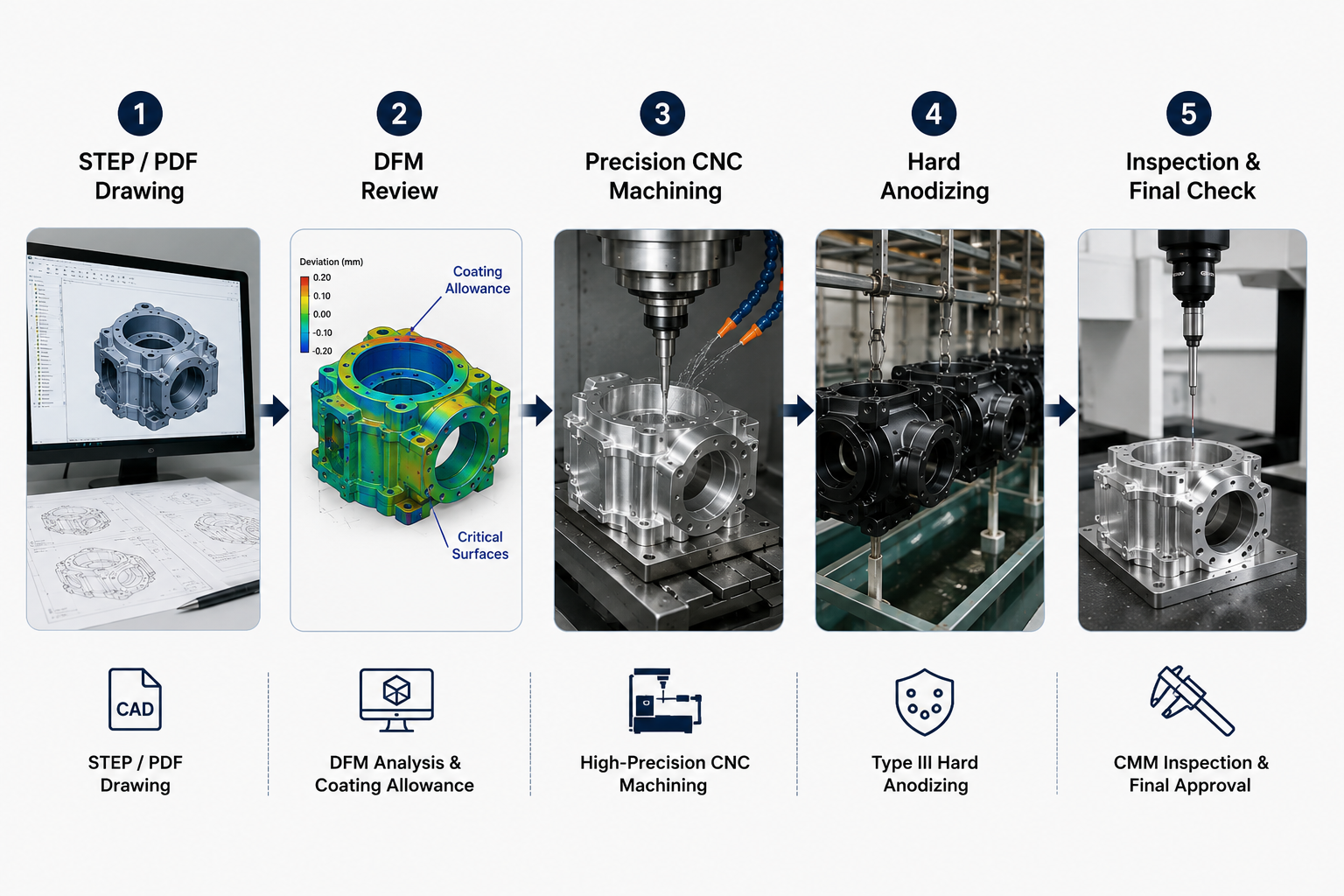

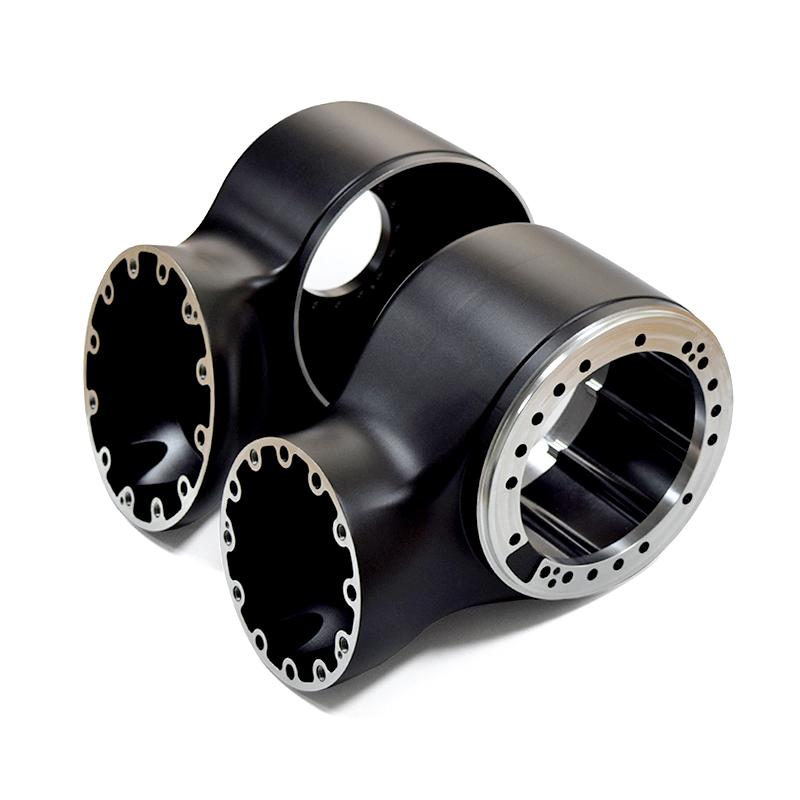

Dawang Precision applies this integrated approach to precision robotic structural components, combining CNC machining capabilities with five-axis machining, dimensional inspection, and engineering review. Its manufacturing environment includes more than 400 CNC machines, including Mazak and Röders five-axis equipment.

The purpose is not simply to achieve a machined dimension, but to ensure that the finished component performs correctly after machining, anodizing, inspection, and assembly.

Free DFM Evaluation for Your Robot Joint Components

A reliable robot joint component finish starts with the design—not at the anodizing line.

If you are developing heavy-duty robot joints, actuator housings, gear carriers, or lightweight robotic structural components, send your STEP or PDF drawings to the Dawang Precision engineering team.

We can review:

· Machining feasibility

· Critical tolerances

· Surface finishing requirements

· Anodizing considerations

· Assembly interfaces

· Potential DFM improvements

Submit your STEP or PDF drawing for a free DFM evaluation and receive engineering feedback within 24 hours.

FAQ: Robot Joint Component Finish

Q1:What is the best finish for aluminum robot joint components?

Hard anodizing is often a strong choice when the component requires improved wear resistance, surface hardness, and corrosion protection while maintaining the weight advantages of aluminum.

Q2:Does hard anodizing change CNC dimensions?

Yes. The anodic layer changes the final surface dimensions, so coating thickness and dimensional compensation should be considered during CNC programming and DFM.

Q3:Is hard anodizing suitable for bearing bores?

It can be, but the answer depends on the required bearing fit and functional surface. Masking, controlled coating, or post-treatment machining may be required for critical bores.

Q4:Does hard anodizing automatically reduce friction?

No. Friction depends on the complete contact system, including counterface material, roughness, lubrication, load, and speed. Hard anodizing can contribute to favorable wear and friction behavior but should not be treated as a universal low-friction coating.

Q5:Which aluminum is better for robot joints: 6061 or 7075?

7075-T6 generally provides higher strength, while 6061-T6 offers excellent machinability and a balanced combination of mechanical and corrosion properties. The appropriate choice depends on the joint's load, weight, environment, and manufacturing requirements.
