How to Control Deformation in Thin-Wall CNC Machining for Robot Structural Parts

Quick Answer

Thin-wall CNC machining robot parts require careful control of cutting forces, thermal stress, fixture pressure, and machining strategies to prevent deformation. The most effective methods include optimizing CNC parameters, improving structural rigidity through design, using five-axis machining, applying customized fixtures, and performing strict tolerance inspection.

For lightweight robotic components such as robot limbs and structural frameworks, manufacturers must achieve the right balance between weight reduction, structural rigidity, and dimensional accuracy. Advanced CNC machining processes and early DFM analysis help ensure stable assembly performance and long-term reliability.

Introduction: The Growing Demand for Lightweight Robot Structural Components

Modern robotic systems are becoming lighter, faster, and more precise. From industrial robots to collaborative robots and humanoid robots, manufacturers are continuously reducing component weight while maintaining mechanical strength.

According to the International Federation of Robotics (IFR), global demand for robotic systems continues to expand as automation adoption increases across industries. This growth has created higher requirements for precision-manufactured components, especially lightweight structural parts with complex geometries.

In robotic applications, thin-wall components are commonly used in:

· Robot limbs

· Joint housings

· Structural framework

· Lightweight motion components

However, producing these components is challenging because thin structures have limited stiffness and are highly sensitive to machining forces.

For engineers searching for how to prevent deformation in thin wall CNC machining, the key challenge is controlling the relationship between material removal, structural stability, and final dimensional accuracy.

At Dawang Precision, we specialize in precision CNC machining for complex robotic components. With 26 years of manufacturing experience, more than 400 advanced CNC machines, and five-axis machining capabilities from Röders and Mazak, we help global customers produce lightweight robot structural parts with stable tolerances and reliable assembly performance.

Why Thin-Wall CNC Machining Robot Parts Are Difficult

1. Low Structural Rigidity Creates Machining Instability

The biggest challenge in thin-wall CNC machining is insufficient structural rigidity.

Unlike conventional mechanical components, thin-wall parts have less supporting material. During cutting, machining forces can easily cause:

· Wall deflection

· Vibration

· Chatter marks

· Dimensional variation

For robot structural components, even small deformation can affect:

· Motor alignment

· Bearing installation

· Joint movement accuracy

· Overall robot performance

This is why improving the rigidity of thin wall machined components is a critical engineering consideration.

The goal is not simply creating thinner parts. The goal is achieving optimized weight reduction without sacrificing structural rigidity.

2. Cutting Forces and Heat Can Cause Permanent Deformation

During CNC machining, material removal changes the internal stress balance of the workpiece.

This is especially significant when machining lightweight materials such as:

· 6061 aluminum

· 7075 aluminum

· Titanium alloys

These materials are widely used in robotic structures because of their excellent strength-to-weight ratio.

However, aggressive machining conditions may introduce:

· Residual stress release

· Thermal expansion

· Uneven cooling deformation

For precision robot components requiring tight assembly tolerances, controlling these factors is essential.

3. Improper Fixturing Can Distort Thin Components

Fixture design is another major factor affecting deformation control.

Traditional clamping methods may apply excessive pressure to thin-wall structures, creating deformation before machining begins.

After removing the fixture, the part may spring back and create unexpected dimensional errors.

For this reason, precision manufacturers often use:

· Soft jaws

· Customized supports

· Low-pressure fixtures

· Balanced clamping strategies

Proper workholding ensures that the component remains stable throughout the machining process.

Engineering Solutions for Deformation Control in Thin-Wall CNC Machining

1. Optimize CNC Machining Parameters

The first step to prevent deformation in thin wall CNC machining is reducing unnecessary cutting stress.

Engineers typically optimize:

· Cutting speed

· Feed rate

· Depth of cut

· Tool engagement

· Toolpath strategy

Instead of removing large amounts of material in one operation, thin-wall machining usually requires controlled material removal.

A typical process includes:

Rough Machining

The purpose is to remove bulk material while maintaining enough support structure.

Semi-Finishing

This stage gradually approaches final geometry while reducing machining stress.

Finishing

Light cutting passes are used to achieve final dimensions and surface requirements.

This approach improves CNC machining tolerance control for robotic parts.

2. Improve Structural Rigidity Through Design Optimization

Manufacturing success starts before machining.

During DFM analysis, engineers evaluate:

· Wall thickness

· Rib design

· Material distribution

· Stress concentration areas

For lightweight CNC machined robot structural components, designers often use reinforcement features to improve stiffness without significantly increasing weight.

A successful robotic structure must achieve:

Weight Reduction + Structural Rigidity + Precision Assembly

This balance is essential for robot limbs and structural frameworks that experience repeated dynamic loads.

3. Apply Five-Axis CNC Machining for Complex

Robot Parts

Many robotic components include:

· Curved surfaces

· Multi-angle features

· Internal pockets

· Complex mounting interfaces

Traditional three-axis machining may require multiple setups, increasing positioning errors.

Five-axis CNC machining provides advantages including:

· Reduced setups

· Better tool accessibility

· Higher positional accuracy

· Improved surface consistency

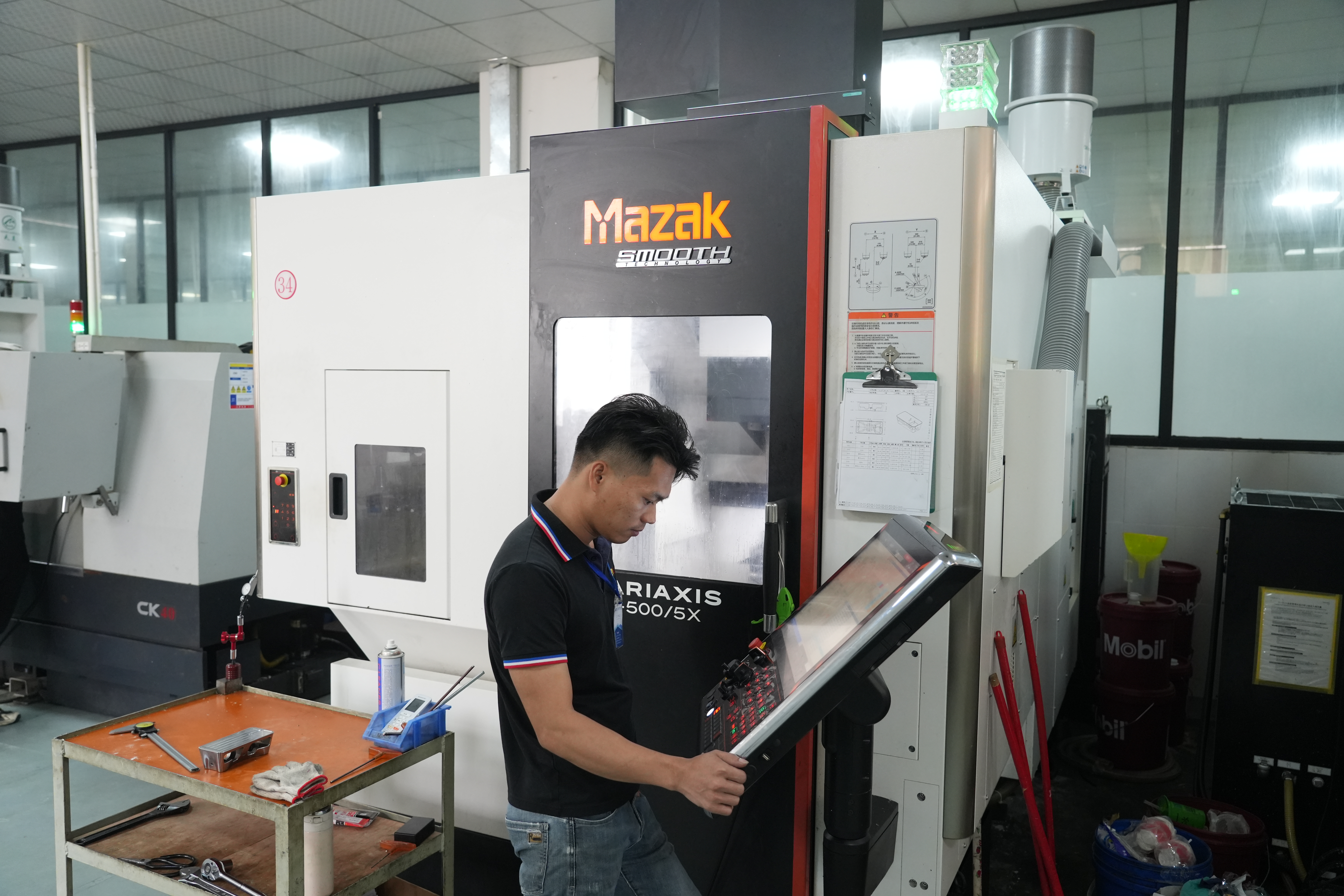

At Dawang Precision, advanced five-axis machining centers from Röders and Mazak allow engineers to manufacture complex robotic structures with fewer repositioning operations.

This improves dimensional stability and reduces cumulative machining errors.

4. Use Customized Fixtures for Thin-Wall Stability

For thin-wall CNC machining robot parts, fixture design is considered part of the manufacturing process.

Engineers analyze:

· Where support is needed

· How clamping force is distributed

· How deformation can be minimized

A well-designed fixture helps maintain:

· Accurate positioning

· Repeatable machining conditions

· Stable production quality

This is especially important for robot joint components requiring precise integration with motors and transmission systems.

5. Control Tolerances Through Precision Inspection

Producing accurate thin-wall parts requires strict quality control.

Inspection methods include:

CMM Measurement

Coordinate Measuring Machines verify:

· Dimensional accuracy

· Position tolerance

· Flatness

· Alignment features

Process Monitoring

Engineers monitor:

· Tool wear

· Machining vibration

· Batch consistency

For robotic applications, tolerance control directly influences assembly efficiency and operational reliability.

Real Manufacturing Example: CNC Machining a Lightweight Robot Joint Structure

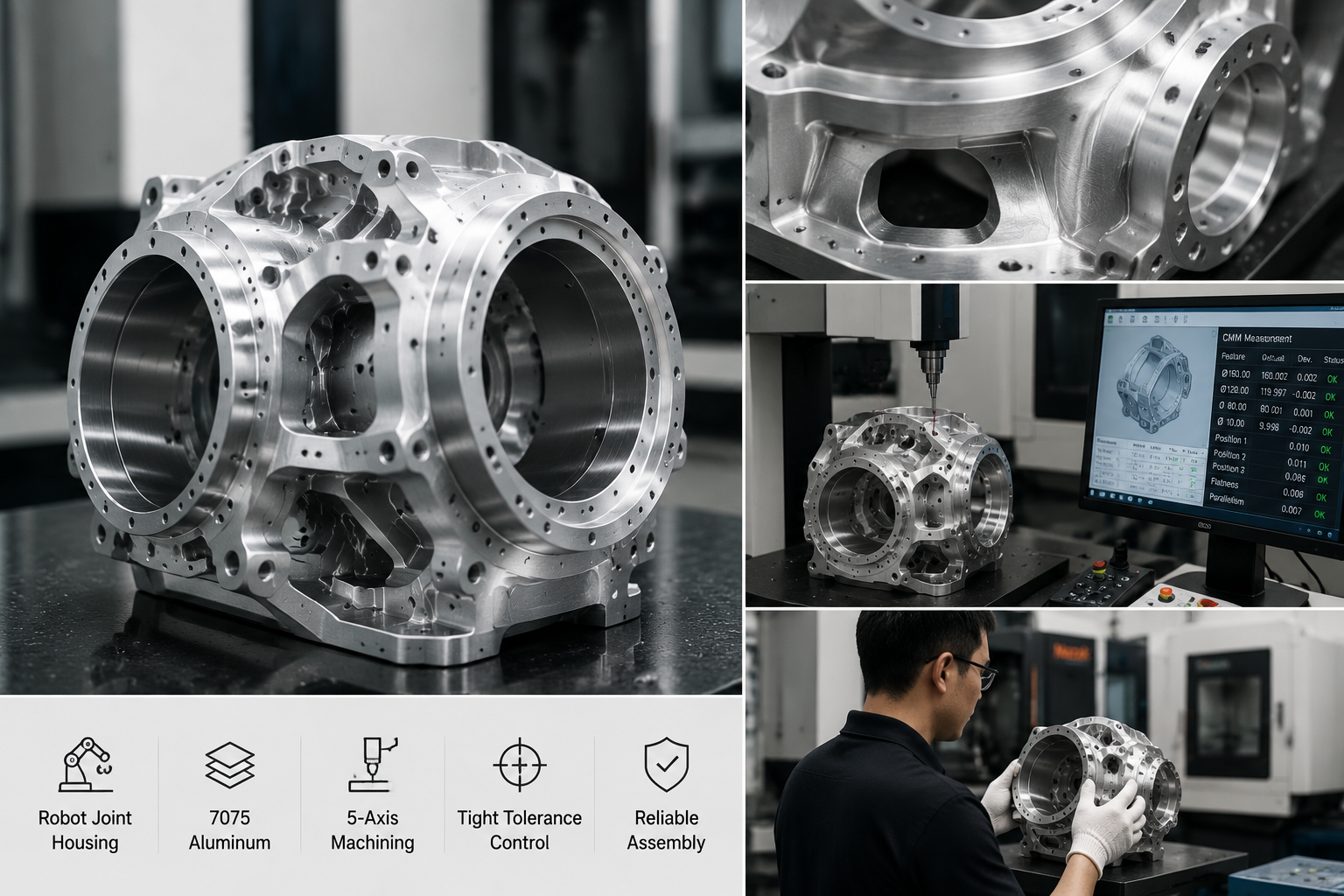

A robotics customer required a lightweight aluminum joint housing designed for a robotic motion system.

The challenge was:

· Reduced wall thickness for weight reduction

· Complex curved geometry

· Multiple precision mounting interfaces

· Tight assembly tolerance requirements

During the engineering review, Dawang Precision optimized the machining approach through:

· Five-axis CNC machining strategy

· Reduced cutting-force toolpaths

· Customized fixture support

· Multi-stage finishing process

· CMM inspection verification

The result was a stable lightweight structural component with improved dimensional consistency and reliable assembly performance.

This type of project demonstrates that successful thin-wall machining depends not only on machine capability but also on engineering experience throughout the manufacturing process.

Why Choose Dawang Precision for Thin-Wall CNC Machining Robot Parts?

Dawang Precision provides precision manufacturing solutions for customers developing advanced robotic systems.

Our capabilities include:

· 26 years of CNC machining experience

· 400+ advanced CNC machines

· Five-axis machining with Röders and Mazak equipment

· Complex structural component manufacturing

· Precision inspection and quality control

From prototype development to low-volume production, our engineering team helps customers optimize designs for manufacturability, reduce machining risks, and achieve reliable production results.

Conclusion: Precision Control Creates Reliable Robotic Structures

Thin-wall CNC machining robot parts require a combination of advanced equipment, engineering knowledge, and strict process control.

By managing machining forces, improving structural rigidity, optimizing toolpaths, and maintaining precise inspection standards, manufacturers can produce lightweight robotic components without compromising performance.

Dawang Precision supports global robotics companies with advanced CNC machining capabilities and engineering expertise for complex structural components.

If you are developing robot limbs, structural frameworks, or lightweight robotic parts, send your STEP or PDF drawings to our engineering team for a free DFM evaluation.

Our engineers will review your design and provide professional feedback within 24 hours.

FAQ: Thin-Wall CNC Machining Robot Parts

Q1:How can manufacturers prevent deformation in thin-wall CNC machining?

Manufacturers reduce deformation by optimizing cutting parameters, improving fixture design, controlling heat generation, and applying suitable machining strategies.

Q2:Why are thin-wall parts used in robotic structures?

Thin-wall components help achieve weight reduction while maintaining sufficient strength, making them suitable for robot limbs and lightweight structural frameworks.

Q3:What CNC machining method is best for complex robot parts?

Five-axis CNC machining is often preferred because it improves accuracy, reduces setups, and enables machining of complex geometries.

Q4:How do engineers improve structural rigidity in thin-wall components?

Structural rigidity can be improved through optimized wall thickness, reinforcement ribs, better material distribution, and proper manufacturing processes.
