Machining PEEK Robot Gears: Benefits, Challenges, and Precision Manufacturing Solutions for Humanoid Robots

Quick Answer

Machining PEEK robot gears requires specialized CNC processes to achieve stable dimensions, accurate tooth profiles, and reliable performance in robotic systems. Compared with traditional metal gears, PEEK gears offer advantages including lightweight design, low friction, reduced noise, and excellent chemical resistance. These characteristics make PEEK an ideal engineering plastic for applications such as robot dexterous hands and miniature actuators. However, achieving consistent PEEK gear tolerances requires precise machining strategies, thermal control, and advanced inspection methods.

The Growing Role of PEEK Gears in Humanoid Robotics

Humanoid robots are rapidly expanding from research environments into practical applications including industrial automation, healthcare, and intelligent manufacturing. As robotic systems become smaller and more sophisticated, engineers face increasing challenges in developing transmission components that combine precision, durability, lightweight design, and efficient operation.

Gears are among the most critical components inside robotic joints and actuators. Their accuracy directly affects motion smoothness, positioning performance, noise levels, and overall system reliability.

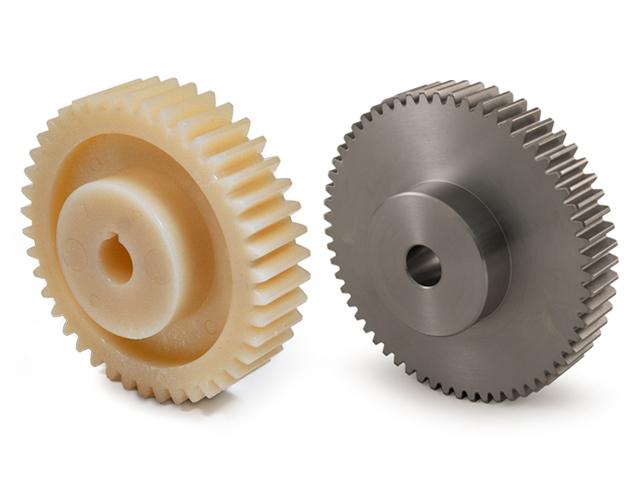

Traditional metal gears provide excellent strength and load capacity, but they also introduce several limitations:

· Higher component weight

· Increased rotational inertia

· More mechanical noise

· Additional lubrication requirements

For compact robotic systems, especially robot dexterous hands and miniature actuators, engineers are increasingly evaluating advanced engineering plastics such as PEEK (Polyether Ether Ketone).

According to the International Federation of Robotics (IFR), the continued growth of robotics applications is driving demand for lighter, more efficient, and highly reliable mechanical components. As robotic designs become more compact, material selection plays an increasingly important role in system performance.

Why Choose PEEK for Robot Gears?

1. Lightweight Design Improves Robotic Efficiency

Weight reduction is a major goal in humanoid robot development.

Robotic joints often contain multiple gears, bearings, and transmission components. Replacing selected metal components with PEEK gears can significantly reduce moving mass and rotational inertia.

The advantages include:

· Lower motor load

· Faster actuator response

· Improved energy efficiency

· Reduced mechanical stress

For robotic dexterous hands, lightweight gears help achieve smoother finger movement and more responsive control, which are essential for precision gripping and human-like manipulation.

2. Low Friction and Wear Resistance

Robotic gears often operate through millions of repeated movement cycles. Excessive friction and wear can reduce service life and negatively affect motion accuracy.

PEEK provides:

· Low coefficient of friction

· Excellent wear resistance

· Reduced operating noise

· Stable mechanical performance

Compared with traditional metal gear systems, PEEK gears can reduce mechanical noise and improve efficiency in applications where quiet and smooth operation are required.

This makes PEEK particularly suitable for miniature transmission systems used in compact robotic mechanisms.

3. Excellent Dimensional Stability

Precision robotics requires components that maintain their geometry over long periods of operation.

PEEK offers:

· Low moisture absorption

· High chemical resistance

· Excellent temperature stability

· Reliable mechanical properties

Maintaining stable dimensions is especially important for robotic gears because small dimensional changes can lead to:

· Increased backlash

· Reduced positioning accuracy

· Uneven tooth engagement

· Premature wear

For this reason, controlling PEEK gear tolerances is one of the most important challenges during manufacturing.

Key Challenges When Machining PEEK Robot Gears

Although PEEK offers outstanding material advantages, machining PEEK robot gears requires a different approach compared with conventional metal machining.

1. Managing Heat Generation and Thermal Expansion

PEEK has lower thermal conductivity than metals. During CNC machining, heat generated at the cutting area is not dissipated as quickly.

Excessive heat may cause:

· Material expansion

· Dimensional deviation

· Edge deformation

· Reduced gear accuracy

To maintain precision, manufacturers must carefully optimize:

· Cutting speed

· Feed rate

· Tool geometry

· Cooling method

Stable machining conditions are essential because temperature variation can directly influence final gear dimensions.

2. Achieving Precise PEEK Gear Tolerances

One of the biggest challenges when machining PEEK robot gears is maintaining consistent dimensional accuracy.

Factors affecting PEEK gear tolerances include:

· Material stress release

· Cutting forces

· Tool wear

· Fixture pressure

· Machining sequence

Unlike rigid metals, PEEK has a certain degree of flexibility. Excessive machining force can cause deformation and affect tooth profile accuracy.

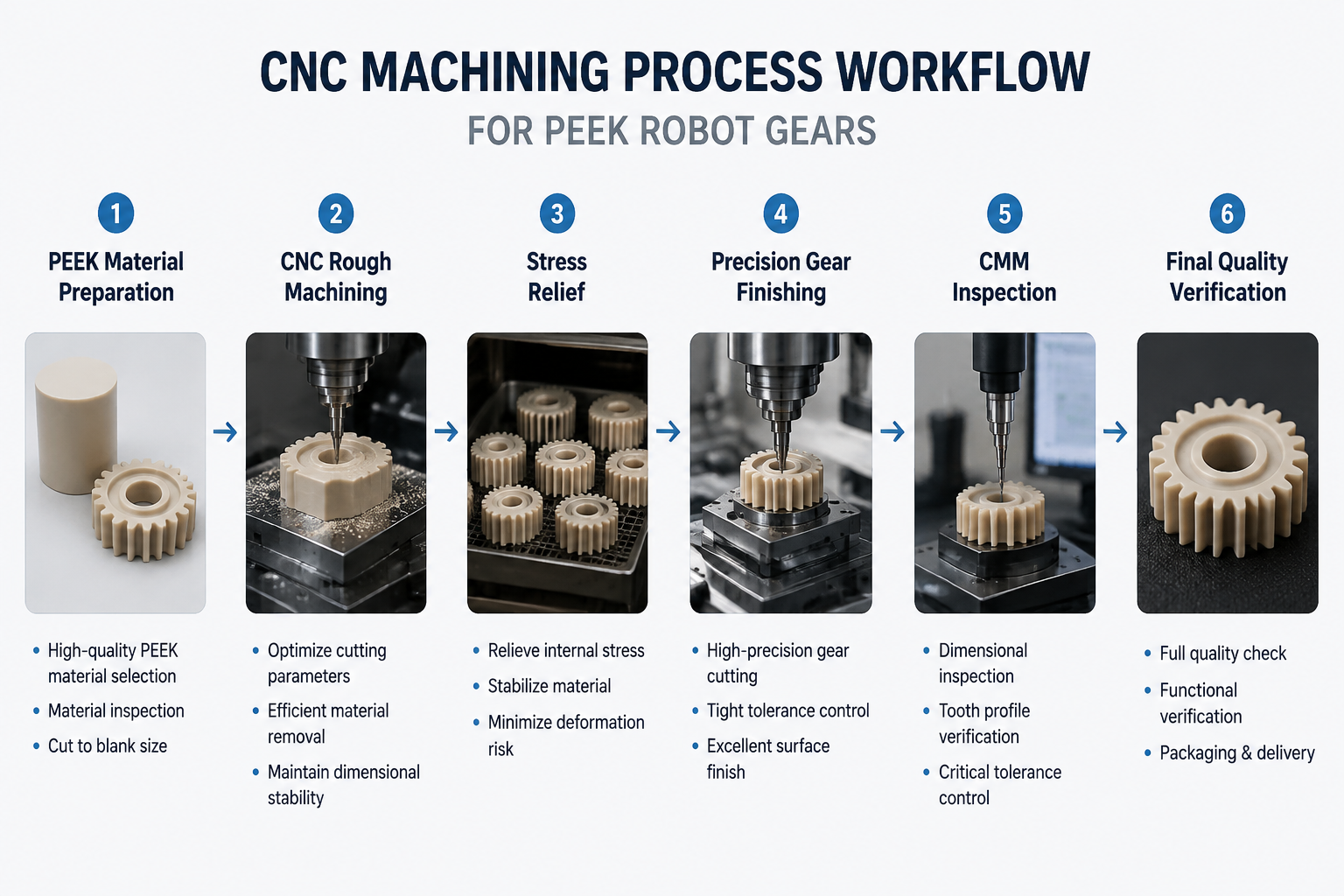

A reliable manufacturing process typically includes three stages:

Rough Machining

The first machining stage focuses on material removal while minimizing internal stress.

Stress Relief Management

Allowing the material to stabilize helps reduce dimensional changes during final machining.

Precision Finishing

The final operation focuses on:

· Gear tooth profile accuracy

· Surface finish quality

· Assembly dimensions

· Functional performance

This staged process improves consistency for precision robotic applications.

CNC Machining Solutions for High-Precision PEEK Gears

Producing reliable PEEK robot gears requires a combination of material knowledge, advanced CNC technology, and strict quality control.

1. Optimized CNC Machining Process

Professional PEEK machining usually includes:

· Proper material preparation

· Stable fixture design

· Optimized cutting parameters

· Precision finishing operations

For complex robotic components, 5-axis CNC machining provides several advantages:

· Improved tool accessibility

· Reduced repositioning errors

· Better geometric consistency

· Higher efficiency for complex structures

This is especially valuable for miniature robotic components where multiple surfaces and tight assembly requirements must be maintained.

2. Precision Inspection and Quality Control

Robotic systems require repeatable and predictable motion. Therefore, inspection is a critical part of PEEK gear manufacturing.

Common inspection methods include:

· Coordinate Measuring Machine (CMM)

· Dimensional inspection

· Surface roughness measurement

· First Article Inspection (FAI)

Critical inspection features include:

· Gear diameter

· Tooth geometry

· Mounting interface

· Alignment features

· Overall dimensional accuracy

A complete quality control process ensures that every component performs consistently during robotic assembly.

Applications of PEEK Gears in Humanoid Robotics

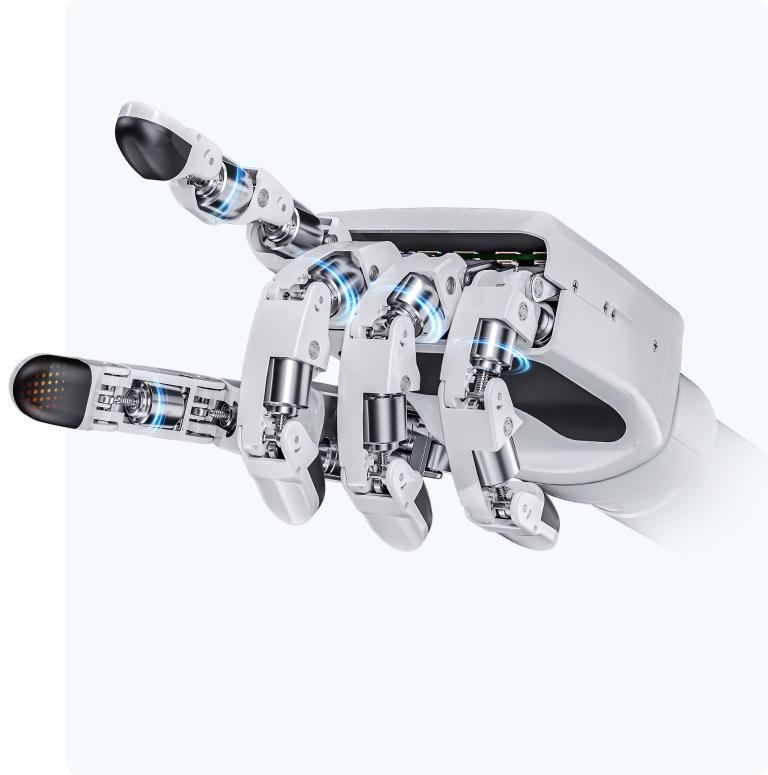

PEEK Gears for Robot Dexterous Hands

Humanoid robot hands require compact transmission systems capable of precise and repeated movement.

PEEK gears are suitable for:

· Finger joint mechanisms

· Miniature gear assemblies

· Lightweight transmission modules

Their low friction and lightweight characteristics support smoother movement while reducing the load placed on miniature motors.

For example, a robotic hand designed for precision manipulation may contain multiple small transmission gears. Using CNC machined PEEK gears can help improve efficiency while maintaining accurate motion control.

PEEK Components for Miniature Actuators

Miniature actuators are essential for robotic joints and precision motion systems.

PEEK components help engineers achieve:

· Reduced actuator weight

· Lower mechanical resistance

· Improved energy efficiency

· Stable operation under repeated cycles

As humanoid robots become smaller and more agile, advanced engineering plastics like PEEK will continue to play an important role in next-generation robotic systems.

Case Study: CNC Machining PEEK Gear Components for Robotic Applications

A robotics manufacturer required lightweight transmission components for a miniature actuator system.

The main challenges included:

· Small gear dimensions

· Strict tooth profile requirements

· Low friction operation

· Long-term dimensional stability

The manufacturing approach included:

1. Engineering design review and DFM optimization

2. PEEK material preparation

3. CNC rough machining with controlled cutting parameters

4. Precision finishing of gear profiles

5. CMM dimensional inspection

Through optimized machining processes and inspection control, manufacturers can achieve stable performance for demanding robotic applications.

Choosing the Right CNC Partner for PEEK Robot Gears

Successful production of PEEK robotic components requires more than basic CNC machining capability.

A qualified manufacturing partner should have experience with:

· Advanced engineering plastics

· Precision CNC machining

· Tight tolerance control

· CMM inspection systems

· Prototype and low-volume production

Dawang Precision supports robotic component development with advanced CNC machining capabilities, including multi-axis machining, engineering support, and precision inspection processes.

From prototype validation to production manufacturing, the right machining partner can help engineers reduce development risks and improve component reliability.

Conclusion: Precision Manufacturing for the Future of Robotics

PEEK is becoming an increasingly valuable material for robotic transmission components because it combines lightweight performance, low friction, wear resistance, and dimensional stability.

However, machining PEEK robot gears requires specialized knowledge of material behavior, thermal control, machining parameters, and inspection methods.

For advanced applications such as robot dexterous hands and miniature actuators, precision CNC manufacturing plays a critical role in transforming complex designs into reliable robotic components.

As humanoid robotics continues to evolve, high-performance engineering plastics such as PEEK will become increasingly important for creating lighter, quieter, and more efficient robotic systems.

Frequently Asked Questions About Machining PEEK Robot Gears

Q1:Can PEEK gears replace metal gears in humanoid robots?

PEEK gears can replace metal gears in applications where lightweight design, low friction, and noise reduction are priorities. However, engineers should evaluate torque requirements, operating conditions, and expected service life before selecting materials.

Q2:What PEEK gear tolerances can CNC machining achieve?

PEEK gear tolerances depend on part geometry, machining strategy, material stability, and inspection capability. Proper tooling, optimized processes, and CMM inspection are essential for achieving consistent accuracy.

Q3:What are the main challenges when machining PEEK gears?

The main challenges include thermal expansion, deformation, heat accumulation, and maintaining precise tooth geometry. Careful control of machining parameters is required.

Q4:Is 5-axis CNC machining suitable for PEEK robotic components?

Yes. 5-axis CNC machining is highly suitable for complex PEEK robotic components because it improves tool accessibility, reduces setup errors, and maintains consistent geometry.
