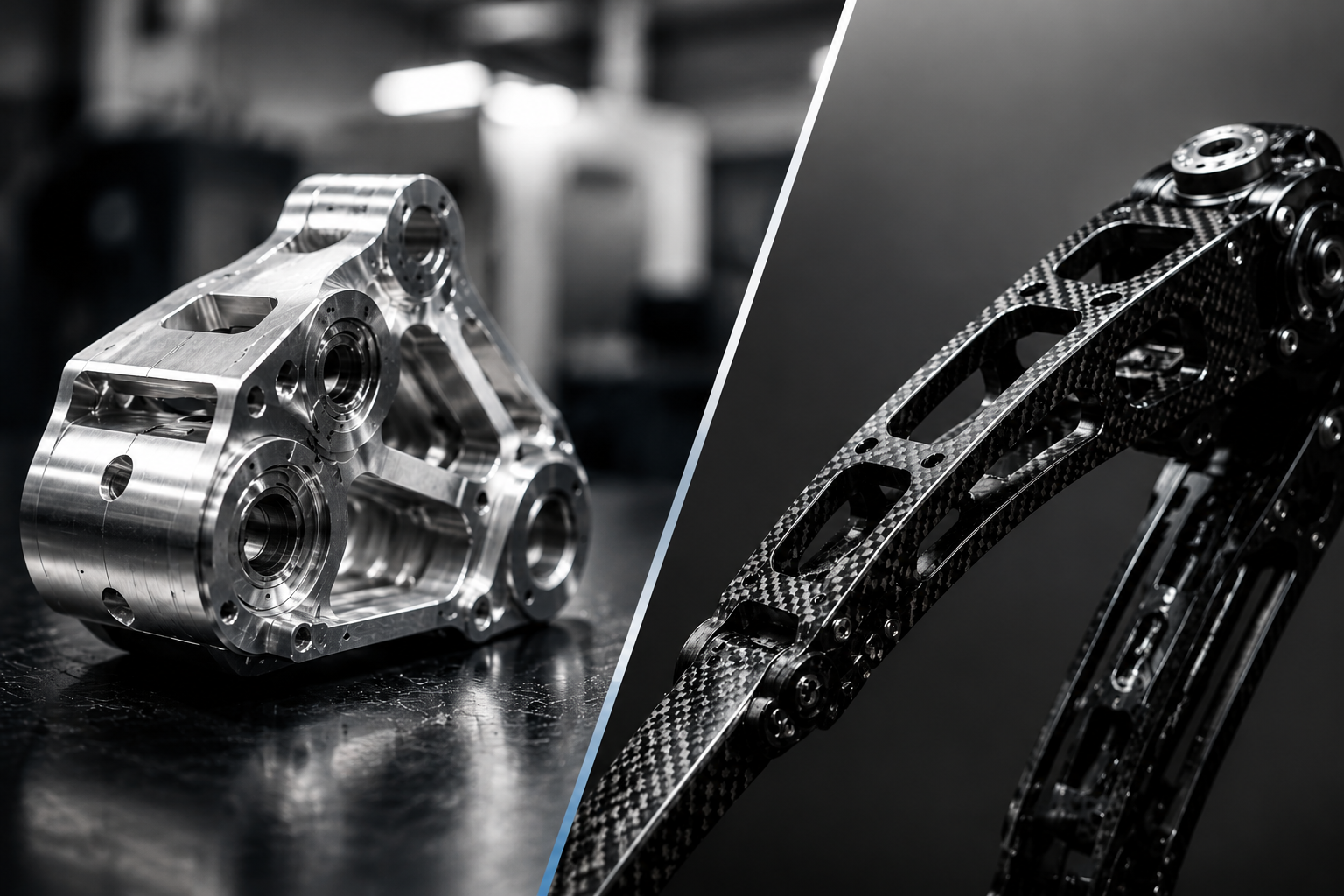

Aluminum 7075-T6 vs. Carbon Fiber: Choosing Materials for Lightweight Robot Limbs

Quick Answer: What Is the Best Material for Lightweight Robot Parts?

For most lightweight robot parts material applications, Aluminum 7075-T6 and carbon fiber are both excellent choices, but they serve different engineering purposes.

Aluminum 7075-T6 is often preferred for precision robotic components such as joints, brackets, and actuator housings because it offers high strength, excellent CNC machinability, stable tolerances, and reliable assembly performance. Carbon fiber provides a superior strength-to-weight ratio and is ideal for large structural sections where minimum weight is the highest priority.

For bipedal robot legs and arms, many advanced designs combine both materials: carbon fiber reduces overall weight, while CNC-machined Aluminum 7075-T6 provides precise connection points and load-bearing interfaces.

Choosing the Right Lightweight Robot Parts Material

As humanoid robots move from research laboratories into commercial applications, engineers face a critical design challenge: how to achieve maximum performance while minimizing structural weight.

Every component in a robotic system — from arm links to knee joints — affects:

· Energy consumption

· Motion speed

· Payload capability

· Battery life

· Long-term reliability

This makes material selection for bipedal robot legs and arms one of the most important decisions during mechanical design.

Common engineering questions include:

· What materials are used for humanoid robot arms and legs?

· Is Aluminum 7075-T6 stronger than carbon fiber?

· What is the best material for lightweight robot parts?

The answer depends not only on material strength but also on manufacturability, dimensional accuracy, and production requirements.

Aluminum 7075-T6 vs Carbon Fiber: Material Comparison

According to engineering material data published by organizations such as ASM International, Aluminum 7075-T6 is one of the strongest aluminum alloys available, with mechanical properties approaching those of some steels while maintaining significantly lower density.

Carbon fiber composites are widely recognized in aerospace and high-performance industries because of their exceptional stiffness and lightweight characteristics.

However, robotic systems require more than a high strength-to-weight ratio.

Strength-to-Weight Ratio: Why It Is Not the Only Factor

The strength-to-weight ratio is often the first metric engineers consider when selecting lightweight materials.

Carbon fiber performs extremely well because its continuous fibers provide exceptional tensile strength with minimal weight.

This makes carbon fiber attractive for:

· Long robotic arms

· Mobile robot frames

· Lightweight covers

· Large structural components

However, robot joints and mechanical interfaces experience complex forces from multiple directions.

A humanoid robot knee joint, for example, may experience:

· Compression loads during standing

· Impact forces during walking

· Repeated cyclic stress

· Multi-axis torque

For these applications, predictable mechanical behavior is critical.

This is where Aluminum 7075-T6 has a major advantage.

Unlike carbon fiber, aluminum provides relatively uniform properties in all directions, allowing engineers to accurately predict performance during CNC machining and assembly.

Why Aluminum 7075-T6 Is Widely Used for CNC Robot Components

1. High Strength With Excellent Machinability

Aluminum 7075-T6 is commonly used in aerospace, automation, and precision engineering because it combines:

· High tensile strength

· Low density

· Good fatigue resistance

· Excellent machining characteristics

For CNC machined robot parts, this allows manufacturers to create:

· Lightweight joint brackets

· Motor mounts

· Gearbox housings

· Structural links

· Precision actuator supports

Unlike composite materials, Aluminum 7075-T6 can be directly machined into complex geometries with accurate mounting surfaces.

2. Better Dimensional Accuracy for Robot Assembly

Humanoid robots require extremely accurate component alignment.

Small dimensional errors in:

· Bearing seats

· Shaft holes

· Gear mounting surfaces

can affect:

· Motion accuracy

· Mechanical efficiency

· Component lifespan

CNC machining Aluminum 7075-T6 enables manufacturers to achieve tight tolerances while maintaining consistent production quality.

This makes it especially suitable for lightweight robot joint components where precision is more important than absolute minimum weight.

Carbon Fiber Robot Structures: Advantages and Limitations

Advantages of Carbon Fiber

Carbon fiber remains one of the best lightweight materials for robotic structures.

Its main advantages include:

Exceptional Weight Reduction

Carbon fiber can significantly reduce structural mass compared with traditional metals.

This benefits:

· Battery-powered robots

· Autonomous mobile systems

· High-speed robotic platforms

High Stiffness Performance

When fibers are oriented correctly, carbon fiber provides excellent resistance to bending and vibration.

This makes it suitable for:

· Robot arms

· External structural frames

· Lightweight covers

Limitations of Carbon Fiber in Precision Robotics

Although carbon fiber offers outstanding mechanical performance, it also introduces manufacturing challenges.

Difficult Precision Machining

Machining carbon fiber requires specialized processes because cutting can cause:

· Fiber damage

· Delamination

· Edge chipping

· Surface defects

Creating accurate holes and mounting interfaces is significantly more challenging compared with aluminum.

Complex Design Considerations

Carbon fiber properties depend heavily on fiber direction.

Engineers must carefully analyze:

· Load direction

· Fiber orientation

· Layer structure

For complex robotic joints with multi-directional forces, this increases design complexity.

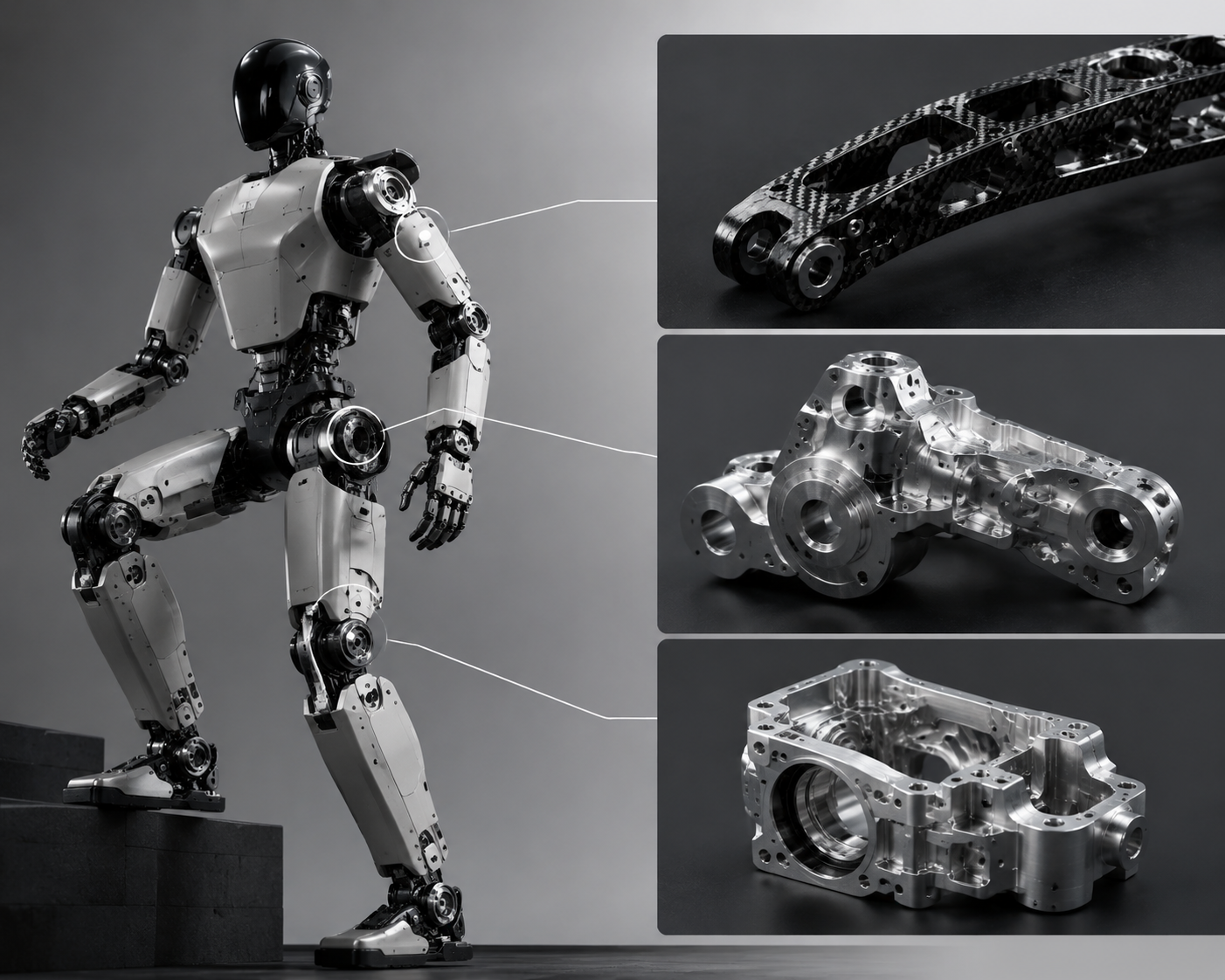

How Engineers Choose Materials for Bipedal Robot Legs and Arms

When selecting materials for humanoid robot structures, engineers typically evaluate five factors:

For advanced robotic systems, the best solution is often a hybrid design.

Example:

· Carbon fiber arm link → reduces weight

· Aluminum 7075-T6 joint connector → ensures precision

· CNC-machined aluminum actuator housing → improves reliability

CNC Machining Challenges for Lightweight Robot Components

Selecting the right material is only part of the engineering process.

Manufacturing lightweight robotic components introduces several challenges.

Thin-Wall Structure Deformation

Weight reduction often requires:

· Deep pockets

· Thin ribs

· Complex internal structures

During machining, these areas can deform due to:

· Cutting forces

· Heat generation

· Residual stress release

Optimized tool paths and machining sequences are essential.

Tight Tolerance Control

Robot assemblies often require precise alignment between multiple components.

Critical features include:

· Bearing bores

· Mounting holes

· Gear interfaces

Without accurate machining, even high-performance materials cannot achieve reliable robot movement.

Real Manufacturing Example: CNC Machining Aluminum 7075-T6 Robot Joint Components

A robotics customer required lightweight structural components for a humanoid robot joint system.

Design Requirements

· Material: Aluminum 7075-T6

· Application: Robot knee and arm joint structures

· Requirement: Reduce weight while maintaining rigidity

· Assembly tolerance: ±0.01 mm level precision

Manufacturing Challenges

The component included:

· Thin-wall sections

· Complex curved surfaces

· Multiple precision mounting interfaces

The main challenge was preventing deformation during machining while maintaining final assembly accuracy.

Manufacturing Solution

Dawang Precision optimized the process through:

· 5-axis CNC machining for complex geometry

· Multiple-stage roughing and finishing operations

· Customized fixture design

· Controlled cutting parameters

· CMM dimensional inspection

The result was a lightweight aluminum structure with stable dimensions and reliable assembly performance.

Dawang Precision: CNC Manufacturing Partner for Lightweight Robot Parts

For lightweight robotic components, material selection and manufacturing capability must work together.

Dawang Precision has 26 years of precision manufacturing experience and operates 400+ advanced CNC machines, including high-performance Mazak and Röders 5-axis machining centers.

Our engineering team supports customers with:

· Aluminum 7075-T6 precision machining

· Complex 5-axis machining

· Lightweight structural optimization

· Tight tolerance control

· CMM inspection verification

From prototype development to production manufacturing, we help robotics companies transform complex designs into reliable components.

Need Precision Lightweight Robot Components?

Choosing the right material is only the first step. Manufacturing accuracy determines whether a robotic component performs reliably in real-world applications.

If you need CNC machined Aluminum 7075-T6 robot parts, lightweight structural components, or precision robotic joint assemblies, Dawang Precision can support your project.

Send your STEP or PDF drawings to our engineering team for a free DFM evaluation.

Our engineers will review your design and provide professional feedback within 24 hours.

FAQ: Aluminum 7075-T6 vs Carbon Fiber for Robotics

Q1:Is Aluminum 7075-T6 stronger than carbon fiber?

Carbon fiber generally has a higher strength-to-weight ratio, but Aluminum 7075-T6 provides more predictable mechanical performance and better machinability for precision robot components.

Q2:What materials are commonly used for humanoid robot arms and legs?

Common materials include Aluminum alloys, carbon fiber composites, titanium alloys, and engineering plastics. Aluminum 7075-T6 and carbon fiber are among the most widely considered lightweight options.

Q3:Why is Aluminum 7075-T6 used in CNC machined robot parts?

Because it combines high strength, lightweight properties, excellent machinability, and stable dimensional accuracy required for robotic assemblies.

Q4:Can carbon fiber replace aluminum in robot structures?

Yes, but mainly in applications where weight reduction is more important than precision machining and mechanical interfaces.
