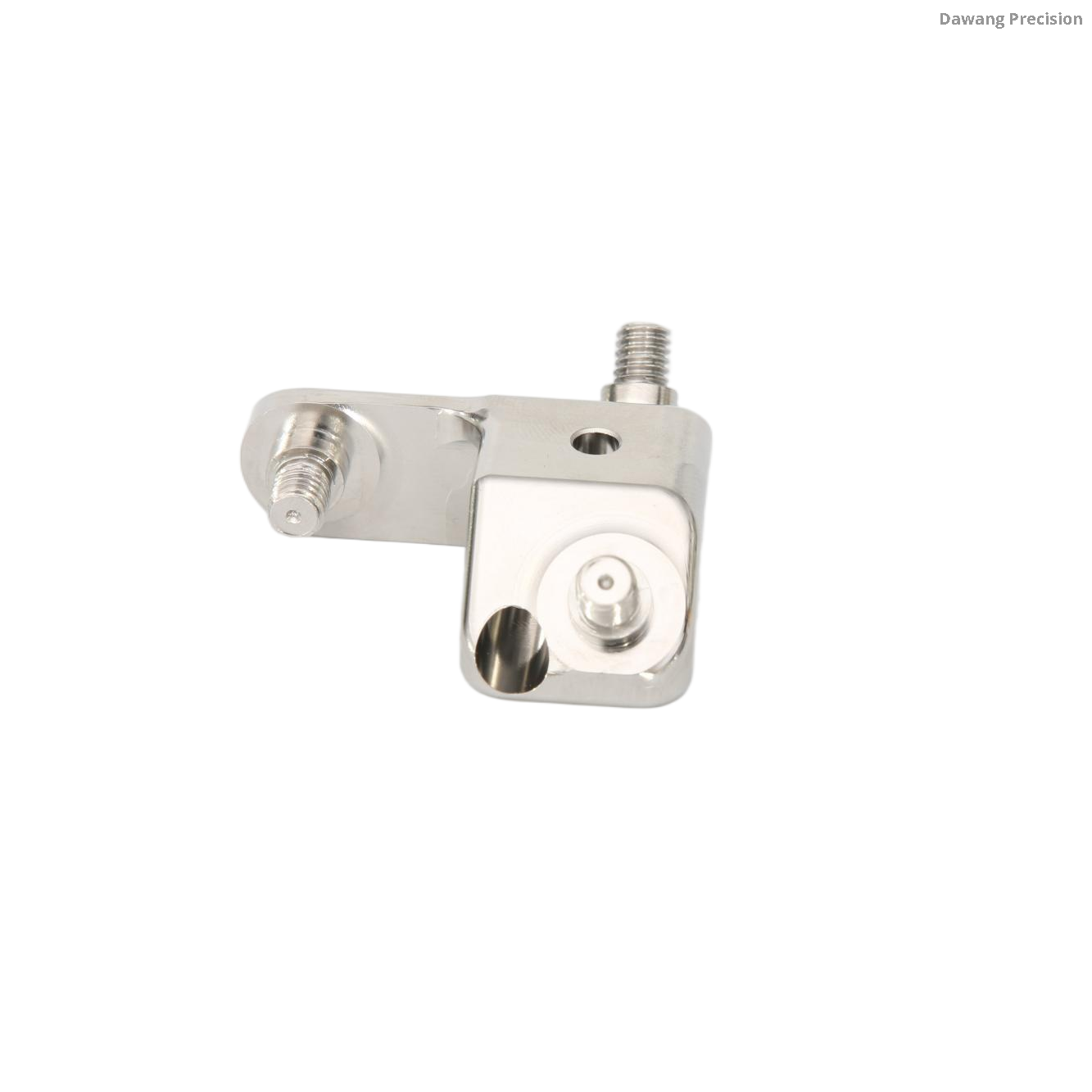

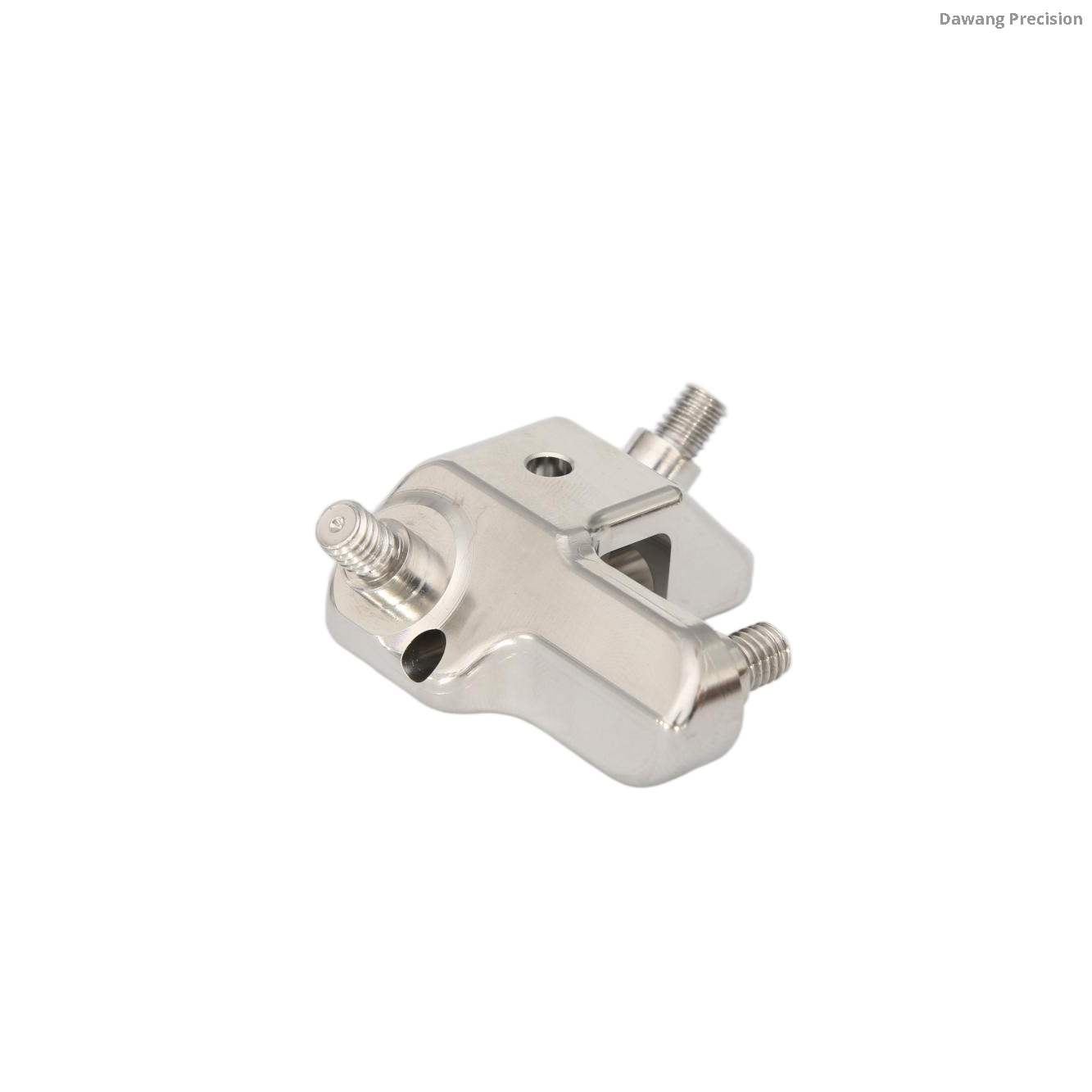

High-Precision Stainless Steel Sensor Adjustment Bracket

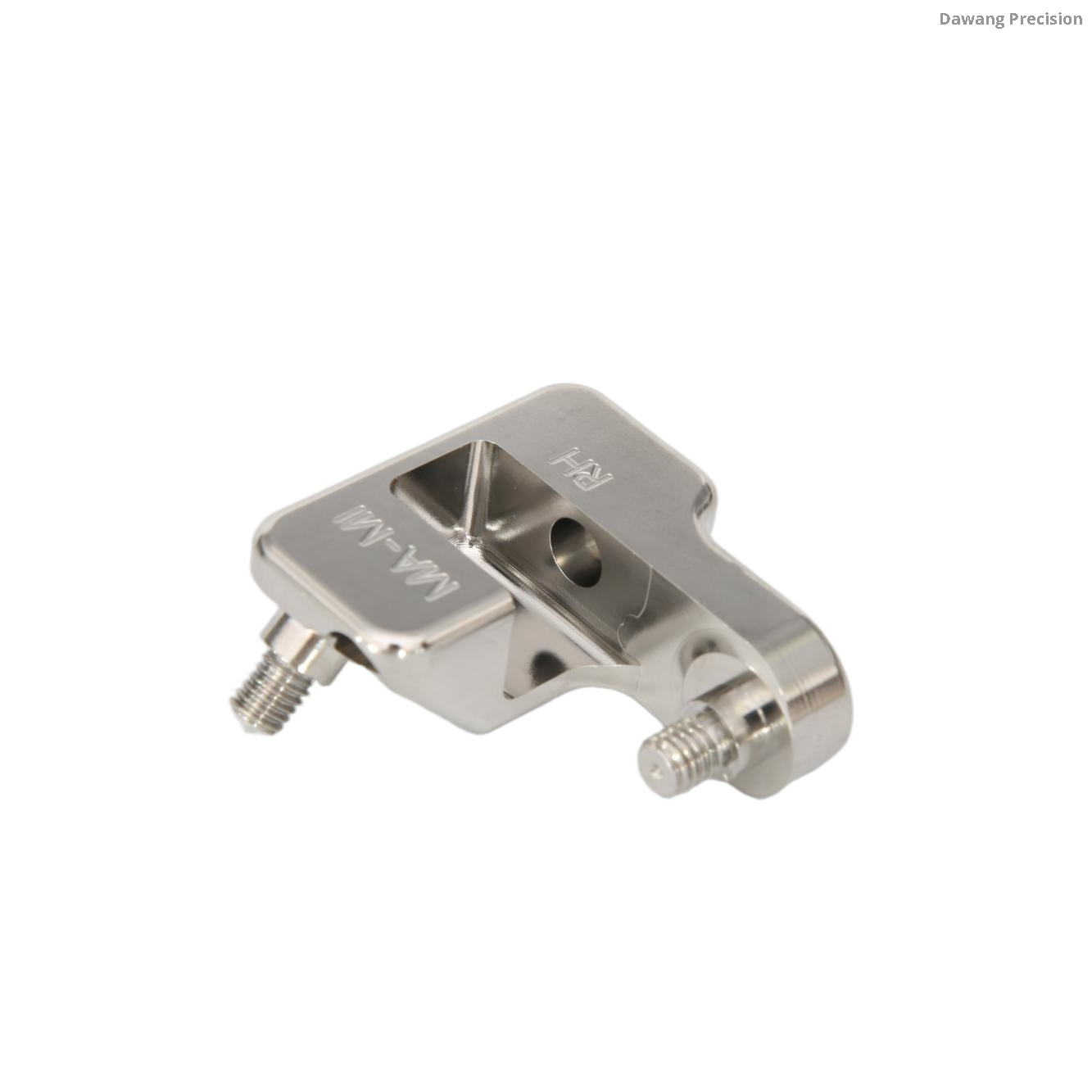

Dawang Precision’s high-precision stainless steel sensor adjustment bracket sets the industry standard for reliable, repeatable positioning of sensitive sensors in compact, demanding environments. Manufactured using advanced 5-axis CNC milling and turning technology from premium 316 stainless steel, this precision CNC sensor mounting fixture delivers exceptional dimensional accuracy and long-term stability under vibration, thermal cycling, and corrosive conditions. Featuring integrated threaded adjustment studs, a reinforced rigid mounting block, and precision alignment holes with engraved orientation marks, the custom stainless steel sensor holder allows for quick, tool-free sensor installation and fine-tuning while eliminating micro-movements that degrade measurement accuracy. With ±0.01mm tolerance on critical features and a smooth, burr-free surface finish, this CNC machined sensor alignment bracket is engineered to maintain precise alignment over thousands of operating hours.

Core Advantages & Business Value

Sub-Micron Precision for Critical Alignment Applications

Our high precision sensor fixture bracket is produced using state-of-the-art 5-axis CNC machining centers that achieve ±0.01mm repeatability across all critical surfaces. Every part is inspected using Zeiss Coordinate Measuring Machines (CMM) with 0.002mm measurement precision to ensure conformance to the most stringent dimensional specifications. The integrated precision alignment features and engraved reference marks eliminate installation errors, ensuring consistent sensor positioning across every unit. This level of accuracy is essential for applications where even the smallest misalignment can result in significant measurement errors or system failures.

Exceptional Corrosion Resistance & Long-Term Durability

Constructed from 316 stainless steel, our industrial stainless steel adjustment mount provides superior resistance to moisture, chemicals, and sterilization processes compared to aluminum or carbon steel alternatives. The material’s inherent corrosion resistance makes it ideal for use in cleanrooms, marine environments, chemical processing facilities, and medical applications. The rigid, one-piece construction of the stainless steel optical sensor bracket eliminates fatigue points and ensures structural integrity even under continuous high-vibration conditions, extending service life beyond 30 months in demanding operating environments.

Simplified Installation & Reduced Maintenance Costs

The integrated design of our custom CNC sensor positioning bracket combines multiple functions into a single component, eliminating the need for separate adjustment hardware and reducing part count. The threaded adjustment studs allow for precise, incremental sensor positioning without the use of specialized tools, simplifying installation and field adjustments. By eliminating sensor drift and maintaining stable alignment over time, our vibration resistant stainless steel mount significantly reduces calibration frequency and maintenance costs, increasing system uptime and overall productivity.

Dawang Precision offers end-to-end support for precision mounting needs, including design optimization for vibration damping, rapid prototyping to validate fit, and scalable production that maintains consistent quality across batches. We help clients shorten assembly time, minimize field adjustments, and extend sensor service life through tailored stainless steel solutions that integrate seamlessly into existing equipment.

OEM & ODM Customization Services

Dawang Precision provides comprehensive OEM and ODM customization services for industrial equipment manufacturers and system integrators. Our team of experienced engineers works closely with you to develop custom stainless steel sensor adjustment bracket solutions tailored to your specific application requirements, including custom dimensions, mounting configurations, adjustment mechanisms, and surface finishes. We offer end-to-end support from design optimization for vibration damping and thermal stability through rapid prototyping to scalable production. With 26 years of precision manufacturing expertise and multi-system certifications including ISO 9001, ISO 14001, IATF 16949, and ISO 13485, we deliver consistent, high-quality parts that meet the most demanding industry standards.

Proven Client Success Story

A leading semiconductor inspection equipment manufacturer in Southeast Asia was experiencing recurring sensor drift in their wafer alignment modules. Their previous aluminum brackets expanded and contracted with cleanroom temperature fluctuations, causing alignment errors that reduced production yield and required daily recalibration, resulting in significant downtime and lost revenue.

Dawang Precision developed a custom precision stainless steel equipment bracket featuring integrated threaded studs for quick sensor swaps, a reinforced block to dampen vibration, and precision alignment holes with engraved reference marks. 5-axis CNC machining ensured consistent ±0.01mm accuracy across all production batches.

The implementation delivered transformative results: sensor alignment stability improved by 97%, eliminating the need for daily recalibration, wafer inspection throughput increased by 22%, bracket service life extended beyond 30 months in continuous cleanroom operation, and total system maintenance costs reduced by 55%. The client has now adopted this bracket as their approved standard component for all new inspection platforms.

Industry Applications

• Semiconductor wafer alignment and inspection systems

• Optical and laser sensor positioning fixtures

• Laboratory analysis and metrology equipment

• Automated vision and quality control stations

• Medical diagnostic device sensor mounts

• High-vibration industrial monitoring systems

• Cleanroom and precision instrumentation assemblies
