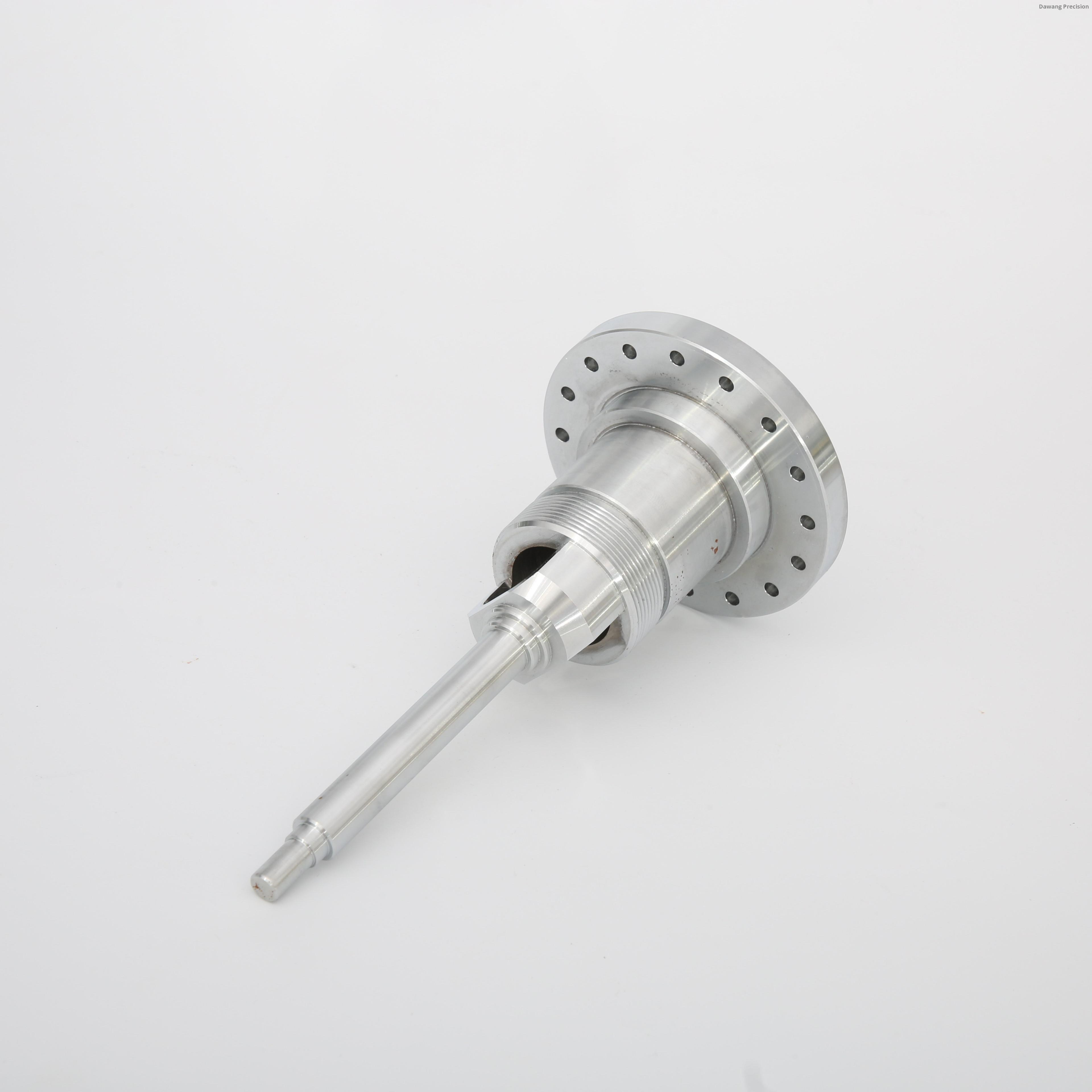

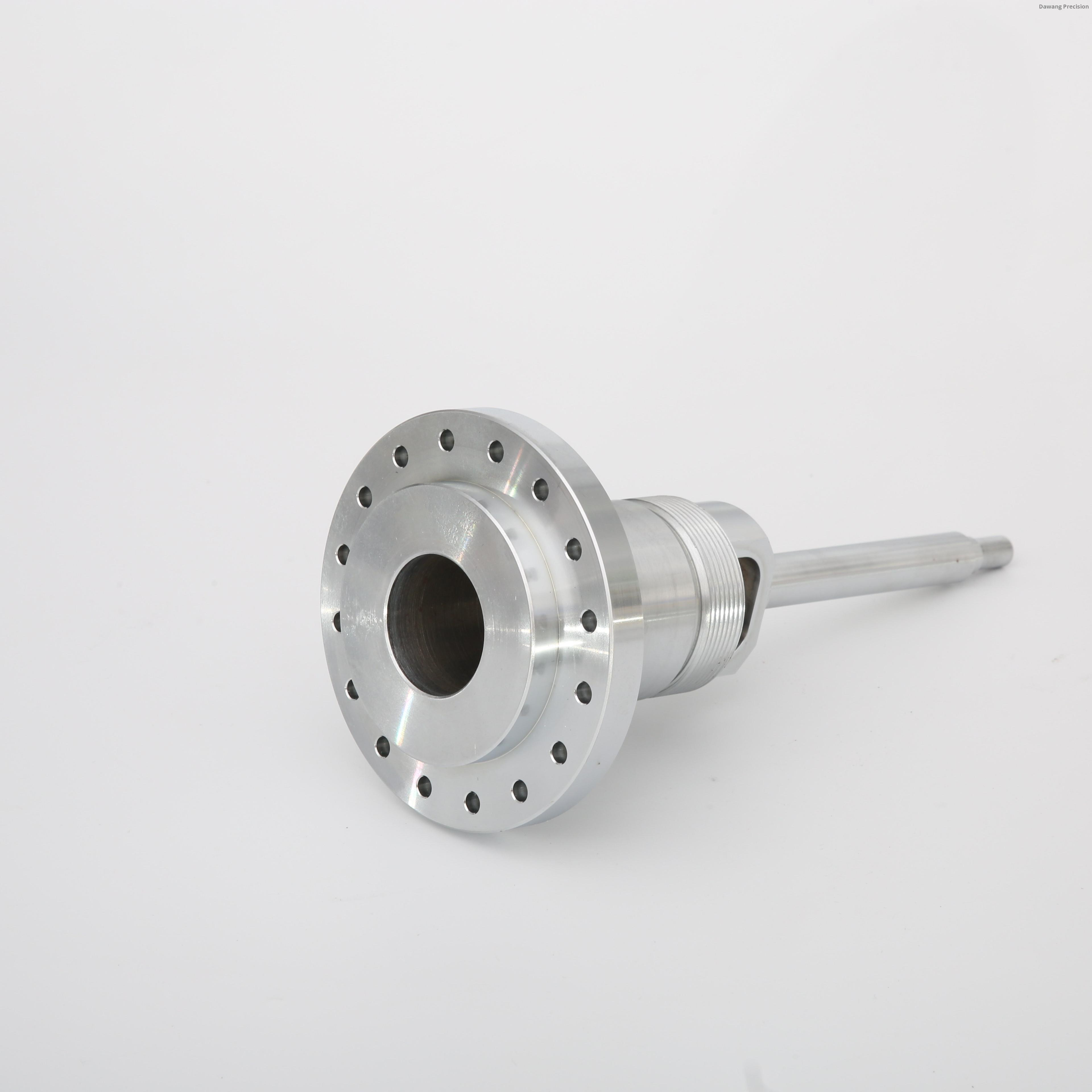

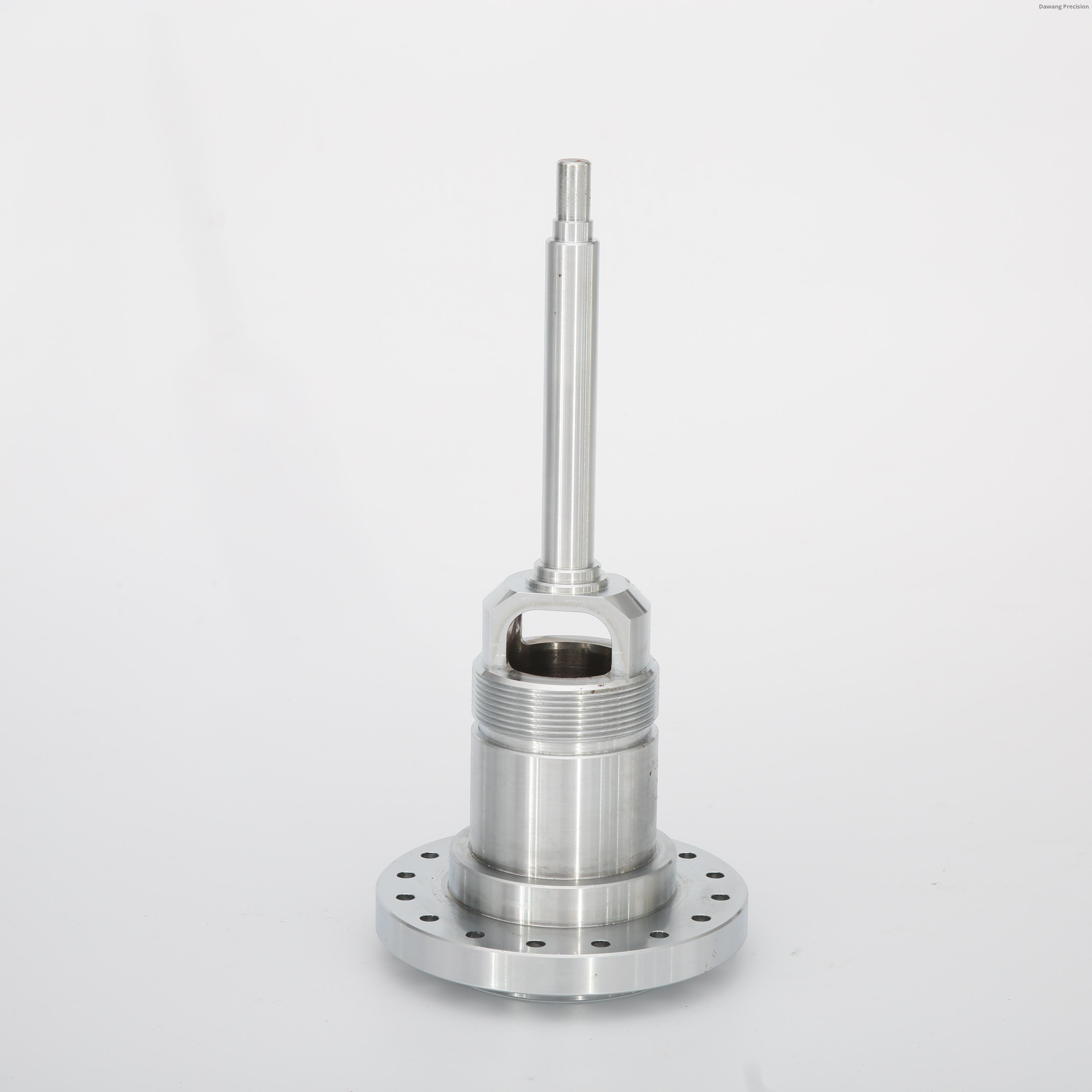

Precision CNC Machined Pump Shaft Flange Connector

Product Overview

Dawang Precision, an experienced CNC machining manufacturer with 26 years of OEM&ODM expertise and ISO 9001, ISO 14001, IATF 16949, ISO 13485 multi-system certification, designs and manufactures Precision CNC Machined Pump Shaft Flange Connector for industrial equipment manufacturers and system integrators globally. This high-accuracy drive component is produced via advanced 5-axis CNC milling and turning technology, made from high-grade 6061-T6 or 7075-T6 aluminum alloy, featuring an integrated precision threaded shaft and multi-hole flange structure for reliable torque transmission and seamless alignment in pump and fluid drive systems. With strict ±0.01mm coaxial tolerance control and mirror finish surface treatment, our aluminum pump shaft flange connector minimizes vibration, reduces wear, and ensures long-term stable operation in demanding industrial environments. We provide full customization for shaft length, thread specifications, flange hole patterns, and other parameters based on your drawings or samples, with free quotations available within 24 hours.

Dawang Precision manufactures custom pump shaft flange connectors with advanced 5-axis CNC machining. This aluminum component features a precision threaded shaft and multi-hole flange for reliable torque transmission and alignment—ideal for centrifugal pumps, vacuum systems, and industrial drive applications requiring high coaxial accuracy and durability.

Fully customizable for your shaft length, thread specs, and mounting patterns.

Features & Benefits

Ultra-High Coaxial Precision for Stable Drive Transmission

Our 5-axis CNC machined shaft flange is manufactured with strict ±0.01mm coaxial tolerance, ensuring perfect concentric alignment between the threaded shaft and flange body. This eliminates radial runout and transmission deviation, reducing equipment vibration and noise, while improving overall drive system accuracy and stability for industrial pump applications.

High Torque Capacity for Demanding Industrial Loads

The reinforced integrated structure of our threaded pump drive shaft connector is engineered to handle high torque loads in continuous industrial operation. This robust design prevents component deformation and fracture, reducing unplanned downtime and maintenance costs for enterprise customers with heavy-duty fluid drive requirements.

Low-Wear Mirror Finish for Extended Service Life

With a precision mirror polish surface treatment, our vacuum pump flange adapter delivers extremely low surface friction, reducing wear between mating components during high-speed rotation. This extends the service life of both the connector and connected pump parts, lowering long-term replacement costs for industrial equipment operators.

Fully Customizable Specs for Seamless Compatibility

We offer end-to-end customization for our high-coaxial precision drive shaft flange, including shaft length (up to 200mm), thread standards, flange mounting hole patterns, stepped end design, and surface finishes, to ensure 100% compatibility with your existing pump, motor, or gearbox system specifications.

Applications of Precision CNC Machined Pump Shaft Flange Connector

Our Precision CNC Machined Pump Shaft Flange Connector is widely adopted by industrial equipment manufacturers, fluid system integrators, and enterprise customers across diverse sectors, including:

Industrial fluid drive systems for process manufacturing and fluid transfer equipment

Centrifugal and vacuum pump shaft connections for water treatment, chemical, and industrial vacuum equipment

Motor and gearbox adapters for power transmission systems in industrial machinery

Precision mechanical transmission components for automation and motion control equipment

Supporting precision parts for new energy, robotics, medical, and 3C electronics industries
