Managing Backlash: High-Precision CNC Machining for Robot Harmonic Drive Housings

Quick Answer: What Is Robot Harmonic Drive Housing Machining?

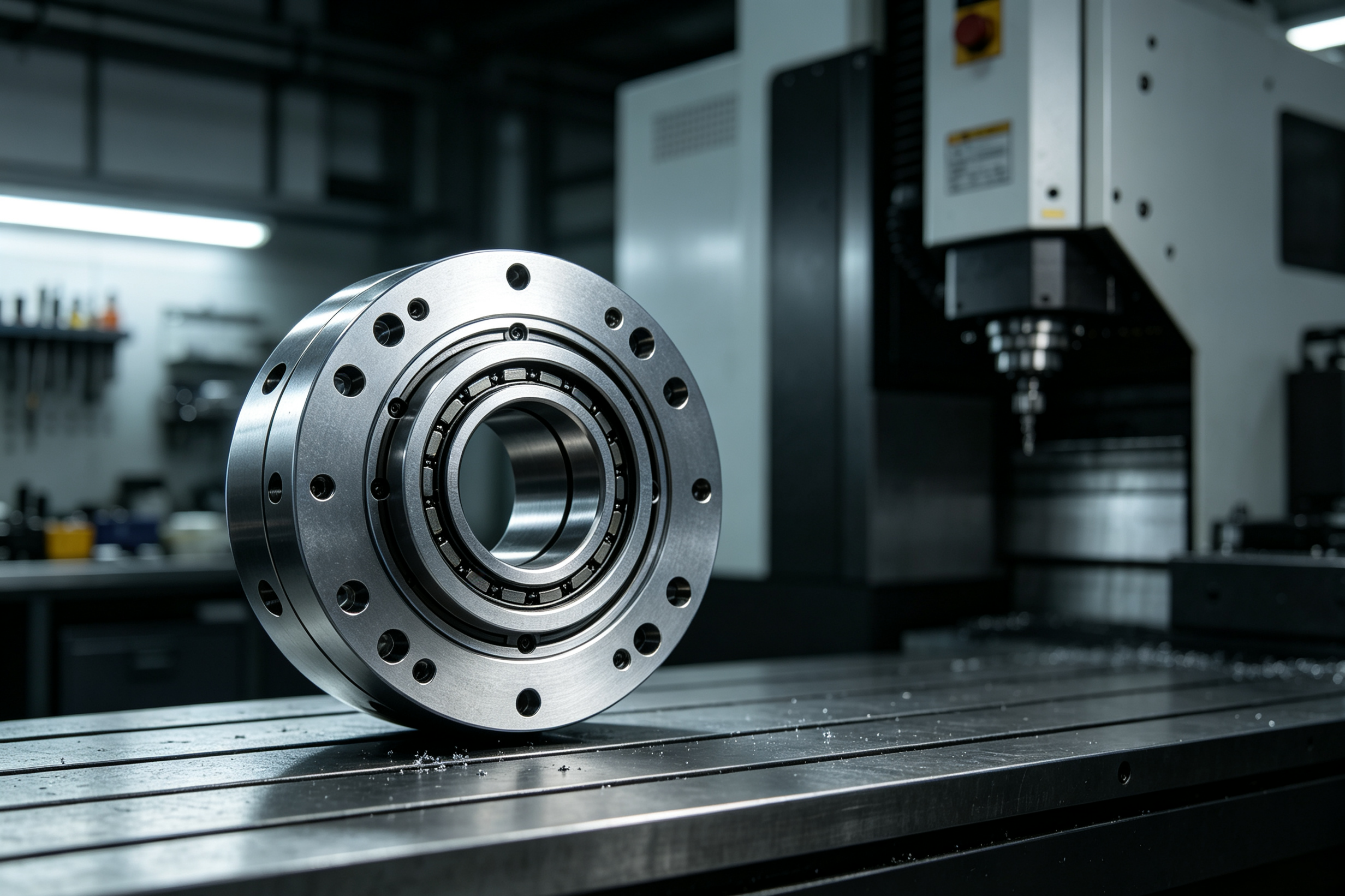

Robot harmonic drive housing machining is the precision CNC manufacturing process used to produce gearbox housings with accurate bores, mounting interfaces, and alignment features for robotic joints. High-precision machining helps reduce backlash by maintaining proper component alignment, improving bearing positioning, and ensuring stable performance in precision robot gearboxes.

As robots become more compact, faster, and more accurate, the machining quality of harmonic drive housings has become increasingly important. In applications such as humanoid robots, collaborative robots, and industrial robotic arms, even small housing deviations can affect positioning accuracy, repeatability, and gearbox reliability.

Why Harmonic Drive Housing Precision Matters in Robotics

Harmonic drives are widely used in robotic joints because they provide high reduction ratios, compact size, and excellent positioning performance. However, the gearbox accuracy depends not only on the internal gear mechanism but also on the precision of the housing that supports these components.

A harmonic drive housing provides critical mounting references for:

· Bearing seats

· Circular spline interfaces

· Output shafts

· Encoder mounting structures

· Motor connection surfaces

For precision robot gearboxes, these features must maintain accurate geometric relationships. Any deviation in the housing can influence the interaction between internal components and create performance issues such as:

· Increased backlash

· Reduced positioning accuracy

· Higher friction

· Uneven load distribution

· Shortened service life

This is why manufacturers developing robotic joints increasingly require advanced robot harmonic drive housing machining solutions with strict tolerance control.

Understanding Backlash in Harmonic Drive Systems

What Causes Backlash in Robotic Gearboxes?

Backlash refers to the unwanted movement or clearance between mating mechanical components. In robotic systems, excessive backlash can reduce motion accuracy and affect repeatability.

Common causes include:

Because harmonic drives are designed for high precision motion control, controlling these variables is essential.

The role of CNC machining is not simply to achieve individual dimensional accuracy, but to ensure that all critical features work together as a complete mechanical system.

Key CNC Machining Challenges for Harmonic Drive Housings

1. High-Precision Bore Alignment

One of the most critical requirements in harmonic drive housing manufacturing is high-precision bore alignment.

The bearing bores, shaft supports, and spline mounting areas must remain accurately positioned relative to each other. Misalignment can cause:

· Shaft eccentricity

· Uneven bearing loading

· Increased torque variation

· Reduced gearbox efficiency

To achieve reliable performance, CNC machining must control:

· Bore diameter tolerance

· Concentricity

· Cylindricity

· Parallelism

· Position accuracy

For robotic applications, accurate alignment between multiple features is often more important than achieving a single dimensional target.

2. Lightweight Structure and Machining Deformation Control

Modern robotic systems require lightweight components to improve speed, efficiency, and payload capability.

Aluminum alloys such as 6061 and 7075-T6 are commonly used for harmonic drive housings because they provide:

· High strength-to-weight ratio

· Excellent machinability

· Good corrosion resistance

However, lightweight designs often introduce manufacturing challenges:

· Thin-wall deformation

· Cutting vibration

· Residual stress

· Thermal expansion

To maintain accuracy, manufacturers must optimize machining strategies, including:

· Proper machining sequence

· Stable workholding methods

· Controlled cutting parameters

· Appropriate tool selection

Without proper process control, a housing may meet initial dimensions but lose accuracy after machining stress is released.

3. Tight Tolerance Assembly Requirements

A harmonic drive assembly contains multiple precision components, including:

· Flex spline

· Circular spline

· Wave generator

· Bearings

The housing must provide accurate references for each component.

Important manufacturing requirements include:

A precisely machined housing improves assembly consistency and helps robotic systems achieve smooth and predictable motion.

CNC Machining Solutions for Managing Backlash

1. 5-Axis CNC Machining for Complex Robotic Components

Complex robot housings often contain multiple precision surfaces, internal structures, and angled features.

5-axis CNC machining for robot components helps improve accuracy by reducing:

· Multiple setups

· Fixture repositioning errors

· Accumulated tolerance variation

Compared with conventional machining methods, 5-axis processing provides:

· Better geometric accuracy

· Improved surface finish

· Higher consistency

· More efficient production of complex parts

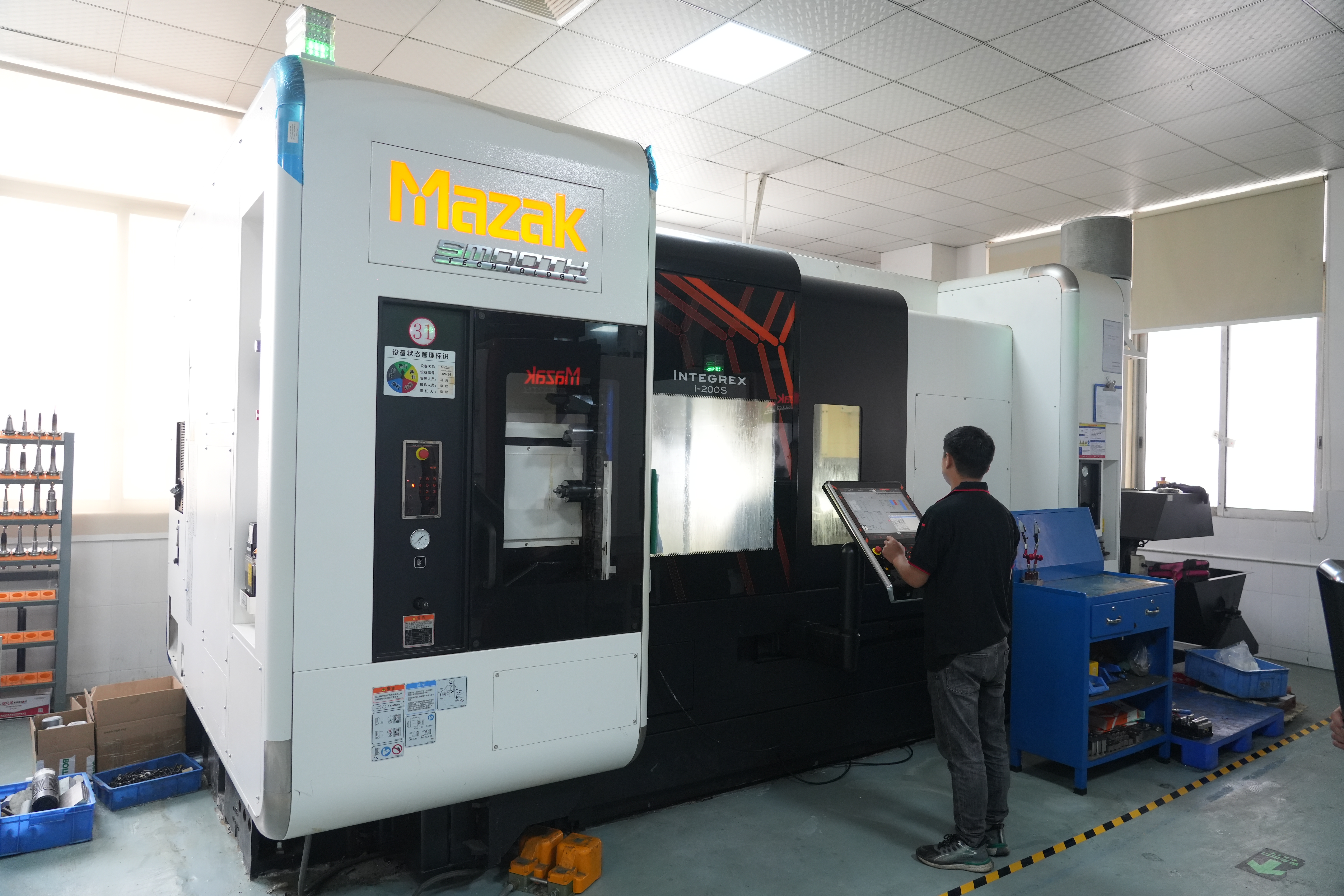

Advanced CNC equipment, including 5-axis machining centers from manufacturers such as Mazak and Röders, is commonly used for high-precision robotic components.

2. Optimized Machining Process for Housing Accuracy

A reliable CNC machining process for harmonic drive housings typically includes several controlled stages:

Rough Machining

Removes excess material while leaving machining allowance for finishing.

Stress Control

Reduces the influence of material deformation during final machining.

Semi-Finishing

Prepares critical features while maintaining dimensional stability.

Precision Boring

Creates final bearing seats and alignment references.

CMM Inspection

Verifies:

· Dimensional accuracy

· GD&T requirements

· Bore alignment

· Feature position

This process ensures consistent performance for precision robot gearboxes.

Inspection Requirements for Precision Robot Gearbox Housings

Because harmonic drive housings directly influence robot motion accuracy, quality control must be integrated throughout production.

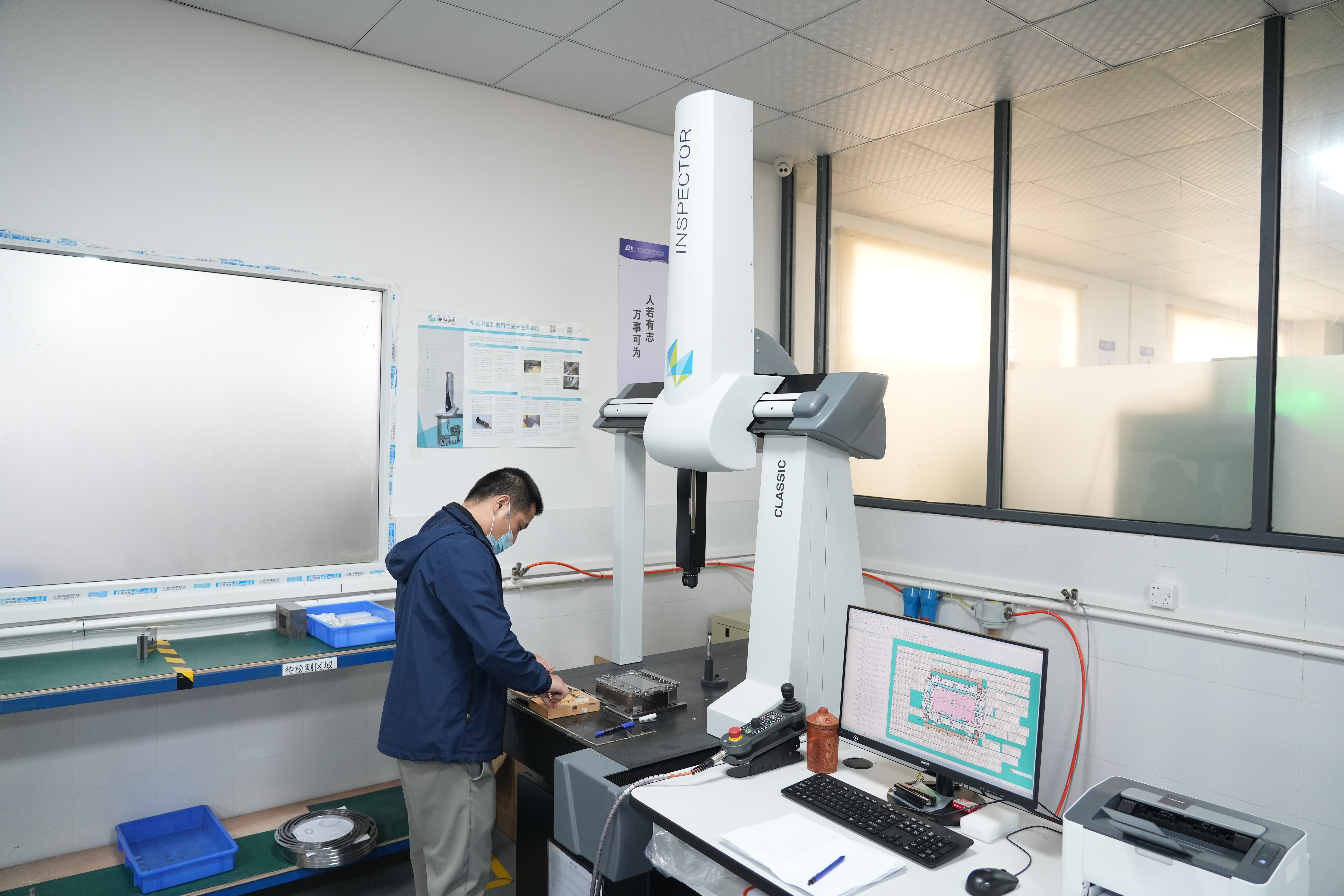

Common inspection methods include:

· Coordinate Measuring Machine (CMM)

· GD&T verification

· First Article Inspection (FAI)

· Process capability monitoring

Key inspection areas include:

· Bore concentricity

· Bearing seat accuracy

· Surface flatness

· Hole position accuracy

For robotic applications, inspection data provides confidence that every component can meet assembly and performance requirements.

Manufacturing Considerations When Selecting a CNC Partner

When sourcing a supplier for harmonic drive housing machining, engineers and procurement teams should evaluate more than machining capability.

Engineering Support

A capable supplier should provide:

· DFM analysis

· Manufacturing recommendations

· Tolerance optimization suggestions

Precision Capability

Important factors include:

· Multi-axis CNC machining capability

· Advanced inspection equipment

· Experience with tight-tolerance components

Production Scalability

Robotics companies often require a transition from prototype development to low-volume or production manufacturing. A suitable CNC partner should support consistent quality throughout different production stages.

With 26 years of precision machining experience, Dawang Precision applies advanced CNC machining, 5-axis manufacturing, and CMM inspection technologies to support robotic component production, including lightweight robot joint structures requiring tight tolerance assembly.

Frequently Asked Questions

Q1:What is harmonic drive housing machining?

Harmonic drive housing machining is the CNC manufacturing process used to create precision gearbox housings with accurate mounting features and alignment surfaces for robotic motion systems.

Q2:How does CNC machining reduce backlash in robotic gearboxes?

CNC machining reduces backlash by improving bore alignment, controlling dimensional variation, and ensuring accurate positioning of bearings and gearbox components.

Q3:Why is high-precision bore alignment important for harmonic drives?

High-precision bore alignment ensures that shafts, bearings, and gear components rotate on the correct axis, reducing friction, vibration, and positioning errors.

Q4:Why is 5-axis CNC machining suitable for robot gearbox housings?

5-axis machining allows manufacturers to produce complex geometries with fewer setups, improving accuracy and consistency for precision robotic components.

Partner with Dawang Precision for Robot Harmonic Drive Housing Machining

Precision robotic systems require manufacturing partners who understand both machining technology and final assembly requirements.

Dawang Precision provides robot harmonic drive housing machining, precision CNC manufacturing, and engineering support for advanced robotic applications.

Send your STEP or PDF drawings to our engineering team for a free DFM evaluation.

Our engineers will review your design and provide professional manufacturing feedback within 24 hours.
