Rapid Prototyping for Humanoid Robot End-Effectors: Iterating Designs in Days

Quick Answer

Robot prototype manufacturing is the process of transforming digital designs into functional robotic prototypes before mass production. By using advanced manufacturing technologies such as CNC machining, CNC aluminum machining, and additive manufacturing, engineers can quickly validate mechanical performance, assembly accuracy, and product reliability.

For humanoid robot end-effectors, rapid prototyping enables robotics companies to test designs, identify potential issues, and optimize structures within days instead of weeks. Through precision machining, tolerance control, and professional DFM (Design for Manufacturing) analysis, manufacturers help robotics startups and advanced automation teams accelerate product development while reducing engineering risks.

The Growing Demand for Rapid Prototyping in Humanoid Robotics

With the rapid development of artificial intelligence, sensors, and motion control technologies, humanoid robots are moving from research environments toward practical applications in industrial automation, smart manufacturing, logistics, and service industries.

According to the International Federation of Robotics (IFR), global demand for robotic automation continues to increase as companies seek more flexible and intelligent manufacturing solutions.

However, mechanical development remains one of the biggest challenges in humanoid robotics, especially for robot end-effectors.

Unlike traditional industrial grippers, humanoid robot hands must replicate human-like movements while maintaining:

· High motion accuracy

· Lightweight structures

· Strong mechanical performance

· Long-term operational reliability

· Compact internal designs

Even small design changes, such as modifying a finger joint dimension or adjusting an actuator mounting position, can affect:

· Gripping force

· Motion precision

· Weight distribution

· Overall system reliability

Therefore, robotics companies need manufacturing solutions that can quickly respond to design changes. This is where professional robot prototype manufacturing becomes essential.

Key Manufacturing Challenges for Humanoid Robot End-Effectors

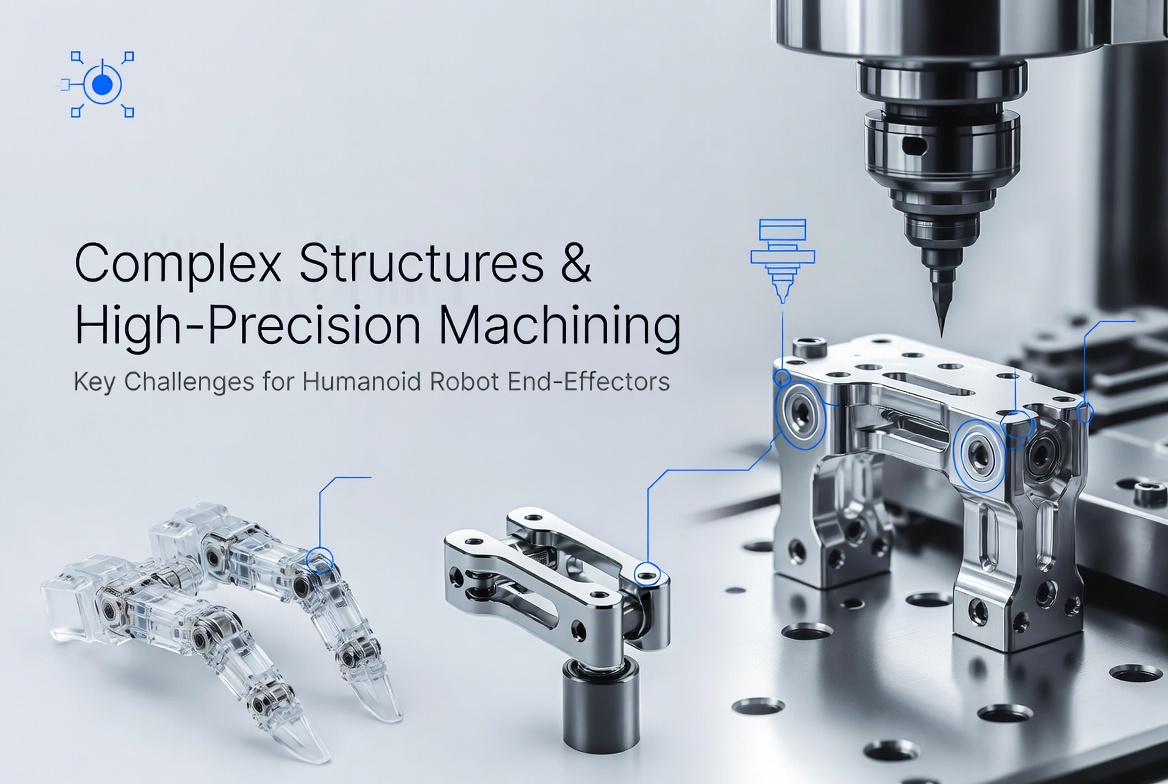

1. Complex Structures and High-Precision Machining Requirements

Humanoid robot end-effectors typically include multiple precision components, such as:

· Finger mechanisms

· Joint assemblies

· Actuator mounts

· Transmission components

· Lightweight support structures

These parts often feature:

· Thin-wall designs

· Curved surfaces

· Multi-angle mounting features

· Precision hole locations

Traditional manufacturing methods may require multiple setups, increasing the risk of alignment errors and longer development cycles.

For example, a robotic joint bracket may require:

· Accurate bearing positioning

· Precise motor mounting holes

· Flat assembly surfaces

This is why many robotics companies rely on CNC machining for robotic components when developing functional prototypes.

With advanced multi-axis CNC machining, manufacturers can reduce setups, improve dimensional consistency, and produce complex robotic parts with high accuracy.

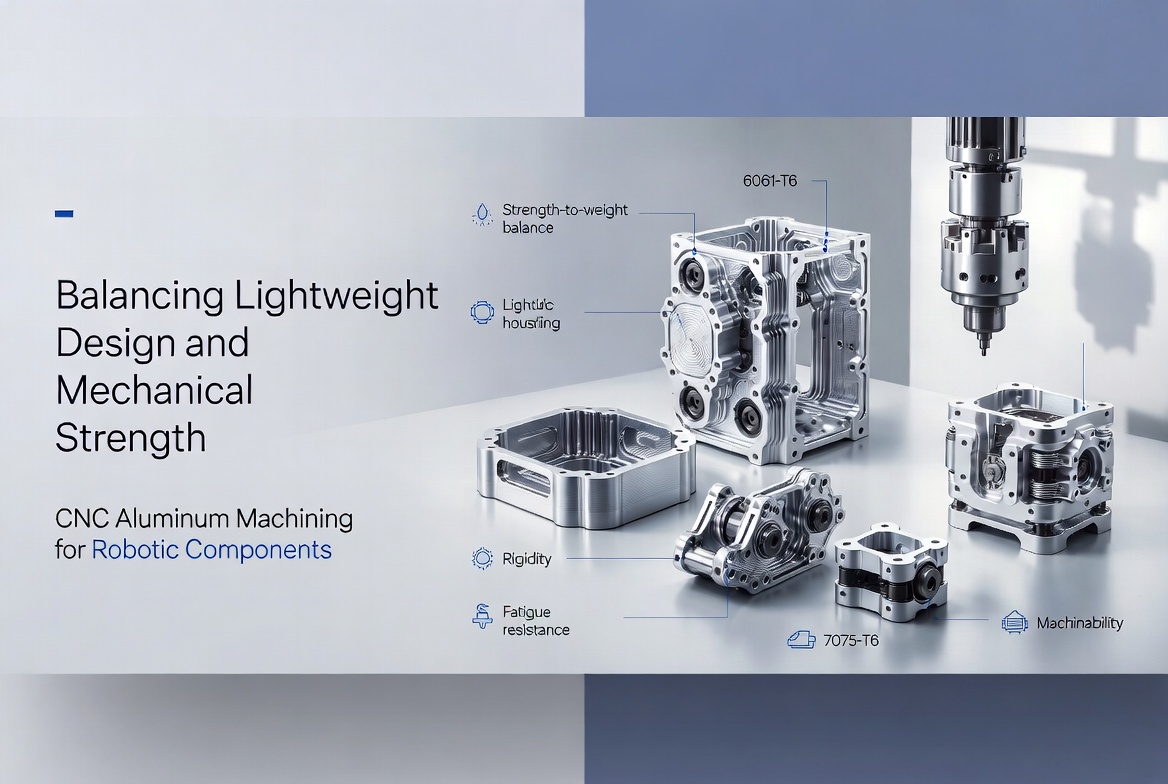

2. Balancing Lightweight Design and Mechanical Strength

Weight reduction is a critical goal in humanoid robot development. However, excessive material reduction may lead to:

· Insufficient rigidity

· Structural deformation

· Reduced fatigue performance

Therefore, material selection plays an important role in robotic prototype development.

CNC Aluminum Machining for Robotic Components

Aluminum alloys are widely used for robotic prototypes because they provide an excellent balance between strength, weight, and machinability.

Aluminum 6061-T6

Common applications:

· Robot housings

· Structural supports

· Mounting brackets

Advantages:

· Excellent machinability

· Lightweight performance

· Cost efficiency

Aluminum 7075-T6

Common applications:

· High-load joints

· Actuator brackets

· Precision moving components

Advantages:

· Higher strength

· Better fatigue resistance

· Suitable for demanding applications

For companies requiring custom aluminum CNC parts for robotics, precision machining provides functional prototypes with production-like mechanical performance.

Rapid Robot Prototype Manufacturing Workflow

Step 1: DFM Analysis Before Production

Before machining begins, engineers review customer STEP files and technical drawings to identify possible manufacturing challenges.

The DFM process evaluates:

· Wall thickness

· Tool accessibility

· Internal corner radius

· Assembly interfaces

· Critical dimensional tolerances

For example, a customer may submit a robotic gripper component design with:

· Small internal corners

· Limited tool accessibility

· Thin-wall structures

Engineers may recommend:

· Increasing corner radius

· Adjusting machining direction

· Optimizing structural features

These improvements help:

· Reduce machining risks

· Improve surface quality

· Shorten production time

· Avoid unnecessary redesigns

Step 2: CNC Machining Process Optimization

For robotic precision components, machining parameters directly influence final performance.

A typical CNC machining process includes:

Rough Machining

Purpose:

· Quickly remove excess material

· Establish basic geometry

Finish Machining

Purpose:

· Achieve final dimensions

· Improve surface quality

Key process factors include:

· Cutting speed

· Feed rate

· Tool selection

· Tool path optimization

For critical robotic interfaces, manufacturers may achieve:

· Dimensional tolerance: ±0.02 mm

· Surface finish: Ra 0.8–1.6 μm

These controls ensure that prototype components can meet real functional testing requirements.

Combining CNC Machining and 3D Printing for Faster Design Iteration

During robotic development, CNC machining and 3D printing are often used together.

3D Printing is Suitable For:

· Concept validation

· Early structural testing

· Complex shape verification

CNC Machining is Suitable For:

· Functional testing

· High-strength components

· Precision assembly validation

A typical development process includes:

Concept Design → 3D Printed Prototype → CNC Functional Prototype → Performance Testing → Low-Volume Production

This hybrid manufacturing approach allows robotics teams to complete more design iterations in less time.

How Dawang Precision Supports Robotics Development

Dawang Precision has more than 26 years of precision manufacturing experience, supporting customers in industries including robotics, automation, medical devices, and advanced manufacturing.

Our factory operates more than 400 advanced machine tools, including:

· Röders high-speed machining centers

· Mazak five-axis CNC machining centers

We provide:

· Humanoid robot prototype manufacturing

· Robotic end-effector machining

· CNC aluminum precision machining

· Low-volume functional prototype production

· Manufacturing process optimization

With advanced equipment and engineering expertise, Dawang Precision helps robotics startups and automation R&D teams accelerate the transition from CAD designs to functional prototypes.

Accelerate Your Robot Prototype Development

As humanoid robotics continues to evolve, the ability to design, manufacture, and validate products quickly has become a major competitive advantage.

Professional robot prototype manufacturing helps engineers:

· Reduce development risks

· Improve testing efficiency

· Optimize designs faster

· Shorten time-to-market

Whether you are developing robotic hands, intelligent grippers, or next-generation automation systems, Dawang Precision provides reliable precision manufacturing solutions to support your innovation.

Send your STEP or PDF drawings to our engineering team for a free DFM evaluation. Our engineers will review your design and provide professional feedback within 24 hours.
