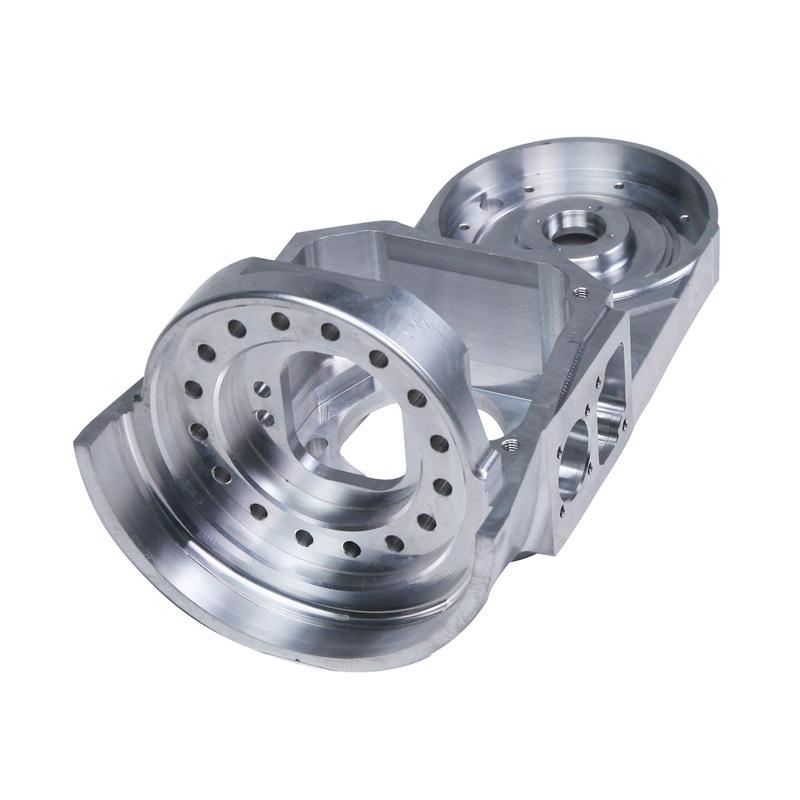

Precision Manufacturing of Rotary Actuator Components for Humanoid Robots

Rotary actuator component manufacturing is critical to the accuracy, reliability, and weight efficiency of humanoid robot drive systems. Components such as actuator housings, bearing carriers, gearbox interfaces, motor mounts, and output flanges must maintain precise alignment while withstanding repeated dynamic loads.

For mechanical engineers and procurement teams, the challenge is not simply achieving individual drawing dimensions. The more important requirement is maintaining the geometric relationships between functional features throughout machining, finishing, inspection, and final assembly.

This makes rotary actuator component manufacturing a combination of precision CNC machining, tolerance control, lightweight structural design, and process engineering.

Quick Answer: What Makes a Rotary Actuator Component Difficult to Manufacture?

The most demanding requirements are usually:

· Precise bearing and gearbox interfaces

· Tight assembly tolerances between functional features

· Stable rotational-axis alignment

· Lightweight structures without excessive deformation

· Complex geometries requiring multi-axis machining

· Consistent dimensional accuracy from prototype to production

For complex components, 5-axis milling robot parts can reduce setup changes and help maintain the positional relationship between multiple machined surfaces.

The key principle is simple: precision should be concentrated on the features that control motion and assembly, rather than applied equally to every dimension.

Rotary Actuator Components in Humanoid Robot Drive Systems

Humanoid robots rely on multiple powered joints to generate controlled rotary movement. Hips, knees, ankles, shoulders, elbows, and wrists can all use compact rotary actuator assemblies.

Depending on the architecture, an actuator may integrate a motor, gearbox, bearings, encoder, controller, shaft, and structural housing.

This places strict requirements on the machined components surrounding the drive system. Bearing bores establish the rotational axis, gearbox interfaces determine transmission alignment, while mounting surfaces and output flanges connect the actuator to the robot's structural system.

A small geometric error at one interface can therefore influence the alignment of the complete joint.

For this reason, actuator components should be manufactured according to their functional assembly relationships, not simply according to isolated dimensional tolerances.

Key Manufacturing Challenges

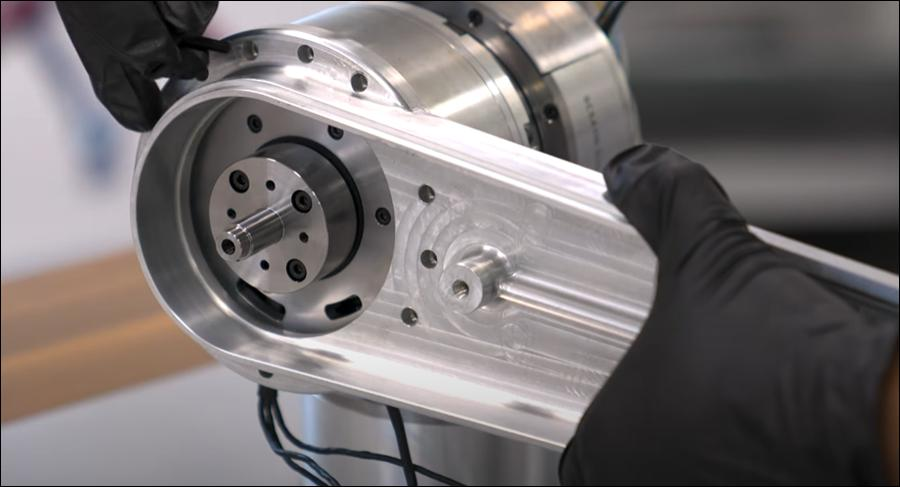

1. Tight Assembly Tolerances

One of the biggest challenges is controlling the relationship between multiple precision features.

A typical actuator housing may contain:

· Bearing bores

· Gearbox locating diameters

· Motor mounting surfaces

· Encoder interfaces

· Bolt patterns

· Output mounting features

Important relationships may include:

This is why tight assembly tolerances should be developed through functional datums and GD&T rather than simply assigning extremely small ± tolerances to every feature.

2. Lightweighting and Machining Deformation

Humanoid robot joints must balance structural stiffness with low mass. Removing unnecessary material can reduce moving mass, but aggressive pocketing and thin-wall structures are more sensitive to machining forces and residual stress.

Typical lightweighting methods include:

· Internal pockets

· Rib structures

· Optimized wall thickness

· Integrated mounting features

· High-strength aluminum alloys

The manufacturing challenge is maintaining dimensional stability after material is removed.

A component may appear rigid during rough machining but deform after large pockets are opened or after it is released from the fixture.

3. Complex Geometry and Multiple Setups

Robot joint components frequently combine deep pockets, angled faces, curved profiles, intersecting bores, and multiple mounting surfaces.

Using several 3-axis setups can introduce:

· Datum transfer errors

· Fixture positioning variation

· Accumulated positional errors

· Clamping deformation

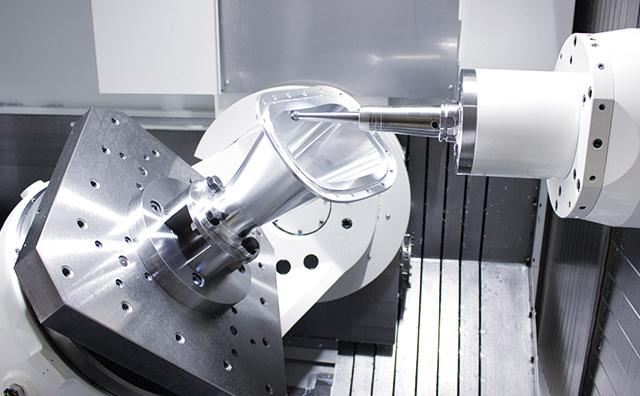

This is where 5-axis milling robot parts can provide a process advantage.

Five-axis machining is not valuable simply because it can cut complex shapes. Its greater benefit is the ability to machine related features with fewer setups, helping preserve their geometric relationship.

CNC Process Strategy for Rotary Actuator Components

A stable manufacturing process should begin with the functional requirements of the completed actuator.

1. Establish Functional Datums

Before CAM programming, engineers should identify the features that define:

1. The primary rotational axis

2. Bearing locations

3. Gearbox positioning

4. Motor mounting

5. Structural attachment

6. Output interface

The machining sequence should preserve these relationships as much as possible.

2. Control Roughing Loads

Cutting parameters should be selected according to the material, tool diameter, tool engagement, wall thickness, machine capability, and workholding condition.

For lightweight components, aggressive material removal can increase deformation risk. Controlled roughing, balanced material removal, and sufficient finishing stock can help stabilize the part before critical surfaces are finished.

There is no universal spindle speed or feed rate for actuator components. The correct parameters depend on the specific alloy, tooling, machine, and component geometry.

3. Finish Critical Features After Stabilization

Bearing seats, locating diameters, precision faces, and other assembly-critical features should generally receive dedicated finishing operations.

A typical process may follow:

Roughing → Semi-finishing → Geometry stabilization → Critical feature finishing → Deburring → Surface treatment → Final inspection

The exact sequence should be adapted to the material and component structure.

How to Control Deformation in Lightweight Robot Parts

Three factors have a major influence on dimensional stability:

cutting force + residual stress + workholding force

For thin-wall actuator components, the fixture must provide sufficient support without excessively loading flexible areas.

Machining should also avoid removing large amounts of material from only one side of the component when this could release residual stress unevenly.

A controlled strategy may include:

· Balanced material removal

· Reduced cutting loads on thin walls

· Controlled finishing stock

· Stable workholding

· Final machining of critical interfaces

· Inspection after unclamping

The objective is not simply to achieve tolerance while the component is held in the fixture. The component must remain within specification after release and throughout assembly.

Tolerance Strategy: Precision Where It Matters

A common mistake in precision machining is over-tolerancing every feature.

For actuator components, tolerances should instead reflect functional importance.

Rotational interfaces require control of diameter, roundness, concentricity, and axis alignment.

Assembly interfaces may require position, flatness, perpendicularity, or parallelism.

Non-functional pockets and external profiles can often use more conventional tolerances.

This functional approach improves manufacturability while protecting actuator performance.

In practical terms:

The goal is not to make every dimension extremely tight. The goal is to make the dimensions that control motion and assembly extremely stable.

Material Selection for Lightweight Actuator Components

Material selection should consider strength-to-weight ratio, stiffness, machinability, thermal behavior, corrosion resistance, and production cost.

7075-T6 aluminum is often considered for lightweight, high-strength structural components.

6061-T6 aluminum provides good machinability and corrosion resistance for many actuator housings and brackets.

Stainless steel can be appropriate where higher wear resistance or environmental resistance is required.

Titanium alloys provide excellent strength-to-weight performance but are generally reserved for applications where their higher material and machining costs are justified.

The appropriate material depends on the component's load path and operating environment rather than strength alone.

Inspection of Humanoid Robot Actuator Components

Inspection should verify the geometric relationships that determine assembly performance.

Depending on the component, inspection may include:

· CMM dimensional inspection

· Bore diameter verification

· Position and geometric tolerance inspection

· Flatness and perpendicularity measurement

· Surface roughness inspection

· Thread verification

· Final visual inspection

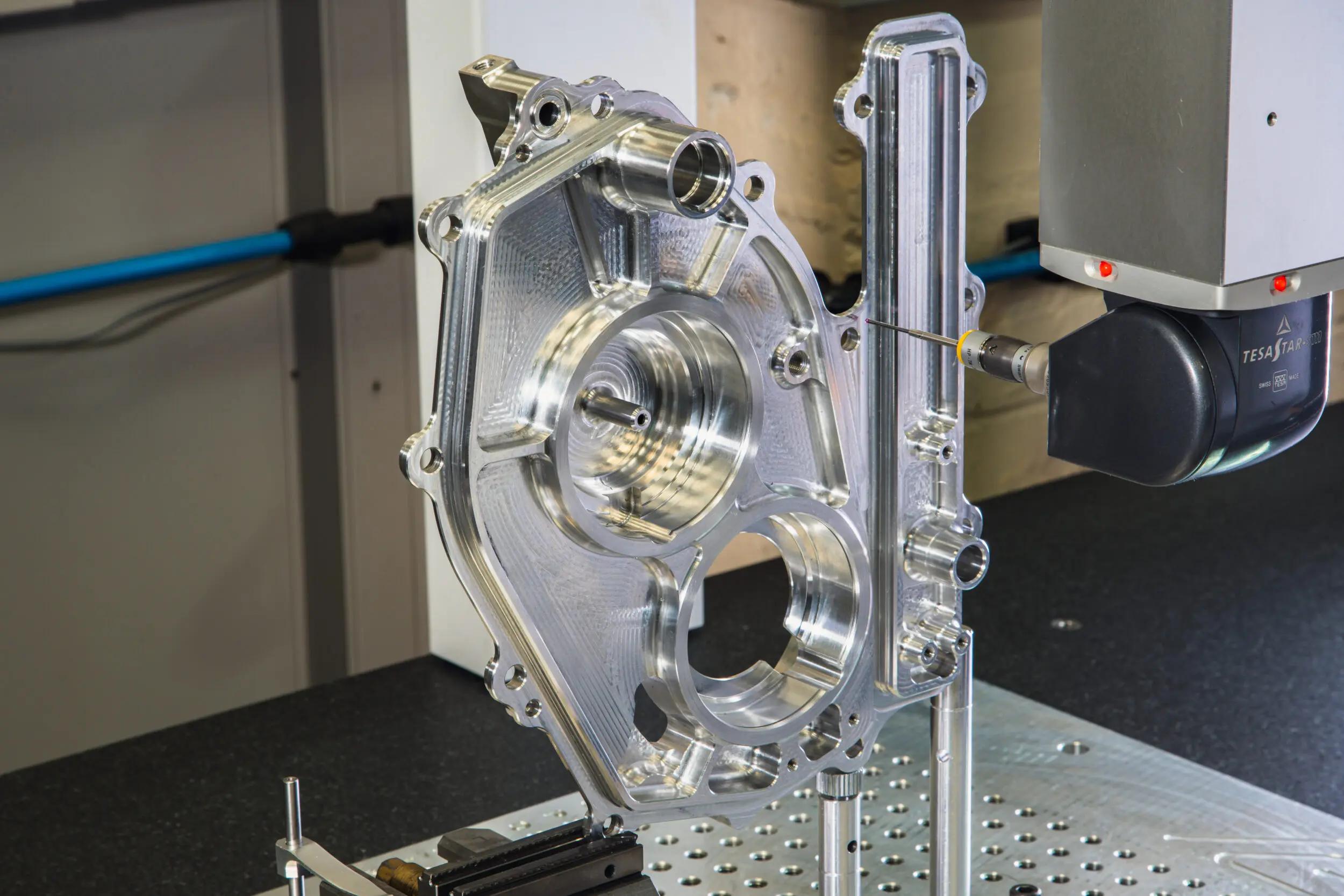

CMM inspection is particularly valuable when bearing bores, mounting surfaces, and locating features share common datums.

Instead of checking dimensions independently, the inspection process can verify whether critical features are actually aligned as required by the actuator assembly.

From Prototype to Production

Humanoid robot development often moves rapidly from prototype parts to pilot production and repeat manufacturing.

A capable CNC supplier should therefore support:

DFM review → Prototype → First Article → Process Validation → Pilot Production → Repeat Production

At the prototype stage, engineers need rapid manufacturability feedback.

During production, the priorities become process stability, fixture repeatability, tool-life control, inspection consistency, and batch-to-batch dimensional stability.

This is particularly important for humanoid robot drive systems because the same actuator architecture may be used across multiple joints and production volumes can increase as designs mature.

Dawang Precision: CNC Manufacturing for Humanoid Robot Components

Dawang Precision has more than 26 years of precision manufacturing experience and operates a facility with 400+ advanced machine tools, including high-end 5-axis machining equipment from Röders and Mazak.

Our engineering experience includes precision machining of humanoid robot joint structural components where lightweight construction, complex geometry, and tight assembly interfaces must work together.

Rather than treating each CNC component as an isolated part, our engineers consider the relationship between machining sequence, functional datums, material removal, critical interfaces, and final inspection.

This approach helps ensure that the manufactured component is not only within drawing requirements, but also suitable for the actual mechanical assembly.

FAQ: Rotary Actuator Component Manufacturing

Q1:What CNC process is best for humanoid robot actuator components?

The appropriate process depends on geometry and tolerance requirements. 3-axis machining can be sufficient for simpler parts, while 5-axis milling is advantageous for complex components with multiple angular surfaces and closely related features.

Q2:Which tolerances are most important for rotary actuator components?

Bearing bores, gearbox locating features, rotational interfaces, mounting surfaces, and output interfaces typically require the greatest geometric control because they directly influence axis alignment and assembly performance.

Q3:How do you prevent deformation in lightweight actuator housings?

Controlled material removal, appropriate workholding, balanced machining, sufficient finishing stock, and finishing critical interfaces after structural stabilization can reduce deformation risk.

Q4;Which materials are commonly used?

7075-T6 and 6061-T6 aluminum are common choices for lightweight structural components. Stainless steel and titanium may be selected when stiffness, wear resistance, environmental performance, or strength-to-weight requirements justify them.

Q5:Can CNC machining support both prototypes and production?

Yes. A robust process should progress from DFM review and prototype machining to first-article inspection, process validation, pilot production, and repeat manufacturing while maintaining consistent critical dimensions.
