Micro-Precision Machining for Endoscope Components and Optical Housings

Micro-precision machining for endoscope components requires more than making small CNC parts. In medical imaging equipment, miniature optical housings, lens holders, thin-wall tubes, alignment sleeves, and distal-end components must maintain dimensional accuracy, optical alignment, surface integrity, and cleanliness throughout manufacturing and assembly.

At this scale, a few microns of variation can affect lens positioning, bore concentricity, press-fit performance, or sealing. A small burr or residual particle can create an equally serious assembly problem.

The manufacturing strategy therefore has to connect micro-tolerances, machining process selection, workholding, inspection, and cleanliness control from the beginning.

Quick Answer

Endoscope components are typically manufactured using CNC Swiss turning, precision CNC turning, and 5-axis micro milling, depending on geometry. The most critical controls are usually bore diameter, concentricity, positional accuracy, thin-wall deformation, surface finish, burr control, and cleanliness. Tight tolerances should be assigned to functional features rather than applied indiscriminately across the entire component.

What Is Endoscope Component Micro-Machining?

Endoscope component micro-machining is the precision manufacturing of miniature mechanical parts used in endoscopes and related medical imaging equipment.

Typical components include:

· Optical housings and lens holders

· Lens retaining rings

· Alignment sleeves and spacers

· Thin-wall tubes

· Camera and sensor housings

· Distal-end components

· Miniature threaded collars

· Light-guide and illumination components

· Precision mounts and locating rings

Although these parts are small, their functional relationships can be highly demanding. An optical housing, for example, may need to maintain the position of a lens relative to a defined optical axis. Its bore diameter alone is not enough; the relationship between the bore, locating diameter, shoulder, and mating features also matters.

This makes micro-precision machining a geometric control problem, not simply a smaller version of conventional CNC machining.

Key Machining Challenges

1. Micro-Tolerances on Critical Features

The first challenge is determining which dimensions actually require tight control.

For an optical housing, critical characteristics may include:

A useful DFM principle is to reserve the tightest micro-tolerances for features that directly control optical alignment, assembly, sealing, or mechanical movement.

Applying unnecessarily tight tolerances to non-functional surfaces increases machining and inspection cost without improving device performance.

2. Thin-Wall Tube Deformation

Thin-wall tubes present another major challenge.

During machining, cutting forces and clamping pressure can temporarily deform a miniature tube. A component may measure correctly while held in the chuck but become slightly oval after release.

A stable process can combine:

1. Low-distortion workholding

2. Support close to the cutting zone

3. Balanced material removal

4. Separate roughing and finishing operations

5. Light finishing passes

6. Short tool overhang

7. In-process dimensional checks

8. Final inspection after unclamping

Swiss-type turning is particularly useful for many miniature cylindrical parts because the workpiece can be supported close to the cutting area.

3. Optical Alignment and Bore Concentricity

For optical housings, concentricity can be more important than simple dimensional accuracy.

Imagine an optical housing with a precision internal bore and an external locating diameter. Both diameters could independently meet their size tolerances while their axes are slightly offset.

The result is a component that is dimensionally acceptable but poorly aligned.

A better machining sequence is to establish a controlled datum structure and maintain the relationship between critical features:

Reference surface → precision OD → optical bore → locating shoulder → secondary features → finishing → inspection

Minimizing setup changes can reduce the accumulation of positional variation. For more complex housings, 5-axis machining can also reduce the number of setups required for multi-face features.

Technical Solutions for Micro-Precision Machining

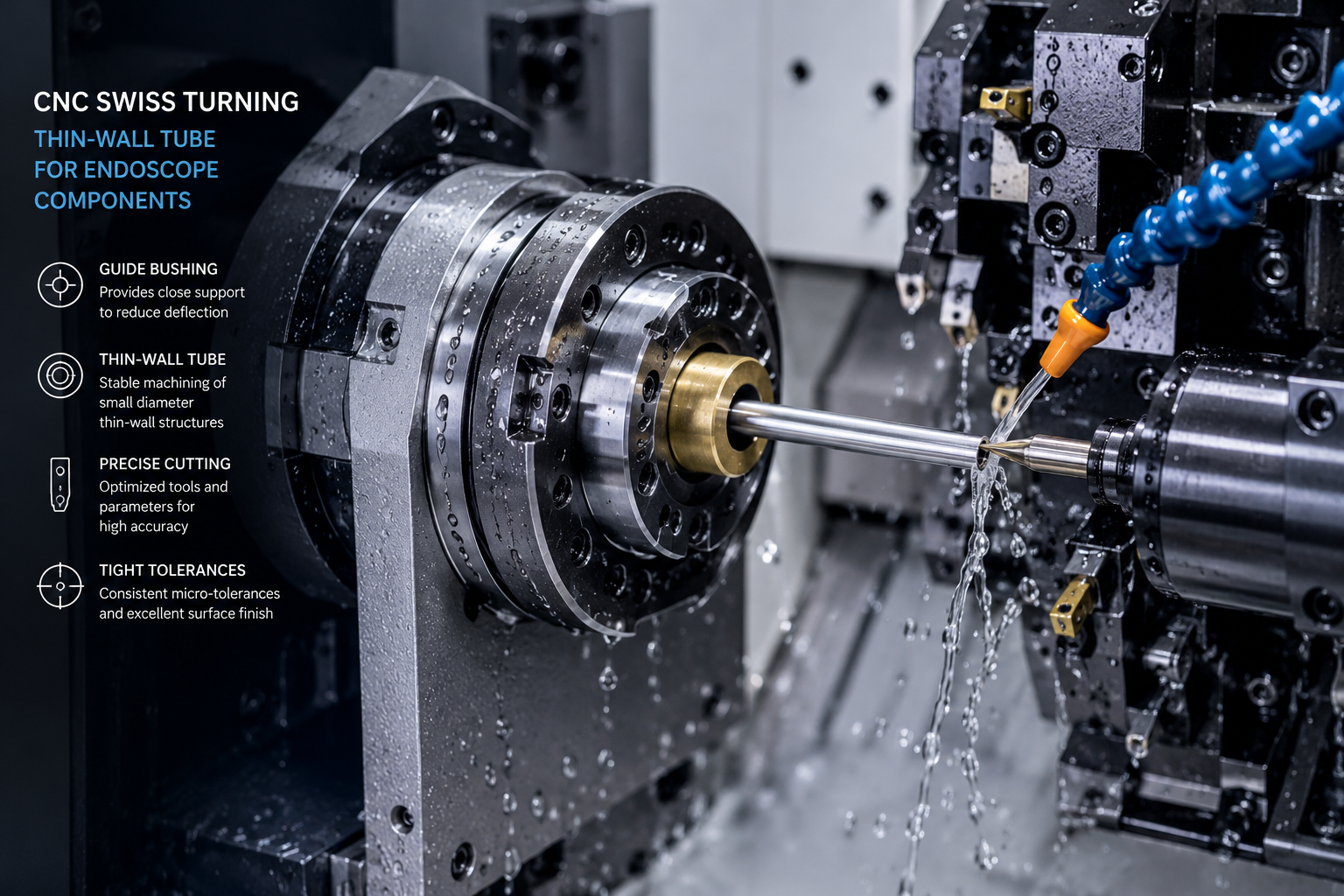

CNC Swiss Turning for Miniature Components

CNC Swiss turning is well suited to:

· Thin-wall tubes

· Lens sleeves

· Retaining rings

· Miniature shafts

· Precision collars

· Small threaded housings

· Cylindrical optical components

The guide-bushing concept provides support close to the cutting zone, helping reduce deflection when machining small diameters.

For production programs, Swiss machining can also combine turning, drilling, grooving, threading, and live-tool operations in a controlled sequence, reducing additional handling and setup variation.

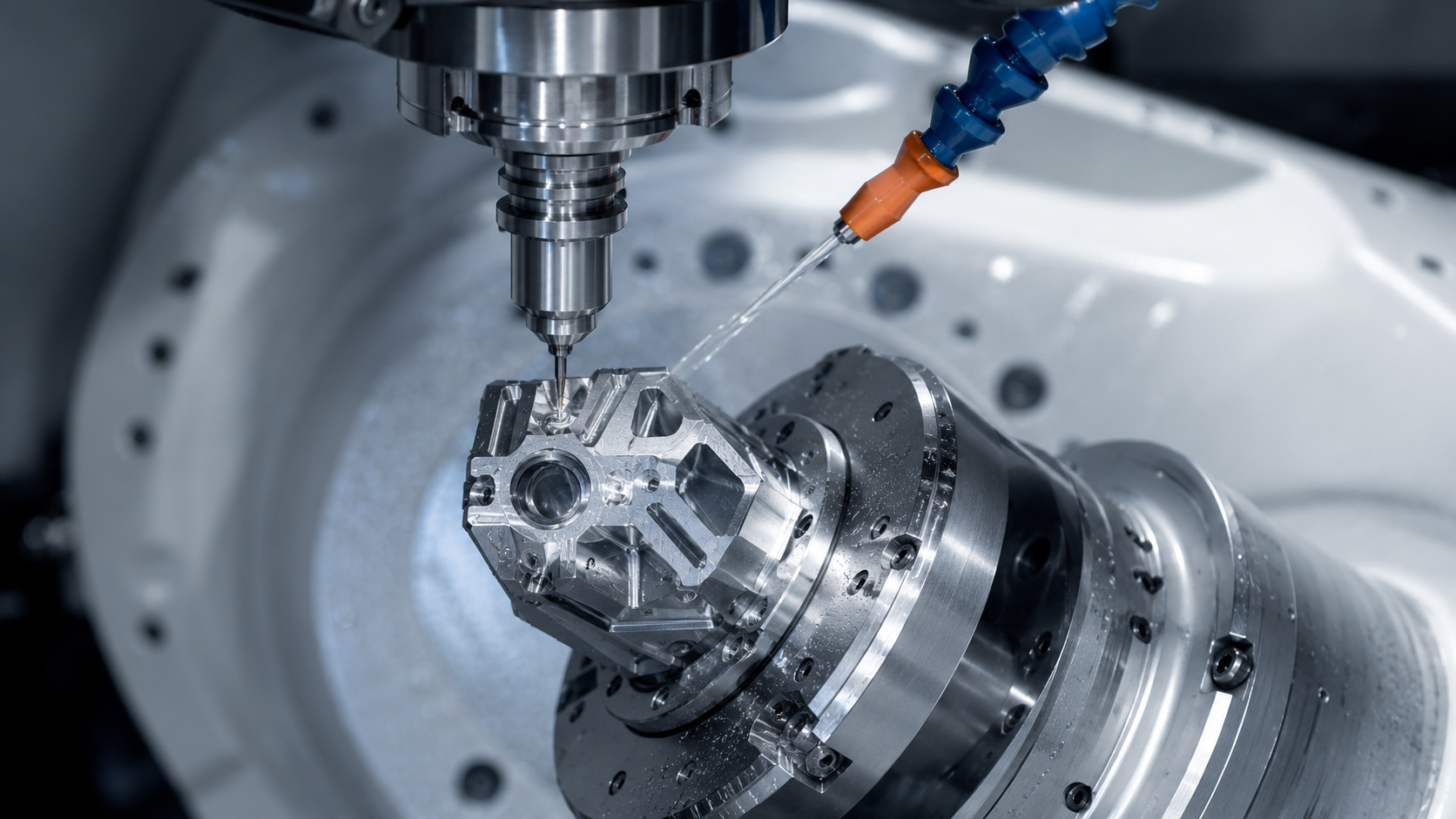

5-Axis Micro Milling for Optical Housings

5-axis micro milling becomes valuable when an optical housing includes:

· Angled surfaces

· Offset holes

· Multiple ports

· Complex pockets

· Multi-face locating features

· Small-radius geometry

· Features requiring positional relationships across several surfaces

The main advantage is not simply additional machine axes. It is the ability to maintain geometric relationships while reducing repeated reclamping and datum changes.

Micro-Machining Parameters: What Should Engineers Control?

There is no universal cutting speed or feed rate for micro-machining. Parameters must be developed around the material, tool diameter, tool geometry, machine spindle, workholding, feature depth, and required surface finish.

For small tools, process stability becomes increasingly sensitive to:

· Tool runout

· Tool deflection

· Tool stick-out

· Radial engagement

· Cutting-force variation

· Tool wear

· Chip evacuation

· Thermal effects

For example, when using a very small end mill, even a small amount of runout can produce uneven cutting and accelerate tool wear.

A practical strategy is to use conservative roughing conditions followed by controlled finishing passes, while monitoring tool condition and verifying critical dimensions.

The objective is not maximum cutting speed. The objective is repeatable geometry.

Burr Control and Extreme Cleanliness

At miniature scale, burrs become functional defects rather than cosmetic imperfections.

A burr inside an endoscope component may interfere with lens insertion, damage a mating surface, restrict a miniature channel, or generate particles during assembly.

Cross-holes and intersecting bores deserve particular attention because internal burrs can be difficult to remove and inspect.

A controlled process may include:

Precision machining → controlled deburring → microscopic inspection → cleaning → controlled drying → final inspection → protected packaging

For medical imaging equipment, cleanliness should be considered together with material selection and surface treatment. The required cleaning process should be defined according to the material, application, sterilization environment, and customer's specifications.

Engineering Case Example: Miniature Optical Housing

Consider a hypothetical stainless-steel optical housing for a compact medical imaging module.

The component has:

· A small external locating diameter

· A precision internal optical bore

· A thin wall between the bore and OD

· A locating shoulder for axial lens positioning

· Small cross-holes for secondary functions

· A requirement for controlled burrs and cleanliness

The primary risk is not machining any single feature. It is maintaining the relationship between the optical bore, locating OD, and shoulder after the part is released from the workholding.

A suitable process would begin by establishing a stable reference surface, machining the critical OD and bore under controlled conditions, then completing secondary features with minimal datum changes.

The thin-wall section would be supported appropriately during finishing, while the cross-holes would receive a defined internal deburring process.

Final inspection would focus on the functional geometry rather than simply checking individual dimensions.

This example illustrates a key principle in endoscope machining:

Micro-precision is achieved through control of the entire process chain—not by relying on a single high-accuracy CNC machine.

Inspection Strategy for Endoscope Components

Inspection equipment should match the size and function of the feature.

CMM can be used for positional relationships, concentricity, perpendicularity, and feature location.

Optical measurement systems are useful for miniature diameters, thin walls, small profiles, and features that are difficult to contact with conventional probes.

Microscopes are valuable for burr and edge inspection.

Surface roughness measurement should be applied to functional surfaces where an Ra requirement affects assembly or performance.

For production programs, First Article Inspection and documented process controls help establish that the manufacturing process can repeatedly produce the required geometry—not merely one conforming prototype.

Materials for Optical Housings and Endoscope Components

Material selection should consider machining behavior together with the medical-device environment.

For medical applications, engineers should evaluate corrosion resistance, sterilization conditions, dimensional stability, surface treatment, cleanliness, and biocompatibility requirements where applicable.

DFM Considerations Before CNC Production

The most economical time to solve micro-machining problems is before the first part is cut.

During DFM review, engineers should check:

· Which tolerances are truly functional?

· Are the machining datums aligned with assembly datums?

· Can the tool access every micro-feature?

· Will thin-wall sections deform during clamping?

· Can internal burrs be removed and inspected?

· Is the specified surface finish necessary on every surface?

· Can each critical tolerance be measured reliably?

· Are material, cleaning, and packaging requirements clearly defined?

A tolerance that cannot be reliably inspected should be discussed during DFM rather than discovered after production.

Why Medical Micro-Machining Requires a Controlled Quality System

For medical-device suppliers, machining capability is only one part of supplier qualification.

Quality systems, traceability, process control, inspection, and risk-based manufacturing practices are also important.

ISO 13485:2016 is the internationally recognized quality management standard specifically addressing medical-device organizations and related suppliers. ISO states that the standard is intended for organizations involved in the design, production, installation, servicing, and related services of medical devices.

For an engineering or procurement team, this makes the supplier's quality system an important part of evaluating long-term manufacturing capability—not just prototype machining performance.

FAQ: Endoscope Component Micro-Machining

Q1:What CNC process is best for miniature endoscope components?

Swiss turning is often well suited to miniature cylindrical components and thin-wall tubes, while 5-axis CNC milling is useful for complex optical housings and multi-face geometries. The best process depends on the part's functional features and tolerance requirements.

Q2:How is optical housing concentricity controlled?

Critical bore, OD, and locating surfaces should be machined from a controlled datum structure with minimal setup changes. Final inspection should verify the relationship between these features rather than measuring each dimension independently.

Q3:How are thin-wall tubes protected from deformation?

Low-distortion workholding, close tool support, balanced material removal, controlled finishing passes, and inspection after unclamping are commonly used to reduce deformation.

Q4:What materials are commonly used for endoscope components?

316L stainless steel, 304 stainless steel, titanium, aluminum alloys, and selected engineering polymers such as PEEK may be considered depending on the application, sterilization environment, mechanical requirements, and applicable biocompatibility requirements.

Q5:What drawings are needed for a DFM review?

A STEP model and dimensioned PDF drawing provide the best starting point. Material, quantities, critical tolerances, surface finishes, cleanliness requirements, and assembly information should also be included where available.
