Swiss Lathe Machining vs. Traditional CNC Turning for Miniature Medical Screws

Quick Answer

Swiss lathe machining is generally the preferred process for miniature medical screw machining because it provides superior support for long, small-diameter components, tighter concentricity, and the ability to machine multiple features in one setup.

For bone screws, dental implant screws, and other miniature orthopedic fasteners, Swiss-type CNC lathes significantly reduce workpiece deflection while maintaining micron-level dimensional consistency. Traditional CNC turning remains an excellent option for larger or shorter medical screws with simpler geometries and lower manufacturing complexity.

If your drawing includes diameters below 6 mm, fine threads, cannulation, or self-tapping features, Swiss machining is often the most manufacturable solution.

Why Choosing the Right Process Matters for Miniature Medical Screw Machining

Miniature medical screws are among the most demanding precision components in medical manufacturing. Although they appear simple, they combine extremely small diameters with strict mechanical and biocompatibility requirements.

A typical orthopedic or dental screw must simultaneously achieve:

· Tight dimensional tolerances.

· Accurate thread geometry.

· Excellent concentricity.

· Burr-free cutting edges.

· Smooth surface finish.

· Full material traceability.

Any dimensional variation may affect insertion torque, implant stability, or compatibility with surgical instruments.

This is why engineers evaluating miniature medical screw machining often compare Swiss lathe machining and traditional CNC turning before production begins.

Swiss Lathe Machining vs. Traditional CNC Turning: What's the Difference?

The biggest difference is how the workpiece is supported during machining.

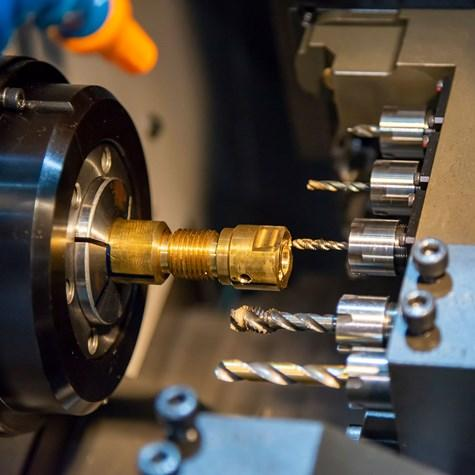

Swiss Lathe Machining

Guide bushing supports the bar next to the cutting tool.

Ideal for long, slender medical screws with tight tolerances.

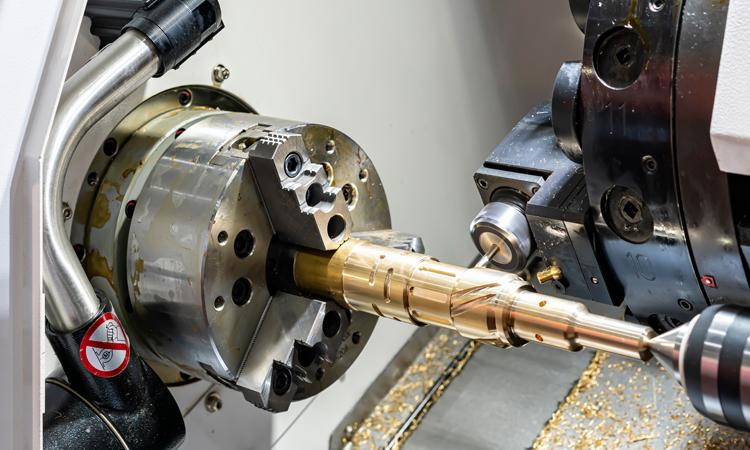

Traditional CNC Turning

Workpiece is held primarily by a chuck or collet.

Better suited to shorter or larger-diameter screw geometries.

Engineering Comparison Table

The Manufacturing Challenges Behind Miniature Medical Screws

Instead of comparing machines alone, engineers should evaluate the manufacturing risks of the part.

Challenge 1 — Workpiece Deflection During Turning

Small-diameter screws can easily bend under cutting force, especially when machining titanium or stainless steel.

Swiss Solution

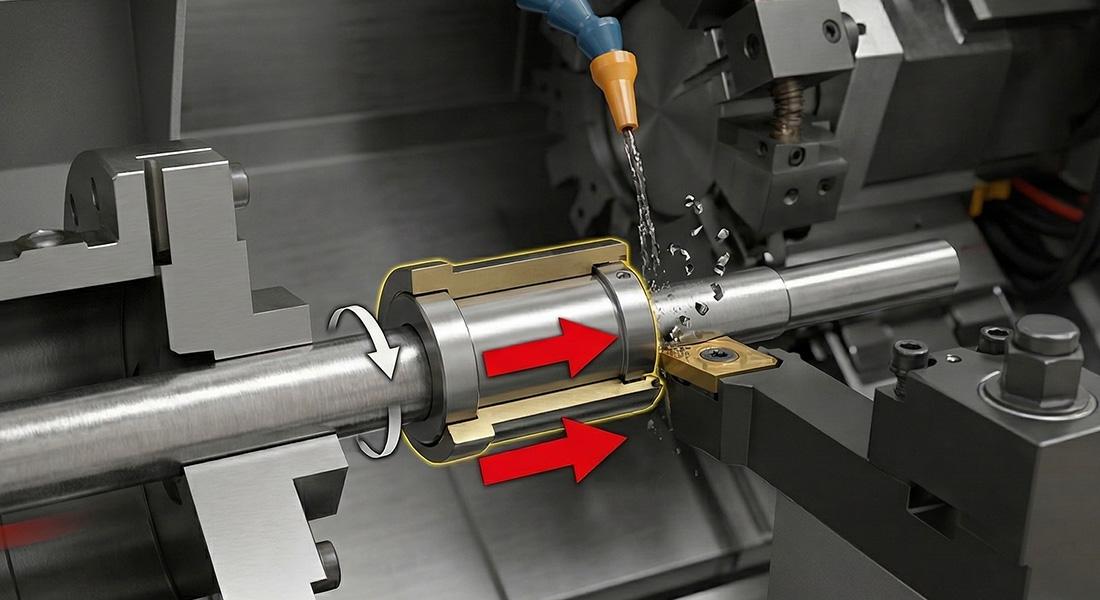

The guide bushing supports the material immediately adjacent to the cutting tool, dramatically shortening the unsupported machining length.

· Engineering Benefits

· Better straightness.

· Improved thread consistency.

· Reduced vibration.

· Lower runout.

· Better surface finish.

This is particularly important for bone screws with long threaded sections.

Challenge 2 — Ultra-Fine Thread Accuracy

Medical screw threads must perform mechanically—not just pass dimensional inspection.

Critical thread characteristics include:

Swiss machining allows turning, threading, and secondary milling to share the same datum reference, minimizing accumulated positioning error.

Challenge 3 — Burr-Free Self-Tapping Features

Many orthopedic screws include:

· Self-tapping flutes.

· Cutting edges.

· Cannulation holes.

· Torx or Hex drives.

· Cross slots.

These micro features require live tooling with controlled cutter engagement.

Engineering Solution

· High-precision live milling.

· Tool wear monitoring.

· Edge-breaking without damaging functional geometry.

· Microscopic burr inspection.

Process Parameters for Medical-Grade Screw Machining

Process optimization depends on material, screw diameter, and thread geometry—not a universal cutting chart.

For miniature screws, process stability is often more valuable than maximum cutting speed.

Typical Tolerances for Miniature Medical Screw Machining

Orthopedic and dental applications typically require multiple geometric controls simultaneously.

Dimensional verification normally combines CMM inspection, optical measurement, thread gauges, and microscopic visual inspection.

Case Study: DFM Optimization for an Orthopedic Bone Screw

A customer developing a miniature orthopedic fixation screw submitted a STEP file for manufacturing review.

Original Design Challenges

DFM Improvements

The engineering team recommended:

· Swiss lathe machining instead of conventional turning.

· Single-setup turning and live milling.

· Thread generation before flute milling.

· Controlled edge-break radius.

· Dedicated cleaning process after deburring.

Results

· Improved concentricity consistency.

· Reduced burr formation on cutting flutes.

· Eliminated one secondary machining setup.

· Better repeatability during pilot production.

This type of DFM optimization reduces manufacturing risk before production tooling is released.

Why Swiss Machining Is Preferred for Orthopedic Bone Screws

Orthopedic Applications

Swiss machining is widely used for:

· Trauma fixation screws.

· Cortical bone screws.

· Cancellous bone screws.

· Locking screws.

· Cannulated screws.

· Surgical guide pins.

These components benefit from high concentricity and repeatable thread geometry.

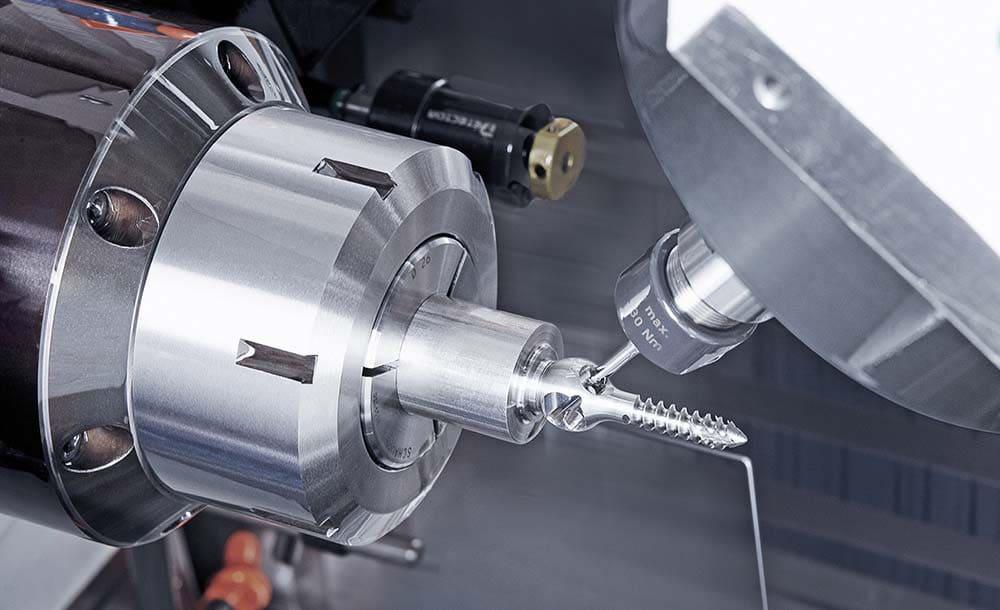

Dental Implant Applications

Swiss machining is also ideal for:

· Dental implant screws.

· Abutment screws.

· Healing cap screws.

· Orthodontic micro screws.

The small diameter and precision thread profile make Swiss machining particularly suitable for dental components requiring repeatable fit.

Cleanliness and ISO 13485 Quality Control Matter as Much as Machining

For medical components, machining is only part of the manufacturing process.

A complete miniature medical screw machining workflow includes:

For orthopedic and dental implant manufacturing, cleanliness should be engineered into the production process—not treated as a post-machining operation.

How to Choose Between Swiss Lathe Machining and Traditional CNC Turning

Use this engineering checklist during DFM review.

Selecting the correct process early reduces machining cost, secondary operations, and inspection risk.

Frequently Asked Questions (FAQ)

Q1:Is Swiss lathe machining always better for miniature medical screw machining?

No. Swiss machining excels for small-diameter, high-precision, and multi-feature screws, while traditional CNC turning is often more economical for larger or simpler medical screws.

Q2:What materials are commonly used for bone screw machining?

Orthopedic bone screws are commonly machined from Ti-6Al-4V titanium alloy and 316L medical stainless steel, depending on implant design and clinical application.

Q3:Can Swiss machining produce self-tapping bone screws?

Yes. Swiss lathes equipped with live tooling can machine self-tapping flutes, slots, cannulation holes, and precision drive features in a single setup.

Q4:What tolerance can miniature medical screw machining achieve?

Depending on geometry, material, and inspection requirements, miniature medical screws may require dimensional tolerances around ±0.005 mm, along with tight concentricity and surface finish specifications.

Q5:Why is cleanliness important for dental implant screws?

Residual particles, coolant, or burrs can affect downstream cleaning, coating, sterilization, and assembly processes. Medical components therefore require validated cleaning and traceability procedures in addition to dimensional inspection.
