The Importance of Passivation and Electropolishing in Medical Stainless Steel Machining

Quick Answer

In medical stainless steel machining, CNC accuracy is only part of the quality requirement. Machining can leave free iron, microscopic burrs, tool marks, heat tint, and other contaminants that may reduce corrosion resistance and affect cleanability. Passivation removes free iron and promotes a stable passive surface, while electropolishing removes a controlled microscopic layer to improve surface smoothness, reduce micro-defects, and enhance corrosion resistance.

For surgical instruments, dental tools, and other medical components, the right surface treatment should be selected together with CNC machining, tolerance control, cleaning, and inspection requirements.

Why Surface Treatment Matters

Stainless steel is widely used in medical devices because it offers strength, durability, corrosion resistance, and compatibility with cleaning and sterilization processes.

However, stainless steel does not automatically have an optimized surface after CNC machining.

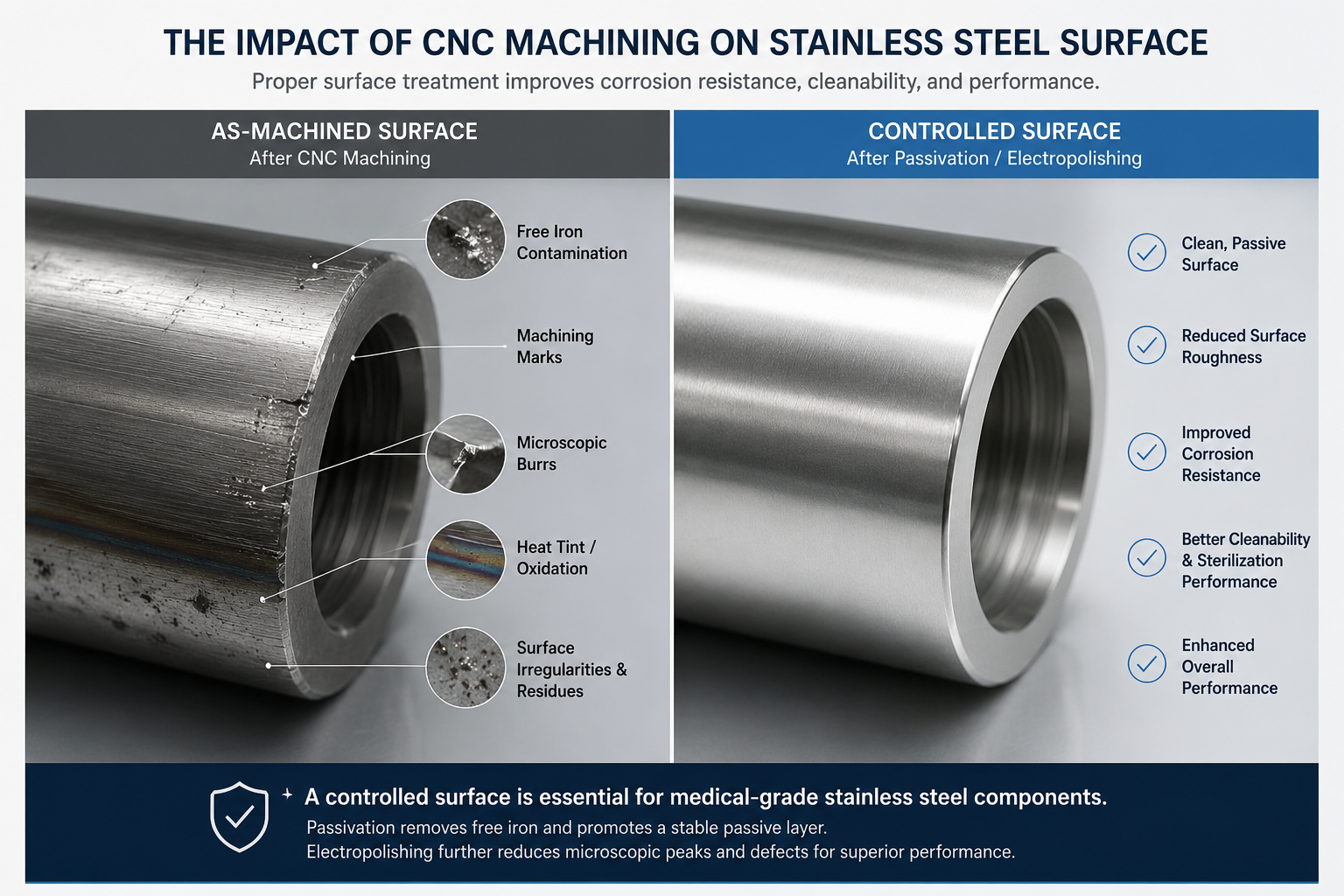

Milling, turning, drilling, grinding, and deburring can introduce:

· Free iron and foreign particles

· Microscopic burrs

· Tool marks and surface grooves

· Heat tint or oxide contamination

· Residual cutting fluids

· Small surface irregularities

These defects can become potential corrosion sites or make a component more difficult to clean.

For this reason, medical stainless steel machining should be treated as a complete process:

Material selection → CNC machining → Cleaning → Surface treatment → Inspection

The objective is not simply a visually clean part, but a dimensionally accurate, corrosion-resistant, and controlled surface suitable for its intended medical application.

Passivation vs. Electropolishing

What Is Passivation?

Passivation is a chemical treatment that removes free iron and other contaminants from stainless steel and promotes the formation of a passive, corrosion-resistant surface.

ASTM A967/A967M covers chemical passivation treatments for stainless steel parts, including nitric acid and citric acid processes, as well as methods for verifying treatment effectiveness.

Passivation is particularly useful when corrosion resistance needs to be improved while maintaining critical dimensions.

It is commonly considered for precision shafts, pins, fittings, housings, and other components where dimensional stability is important.

What Is Electropolishing?

Electropolishing is an electrochemical finishing process that removes a controlled microscopic layer of stainless steel.

Compared with passivation alone, it can also modify surface topography by reducing:

· Microscopic burrs

· Machining marks

· Surface irregularities

· Small crevices

It can therefore improve surface smoothness, cleanability, and corrosion resistance.

ASTM B912 covers passivation of stainless steels using electropolishing and recognizes that passivation can occur simultaneously under appropriate electropolishing conditions.

Which Process Should You Choose?

The decision should be based on the final functional requirement, not simply on which treatment provides a brighter appearance.

CNC Machining Challenges

Burrs and Surface Defects

Small holes, slots, sharp edges, and intersecting features are particularly prone to burr formation.

Electropolishing can reduce microscopic burrs, but it should not replace proper CNC deburring. Tool geometry, cutting parameters, tool wear, and machining sequence should be controlled first.

Heat and Surface Integrity

Stainless steel can generate substantial heat during machining. Excessive heat may contribute to heat tint, oxidation, dimensional variation, and tool wear.

Stable cutting conditions, appropriate coolant delivery, and effective chip evacuation help protect the surface before subsequent finishing.

Contamination Control

Tooling, fixtures, abrasives, and handling equipment can introduce foreign particles onto stainless steel surfaces.

For medical parts, cleaning must therefore be treated as a controlled process. The surface should be properly cleaned before passivation or electropolishing, followed by thorough rinsing and controlled handling.

Tolerance Control After Surface Treatment

One of the most important considerations in precision medical stainless steel machining is the relationship between surface finishing and final dimensions.

Chemical passivation is generally selected when dimensional change must be minimized.

Electropolishing is different because it removes material. Therefore, critical dimensions must account for the expected finishing effect.

A practical process sequence is:

Final tolerance → finishing allowance → precision CNC machining → electropolishing → final inspection

For tight-tolerance bores, shafts, threads, and mating surfaces, engineers should consider:

· Material removal

· Surface roughness

· Feature geometry

· Mating clearance

· Inspection method

Surface finishing should therefore be included in the DFM process rather than added after the CNC design is finalized.

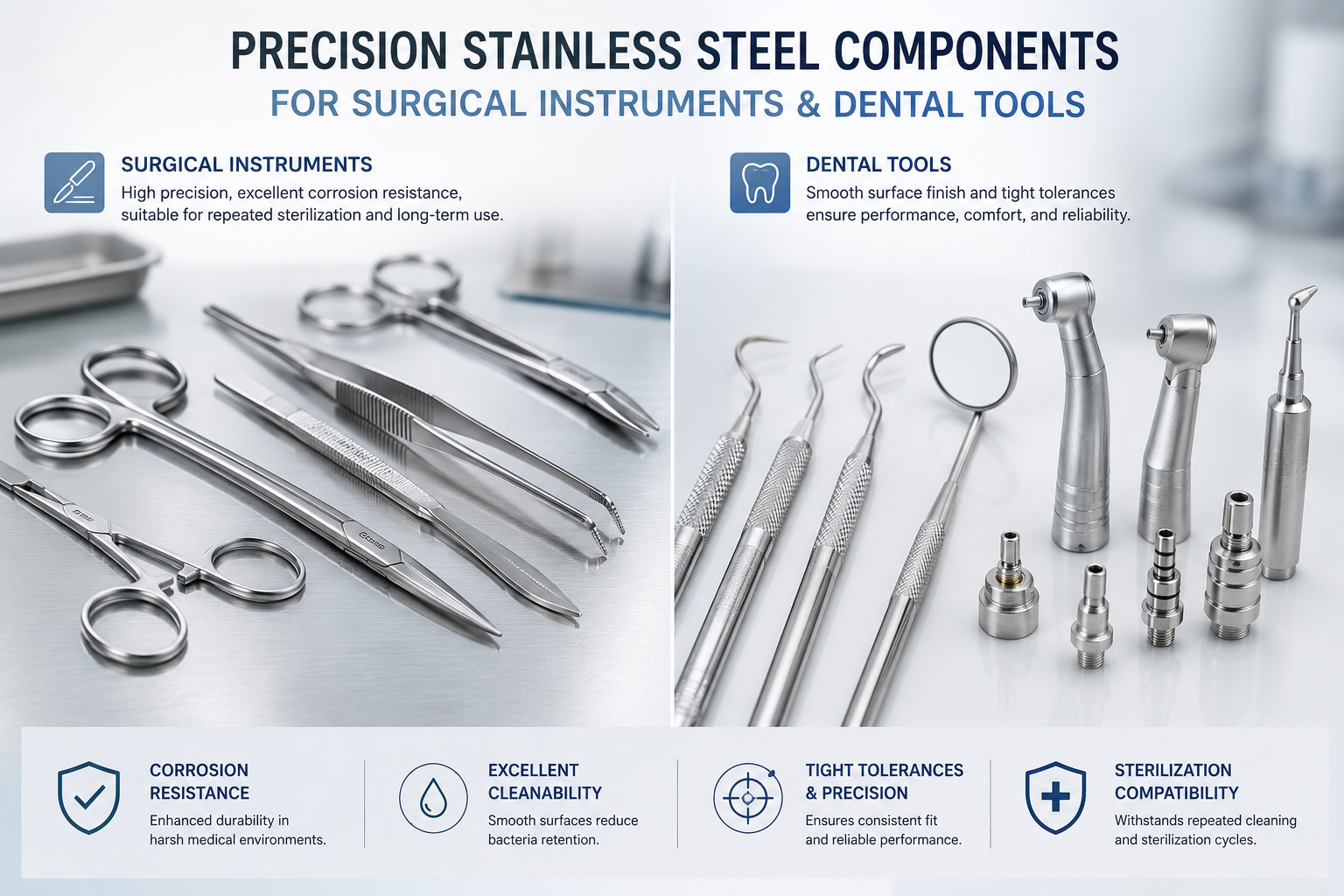

Applications: Surgical Instruments and Dental Tools

Surgical Instruments

Medical stainless steel machining is widely used for:

· Surgical forceps

· Scissors

· Clamps

· Surgical jaws

· Instrument shafts

· Endoscopic components

· Precision mechanisms

These components may be exposed to moisture, biological fluids, cleaning agents, and repeated sterilization.

ASTM F1089 addresses corrosion testing for stainless steel surgical instruments and recognizes passivation and electropolishing as relevant surface treatments before corrosion-resistance evaluation.

Dental Tools

Dental tools face similar demands, including repeated cleaning, disinfection, and sterilization.

For small dental components, surface finishing must be carefully controlled because excessive material removal can affect cutting edges, threads, holes, and mating features.

The correct process therefore depends on the combination of material, geometry, tolerance, surface finish, and service environment.

Quality Standards for Medical Stainless Steel Machining

Depending on the application and customer specification, relevant standards may include:

· ASTM A967/A967M — Stainless steel chemical passivation

· ASTM B912 — Electropolishing-based passivation

· ASTM F1089 — Corrosion testing of surgical instruments

· ISO 13485 — Medical device quality management systems

The applicable standard should be specified together with the stainless steel grade, dimensional tolerances, surface finish, inspection requirements, and documentation requirements.

DFM: Plan Surface Treatment Before Machining

A professional DFM review should evaluate the entire manufacturing chain before production.

Key considerations include:

· Stainless steel grade

· Critical dimensions and tolerances

· Surface roughness

· Electropolishing allowance

· Deep holes and internal passages

· Burr-prone features

· Cleaning accessibility

· Inspection datums

· Packaging and handling

At Dawang Precision, these considerations can be integrated into the CNC manufacturing review. With 26 years of precision manufacturing experience, more than 400 advanced machine tools, and an ISO 13485-certified quality management system, the engineering team evaluates machining, surface treatment, dimensional control, and cleanliness requirements as one process.

The goal is to deliver not only accurate CNC parts, but also a controlled surface suitable for demanding medical applications.

FAQ

Q1:Does passivation improve stainless steel corrosion resistance?

Yes. Passivation removes free iron and surface contaminants and promotes a stable passive surface. The result depends on the stainless steel grade and treatment conditions.

Q2:Is electropolishing better than passivation?

Not necessarily. Passivation is often sufficient when corrosion resistance is the primary requirement. Electropolishing is more suitable when improved surface smoothness, micro-deburring, cleanability, and corrosion resistance are all required.

Q3:Does electropolishing affect CNC tolerances?

Yes. Because electropolishing removes material, its effect should be considered when defining machining allowances and final tolerances.

Q4:Can surgical instruments be both passivated and electropolished?

Yes. Depending on the application, both processes may be incorporated into the manufacturing process.
