CNC Machining Titanium Grade 5 (Ti-6Al-4V) for Medical Orthopedic Implants

Quick Answer

CNC machining Titanium Grade 5 medical components requires careful control of heat, cutting forces, tool wear, tolerances, and surface condition. Ti-6Al-4V is widely selected for orthopedic implants because it combines high strength-to-weight ratio, corrosion resistance, and favorable biological performance. Typical applications include Ti-6Al-4V bone plates, fixation components, orthopedic structures, and selected components used in artificial joints.

The main machining challenge is that titanium has low thermal conductivity and high strength, causing heat to concentrate near the cutting edge. Successful production therefore depends on controlled cutting parameters, rigid fixturing, optimized tooling, multi-axis machining, and inspection rather than simply using a high-precision CNC machine.

For medical applications, the manufacturing process must also address material traceability, dimensional inspection, burr removal, cleanliness, and the applicable material specification.

Why Use Ti-6Al-4V for Orthopedic Implants?

Titanium Grade 5, commonly called Ti-6Al-4V or Ti-6-4, is an alpha-beta titanium alloy containing aluminum and vanadium.

Its combination of mechanical and physical properties makes it attractive for orthopedic applications where components must withstand repeated loading while maintaining relatively low weight.

Key advantages include:

For orthopedic manufacturers, however, material selection should not stop at the name “Ti-6Al-4V.” The engineering drawing should specify the required material grade, condition, standard, and certification.

ISO 5832-3:2021 specifies characteristics and test methods for wrought Ti-6Al-4V intended for surgical implant manufacturing.

Grade 5 vs. Grade 23 Titanium

Grade 5 and Grade 23 should not automatically be treated as the same material specification.

Grade 23 is Ti-6Al-4V ELI (Extra Low Interstitials). ASTM F136-26 specifically covers wrought annealed Ti-6Al-4V ELI for surgical implant applications.

For a regulated medical component, the customer's drawing and applicable device specification should always determine the required material.

Applications of CNC-Machined Titanium in Orthopedics

CNC machining is particularly useful when an orthopedic component requires accurate holes, complex profiles, controlled interfaces, and repeatable geometry.

Common applications include:

· Ti-6Al-4V bone plates

· Bone fixation components

· Spinal fixation components

· Orthopedic brackets and structural parts

· Trauma implant components

· Surgical instrumentation

· Joint replacement components

· Components for artificial joints

· Patient-specific orthopedic prototypes

For orthopedic implants, machining accuracy is only one part of the engineering requirement. The final component may also require controlled surface condition, traceability, cleaning, and inspection.

Key Challenges in Machining Titanium Grade 5

1. Heat Concentration

Titanium's low thermal conductivity makes heat management one of the biggest challenges in CNC machining.

Compared with aluminum, titanium transfers machining heat away from the cutting zone relatively slowly. Excessive heat can accelerate tool wear, damage cutting edges, and affect dimensional stability.

A practical titanium machining strategy therefore focuses on:

· Controlled cutting speed

· Stable chip formation

· Appropriate feed per tooth

· Short and rigid tool overhang

· Effective coolant delivery

· Avoiding excessive tool engagement

The objective is not simply to maximize material removal rate, but to maintain a stable cutting condition throughout the operation.

2. Tool Wear and Dimensional Drift

Ti-6Al-4V can cause significant cutting-edge wear when machining parameters or tooling are poorly matched.

As the tool wears, dimensional accuracy may gradually change. This is particularly important for:

· Precision holes

· Screw interfaces

· Mating surfaces

· Thin-wall sections

· Complex 3D profiles

For production machining, tool-life monitoring and periodic dimensional inspection can help prevent a batch from drifting outside specification.

3. Thin-Wall Deformation

Many orthopedic components are designed with reduced material thickness to minimize weight.

Thin Ti-6Al-4V bone plates and anatomical structures can deform under cutting forces or lose dimensional stability after material is removed.

A better process typically uses:

roughing → stress relief where required → semi-finishing → finishing

Rather than removing large amounts of material in one operation, controlled material removal helps maintain structural stability.

CNC Machining Solutions for Ti-6Al-4V

Optimizing Cutting Parameters

There is no universal parameter set for every titanium component.

The appropriate cutting conditions depend on tool diameter, carbide grade, coating, machine rigidity, workpiece geometry, coolant delivery, and material condition.

A typical starting strategy is:

Actual values should be validated against the tooling manufacturer's recommendations and the specific machining setup.

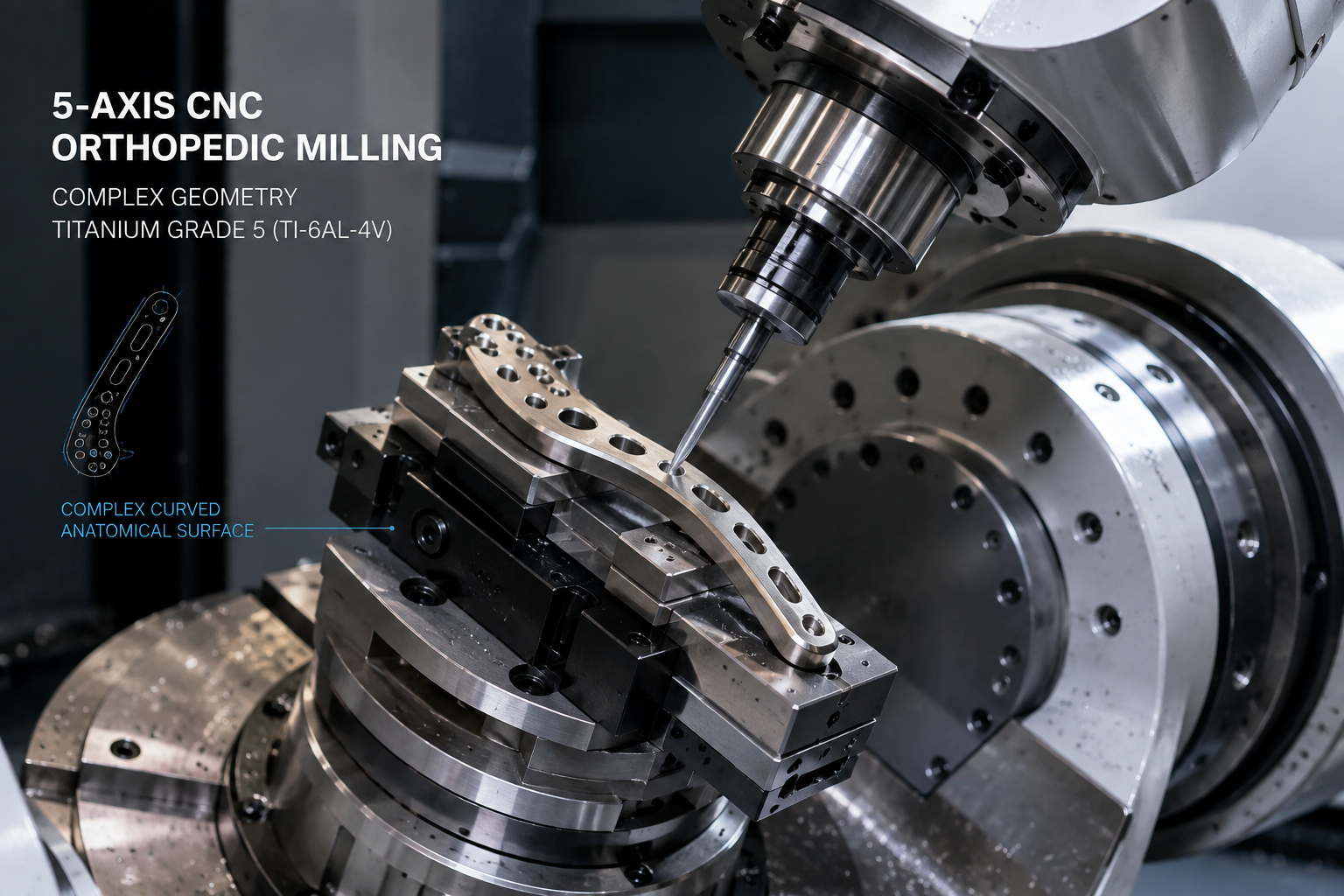

5-Axis Orthopedic Milling

Complex orthopedic geometry often benefits from 5-axis CNC machining.

Compared with multiple 3-axis setups, simultaneous or indexed 5-axis machining can improve tool access and reduce setup-related errors.

It is particularly useful for:

· Curved anatomical surfaces

· Angled holes

· Complex pockets

· Multi-directional features

· Sculpted implant profiles

The advantage is not simply “more axes.” The real benefit is maintaining a more appropriate tool orientation while reducing repositioning and accumulated datum errors.

For complex orthopedic milling, the CAM strategy should therefore be developed together with fixturing and inspection requirements.

Tolerance Control for Medical Titanium Parts

Medical components rarely require every dimension to have the same tolerance.

A better approach is to identify functional critical features first.

Examples include:

· Screw-hole position

· Precision bores

· Mating interfaces

· Alignment features

· Implant contours

· Joint interfaces

Critical dimensions can then receive dedicated machining and inspection processes.

For example:

The actual tolerance should always be taken from the engineering drawing rather than assumed from a supplier's advertised machining capability.

Surface Finish and Cleanliness

For medical titanium parts, dimensional accuracy alone does not define part quality.

Surface condition may affect cleaning, handling, tissue interaction, and subsequent surface treatments.

Important controls can include:

· Burr removal

· Edge condition

· Surface roughness

· Cutting-fluid residue

· Foreign particles

· Metallic contamination

· Controlled cleaning

· Final packaging

The appropriate surface finish depends on the intended implant function. A bone-contacting surface, threaded interface, and articulating component may have very different surface requirements.

This is why surface finish should be specified as a functional requirement, rather than simply selecting the lowest achievable Ra value.

Biocompatible Materials and Traceability

The phrase biocompatible materials does not replace material certification.

For medical titanium machining, procurement teams should verify:

· Material grade

· Applicable ASTM or ISO standard

· Heat/lot number

· Mill certificate

· Chemical composition

· Mechanical properties

· Heat-treatment condition

· Production traceability

For example, ISO 5832-3:2021 specifically addresses wrought Ti-6Al-4V for surgical implant manufacturing.

A robust manufacturing system should maintain a traceable connection between incoming material, production batch, inspection results, and final documentation.

This becomes increasingly important as a component moves from prototype machining into regulated medical-device production.

What to Look for in a Medical Titanium CNC Supplier

When sourcing CNC-machined orthopedic components, procurement teams should evaluate more than machine count or unit price.

Titanium machining experience

Does the supplier have proven experience with Ti-6Al-4V rather than only general CNC machining?

Medical quality system

Can the supplier support the documentation, traceability, inspection, and cleanliness controls required for the project?

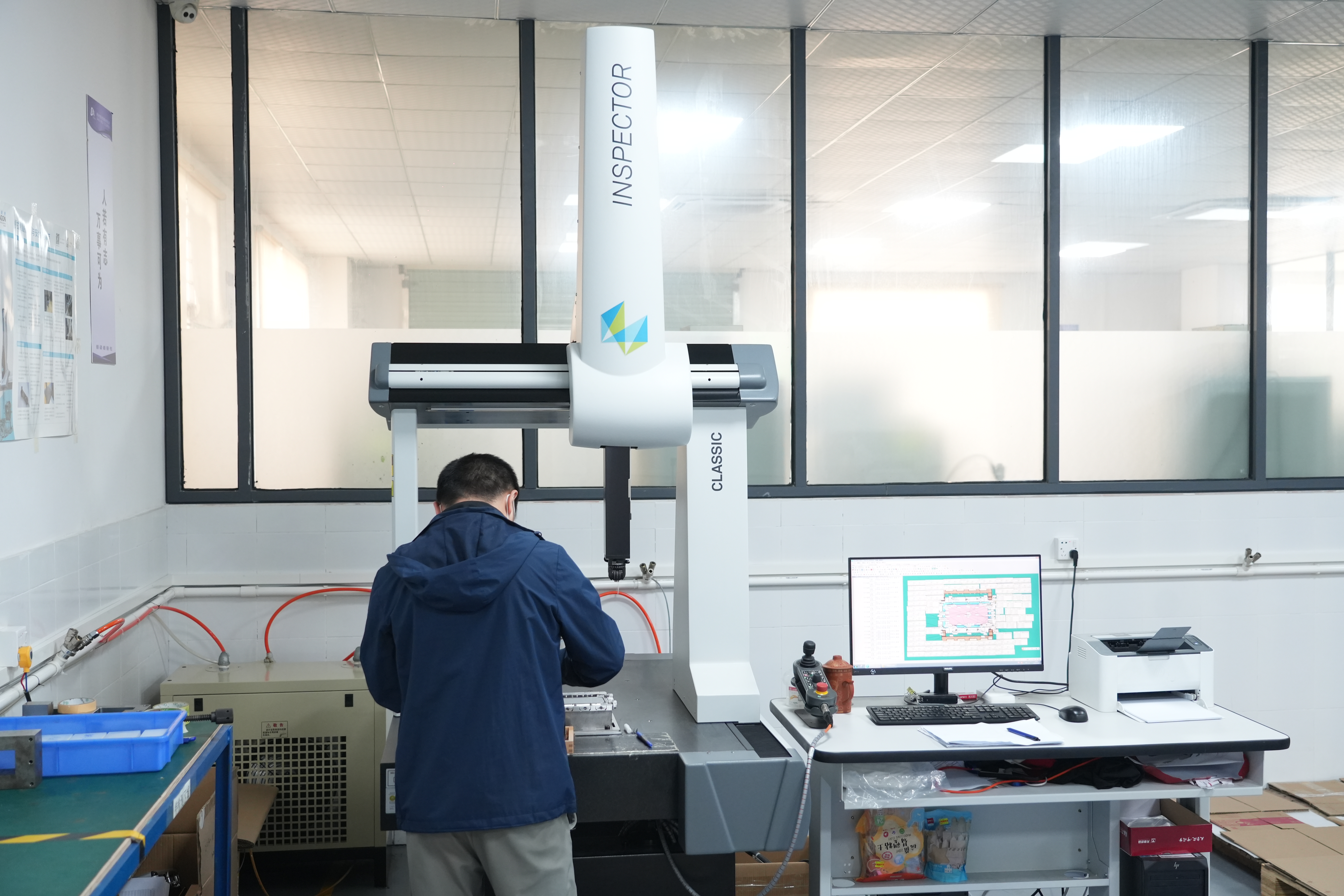

Dimensional inspection

Can critical features be verified using CMM, calibrated gauges, optical measurement, or other appropriate inspection methods?

DFM capability

Can the engineering team identify machining risks before production?

Typical DFM issues include:

· Excessively tight tolerances

· Thin walls

· Deep cavities

· Difficult internal radii

· Poor tool accessibility

· Complex fixturing

· Unnecessary machining operations

A capable supplier should help resolve these issues before they become production problems.

Dawang Precision for Medical Titanium CNC Machining

Dawang Precision has 26 years of CNC manufacturing experience and more than 400 advanced machine tools, including Röders and Mazak 5-axis machines.

For medical projects, the company operates an ISO 13485-certified quality management system, with a focus on material traceability, biocompatible materials, dimensional inspection, and controlled cleanliness.

The emphasis is on developing a repeatable manufacturing process for complex precision components rather than simply meeting individual dimensional requirements.

FAQ

Q1:Is Titanium Grade 5 suitable for orthopedic implants?

Ti-6Al-4V is widely used in orthopedic and other biomedical applications. The required material specification should be confirmed against the device design and applicable standard.

Q2:What is the difference between Grade 5 and Grade 23 titanium?

Grade 23 is Ti-6Al-4V ELI, with tighter interstitial requirements. ASTM F136 specifically covers Ti-6Al-4V ELI for surgical implant applications.

Q3:Why is Ti-6Al-4V difficult to machine?

Its high strength and low thermal conductivity can concentrate heat near the cutting zone, increasing tool wear and making machining parameters more sensitive than those used for aluminum.

Q4:Is 5-axis machining necessary for orthopedic implants?

Not always. However, complex anatomical profiles, angled features, and multi-directional surfaces can benefit significantly from 5-axis machining by reducing setups and improving tool access.

Q5:Can I send a STEP file for DFM review?

Yes. A STEP or PDF drawing allows the engineering team to review geometry, tolerances, tooling access, fixturing, material requirements, and potential production risks before quotation.
