Contamination Control: Cleaning and Inspection Protocols for Machined Medical Parts

Quick Answer

Machined medical parts contamination control should be designed into the entire manufacturing process—not treated as a final cleaning step. CNC machining can introduce chips, metallic fines, burrs, cutting-fluid residues, and handling contaminants. A reliable process combines controlled machining parameters, effective cleaning protocols, material-compatible chemistry, ultrasonic cleaning when appropriate, controlled handling, and documented cleanliness inspection.

For in-vitro diagnostic (IVD) equipment, contamination control is particularly important for fluid pathways, precision bores, valves, optical interfaces, and sealing surfaces where particles or residues can affect equipment performance.

The key engineering principle is simple: a medical CNC part should be designed to be machined, cleaned, dried, inspected, and packaged without creating contamination traps.

Why Contamination Control Matters in CNC Machined Medical Parts

Dimensional accuracy alone does not determine whether a medical component is production-ready.

During CNC machining, chips, tool-wear particles, coolant residues, burrs, and oils can remain on external and internal surfaces. Complex geometries make these contaminants more difficult to remove and verify.

For IVD equipment, even small particles or residues may interfere with fluid handling, reagent pathways, sensors, optical systems, or precision assemblies.

This creates an important distinction:

Dimensional inspection verifies whether a part meets its geometric specification. Cleanliness control verifies whether it is clean enough for its intended function.

Therefore, contamination control should be defined as part of the manufacturing and quality strategy rather than added only at the end of production.

Where Does Contamination Come From?

Contamination can enter a CNC manufacturing process at multiple stages.

The most effective strategy is source reduction. Final cleaning should remove residual contamination, not compensate for excessive burrs, poor chip evacuation, or uncontrolled machining conditions.

CNC Machining Challenges That Affect Cleanliness

Complex Geometry Can Trap Contaminants

Medical and diagnostic components often contain blind holes, narrow channels, cross-drilled passages, threads, deep pockets, and precision bores.

These features create a fundamental challenge: the surfaces that are hardest to machine and inspect can also be the hardest to clean.

A part may look visually clean while particles remain inside an internal passage.

This is why cleanability should be considered during DFM. Critical features should be designed so they can be effectively flushed, cleaned, dried, and inspected after machining.

Cutting Parameters Influence Particle Generation

Feed rate, cutting speed, depth of cut, tool geometry, tool wear, and coolant delivery can influence burr formation and particle generation.

For precision medical parts, process optimization should focus on:

· Stable cutting conditions

· Sharp and properly maintained tooling

· Effective chip evacuation

· Controlled coolant delivery

· Minimal burr formation

· Consistent surface finish

Reducing contamination at the machining stage makes the subsequent cleaning process more predictable.

Cleaning Must Not Compromise Tolerances

Cleaning is itself a manufacturing operation and must be compatible with the part specification.

Cleaning chemistry, temperature, ultrasonic energy, and drying conditions can interact differently with metals, polymers, coatings, and surface treatments.

A cleaning process should therefore be evaluated against:

· Dimensional tolerances

· Surface roughness

· Material compatibility

· Coatings or surface treatments

· Sealing surfaces

· Internal passages

The objective is not maximum cleaning intensity. It is controlled cleaning that achieves the required cleanliness without damaging dimensional or functional features.

Cleaning Protocols for Machined Medical Parts

A typical cleaning workflow is:

Machining → Deburring → Pre-cleaning → Precision Cleaning → Rinsing → Drying → Inspection → Packaging

The exact process should be established according to the material, geometry, contamination type, and required cleanliness level.

Pre-Cleaning

Pre-cleaning removes bulk chips, loose particles, and machining residues before precision cleaning.

Depending on the component, this may involve controlled flushing, rinsing, or other suitable mechanical methods.

Special attention should be given to:

· Blind holes

· Internal channels

· Cross-drilled passages

· Threads

· Deep pockets

· Fluid-contact surfaces

Removing gross contamination first reduces the load on the final cleaning process.

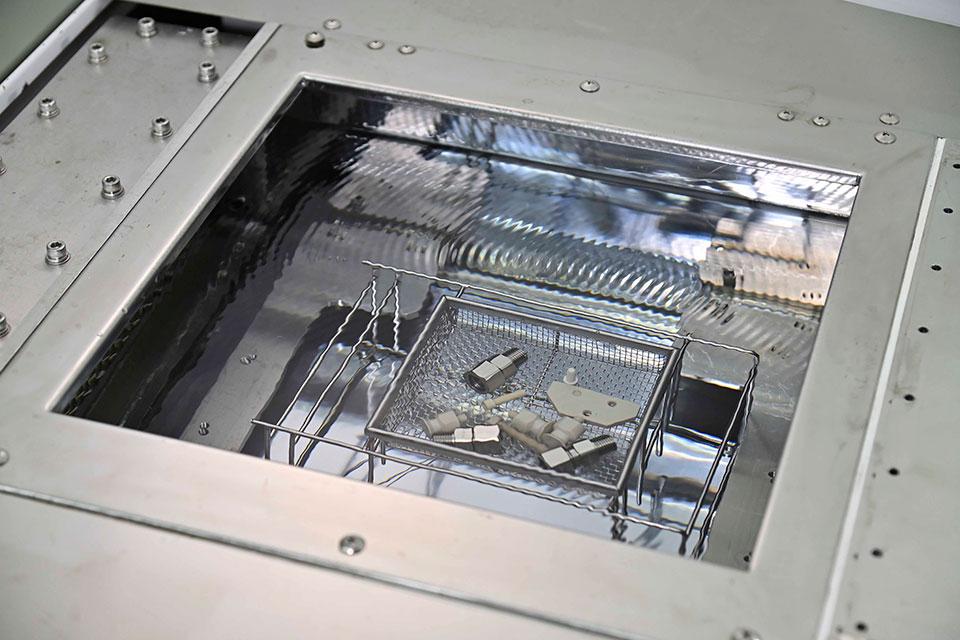

Ultrasonic Cleaning

Ultrasonic cleaning can be effective for precision machined medical parts because cavitation creates localized mechanical action that helps dislodge particles and residues from difficult-to-reach surfaces.

However, ultrasonic cleaning is not automatically appropriate for every component.

Its suitability depends on:

· Part material

· Geometry

· Surface finish

· Cleaning chemistry

· Ultrasonic frequency and power

· Temperature

· Exposure time

For sensitive components, these parameters should be established through process development or validation rather than simply increasing cleaning intensity.

Rinsing and Drying

A part can become contaminated again after cleaning if rinsing and drying are poorly controlled.

The cleaning protocol should define rinse-water quality, rinse sequence, drying conditions, and post-cleaning handling.

After final cleaning, unnecessary contact should be avoided and components should be transferred promptly into appropriate controlled packaging.

Cleanliness Inspection: How Is a Medical CNC Part Verified?

Cleanroom inspection and cleanliness inspection should be based on the actual contamination risk rather than visual appearance alone.

Visual and Microscopic Inspection

Visual inspection can identify visible:

· Chips

· Burrs

· Oil films

· Staining

· Scratches

· Foreign particles

Microscopic inspection can provide greater sensitivity for small features and critical surfaces.

However, visual inspection alone cannot demonstrate the absence of microscopic contamination.

Particle Extraction and Analysis

For more demanding applications, particles can be extracted from a component and evaluated using an appropriate inspection method.

A typical process is:

Extraction → Filtration → Particle Analysis → Acceptance Decision → Documentation

The inspection procedure should define the extraction method, sampling area, equipment, particle-size criteria, and acceptance limits.

The goal is reproducibility: different operators and production lots should be evaluated using the same defined methodology.

How Clean Is Clean Enough?

There is no universal cleanliness level for every medical CNC component.

Acceptance criteria should be based on the part's intended function and may address factors such as:

· Particle size

· Particle quantity

· Visible contamination

· Surface residues

· Specific process contaminants

For this reason, a requirement such as “clean and free of contamination” is often less useful than a measurable cleanliness specification.

Design for Cleanability: A Critical DFM Consideration

One of the most effective ways to improve machined medical parts contamination control is to address cleanability before production.

During DFM, engineers should ask:

Can the critical surfaces be effectively cleaned?

Can internal features be flushed and dried?

Can the required surfaces be inspected?

Could the geometry create a particle trap?

For example, a deep blind cavity may be machinable but difficult to flush and dry. A narrow internal passage may meet dimensional requirements but make particle extraction or inspection difficult.

Designing for cleanability can reduce downstream cleaning effort, inspection risk, and production variability.

This is especially important for low-volume medical production, where process development and inspection costs can have a significant impact on total manufacturing cost.

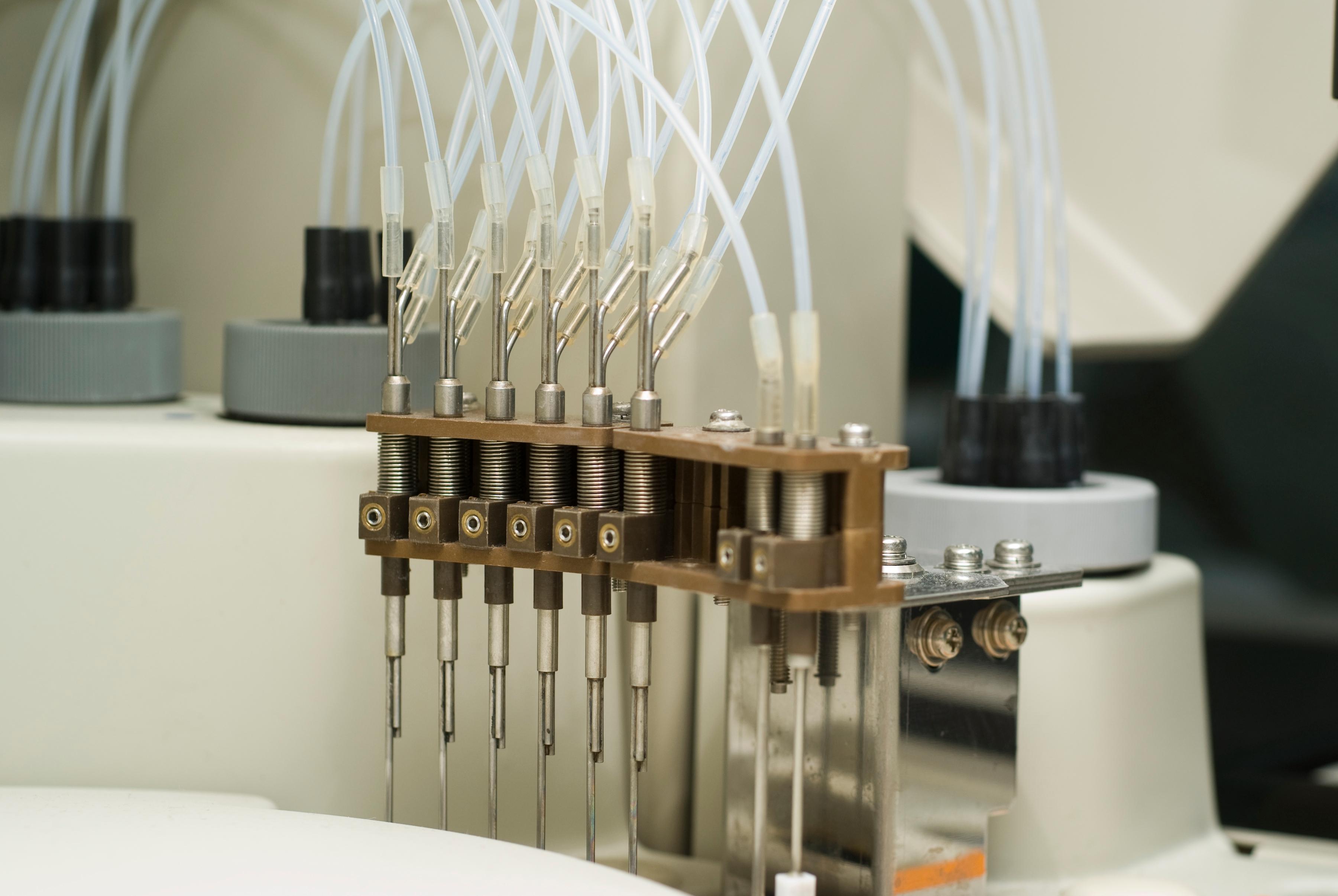

Contamination Control for In-Vitro Diagnostic (IVD) Equipment

IVD equipment often combines precision mechanical components with fluid, optical, and electronic systems. Contamination requirements should therefore be linked to the function of each component.

Not every IVD component requires the same cleaning or inspection level. Requirements should be determined by functional risk, material, downstream assembly, and customer specifications.

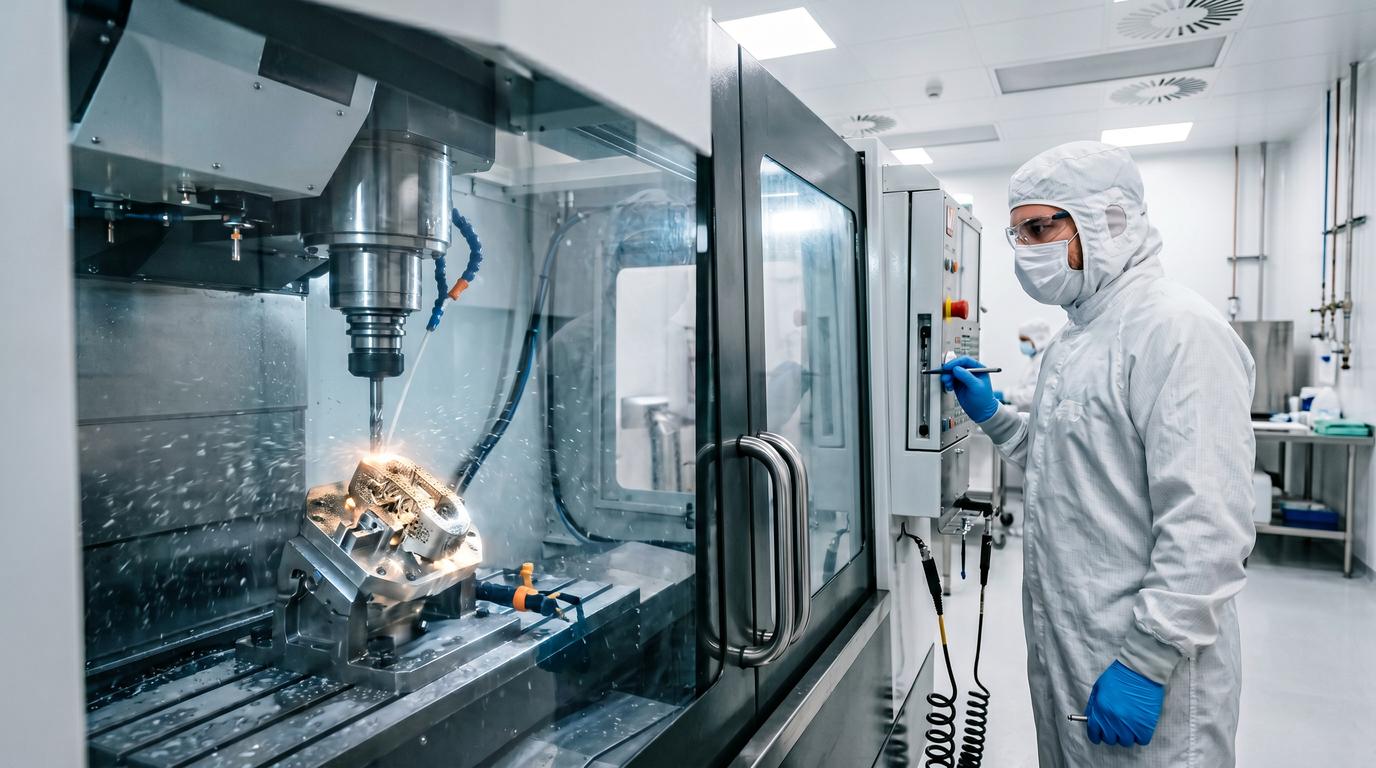

Building Contamination Control Into the Manufacturing Process

A robust process should control contamination from material receipt through packaging.

This approach creates a more repeatable manufacturing process than relying on final visual inspection alone.

What to Include in a Medical CNC RFQ

For medical CNC machining, clearly defined requirements help the supplier develop the right contamination-control process from the beginning.

An RFQ should ideally include:

· STEP or 3D CAD model

· PDF engineering drawing

· Material grade

· Dimensional tolerances and GD&T

· Surface-finish requirements

· Critical contamination-sensitive areas

· Cleaning requirements

· Inspection requirements

· Packaging requirements

· Applicable customer or regulatory specifications

If cleanliness requirements have not yet been established, they should be addressed during DFM rather than after production begins.

Frequently Asked Questions

Q1:What is machined medical parts contamination control?

It is the systematic prevention, removal, detection, and documentation of particles, oils, machining residues, burrs, and other contaminants throughout machining, cleaning, inspection, handling, and packaging.

Q2:How are CNC machined medical parts cleaned?

Depending on the material and application, parts may undergo pre-cleaning, aqueous or solvent-based cleaning, ultrasonic cleaning, precision rinsing, and controlled drying.

Q3:Is ultrasonic cleaning suitable for medical CNC parts?

Ultrasonic cleaning can effectively remove particles and residues from complex geometries, but its parameters must be compatible with the material, surface finish, geometry, and functional requirements.

Q4:How is cleanliness inspected?

Inspection may include visual or microscopic examination and, when required, particle extraction, filtration, and particle analysis against defined acceptance criteria.

Q5:Do IVD components require cleanroom inspection?

Not necessarily. The required level of environmental and cleanliness control depends on the component's function, contamination risk, downstream process, and customer requirements.
