IATF 16949 Standards: Injection Molding for Under-the-Hood Automotive Components

Quick Answer

Automotive injection molding for under-the-hood components requires controlled material selection, precision tooling, stable molding parameters, and repeatable dimensional inspection. IATF 16949 standards add a process-based quality framework that connects risk analysis, PFMEA, Control Plans, process monitoring, traceability, and corrective action.

For engine components and other under-the-hood applications, the main challenges are heat, chemical exposure, vibration, material shrinkage, warpage, and dimensional variation. These risks should be addressed during DFM (Design for Manufacturability) rather than after tooling is completed.

A reliable manufacturing strategy therefore follows:

DFM → Material Selection → Mold Design → Process Optimization → Tolerance Control → Inspection → Production Monitoring

This approach helps manufacturers produce durable plastic components with consistent performance across automotive production volumes.

What IATF 16949 Means for Automotive Injection Molding

IATF 16949 is an automotive quality management standard focused on process consistency, defect prevention, risk management, and continual improvement.

For injection molding, this means quality cannot depend only on final inspection. Manufacturing risks should be identified and controlled throughout the process.

A typical automotive injection molding quality system connects:

· Process flow

· PFMEA

· Control Plan

· Standardized work

· Process monitoring

· Measurement systems

· Traceability

· Corrective and preventive action

IATF guidance specifically states that primary and alternative process controls should be reflected in the process flow, PFMEA, Control Plan, and standardized work when applicable.

Automotive suppliers must also consider OEM-specific requirements. Ford, GM, Stellantis, BMW, Mercedes-Benz, Volkswagen, Volvo and other automotive manufacturers maintain their own Customer Specific Requirements (CSRs), which can add requirements beyond the base IATF 16949 framework.

Automotive Injection Molding Applications

Injection molding is widely used for both automotive interiors and engine components, as well as electrical and functional systems.

For under-the-hood applications, material selection is particularly important because components can experience elevated temperatures, fluids, vibration, and repeated thermal cycling.

Engineering polymers such as glass-filled nylon, PBT, PPS, PP, and PC/ABS may be selected depending on the application's thermal, mechanical, chemical, and dimensional requirements.

Key Challenges in Under-the-Hood Injection Molding

1. Heat and Chemical Exposure

Under-the-hood components may encounter heat, engine fluids, vibration, and repeated temperature changes.

Material selection must therefore consider more than room-temperature strength. Engineers should evaluate:

· Continuous and peak temperature

· Thermal cycling

· Chemical exposure

· Creep resistance

· Impact strength

· Moisture absorption

· Dimensional stability

Glass-filled polymers can provide higher stiffness and strength, but fiber orientation can also influence shrinkage and warpage.

The material, part geometry, gate location, and molding process should therefore be evaluated as one system.

2. Shrinkage and Warpage

Warpage is one of the most important dimensional risks in automotive injection molding.

Common causes include:

· Uneven wall thickness

· Nonuniform cooling

· Material shrinkage

· Fiber orientation

· Uneven packing

· Residual molding stress

· Asymmetric geometry

Large housings, covers, and components with ribs or mounting bosses are especially sensitive to differential cooling and shrinkage.

The solution is not simply to increase inspection. The mold and process should be designed to minimize the sources of variation.

3. Tight Functional Tolerances

Injection-molded parts should not be uniformly over-toleranced.

Critical features such as:

· Mounting holes

· Sealing surfaces

· Connector interfaces

· Locating features

· Fastener positions

may require tighter control than nonfunctional surfaces.

A practical tolerance strategy separates critical-to-function dimensions from general dimensions. This concentrates process capability where it directly affects assembly and performance.

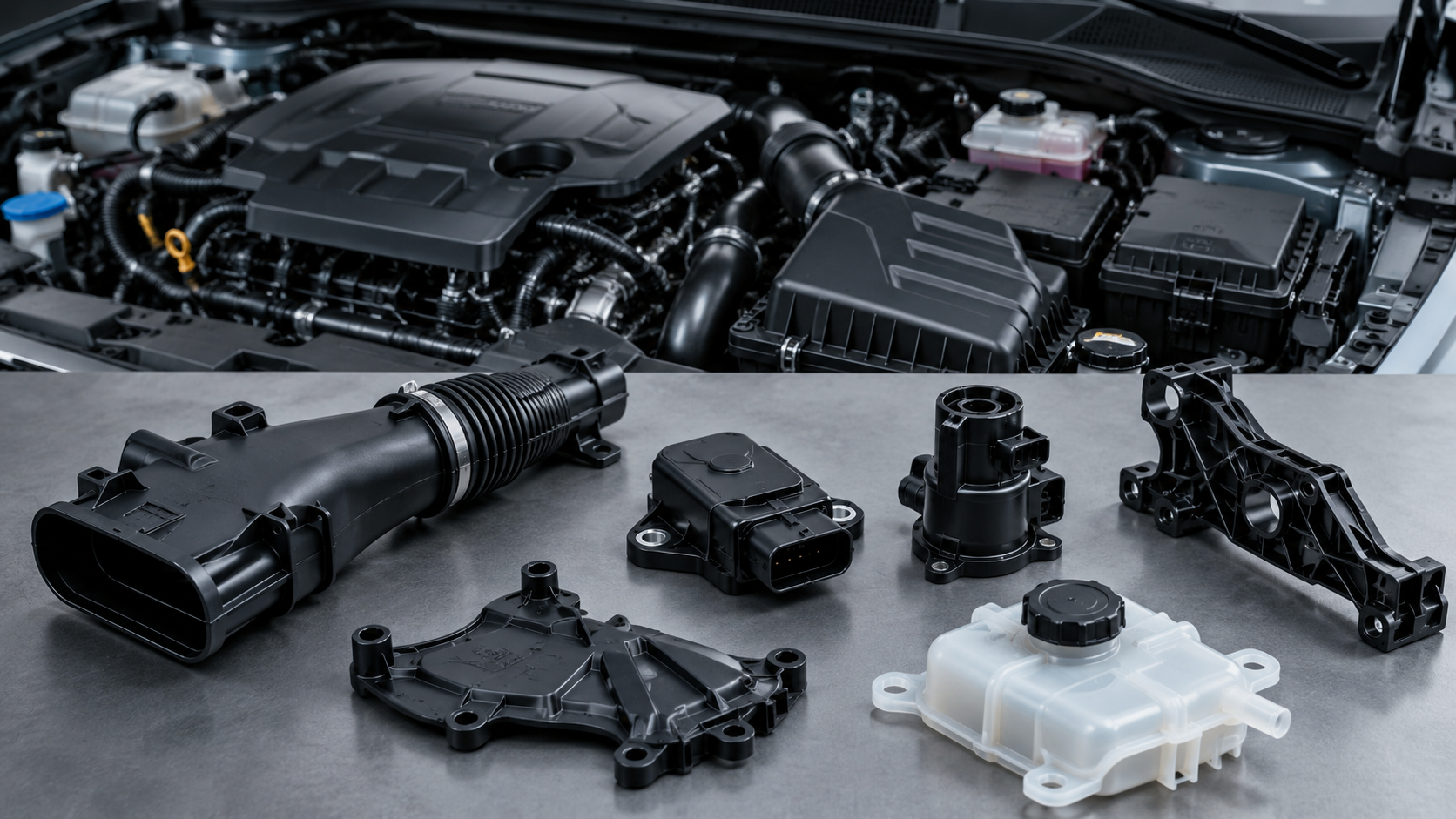

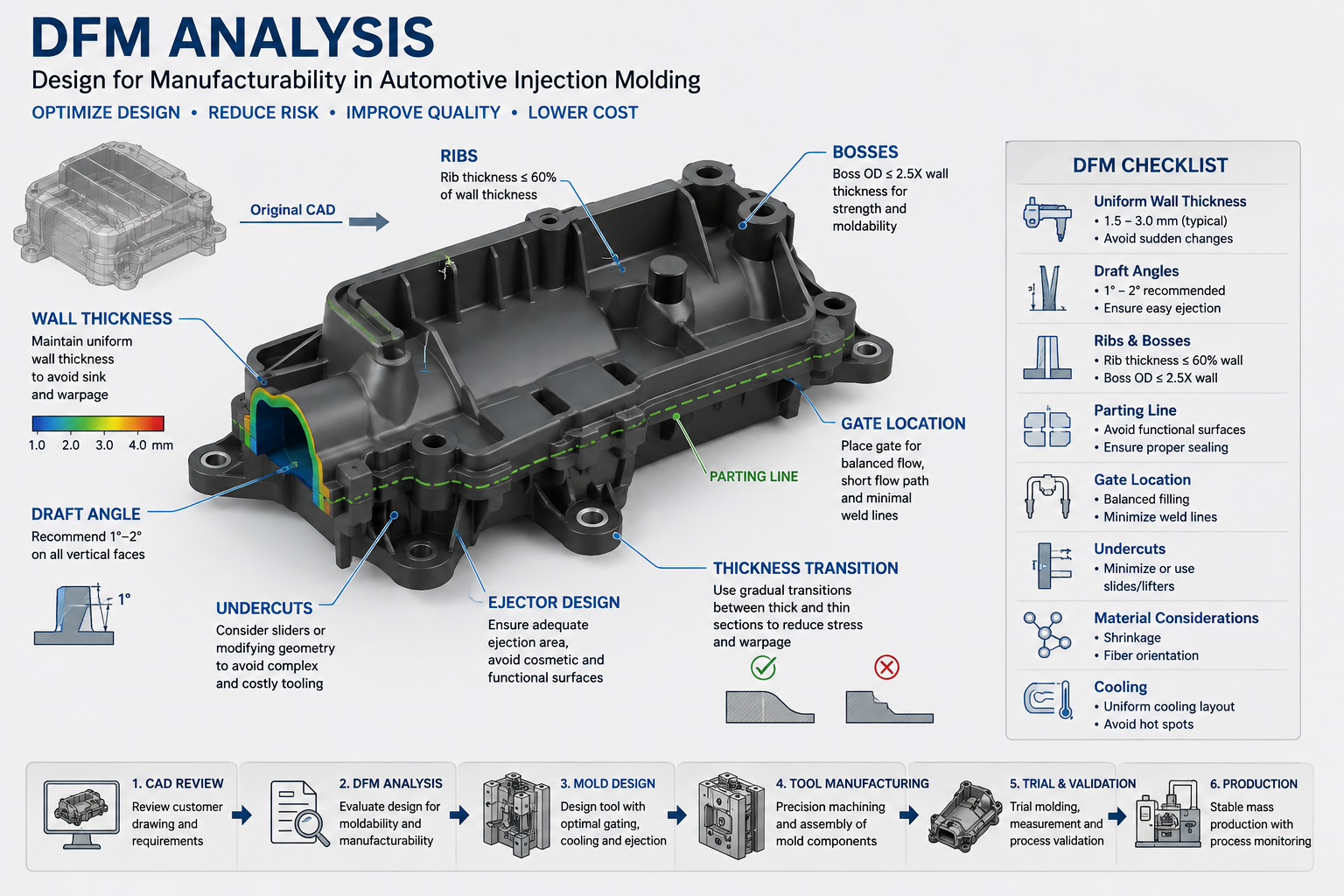

DFM: Control Manufacturing Risk Before Tooling

DFM is one of the most important steps in automotive injection molding because design decisions directly affect tooling complexity, cycle stability, dimensional variation, and production cost.

A professional DFM review should evaluate:

Wall Thickness

Consistent wall thickness helps reduce sink marks, voids, uneven cooling, and warpage. Excessively thick sections can cool differently from surrounding walls.

Draft Angles

Adequate draft supports reliable ejection and reduces the risk of surface damage or deformation.

Ribs and Bosses

Ribs can increase structural stiffness without unnecessarily increasing wall thickness. Bosses should be designed to avoid excessive material concentration.

Undercuts

Clips, side holes, and other undercuts may require slides, lifters, inserts, or alternative tooling strategies.

Gate and Parting-Line Location

Gate position affects filling, weld lines, packing, fiber orientation, and dimensional stability. The parting line should also be positioned to protect critical surfaces and simplify ejection.

Cooling

Cooling-channel design should provide uniform heat removal. Uneven mold temperatures can produce differential shrinkage and dimensional variation.

The earlier these issues are identified, the less likely they are to become expensive tooling modifications later.

Technical Solutions for Process and Tolerance Control

1. Material Control

Engineering polymers can be sensitive to moisture and thermal history.

Process control should cover:

· Resin grade

· Material lot

· Drying conditions

· Storage

· Melt temperature

· Regrind usage

· Material traceability

For moisture-sensitive materials, drying conditions should follow the resin supplier's specifications.

2. Establish a Stable Process Window

Injection speed, melt temperature, injection pressure, packing pressure, cooling time, and mold temperature should be optimized together.

The objective is not to find one machine setting that produces acceptable parts.

The objective is to establish a repeatable process window that maintains critical characteristics within specification.

For example:

Melt Temperature → Filling → Packing → Cooling → Ejection

Changes in one stage can influence the next. Excessive packing may increase residual stress, while insufficient packing can increase dimensional shrinkage.

3. Control Mold Temperature and Cooling

Cooling has a direct influence on cycle time, shrinkage, and dimensional stability.

A robust cooling strategy considers:

· Part geometry

· Wall thickness

· Mold temperature

· Cooling-channel position

· Material characteristics

· Cycle time

· Thick-to-thin transitions

For large or asymmetric automotive components, balanced cooling is particularly important for controlling warpage.

Tolerance and Process Capability

Unlike machined metal parts, molded polymers are influenced by temperature, moisture, shrinkage, fiber orientation, packing pressure, and cooling conditions.

Therefore, tolerance requirements should be linked to part function and process capability.

For critical characteristics, manufacturers may use statistical process control and capability analysis, including Cp and Cpk:

Cp = (USL − LSL) / 6σ

Cpk = minimum[(USL − μ)/3σ, (μ − LSL)/3σ]

However, there is no single Cpk value that should automatically be applied to every automotive injection-molded feature. Acceptance criteria should follow the customer's drawing, Control Plan, special characteristics, and applicable OEM requirements.

How IATF 16949 Quality Tools Support Injection Molding

This process-based approach is important because IATF 16949 requires problem-solving activities to address root causes and prevent recurrence, including updates to relevant PFMEA and Control Plan documentation when necessary.

Inspection and Verification

Inspection should verify that the process is producing the required result—not replace process control.

Depending on the part, inspection may include:

· CMM dimensional inspection

· Vision inspection

· Gauging

· Surface inspection

· Material verification

· First-article inspection

· Functional or assembly checks

Critical characteristics should have defined measurement methods and frequencies within the applicable Control Plan.

This creates a feedback loop between manufacturing data and process improvement.

Why Precision Tooling Matters

The injection molding machine is only one part of the system. Mold geometry, cavity accuracy, cooling, venting, ejection, and gate design directly affect final-part consistency.

Precision machining is therefore important when producing mold components, inserts, fixtures, and other tooling features that influence critical dimensions.

Dawang Precision brings 26 years of manufacturing experience and more than 400 advanced machine tools, including Röders and Mazak 5-axis equipment. For automotive projects, this capability supports the precision manufacturing side of the tooling and component-development process.

The focus, however, should remain on the engineering workflow:

DFM → Precision Tooling → Process Control → Dimensional Verification

A Practical Workflow for Automotive Injection Molding

A robust project can follow this sequence:

1. CAD & Drawing Review
↓
2. DFM Analysis
↓
3. Material Selection
↓
4. Mold & Cooling Strategy
↓
5. Tool Manufacturing
↓
6. Trial Molding & Process Optimization
↓
7. Dimensional Validation
↓
8. PPAP / Production Approval
↓
9. SPC & Ongoing Process Control

This approach moves quality management upstream, where manufacturing risks can be addressed before mass production.

FAQ

Q1:Is IATF 16949 required for automotive injection molding?

Not every injection molding supplier is legally required to hold IATF 16949 certification. However, automotive OEMs and Tier suppliers may require suppliers to meet IATF 16949 and applicable Customer Specific Requirements.

Q2:What plastics are used for under-the-hood components?

Common engineering polymers include glass-filled nylon, PBT, PPS, PP, and other automotive-grade thermoplastics. Selection depends on temperature, chemical exposure, strength, creep, and dimensional requirements.

Q3:Why is DFM important for injection molding?

DFM identifies problems with wall thickness, draft, ribs, bosses, undercuts, gating, cooling, ejection, and tolerances before tooling begins. This can reduce tooling modifications and improve production stability.

Q4:How are automotive injection molding tolerances controlled?

Tolerance control combines material control, precision tooling, stable molding parameters, balanced cooling, measurement systems, and process monitoring. Critical dimensions should receive more stringent controls than nonfunctional features.

Q5:What is the difference between inspection and process control?

Inspection checks whether a part meets requirements. Process control manages the variables that determine whether the process can repeatedly produce conforming parts.

Conclusion

Reliable automotive injection molding is built around process control rather than final inspection alone.

For under-the-hood engine components, automotive interiors, electrical housings, and other durable plastic components, the most effective approach combines:

DFM + Material Selection + Precision Tooling + Process Optimization + Tolerance Control + Inspection + Traceability

IATF 16949 standards provide the quality-management framework, while engineering decisions determine how effectively that framework is translated into stable production.
