IATF 16949 Certified: 5-Axis CNC Automotive Machining for EV Powertrain Prototypes

Quick Answer

5-axis CNC automotive machining is a precision manufacturing technology used to produce complex electric vehicle (EV) powertrain prototypes with higher accuracy, fewer setups, and faster design validation. By enabling multi-directional machining of complex geometries, 5-axis CNC helps automotive engineers manufacture critical EV components such as motor housings, battery cooling plates, inverter enclosures, and lightweight structural parts before mass production.

For companies searching for an EV prototype machining supplier, the ideal manufacturing partner should provide not only advanced 5-axis machining capability but also automotive quality management, engineering support, and reliable inspection processes.

Accelerating EV Development with 5-Axis CNC Automotive Machining

The automotive industry is undergoing a fundamental transformation as electric vehicles (EVs) continue to reshape vehicle design and manufacturing requirements.

According to the International Energy Agency (IEA) Global EV Outlook 2025, global electric vehicle sales exceeded 17 million units in 2024, accounting for more than 20% of global car sales. The rapid growth of EV adoption is creating increasing demand for flexible and reliable manufacturing solutions capable of supporting faster product development.

Source: International Energy Agency (IEA), Global EV Outlook 2025

Unlike traditional automotive components, EV powertrain parts require more compact designs, improved thermal management, and lightweight structures to maximize vehicle efficiency.

During EV development, engineering teams must validate:

· Functional performance

· Thermal behavior

· Assembly compatibility

· Manufacturing feasibility

before entering full-scale production.

This creates new challenges for manufacturers because EV components often contain:

· Complex internal channels

· Thin-wall structures

· Angled surfaces

· Precision mounting interfaces

· Lightweight optimized geometries

For example, an EV motor housing prototype may combine:

· Internal cooling passages for thermal control

· Precision bearing mounting areas

· Lightweight rib structures

· Multiple angled machining surfaces

Producing these components requires more than conventional machining capability.

This is where 5-axis CNC automotive machining becomes an essential manufacturing solution.

Why EV Powertrain Prototypes Require Advanced 5-Axis CNC Machining

Complex Geometries Require Multi-Axis Manufacturing Capability

Modern automotive engineering focuses on reducing weight while improving performance.

Many EV components are designed with optimized structures that are difficult to manufacture using traditional 3-axis machining methods.

Typical EV prototype components include:

· Electric motor housings

· Battery cooling plates

· Inverter enclosures

· Transmission housings

· Lightweight structural brackets

These components often include challenging features such as:

Deep Cavities

Internal pockets and channels are commonly designed to reduce weight or improve thermal performance.

Thin-Wall Structures

Lightweight designs help improve vehicle efficiency but require careful machining control to prevent deformation.

Complex Curved Surfaces

Advanced EV components often require multiple machining angles to achieve the final geometry.

With traditional machining methods, manufacturers may need multiple fixture changes to access different surfaces.

Each additional setup can introduce:

· Positioning errors

· Datum variation

· Longer machining cycles

· Additional inspection requirements

A major advantage of 5-axis CNC machining for electric vehicles is the ability to access multiple surfaces in a single setup.

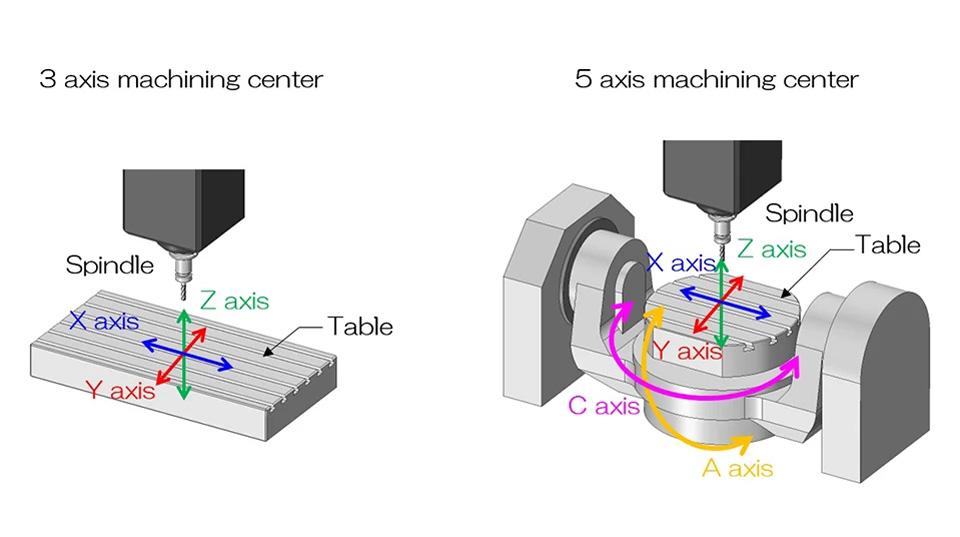

By simultaneously controlling multiple axes, 5-axis machines allow cutting tools to approach the workpiece from optimized directions, improving:

· Dimensional accuracy

· Surface quality

· Machining efficiency

· Repeatability

For automotive engineering teams, this capability is especially valuable during prototype development because design changes often occur rapidly.

Key Manufacturing Challenges in Automotive CNC Prototype Production

1. Maintaining Tight Tolerance Requirements

EV powertrain components directly influence:

· Motor efficiency

· Heat dissipation performance

· Assembly accuracy

· System reliability

Even small dimensional variations can affect how components fit and perform within a complete EV system.

A professional automotive CNC prototype manufacturing process requires control throughout every manufacturing stage, including:

· Material selection

· Machining strategy

· Tool selection

· Fixture design

· Process monitoring

· Final inspection

For example, when machining an aluminum motor housing prototype, engineers must carefully manage:

Material Behavior

Aluminum alloys such as 6061-T6 and 7075-T6 are commonly selected for EV applications because they provide:

· Good strength-to-weight ratio

· Excellent machinability

· Thermal conductivity

However, lightweight aluminum structures can be sensitive to:

· Cutting forces

· Heat generation

· Vibration

Without proper process optimization, thin sections may experience deformation or dimensional instability.

2. Balancing Lightweight Design and Machining Stability

Weight reduction is one of the key goals in new energy vehicle development.

However, lightweight designs often create additional manufacturing challenges.

A typical EV cooling plate, for example, may include:

· Thin walls

· Internal coolant channels

· Large sealing surfaces

· Multiple precision mounting features

During machining, engineers must balance:

· Material removal speed

· Cutting force

· Surface finish

· Dimensional stability

Advanced CNC programming strategies help optimize:

· Tool paths

· Cutting parameters

· Machining sequence

This ensures that complex EV components maintain their intended geometry while achieving production-level quality.

Faster Prototype Validation Through Advanced CNC Manufacturing

EV manufacturers operate in highly competitive markets where development cycles continue to shorten.

Before mass production, engineers need prototype components that accurately represent final designs.

A reliable EV prototype machining supplier should support the complete development process, including:

Engineering Review

Before machining begins, engineers analyze:

· 3D CAD models

· Technical drawings

· Material requirements

· Critical tolerance areas

Early Design for Manufacturing (DFM) feedback can identify potential issues before production.

For example:

· Difficult tool access

· Excessive thin-wall areas

· Unnecessary machining complexity

By optimizing designs early, manufacturers can reduce development risks and avoid expensive redesigns.

Prototype Machining and Process Optimization

During machining, engineers focus on maintaining consistent production conditions.

Important factors include:

· Machine capability

· Tool selection

· Cutting parameters

· Fixture stability

· Temperature control

For complex automotive parts, 5-axis machining provides greater flexibility compared with traditional manufacturing methods.

It allows manufacturers to produce:

· Multiple angled features

· Complex internal structures

· Integrated mounting surfaces

with fewer setups.

This improves prototype consistency and helps engineering teams move faster from concept validation to production preparation.

Real Manufacturing Workflow: From EV Design Concept to Precision Prototype

For automotive engineering teams, selecting a precision machining supplier for EV components is not only about machining capability. The supplier must understand the complete development process, from initial design review to final inspection.

A reliable EV prototype machining supplier should be able to transform complex CAD designs into functional prototypes that accurately represent future production components.

A typical 5-axis CNC automotive manufacturing workflow includes the following stages.

1. Engineering Review and DFM Analysis

Before production begins, engineers review the 3D model and technical drawings to evaluate manufacturing feasibility.

The analysis focuses on:

· Part geometry

· Material characteristics

· Critical tolerances

· Tool accessibility

· Fixture strategy

· Potential deformation risks

For example, when manufacturing an EV motor housing prototype, engineers may analyze:

Component:
Aluminum electric motor housing

Material:
6061-T6 aluminum alloy

Key design features:

· Internal cooling channels

· Bearing mounting surfaces

· Lightweight reinforcement ribs

· Precision assembly interfaces

During DFM analysis, engineers may optimize:

· Wall thickness

· Corner radius

· Machining orientation

· Tool approach angle

This early collaboration helps reduce manufacturing risks and improves the transition from prototype to low-volume production.

2. 5-Axis CNC Machining for Complex EV Components

After engineering approval, the component enters the precision machining stage.

Compared with conventional CNC methods, 5-axis CNC automotive machining enables manufacturers to complete complex features with fewer setups.

A typical machining process includes:

Rough Machining

The purpose is to remove excess material efficiently while maintaining part stability.

Engineers optimize:

· Cutting speed

· Feed rate

· Tool engagement

· Material removal strategy

Semi-Finishing

The semi-finishing stage prepares the component for final accuracy.

Key objectives include:

· Reducing machining stress

· Improving surface consistency

· Preparing accurate finishing allowances

Precision Finishing

The final machining stage focuses on critical functional areas.

For EV powertrain prototypes, these may include:

Bearing Mounting Areas

Requirements:

· Accurate diameter control

· Proper alignment

· Stable geometric accuracy

Cooling Channels

Requirements:

· Correct channel geometry

· Smooth internal surfaces

· Reliable thermal performance

Assembly Interfaces

Requirements:

· Flatness

· Position accuracy

· Surface consistency

By reducing fixture changes and improving tool accessibility, 5-axis machining helps manufacturers achieve consistent results on highly complex automotive components.

3. Precision Inspection and Quality Verification

Prototype accuracy is critical before moving toward further testing or production.

Advanced inspection processes are used to verify:

· Dimensional accuracy

· Geometric tolerances

· Feature positions

· Surface requirements

Coordinate Measuring Machines (CMM) are widely used in automotive CNC manufacturing because they provide accurate three-dimensional measurement data.

Typical inspection items include:

Inspection reports provide engineering teams with confidence that prototype components meet original CAD and drawing specifications.

Quality Control Under IATF 16949 Standards

Automotive customers require suppliers to maintain consistent manufacturing processes rather than simply produce individual accurate parts.

The IATF 16949 standards are the globally recognized automotive quality management requirements developed by the International Automotive Task Force (IATF).

According to IATF 16949 requirements, automotive suppliers should focus on:

· Defect prevention

· Process variation reduction

· Product traceability

· Continuous improvement

Source:
International Automotive Task Force (IATF)
IATF 16949:2016 Automotive Quality Management System Standard

For CNC machining suppliers supporting EV development, automotive-level quality control typically includes:

Process Control

Manufacturing processes are controlled through:

· Standardized machining procedures

· Production monitoring

· Inspection checkpoints

· Process documentation

This ensures that prototype parts can be produced consistently during repeated development cycles.

Material Traceability

Automotive components require clear documentation throughout production.

Typical records include:

· Material certificates

· Manufacturing history

· Inspection results

Material traceability is especially important for EV components because many prototype designs may later transition into low-volume production.

Continuous Improvement

Inspection data and production feedback are used to optimize:

· Machining parameters

· Tool selection

· Manufacturing efficiency

This quality approach helps suppliers provide more reliable support for automotive engineering teams.

Applications of 5-Axis CNC Automotive Machining in New Energy Vehicles

As EV designs become more integrated and lightweight, 5-axis CNC machining is increasingly used across multiple automotive applications.

1. EV Motor Housing Prototypes

Motor housings require high precision because they directly influence motor assembly and operating efficiency.

Common machining requirements include:

· Accurate bearing seats

· Complex internal cavities

· Cooling structures

· Lightweight rib designs

5-axis machining allows engineers to manufacture these complex features while maintaining dimensional consistency.

2. Battery Cooling Components

Thermal management is a key challenge in electric vehicle development.

CNC-machined battery components often include:

· Cooling plates

· Battery enclosures

· Structural supports

Manufacturing challenges include:

· Maintaining flatness

· Producing accurate internal channels

· Preventing thin-wall deformation

Precision machining helps ensure reliable thermal performance during prototype validation.

3. Power Electronics Components

EV power electronics systems require components such as:

· Inverter housings

· Controller enclosures

· Heat dissipation structures

These parts often require:

· Complex geometries

· High dimensional accuracy

· Effective thermal management

5-axis CNC machining provides the flexibility required for these advanced designs.

How to Choose the Right EV Prototype Machining Supplier

When selecting an EV prototype machining supplier, automotive engineers and procurement teams should evaluate several factors.

1. Advanced Manufacturing Capability

A qualified supplier should have experience with:

· 5-axis CNC machining

· Complex automotive components

· Aluminum alloy machining

· Low-volume prototype production

2. Automotive Quality Management

The supplier should provide:

· Quality documentation

· Inspection reports

· Traceability systems

· Process control procedures

Experience with IATF 16949 standards is an important indicator of automotive manufacturing capability.

3. Engineering Support

The best machining partners provide more than production capacity.

They should support:

· DFM feedback

· Design optimization

· Material recommendations

· Prototype improvement suggestions

Early supplier involvement can significantly reduce development time and improve final product reliability.

Why Choose Dawang Precision for 5-Axis CNC Automotive Machining

With more than 26 years of precision machining experience, Dawang Precision supports global automotive engineering teams with advanced CNC manufacturing solutions.

The company provides:

· 5-axis CNC machining for complex automotive components

· High-speed milling for aluminum alloys

· CMM dimensional inspection

· Engineering DFM support

With more than 400 CNC machines, including advanced 5-axis machining centers, Dawang Precision supports:

· EV prototype development

· Complex automotive components

· Low-volume production requirements

By combining machining capability, engineering experience, and quality control systems, Dawang Precision helps customers move from EV design concepts to validated prototypes.

FAQ About 5-Axis CNC Automotive Machining

Q1:What is 5-axis CNC machining used for in automotive applications?

5-axis CNC machining is commonly used for complex automotive components including EV motor housings, battery cooling parts, inverter enclosures, and lightweight structural components.

Q2:Why is 5-axis machining suitable for EV prototypes?

Because EV components often require complex geometries, lightweight structures, and high dimensional accuracy. 5-axis machining reduces setups and improves manufacturing flexibility.

Q3:What quality standards should an automotive CNC supplier meet?

Automotive CNC suppliers should follow structured quality systems such as IATF 16949 standards, including process control, traceability, and continuous improvement.

Q4:What information is needed for an EV prototype machining quote?

Most suppliers require:

· CAD files (STEP, IGES, etc.)

· Technical drawings

· Material requirements

· Surface finish specifications

· Tolerance requirements
