How to Control Shrinkage and Warpage in High-Precision Plastic Injection Molding

Quick Answer: Injection molding shrinkage and warpage are mainly controlled through consistent part geometry, suitable material selection, balanced mold cooling, stable mold temperature, and optimized injection, packing, and cooling parameters. For precision plastic parts, identifying these risks during DFM is more effective than correcting them after molding.

For applications such as precision gears and electronic connectors, even small dimensional changes can affect gear meshing, connector alignment, assembly clearance, and functional reliability.

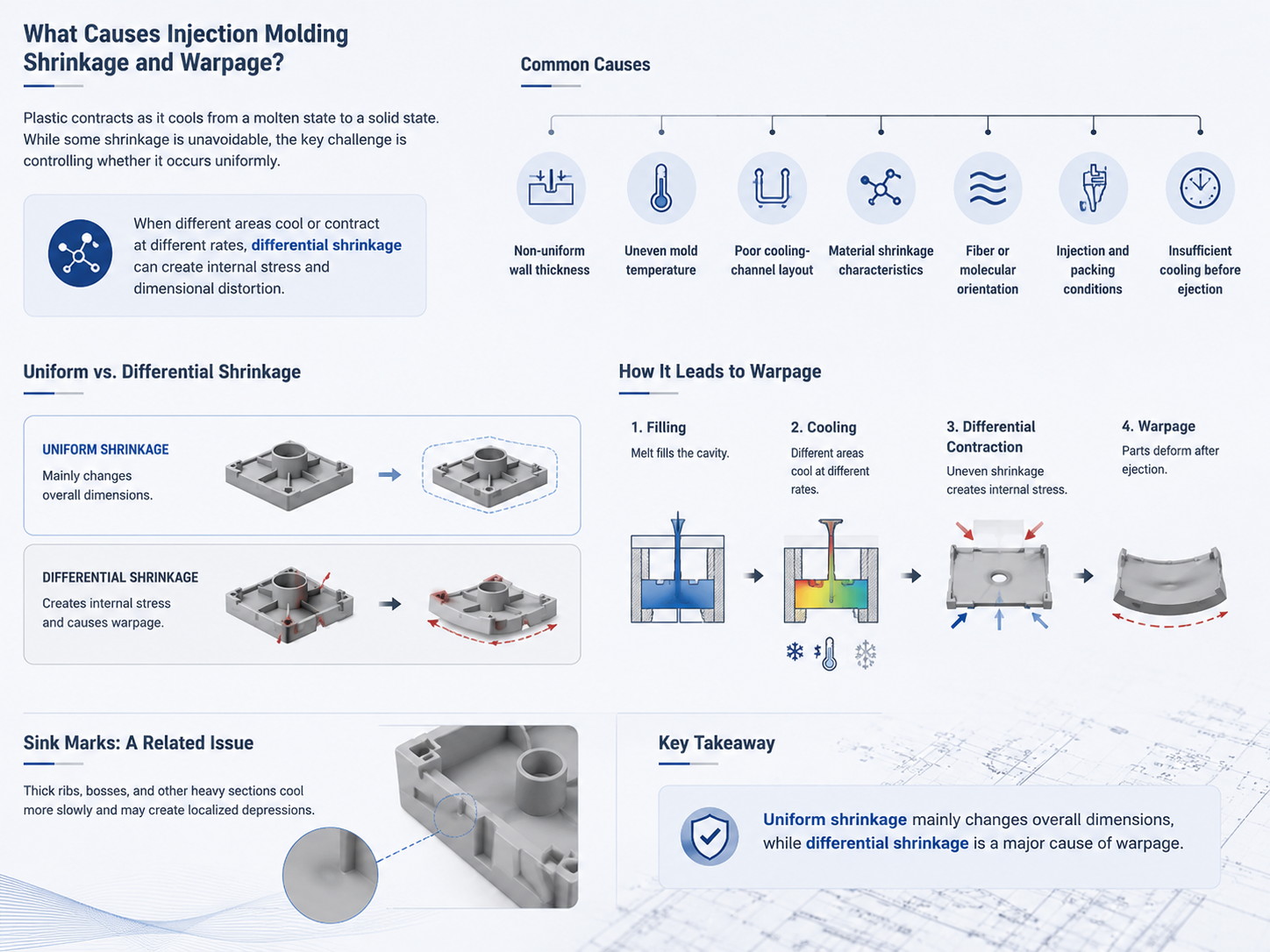

What Causes Injection Molding Shrinkage and Warpage

What Causes Injection Molding Shrinkage and Warpage?

Plastic contracts as it cools from a molten state to a solid state. While some shrinkage is unavoidable, the key challenge is controlling whether it occurs uniformly.

When different areas cool or contract at different rates, differential shrinkage can create internal stress and dimensional distortion.

Common causes include:

Non-uniform wall thickness

Uneven mold temperature

Poor cooling-channel layout

Material shrinkage characteristics

Fiber or molecular orientation

Injection and packing conditions

Insufficient cooling before ejection

A useful distinction is:

Uniform shrinkage mainly changes overall dimensions, while differential shrinkage is a major cause of warpage.

Sink marks are closely related. Thick ribs, bosses, and other heavy sections cool more slowly and may create localized depressions.

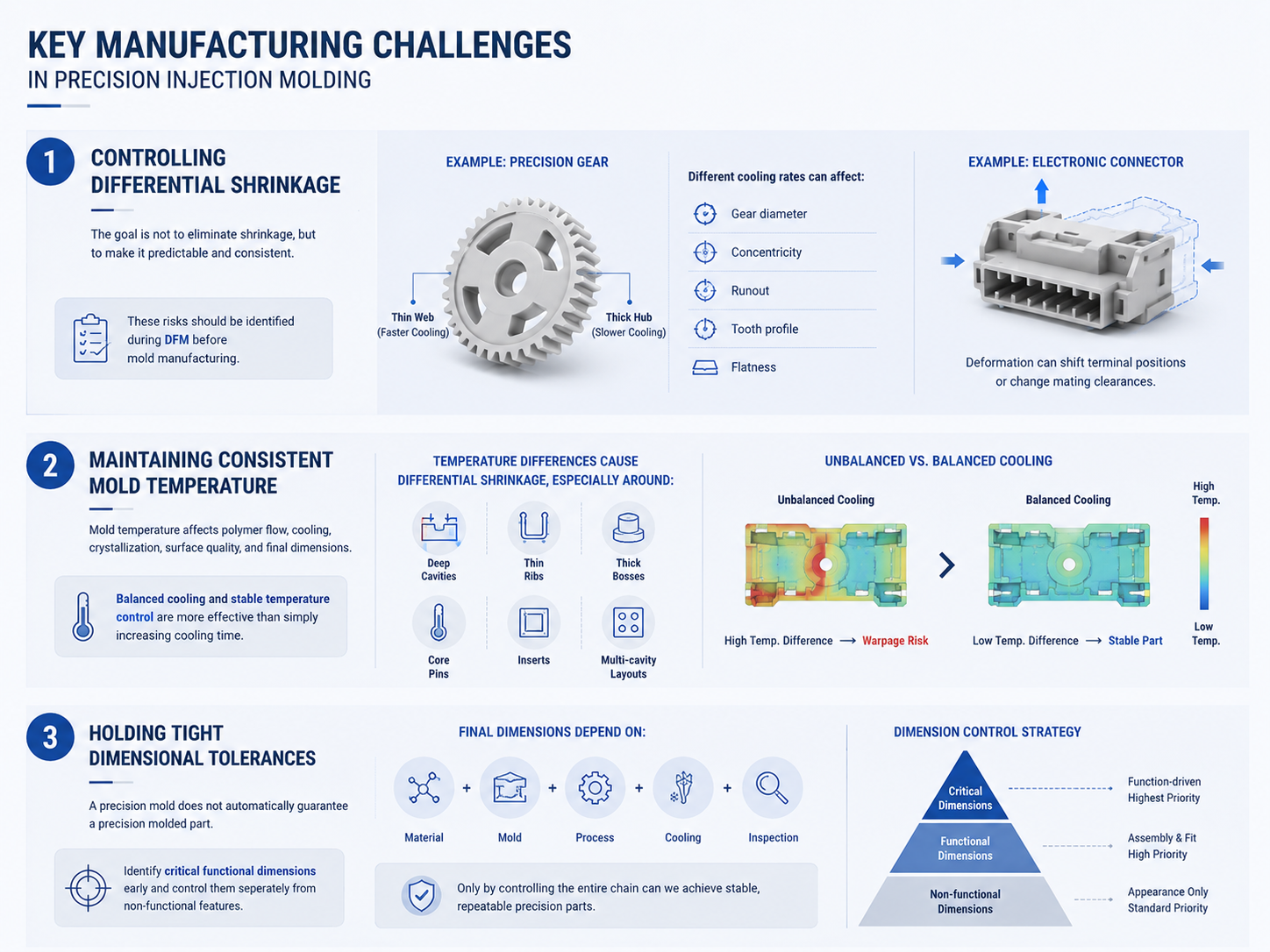

Key Manufacturing Challenges

Key Manufacturing Challenges

1. Controlling Differential Shrinkage

The goal of precision injection molding is not to eliminate shrinkage, but to make it predictable and consistent.

A precision gear, for example, may combine a thin web with a thicker hub. Different cooling rates can affect:

Gear diameter

Concentricity

Runout

Tooth profile

Flatness

For electronic connectors, deformation can shift terminal positions or change mating clearances.

These risks should be identified during DFM before mold manufacturing.

2. Maintaining Consistent Mold Temperature

Mold temperature affects polymer flow, cooling, crystallization, surface quality, and final dimensions.

Temperature differences across the cavity can produce differential shrinkage, especially around:

Deep cavities

Thin ribs

Thick bosses

Core pins

Inserts

Multi-cavity layouts

Increasing cooling time alone does not always solve warpage. Balanced cooling and stable temperature control are usually more effective.



3. Holding Tight Dimensional Tolerances

A precision mold does not automatically guarantee a precision molded part.

Final dimensions depend on:

Material + Mold + Process + Cooling + Inspection

Critical functional dimensions should therefore be identified early and controlled separately from non-functional features.



Technical Solutions for Shrinkage and Warpage Control

1. Optimize Part Design

The most economical time to address warpage is during product development.

A reasonably uniform wall thickness promotes predictable filling and cooling. When additional stiffness is required, properly designed ribs are generally preferable to simply increasing wall thickness.

Key considerations include:

Maintain consistent wall thickness

Avoid abrupt thickness transitions

Optimize rib and boss geometry

Use suitable fillets

Provide adequate draft

Avoid unnecessary localized mass

For precision gears, the hub-to-web transition deserves particular attention. For electronic connectors, thin walls, terminal cavities, locking features, and alignment structures should be reviewed together.



2. Select Materials for Dimensional Stability

Different polymers exhibit different shrinkage behavior.

Amorphous materials such as ABS, PC, and PMMA behave differently from semi-crystalline materials such as POM, PA, PBT, and PP.

Semi-crystalline and fiber-reinforced materials can be particularly sensitive to:

Crystallization

Cooling rate

Mold temperature

Flow orientation

Processing history

Material selection should consider the application, geometry, dimensional requirements, wear resistance, and temperature performance—not only the nominal shrinkage value.



3. Balance the Mold Cooling System

Cooling should remove heat as uniformly as practical across the mold.

During mold design, engineers should evaluate:

Cooling-channel layout

Channel spacing

Distance from cavity surfaces

Flow rate

Temperature distribution

Thick-section cooling

Complex inserts may require localized cooling when conventional channels cannot adequately reach critical areas.

For multi-cavity molds, cavity-to-cavity thermal balance is equally important because temperature differences can produce dimensional variation.



4. Optimize Injection and Packing Parameters

Processing parameters influence the thermal and mechanical history of the polymer.

Injection speed affects filling balance, shear heating, and molecular orientation.

Packing pressure and time compensate for material contraction. Insufficient packing can increase shrinkage and sink marks, while excessive packing may increase residual stress.

Cooling time must allow the part to develop sufficient rigidity before ejection. Ejecting it while still too hot can contribute to post-molding deformation.

The objective is to establish a stable process window for the specific material and geometry rather than maximizing any single parameter.



Tolerance Control for Precision Plastic Parts

Not every dimension requires the same tolerance.

Dimension Type

Examples

Priority

Critical

Gear pitch diameter, tooth profile, terminal position

Highest

Functional

Mating features, assembly clearances

High

Secondary

Non-functional external features

Standard

This approach avoids unnecessary tight tolerances while ensuring critical features receive appropriate control.

A typical workflow is:

DFM Review → Mold Flow Analysis → Mold Design → Precision Tool Manufacturing → Trial Molding → Dimensional Inspection → Process Optimization



Precision Applications

Precision Gears

Precision gears are sensitive to dimensional relationships between the hub, web, and teeth.

Key characteristics may include:

Pitch diameter

Tooth profile

Concentricity

Runout

Flatness

Gate position, material shrinkage, cooling balance, and flow orientation should be evaluated together to maintain stable gear geometry.

Electronic Connectors

Connector housings often combine thin walls, narrow cavities, ribs, locking features, and precise terminal locations.

Warpage can affect:

Terminal alignment

Pin position

Mating clearance

Housing dimensions

Assembly reliability

Balanced filling and cooling are therefore essential for maintaining functional dimensions.



Injection Molding Troubleshooting Guide

Symptom

Likely Cause

Recommended Action

Part bends after ejection

Uneven cooling or residual stress

Balance cooling and review ejection

Sink near ribs or bosses

Excessive local thickness

Optimize geometry and packing

Excessive shrinkage

Insufficient packing or material behavior

Review packing and material

Warpage along flow direction

Material orientation

Review gate and flow direction

Different cavity dimensions

Thermal imbalance

Check cooling and mold temperature

Batch-to-batch variation

Process instability

Stabilize material and process

The key is to determine whether the problem should be addressed through part design, mold design, material selection, or process optimization.



How Dawang Precision Controls Dimensional Stability

At Dawang Precision, shrinkage and warpage are treated as engineering risks that should be addressed before mass production.

With 26 years of manufacturing experience and 400+ advanced machine tools, we support precision tooling and manufacturing for demanding plastic components.

Our equipment includes advanced Röders and Mazak 5-axis machining centers, supporting the production of complex mold cores, cavities, inserts, and other high-precision tooling components.

Our engineering process focuses on:

DFM and part geometry review

Material and shrinkage evaluation

Gate and runner strategy

Cooling-system design

Critical tolerance identification

Precision mold-component machining

Trial molding and dimensional inspection

Process optimization

The goal is not simply to produce one acceptable sample, but to establish a repeatable process for stable production.
