CNC Machining Protective Housings for Humanoid Robot LiDAR and Vision Systems

Quick Answer

Robot sensor housing CNC machining enables manufacturers to produce lightweight, rigid, and dimensionally stable housings for LiDAR, cameras, depth sensors, and other perception components used in humanoid robots. Unlike a conventional enclosure, a robotic sensor housing often functions as a precision mounting reference. Its sensor datums, lens openings, mounting holes, and sealing interfaces must maintain their relative positions under vibration, thermal changes, and repeated robot movement.

For complex humanoid robot vision and navigation systems, 5-axis CNC machining can reduce setup-related errors while producing compact housings with complex angled surfaces, internal pockets, and integrated mounting features.

Why CNC-Machined Sensor Housings Matter

Humanoid robots rely on cameras, LiDAR, depth sensors, and other perception devices to understand their surroundings and navigate dynamic environments.

The accuracy of these systems depends not only on the sensor itself but also on the mechanical structure that holds it. A small positional or angular error in a camera mount or LiDAR interface can affect calibration, field of view, and sensor-to-robot coordinate relationships.

A CNC-machined housing therefore has two primary functions:

· Protect the sensor from impact, dust, moisture, and vibration.

· Maintain a stable and repeatable mechanical reference.

Typical features include LiDAR pockets, camera mounts, lens openings, locating surfaces, threaded holes, cable channels, lightweight pockets, gasket grooves, and structural ribs.

Key CNC Machining Challenges

1. Maintaining Sensor Alignment

The critical issue is often the relationship between features, rather than the tolerance of an individual dimension.

For example, a camera mounting hole may meet its diameter tolerance but still cause alignment problems if its position is incorrect relative to the optical datum.

Critical characteristics may include:

· Datum-to-feature position

· Flatness

· Parallelism

· Perpendicularity

· Hole position

· Concentricity

· Angular orientation

GD&T should be applied according to the sensor's functional requirements instead of assigning unnecessarily tight tolerances to every feature.

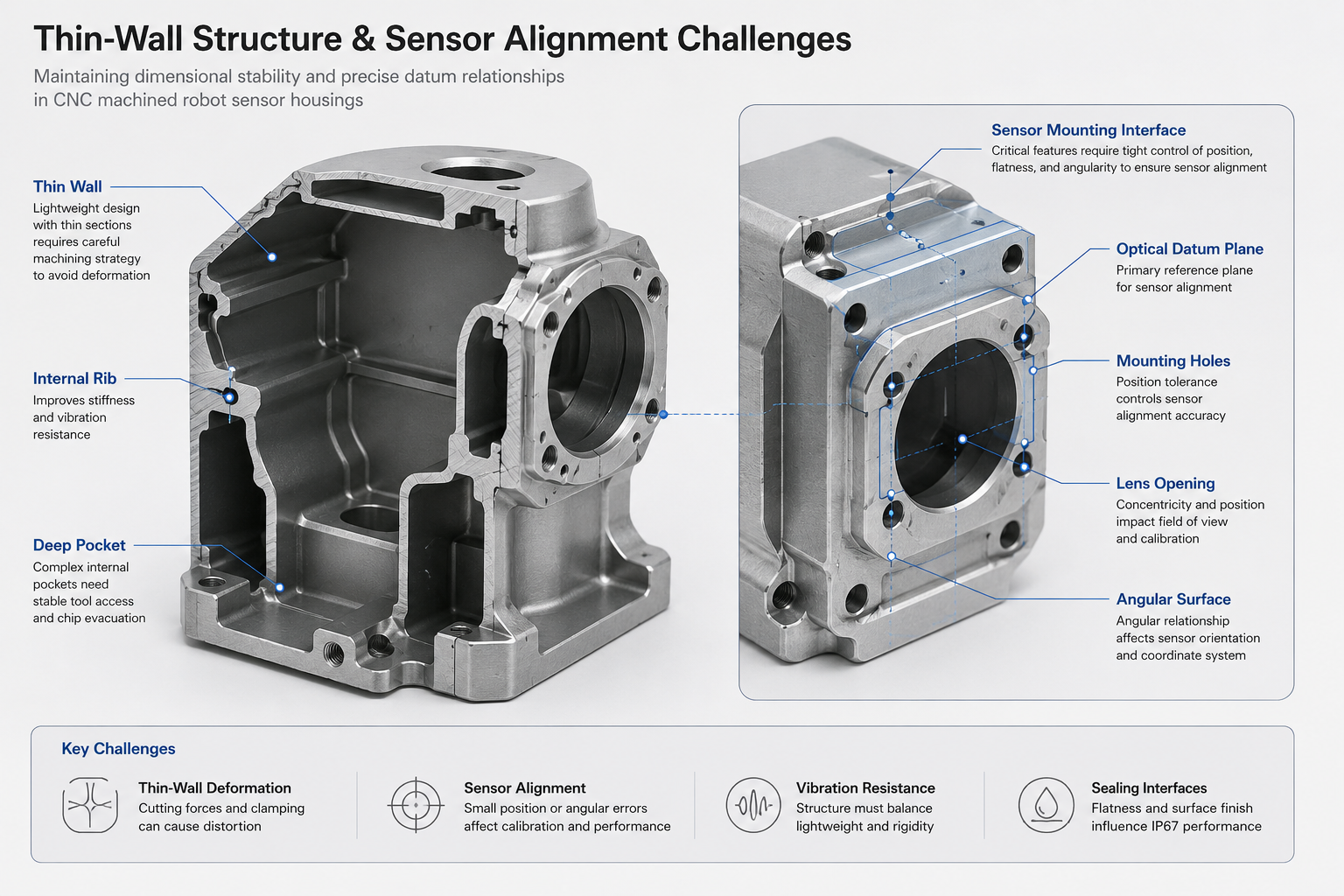

2. Controlling Thin-Wall Deformation

Weight reduction is important in humanoid robotics, but aggressive pocketing can leave thin walls that are sensitive to cutting forces, vibration, heat, clamping pressure, and residual stress.

A reliable machining strategy combines:

· Appropriate wall thickness

· Structural ribs

· Controlled roughing

· Balanced finishing allowances

· Suitable workholding

· Low-load finishing passes

The objective is to achieve the required stiffness-to-weight ratio, rather than simply removing as much material as possible.

3. Machining Complex Geometries

Humanoid robot sensor modules often combine angled mounting faces, curved profiles, recessed pockets, and multiple interfaces within limited space.

With conventional 3-axis machining, these features may require multiple setups. Each setup introduces another opportunity for datum-transfer error.

5-axis CNC machining allows multiple surfaces and compound angles to be accessed with fewer setups, helping preserve the relationship between critical sensor features.

This is particularly useful when LiDAR and camera interfaces are integrated into one compact housing.

4. Managing Vibration

Humanoid robots generate vibration from motors, gear reducers, harmonic drives, walking impacts, and rapid acceleration.

If the sensor housing lacks sufficient rigidity, vibration can affect sensor stability and repeatability.

The housing should therefore be treated as a structural component. Design decisions should balance:

low mass + sufficient stiffness + stable sensor mounting

rather than optimizing for minimum weight alone.

5. Achieving IP67 Sealing

For outdoor and industrial applications, sensor modules may require IP67 sealing.

CNC machining can produce the controlled gasket grooves, sealing surfaces, cover interfaces, and mounting features required for an enclosed sensor assembly.

However, IP67 is a system-level requirement. Machining accuracy alone does not guarantee the rating. Gasket material, compression, connectors, fasteners, assembly, and final testing must also be considered.

Technical Solutions for Robot Sensor Housing CNC Machining

Material Selection

Aluminum is widely used for robot sensor housings because it combines low density, machinability, thermal conductivity, and corrosion resistance.

The final material should be selected according to structural stiffness, mass, thermal behavior, operating environment, surface treatment, and sensor requirements.

Recommended Machining Workflow

A typical precision process includes:

Roughing → Semi-finishing → 5-axis finishing → Precision hole/bore machining → Deburring → Inspection

Roughing removes bulk material while leaving controlled stock on functional surfaces. Semi-finishing stabilizes thin-wall sections. 5-axis finishing then establishes angled sensor interfaces, lens openings, and complex contours.

Critical bores and mounting holes can receive dedicated finishing operations where required.

Finally, burr removal and cleaning are particularly important around lens openings, sealing grooves, threads, and internal cavities.

Tolerance and Surface-Finish Control

Not every feature requires the same level of precision.

As a general engineering reference, drawings may use approximately ±0.05 mm for general machining features, while selected critical mounting features may require ±0.01–0.02 mm, depending on the sensor and assembly requirements.

These values are not universal production guarantees. Final tolerances should be established from the sensor manufacturer's specifications, GD&T scheme, assembly stack-up, calibration requirements, and actual manufacturing capability.

Surface finish should likewise be specified according to function. Optical interfaces, sealing surfaces, and cosmetic areas may require different surface-finish requirements.

Inspection and Quality Control

For precision sensor housings, inspection should verify the relationship between functional features, not simply individual dimensions.

Typical inspection methods include:

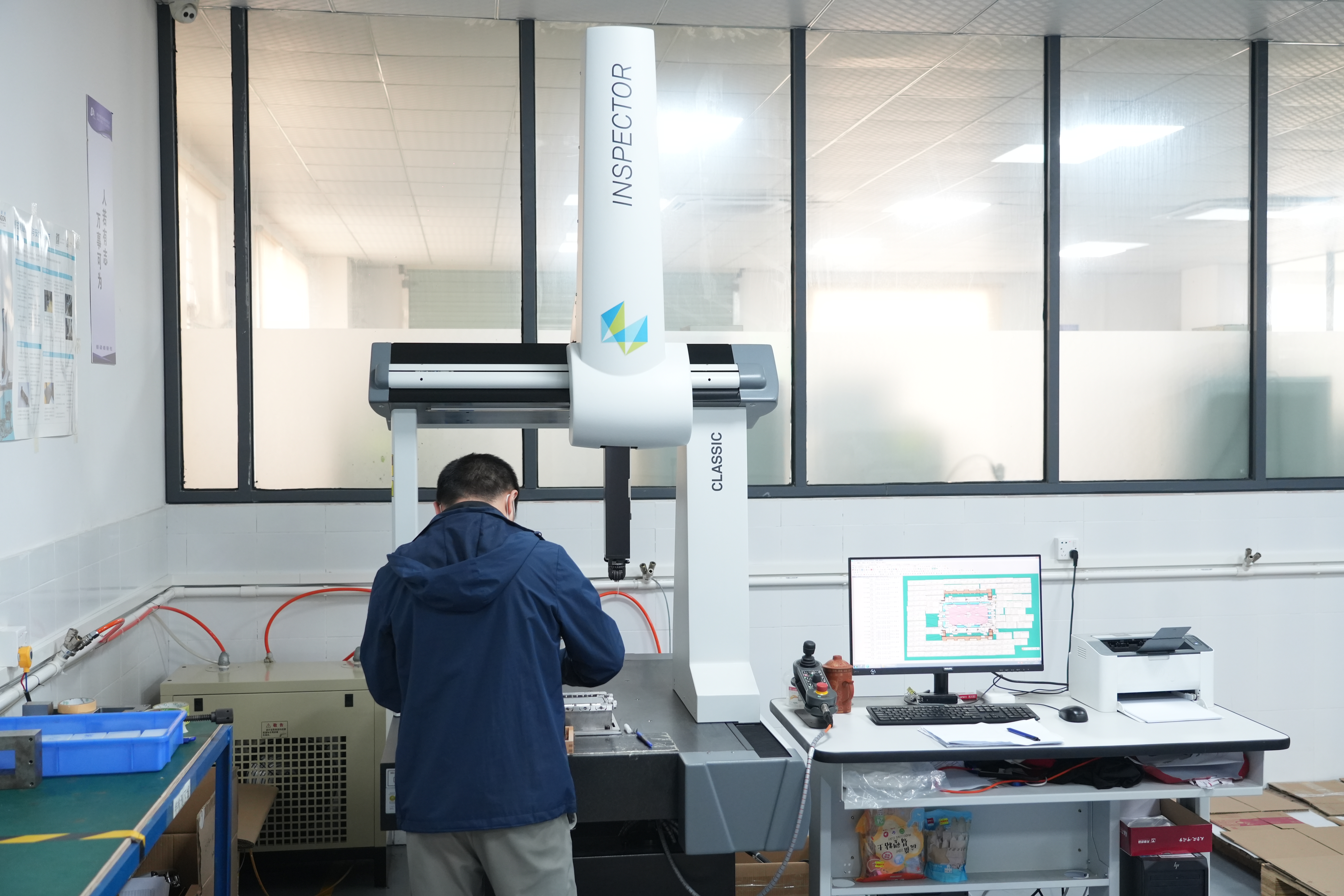

· CMM measurement of critical datums

· Position and geometric tolerance verification

· Bore and thread inspection

· Flatness and parallelism checks

· Surface roughness measurement

· Material certification

· Surface-treatment verification

· First Article Inspection

For example, measuring a camera mounting hole relative to the primary optical datum provides more meaningful information than checking the hole diameter alone.

Applications in Robot Vision and Navigation

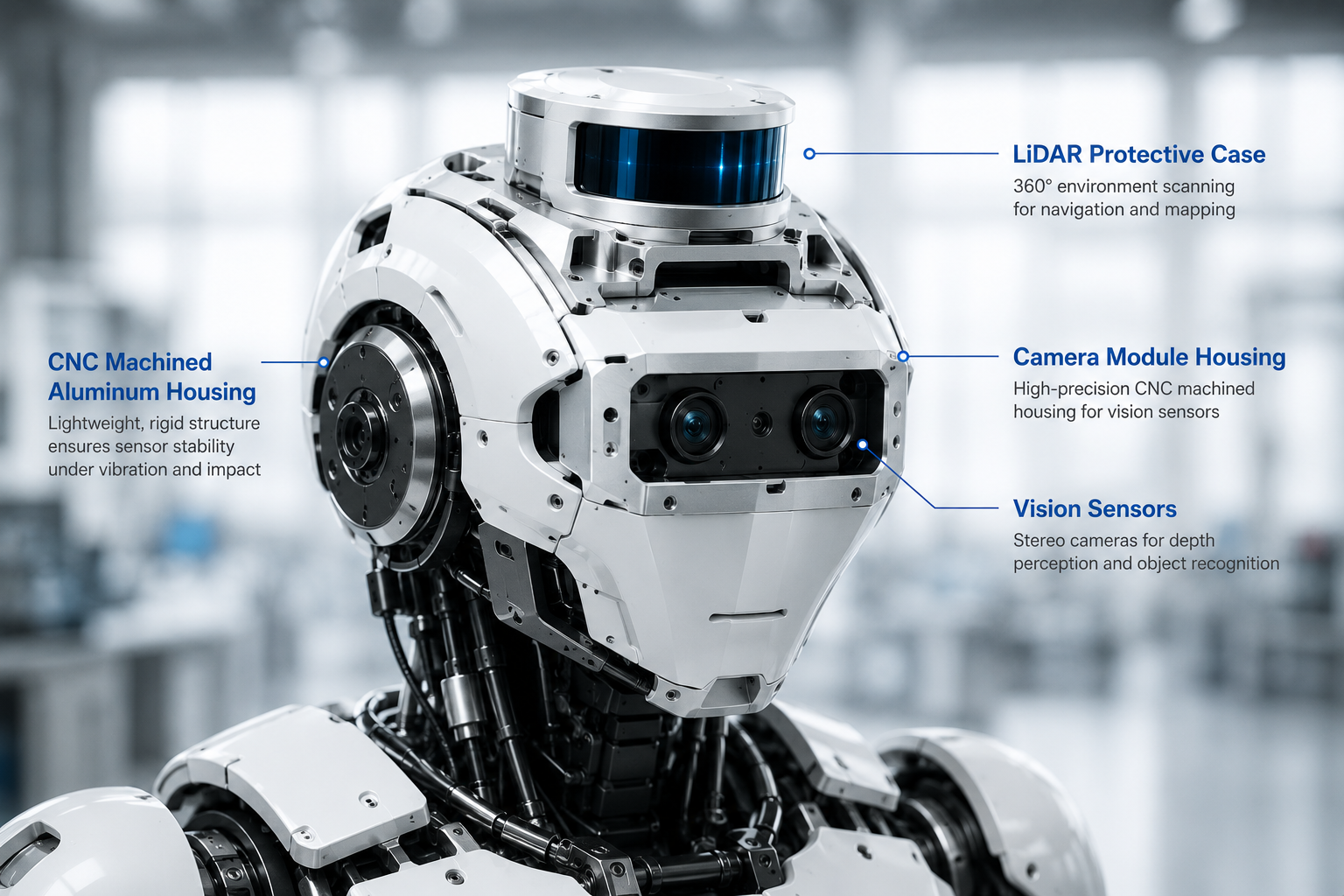

LiDAR Protective Cases

CNC-machined LiDAR protective cases combine sensor protection with stable mechanical positioning. Internal pockets can reduce weight while external walls provide structural protection.

Camera Mounts

Precision CNC camera mounts provide rigid interfaces for lenses and image sensors, helping maintain repeatable positioning during assembly and operation.

Vision and Depth Sensor Housings

Stereo cameras and depth sensors often require controlled relative positioning between multiple sensing elements. CNC machining allows these interfaces to be integrated into a rigid structure.

Navigation Sensor Enclosures

Humanoid navigation systems may combine LiDAR, cameras, IMUs, and other sensors. CNC machining can integrate multiple interfaces into a compact housing while maintaining structural stability.

Design for Manufacturability Before CNC Production

A DFM review should be completed before machining begins.

Engineers should evaluate:

· Minimum wall thickness

· Tool accessibility

· Internal corner radii

· Deep pockets

· Datum selection

· Critical tolerances

· Gasket groove geometry

· Clamping strategy

· Surface-treatment allowance

· 3-axis versus 5-axis machining

· Inspection requirements

For humanoid robot housings, this step is especially valuable because weight reduction, rigidity, optical alignment, and sealing often compete with one another.

Resolving these conflicts during DFM is usually less expensive than correcting them after machining.

FAQ: CNC Machining Humanoid Robot Sensor Housings

Q1:What materials are commonly used for robot sensor housings?

6061-T6 and 7075-T6 aluminum are common choices because they provide a good balance of weight, strength, machinability, and thermal performance. Stainless steel, titanium, and engineering plastics can be selected for specific applications.

Q2:When should I use 5-axis CNC machining?

5-axis machining is most useful when the housing contains multiple angled surfaces, complex pockets, or critical features that need to maintain a common datum relationship with fewer setups.

Q3:What CNC tolerance is suitable for a LiDAR or camera housing?

There is no universal tolerance. General features may use around ±0.05 mm, while selected sensor-critical features may require ±0.01–0.02 mm or tighter depending on the design and functional requirements.

Q4:Can CNC machining support IP67 sensor housings?

Yes. CNC machining can produce the gasket grooves, sealing faces, mounting interfaces, and cover geometry needed for an IP67 enclosure. Final IP67 performance must still be validated at the assembled-system level.

Q5:How can I reduce CNC machining costs?

Start with DFM. Optimizing wall thickness, internal radii, tool access, tolerances, machining orientation, and the choice between 3-axis and 5-axis machining can reduce unnecessary machining time and cost.
