CNC Machining for In-Vitro Diagnostic (IVD) Equipment and Laboratory Fluidic Blocks

Quick Answer

IVD equipment CNC machining is used to manufacture precision components for in-vitro diagnostics, laboratory automation, sample handling, fluid management, and analytical instruments. Common parts include fluidic blocks, acrylic manifolds, valve bodies, reagent holders, optical mounts, heater plates, sensor brackets, and laboratory disposables.

Unlike conventional industrial parts, IVD components often require a combination of tight dimensional control, chemical compatibility, controlled fluid paths, low particle generation, and repeatable assembly. For fluidic components, internal burrs, surface finish, channel geometry, and cleanliness can be as important as external dimensions.

A reliable process therefore combines DFM review, material selection, controlled CNC machining, deburring, cleaning, dimensional inspection, and appropriate packaging.

What Is CNC Machining for IVD Equipment?

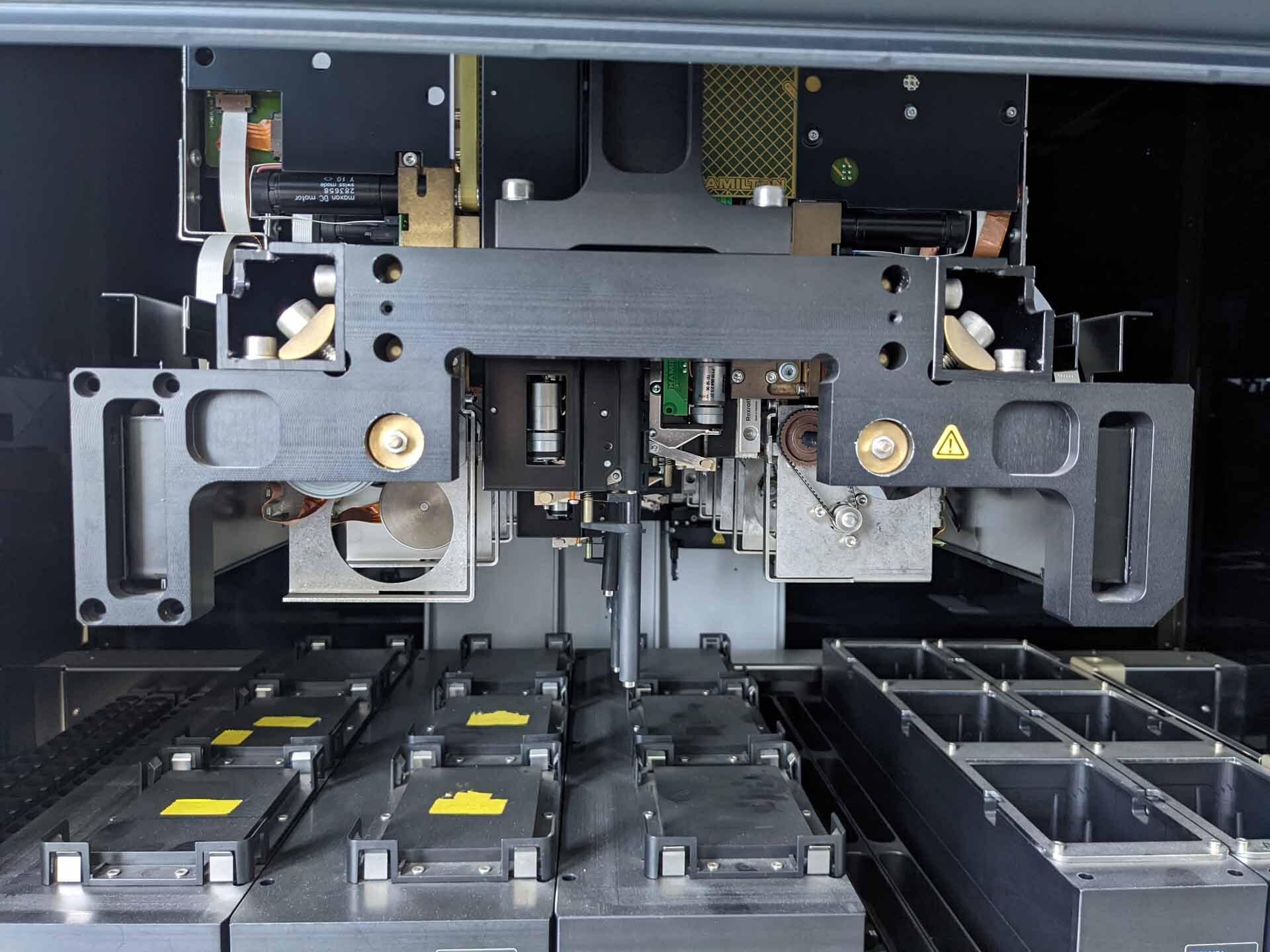

In-vitro diagnostic systems analyze biological samples outside the human body and integrate functions such as automated pipetting, reagent handling, incubation, washing, optical detection, temperature control, and robotic positioning.

These systems require a wide range of precision-machined components.

CNC machining is particularly useful for IVD prototypes, engineering validation parts, and low-volume production because designs can be revised without dedicated hard tooling.

Key Challenges in IVD Equipment CNC Machining

1. Fluidic Blocks Require Controlled Internal Geometry

Fluidic blocks are among the most demanding IVD components because their internal passages directly influence liquid movement.

A single block may contain inlet and outlet ports, intersecting channels, threaded connections, valve interfaces, O-ring grooves, blind holes, and pressure passages.

The challenge is that critical features may be hidden inside the component. When two drilled passages intersect, for example, machining can leave an internal burr or material ridge. Even when external dimensions pass inspection, this defect can restrict flow, retain liquid, or release particles.

Engineering solution

DFM review should evaluate:

· channel diameter and depth

· channel intersections

· minimum wall thickness

· tool accessibility

· internal radii

· sealing surfaces

· deburring accessibility

· pressure or leak-test requirements

The fluid path should therefore be evaluated as a complete functional system rather than simply as a collection of CAD dimensions.

2. Tight Tolerances Should Be Functional

Precision does not mean applying the tightest possible tolerance to every feature.

Excessively tight tolerances increase machining time, inspection requirements, setup sensitivity, and production cost. For IVD components, tighter control should be concentrated on features that affect sealing, alignment, fluid flow, assembly, or instrument performance.

Typical critical features include:

· valve interfaces

· sealing diameters

· O-ring grooves

· optical mounting surfaces

· mounting-hole patterns

· fluid-channel locations

· mating surfaces

Where appropriate, GD&T can communicate functional requirements more effectively than applying unnecessarily tight bilateral tolerances throughout the drawing.

The objective is controlled precision where the diagnostic system needs it, not maximum precision everywhere.

3. Acrylic Manifolds Need Polymer-Specific Machining

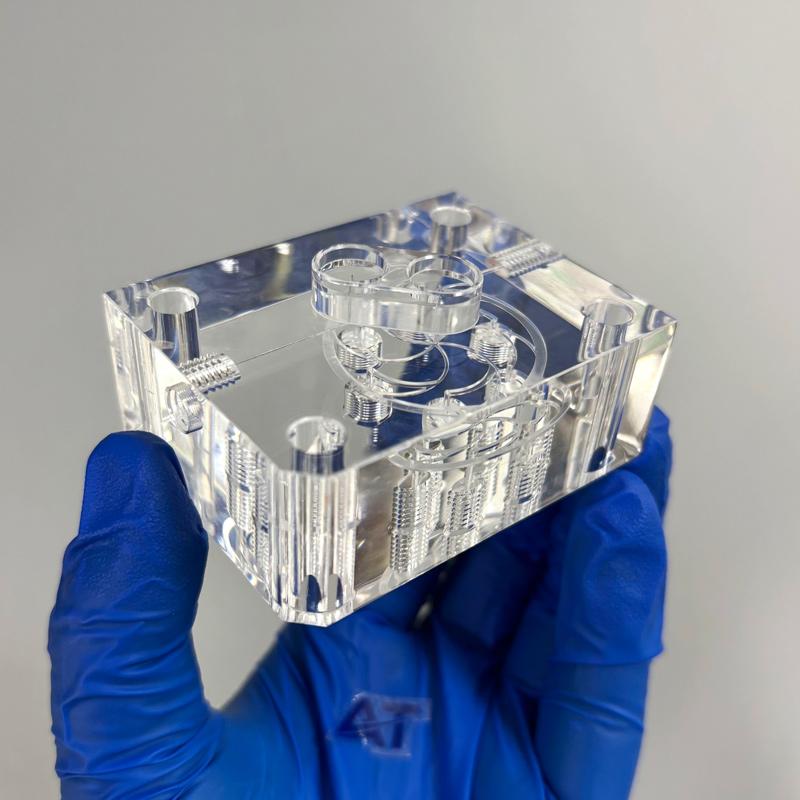

Acrylic manifolds are useful when engineers need transparent fluid paths for visual inspection or prototype validation.

Acrylic behaves differently from aluminum and stainless steel. Incorrect machining conditions can cause cracking, chipping, melting, stress whitening, or poor optical appearance.

The machining strategy should therefore consider:

· cutter geometry

· spindle speed

· feed rate

· chip evacuation

· tool engagement

· finishing passes

· part support

For transparent components, surface quality can be functional rather than purely cosmetic because it may affect visual inspection of fluid movement.

The same principle applies to engineering plastics such as PEEK, POM, and PTFE: thermal behavior, dimensional stability, chemical exposure, and application requirements should be evaluated before material selection.

4. Internal Burrs and Cleanliness Affect Performance

For IVD fluidic components, deburring and cleaning are not simply cosmetic finishing operations.

Machining can introduce:

· metal or polymer particles

· loose burrs

· cutting-fluid residue

· abrasive debris

· dust

A particle trapped inside a small fluid passage can affect flow, reagent transfer, cleaning, or test consistency.

A controlled manufacturing sequence should therefore include:

CNC machining → deburring → inspection → precision cleaning → drying → final inspection → controlled packaging

For critical fluid-contact components, cleanliness requirements should be defined before production so that machining, cleaning, inspection, and packaging can be planned as one process.

5. Thin Walls and Deep Features Increase Machining Risk

Compact IVD analyzers often require small components with thin walls, deep pockets, narrow channels, and difficult tool access.

These features can increase the risk of:

· cutting-force deformation

· vibration

· tool deflection

· heat-related distortion

· fixture deformation

· dimensional instability

A practical DFM strategy is to use the largest feasible tool diameter, provide appropriate internal radii, minimize unnecessary setups, and maintain sufficient structural stiffness

Materials for IVD and Laboratory Automation Components

Material selection should consider chemical compatibility, dimensional stability, machinability, thermal behavior, optical requirements, and cleanliness.

Aluminum

Aluminum alloys are widely considered for brackets, mounting plates, housings, heat-transfer components, and selected fluid-management parts because of their low weight and good machinability.

Stainless Steel

Stainless steel is suitable for applications requiring greater corrosion resistance, mechanical durability, or chemical resistance, including selected valve components, fittings, and fluid-contact parts.

Engineering Plastics

PEEK, POM, PTFE, and other engineering polymers may be used where chemical resistance, low friction, thermal performance, or electrical insulation is required.

Acrylic / PMMA

Acrylic is particularly useful for transparent manifolds, inspection components, and prototype fluidic assemblies where visual monitoring is valuable.

Material selection for biological or reagent-contact components should always be validated against the actual application and required documentation.

CNC Process Control for IVD Components

A reliable IVD equipment CNC machining process connects manufacturing with inspection and cleaning.

1. DFM Review

Review material, tolerances, GD&T, channel geometry, wall thickness, threads, sealing features, tool access, and inspection requirements before machining.

2. Machining Strategy

Depending on geometry, production may use 3-axis, 3+2, or 5-axis CNC machining. The machining sequence should reference functional datums to reduce registration errors between setups.

3. Roughing and Finishing

Material is removed in controlled stages, leaving appropriate stock for critical finishing operations. Reducing unnecessary setups can improve positional consistency.

4. Deburring and Cleaning

Internal passages and intersecting channels receive particular attention to remove burrs and machining debris without damaging functional surfaces.

5. Inspection

Depending on the drawing and application, inspection may include:

· CMM measurement

· optical measurement

· pin and thread gauges

· surface roughness measurement

· flatness inspection

· dimensional reports

· leak or pressure testing

The inspection method should match the functional importance of each feature.

DFM Considerations for IVD CNC Machining

A professional DFM review can identify manufacturing risks before production.

Specify tolerances according to function.
Reserve the tightest tolerances for sealing, alignment, fluid flow, and critical interfaces.

Design internal passages for machining and cleaning.
Avoid unnecessarily narrow or inaccessible channels.

Use practical internal radii.
CNC milling tools require radius geometry for internal corners, and larger radii can improve tool access and reduce machining time.

Plan for fixturing.
Stable reference surfaces help reduce deformation and improve repeatability.

Define cleanliness requirements early.
If a component contacts reagents or samples, cleaning and packaging requirements should be included in the manufacturing plan.

CNC Machining for IVD Prototypes and Low-Volume Production

IVD hardware commonly progresses through:

Prototype → Engineering Validation → Design Revision → Pilot Build → Low-Volume Production → Scale-Up

CNC machining supports this development cycle because engineers can manufacture functional parts directly from digital designs and revise them quickly without dedicated tooling.

This is particularly valuable in lab automation, where components must interface accurately with pumps, valves, pipettes, sensors, robotic mechanisms, cartridges, and optical systems.

Functional CNC prototypes can reveal problems with fit, sealing, fluid routing, sensor alignment, thermal contact, or assembly before higher-volume production.

How to Choose an IVD CNC Machining Supplier

For procurement teams, supplier evaluation should go beyond unit price.

Key criteria include:

1. ISO 13485 quality management

2. Medical-device manufacturing experience

3. Material and process traceability

4. CNC precision machining capability

5. CMM and dimensional inspection

6. Internal deburring capability

7. Controlled cleaning processes

8. Experience with fluidic components

9. Prototype-to-production support

10. Responsive engineering communication

For IVD components, a capable supplier should be able to explain how a design decision affects machinability, inspection, cleanliness, cost, and final performance.

FAQ: IVD Equipment CNC Machining

Q1:What IVD components can be CNC machined?

Common parts include fluidic blocks, acrylic manifolds, valve bodies, reagent holders, optical mounts, sensor brackets, heater plates, housings, and laboratory disposables.

Q2:What materials are used for IVD CNC machining?

Aluminum, stainless steel, acrylic/PMMA, PEEK, POM, PTFE, and other engineering plastics may be selected depending on mechanical, chemical, thermal, optical, and cleanliness requirements.

Q3:Can CNC machining produce complex fluidic blocks?

Yes. CNC milling and drilling can produce multi-port manifolds and intersecting fluid passages. Internal burr removal, cleaning, inspection, and leak testing should be considered during DFM.

Q4:Is CNC machining suitable for IVD prototypes?

Yes. CNC machining is well suited to functional IVD prototypes because engineers can evaluate real materials, interfaces, fluidic geometry, and assembly performance before moving to larger production volumes.
