How We Reduce Tooling Costs for Low-Volume Injection Molding Projects

Quick Answer

The most effective way to reduce tooling costs for low-volume injection molding is to avoid overbuilding the mold.

Instead of automatically choosing expensive production tooling, engineers should match the mold strategy to the expected volume, part geometry, material, tolerance, surface finish, and likelihood of future design changes.

For product development and hardware startups, the most practical cost-reduction strategies are:

· Complete DFM before mold design

· Eliminate unnecessary undercuts and side actions

· Optimize wall thickness, ribs, bosses, and draft

· Use rapid tooling when the design or demand is not fully proven

· Use bridge production to delay major production-tool investment

· Apply tight tolerances only to critical functional features

· Specify cosmetic finishes only where required

· Optimize molding parameters to reduce cycle time and scrap

· Design tooling for future modifications

The goal is not to build the cheapest mold. It is to build the right mold for the product's expected lifecycle.

Why Tooling Strategy Matters in Low-Volume Injection Molding

Injection molding has a high upfront tooling cost compared with processes such as CNC machining or 3D printing. That cost becomes particularly important when only hundreds or a few thousand parts are required.

A simple way to understand the economics is:

Tooling cost per part = Tooling investment ÷ Production quantity

A $10,000 mold adds $10 to each part when producing 1,000 units, but only $1 when producing 10,000 units.

This is why a hardened, high-volume production mold can be economically inefficient for an early-stage product whose design or market demand is still uncertain.

Low-volume injection molding is often used between prototyping and mature production. It allows engineering teams to validate production-intent materials, dimensions, assembly, and performance without immediately committing to high-volume tooling.

The key question is therefore not:

“How can we make the mold as cheap as possible?”

It is:

“What tooling investment is justified by the expected product lifecycle?”

1. Start With DFM to Reduce Tooling Complexity

The most effective opportunity for reducing tooling costs usually exists before the mold is manufactured.

A DFM review should identify features that increase machining, EDM, polishing, mold fitting, ejection, or maintenance requirements.

A useful DFM principle is:

Every mold mechanism should have a functional reason to exist.

If a slide, lifter, insert, or complex ejection mechanism can be eliminated through a minor geometry change, the resulting savings can extend beyond initial tooling cost to maintenance and future modifications.

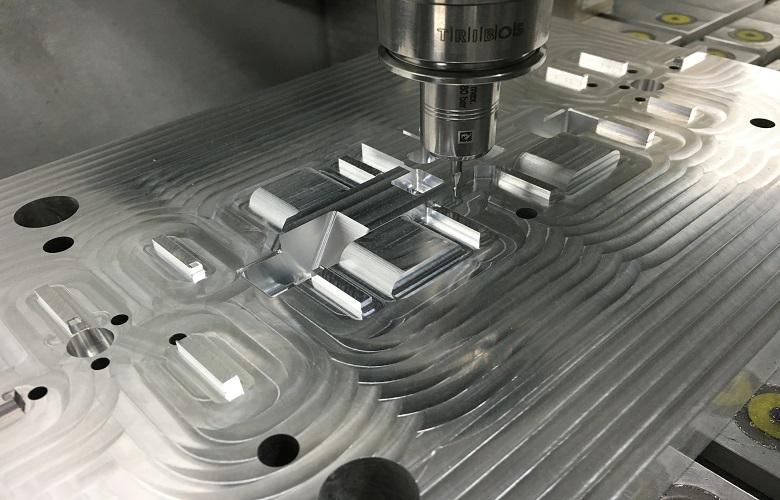

2. Choose Rapid Tooling When Design Risk Is Still High

For early product development, the design may continue changing after functional testing, customer feedback, or assembly validation.

In this situation, rapid tooling can reduce financial risk.

Depending on the required tool life and material, rapid tooling may use aluminum or other lower-cost tooling approaches instead of a long-life hardened steel mold. The trade-off is lower durability in exchange for lower initial investment and faster tool fabrication.

Rapid tooling is particularly useful for:

· Functional prototypes

· Engineering validation

· Pilot builds

· Beta programs

· Early market launches

· Low-volume production

The important point is to specify the expected shot count, resin, dimensional requirements, and surface finish before selecting the tooling material.

A low-cost mold that fails before the required production quantity is reached is not actually a low-cost solution.

3. Use Bridge Production to Delay Full Production Tooling

Bridge production is valuable when the product is commercially ready but long-term demand remains uncertain.

A typical development path may be:

Prototype → Rapid Tooling → Bridge Production → Production Tooling

Bridge tooling allows companies to manufacture production-intent parts while delaying the larger investment associated with mature production tooling.

This is especially relevant to hardware startups, where demand forecasts can change rapidly after launch.

Bridge production can support:

· Initial customer orders

· Beta testing

· Market validation

· Supply continuity

· Regulatory or functional testing

· Early commercial production

The decision should be based on expected lifetime volume rather than an arbitrary definition of “low volume.” Tooling life, part geometry, material, and production schedule all affect the appropriate tooling strategy.

4. Optimize Geometry Before Optimizing the Mold

A complex part requires a complex mold.

For that reason, reducing unnecessary geometric complexity can have a greater effect on tooling cost than negotiating a lower mold-building price.

Wall Thickness

Consistent wall thickness helps control:

· Cooling variation

· Sink marks

· Shrinkage

· Warpage

· Cycle time

When thick sections are required for structural reasons, coring them out can reduce material concentration and improve molding stability.

Ribs and Bosses

Ribs should provide structural reinforcement without creating unnecessarily thick intersections.

Bosses should be designed with appropriate draft and wall relationships so they can be molded and ejected reliably.

Draft

Insufficient draft can increase ejection forces and complicate tooling.

Adding practical draft during the design stage is usually much less expensive than correcting an ejection problem after the mold has been built.

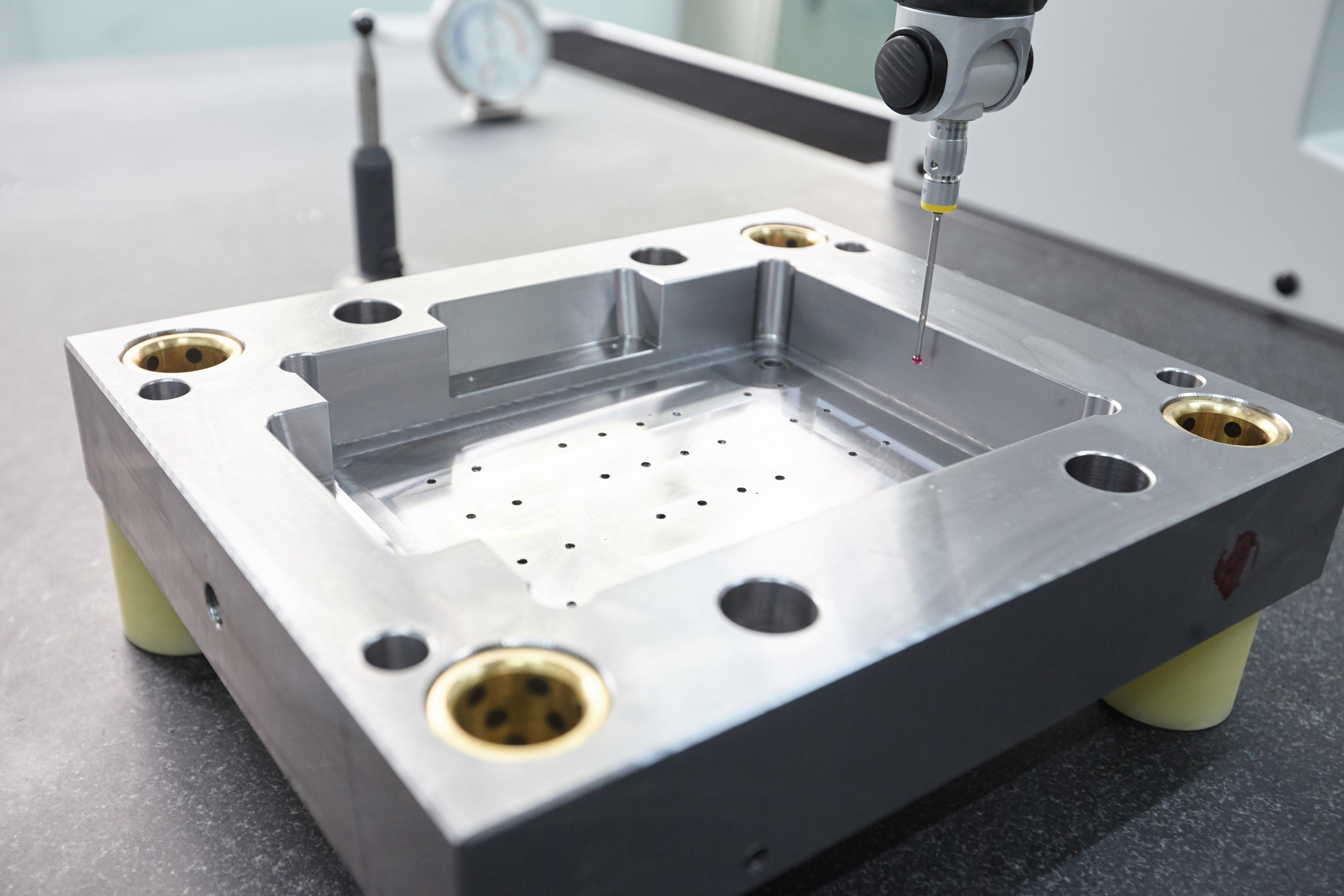

5. Control Tolerances Instead of Over-Specifying Them

One of the most common causes of unnecessary tooling cost is applying tight tolerances to every dimension.

A better approach is to divide dimensions into:

Critical-to-function:
Dimensions affecting assembly, sealing, alignment, motion, or performance.

Important:
Dimensions affecting fit or appearance but allowing limited process variation.

Non-critical:
Dimensions where standard molding tolerances are acceptable.

Only the first category should normally receive the tightest tolerance requirements.

Excessive tolerance requirements can increase precision machining, EDM, mold fitting, inspection, and process sensitivity.

For low-volume projects, this matters because the additional tooling investment is distributed across fewer parts.

6. Specify Surface Finish Only Where It Adds Value

Surface finish is another tooling cost driver that is frequently overlooked.

Mirror polishing, EDM textures, specialty textures, and cosmetic finishing can add machining and manual finishing operations.

Instead of specifying a premium finish throughout the mold, divide the part into functional and cosmetic zones.

For example:

· Visible exterior → controlled cosmetic finish

· Sealing surface → defined surface requirement

· Internal cavity → standard finish

· Hidden assembly area → functional finish

This allows the tooling team to concentrate finishing work where it affects the customer's product.

7. Design Tooling for Future Modifications

A product development tool should not necessarily be treated as a completely fixed asset.

For products that are still evolving, engineers can consider modification-friendly tooling strategies.

Where practical, metal-safe design allows material to be removed later to enlarge or adjust a feature instead of requiring material to be added back.

This approach is particularly useful for:

· Hardware startups

· New product development

· Robotics

· Electronic housings

· Medical devices

· Engineering validation programs

It can turn one tooling investment into a platform for multiple controlled design iterations rather than forcing a new mold after every minor change.

8. Optimize Molding Parameters to Reduce Total Cost

Reducing tooling cost does not automatically produce the lowest total manufacturing cost.

Once the mold is built, process stability becomes equally important.

Key parameters include:

· Injection speed

· Injection pressure

· Melt temperature

· Mold temperature

· Holding pressure

· Holding time

· Cooling time

· Cycle time

For example, excessive cooling time can increase machine occupancy and part cost, while insufficient cooling can lead to deformation and dimensional instability.

The objective is to establish a stable process window that balances:

Quality + cycle time + dimensional consistency + scrap rate

This is particularly important for low-volume programs because a high scrap rate can quickly offset the savings achieved through inexpensive tooling.

9. Evaluate Tooling by Total Cost of Ownership

A tooling quote should never be evaluated by mold price alone.

A more useful model is:

Total Cost = Tooling + Material + Processing + Inspection + Scrap + Maintenance + Modifications

For very small production runs, upfront tooling dominates the economics.

As volume increases, cycle time, tool life, maintenance, and piece price become increasingly important.

Therefore, a slightly more expensive tool may provide a lower overall cost if it offers better dimensional stability, longer tool life, easier maintenance, or greater modification flexibility.

The lowest quote is not necessarily the lowest-cost manufacturing solution.

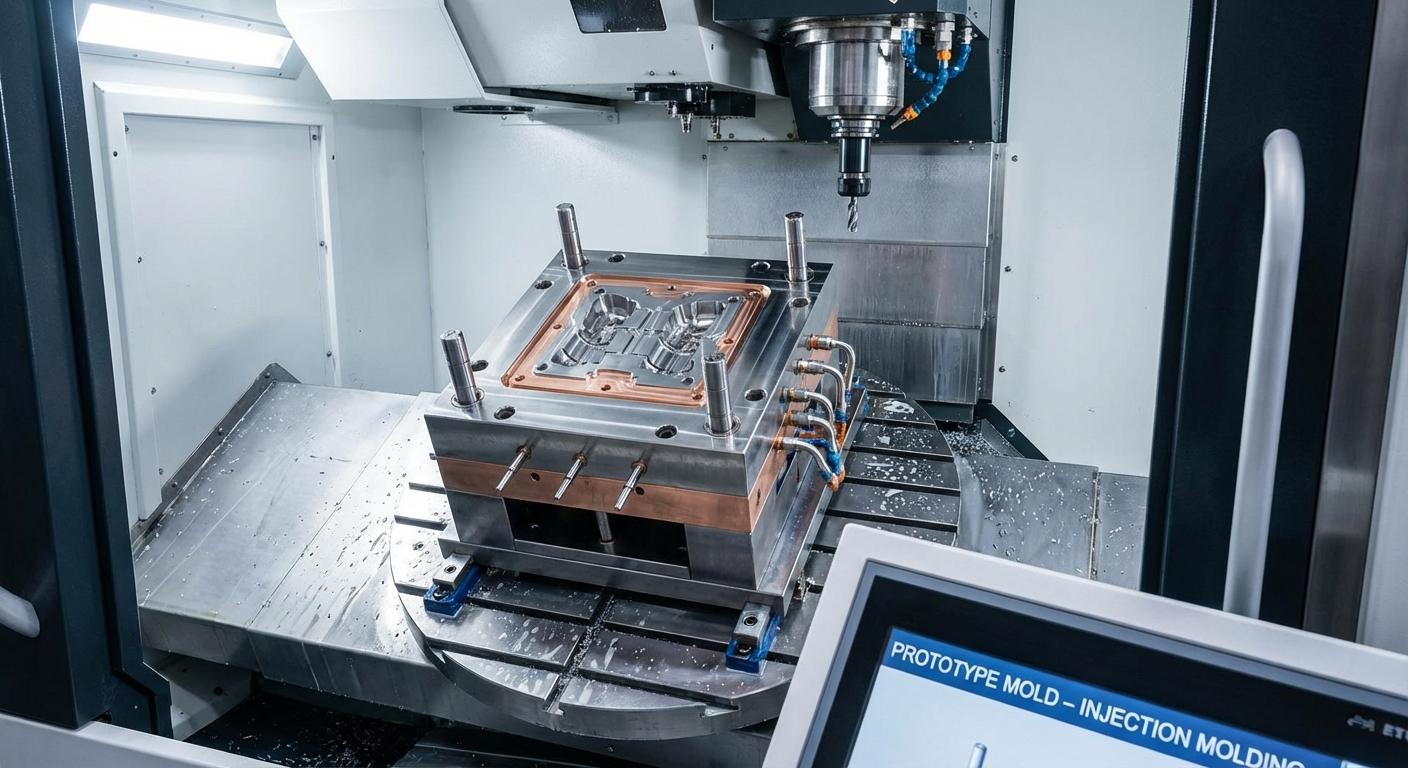

Tooling Strategy for Different Product Development Stages

These are planning guidelines rather than fixed volume thresholds. The correct solution depends on the actual part geometry, resin, tolerance, tool life, and forecast.

How DFM Supports Lower Tooling Costs

At Dawang Precision, our role is primarily to evaluate the manufacturability of the component before production begins.

With 26 years of precision manufacturing experience and more than 400 advanced machines, including Röders and Mazak five-axis equipment, our engineering background supports detailed evaluation of complex machined tooling components and precision features.

The focus remains engineering-driven: simplify where possible, control what matters, and avoid paying for tooling capability that the project does not need.

FAQ: Low-Volume Injection Molding Tooling

Q1:How can I reduce injection molding tooling costs?

Start with DFM. Simplify undercuts and parting lines, optimize wall thickness and draft, reduce unnecessary cosmetic finishing, and apply tight tolerances only to critical features.

Q2:Is rapid tooling suitable for low-volume production?

Yes. Rapid tooling can be appropriate for prototypes, validation builds, pilot production, and short production runs when the expected tool life matches the required quantity and material.

Q3:What is bridge production?

Bridge production is an intermediate manufacturing stage between prototype development and full-scale production. It allows companies to supply production-intent parts before investing in mature high-volume tooling.

Q4:Should I choose aluminum or steel tooling?

The decision depends on expected shot count, resin, dimensional requirements, surface finish, and product lifecycle. Aluminum can reduce initial tooling investment, while steel becomes more attractive as tool-life and production-volume requirements increase.

Q5:When should a startup invest in production tooling?

Generally, when the design is stable, demand is validated, and the expected lifetime volume justifies the higher upfront investment.
