Injection Molding Draft Angles: Engineering Guidelines for Plastic Part Design

Quick Answer

Injection molding draft angles are tapered surfaces designed to help plastic parts release from the mold without sticking, drag marks, deformation, or excessive ejection force. A typical starting range is 0.5°–2° per side, while deep walls, textured surfaces, and difficult-to-release materials may require more.

The correct draft depends on material shrinkage, wall depth, surface texture, mold finish, ejection method, and dimensional requirements. For precision plastic parts, draft should be evaluated during DFM rather than added after mold manufacturing.

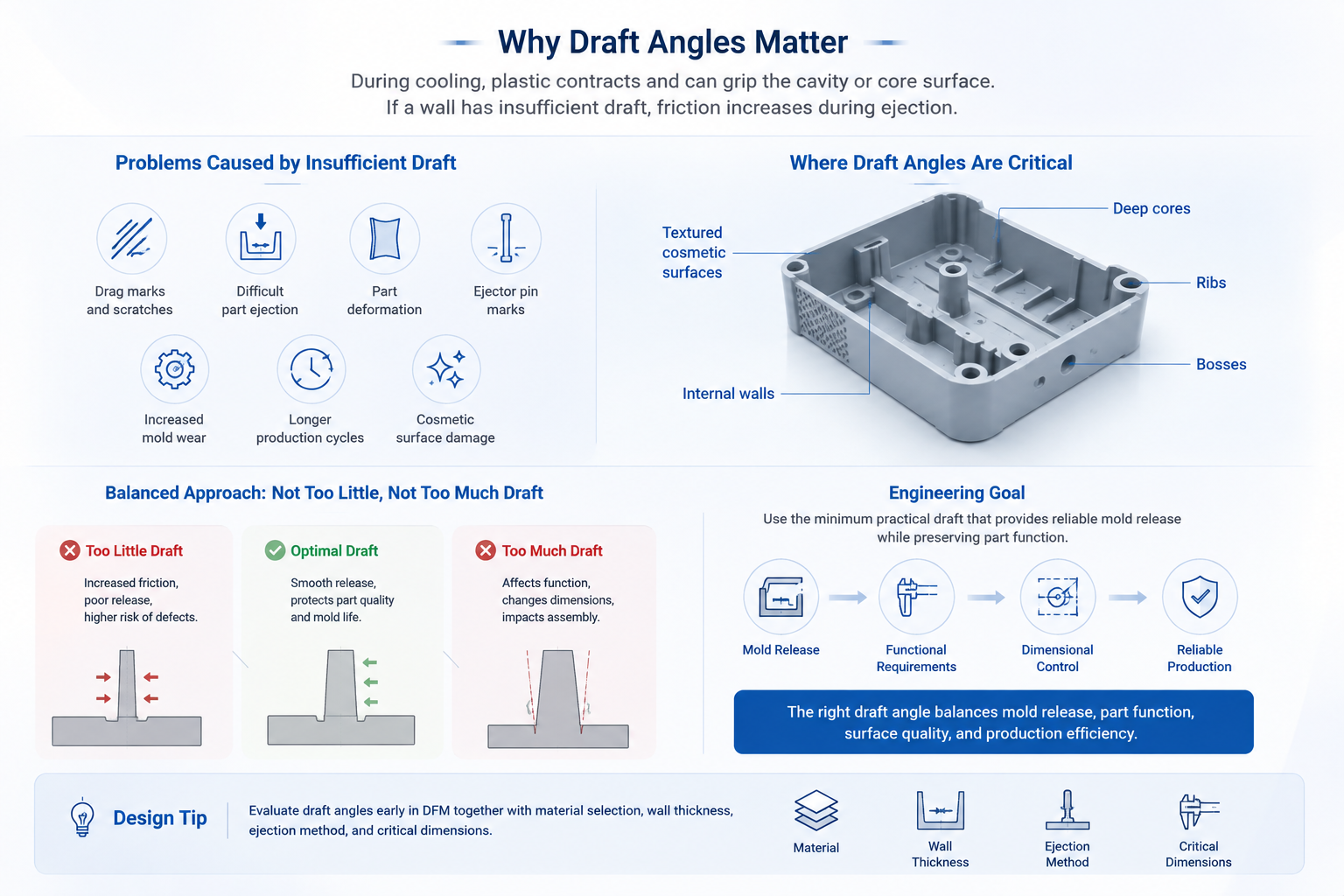

Why Draft Angles Matter

During cooling, plastic contracts and can grip the cavity or core surface. If a wall has insufficient draft, friction increases during ejection. This can cause:

· Drag marks and scratches

· Difficult part ejection

· Part deformation

· Ejector pin marks

· Increased mold wear

· Longer production cycles

· Cosmetic surface damage

Draft becomes especially important for deep cores, ribs, bosses, internal walls, and textured cosmetic surfaces.

However, more draft is not always better. Excessive taper can affect mating clearances, sealing surfaces, connector dimensions, and other functional features. The engineering goal is to use the minimum practical draft that provides reliable mold release while preserving part function.

Injection Molding Draft Angle Guidelines

These are engineering starting points rather than universal specifications. Actual requirements should be confirmed according to resin grade, part geometry, texture depth, shrinkage, mold finish, and ejection conditions.

For critical plastic components, engineers should also consider how the draft changes the dimension from the top of the wall to the bottom. This is particularly important when the surface participates in assembly or sealing.

Draft Angle and Material Selection

Material behavior can significantly affect mold release.

Amorphous plastics and semi-crystalline plastics respond differently to cooling and shrinkage. Materials such as PPS and PEEK may require careful control of mold temperature and crystallization because dimensional changes can affect how tightly the part grips the core.

Glass- or carbon-fiber-reinforced materials introduce another consideration: fiber orientation can contribute to anisotropic shrinkage and warpage.

Therefore, draft should not be selected independently from material selection. The resin grade, reinforcement, shrinkage characteristics, and operating environment should all be considered during plastic design engineering.

Texture Guidelines

Surface texture generally requires more draft than a smooth polished surface because microscopic texture features can increase mechanical resistance during mold release.

A commonly used starting rule is approximately 1° of additional draft for every 0.001 in (0.025 mm) of texture depth. However, this is a guideline rather than a fixed industry standard. Actual draft requirements depend on texture geometry, material behavior, texture direction, and mold surface condition.

For cosmetic housings and textured panels, texture and draft should therefore be specified together before mold machining.

If a cosmetic surface has limited space for additional draft, engineers may need to reconsider the texture depth, parting direction, or mold structure rather than simply accepting a higher ejection force.

Key Manufacturing Challenges

1. Balancing Draft and Tolerances

Adding draft changes the part dimension along the draw direction. This can be critical for precision interfaces such as:

· Sealing surfaces

· Connector housings

· Snap-fit features

· Mating walls

· Bearing or bushing locations

Engineers should identify critical-to-function dimensions first. These features should receive appropriate tooling allowances and inspection requirements rather than applying excessive draft to the entire component.

2. Deep Cores and Ribs

Deep walls and narrow ribs have larger contact areas with the mold. Insufficient draft can increase ejection force and create deformation, scuffing, or stress marks.

Ribs should generally include draft on their side walls, while deep bosses should be evaluated together with core-pin geometry and ejection access.

For difficult geometries, the mold may require additional ejector support, stripper plates, slides, lifters, or other specialized tooling solutions.

3. Material Shrinkage and Cooling

Shrinkage is another important factor in mold release.

Uneven cooling can produce differential shrinkage and warpage, potentially increasing interference between the molded part and core. Semi-crystalline materials such as PPS and PEEK require particularly careful temperature management because cooling conditions can influence crystallinity and dimensional stability.

A correct draft angle cannot compensate for an unstable molding process. Mold design and process control must work together.

4. Parting Direction and Undercuts

Draft only works effectively when the surface is aligned with the intended mold opening direction.

Before mold construction, engineers should identify:

· Mold opening direction

· Parting line

· Core and cavity surfaces

· Undercuts

· Slides

· Lifters

· Ejection direction

A surface with apparently sufficient draft may still create a tooling problem if it is oriented incorrectly relative to the parting direction.

Technical Solutions for Reliable Mold Release

A robust design should establish draft and tooling requirements during DFM.

The review should consider:

1. Mold opening direction – Confirm every releasable surface follows the intended draw direction.

2. Parting-line location – Position the parting line to minimize complex tooling and unwanted witness marks.

3. Draft angle – Apply sufficient draft according to material, depth, and surface condition.

4. Texture depth – Increase draft where deeper texture increases release resistance.

5. Ejection layout – Distribute ejector force across structurally suitable areas.

6. Cooling strategy – Maintain consistent mold temperatures around critical features.

7. Critical tolerances – Separate functional dimensions from general molded surfaces.

Process parameters should also be optimized through mold trials. Mold temperature, injection speed, holding pressure, cooling time, and material preparation can influence shrinkage, residual stress, ejection behavior, and final dimensions.

For precision applications, CMM or other dimensional inspection methods can verify critical features after molding and confirm that the tooling strategy is producing stable results.

Precision Mold Manufacturing at Dawang Precision

At Dawang Precision, we combine 26 years of precision manufacturing experience with a factory equipped with more than 400 advanced machine tools, including Röders and Mazak 5-axis machining centers.

Our capabilities support complex mold cores, cavities, inserts, slides, lifters, textured surfaces, and tight-tolerance tooling for demanding plastic components.

For complex parts, our engineering approach considers the relationship between part geometry, draft, material behavior, ejection, mold structure, and dimensional control.

This integrated approach helps identify potential tooling issues before machining begins, reducing the risk of expensive mold modifications later in the project.

DFM Checklist for Injection Molded Parts

Before releasing a plastic part for tooling, engineers should ask:

· Is every releasable wall drafted?

· Is the draft sufficient for the selected resin?

· Does surface texture require additional draft?

· Are deep ribs and bosses easy to eject?

· Are critical dimensions clearly identified?

· Could shrinkage create core sticking?

· Is the parting direction appropriate?

· Are slides or lifters required?

· Is the ejection force properly distributed?

· Can the required tolerances be achieved consistently?

Addressing these questions early can prevent many mold-release problems before they reach production.

Conclusion

Proper injection molding draft angles are essential for reliable part ejection, mold release, surface quality, and dimensional accuracy. The correct value is not determined by a single standard. It should be established according to material, geometry, texture, mold construction, ejection strategy, and functional tolerances.

For precision plastic parts, the best approach is to evaluate draft together with part design, mold design, process parameters, and inspection requirements. Early DFM review can reduce tooling modifications, improve production stability, and help ensure that the final component meets its functional requirements.
