Views: 0 Author: Lee Publish Time: 2026-08-28 Origin: Site
Insert Molding vs. Overmolding: Choosing the Right Technique for Multi-Material Parts
Quick Answer: Choose insert molding when your multi-material part needs plastic over metal—such as threaded inserts, electrical contacts, or structural reinforcement—for high retention strength and efficient single-shot production. Choose overmolding when you require soft-touch rubber handles, seals, or ergonomic grips on a rigid substrate. For handheld medical devices and automotive switches, many successful designs combine both processes.
Hardware engineers and procurement managers frequently search for practical guidance on insert molding vs overmolding, especially for multi-material parts in medical and automotive applications. The decision directly affects cost, cycle time, reliability, and assembly reduction. Both techniques eliminate secondary operations such as adhesives or press-fitting, yet they address different engineering needs. Insert molding is ideal for plastic over metal integration. Overmolding delivers soft-touch surfaces and sealing performance. This article examines process details, real production parameters, challenges, technical solutions, and application recommendations.
According to Wikipedia’s entry on injection moulding, insert moulding places pre-formed components into the cavity so injected material solidifies around them, while overmoulding layers additional material onto a previously moulded substrate. Industry analyses, including SME reporting on metal-to-plastic conversion, indicate that replacing multi-piece assemblies with integrated molded solutions can deliver overall cost savings of 25–50% through reduced labor, lower part count, and improved consistency.

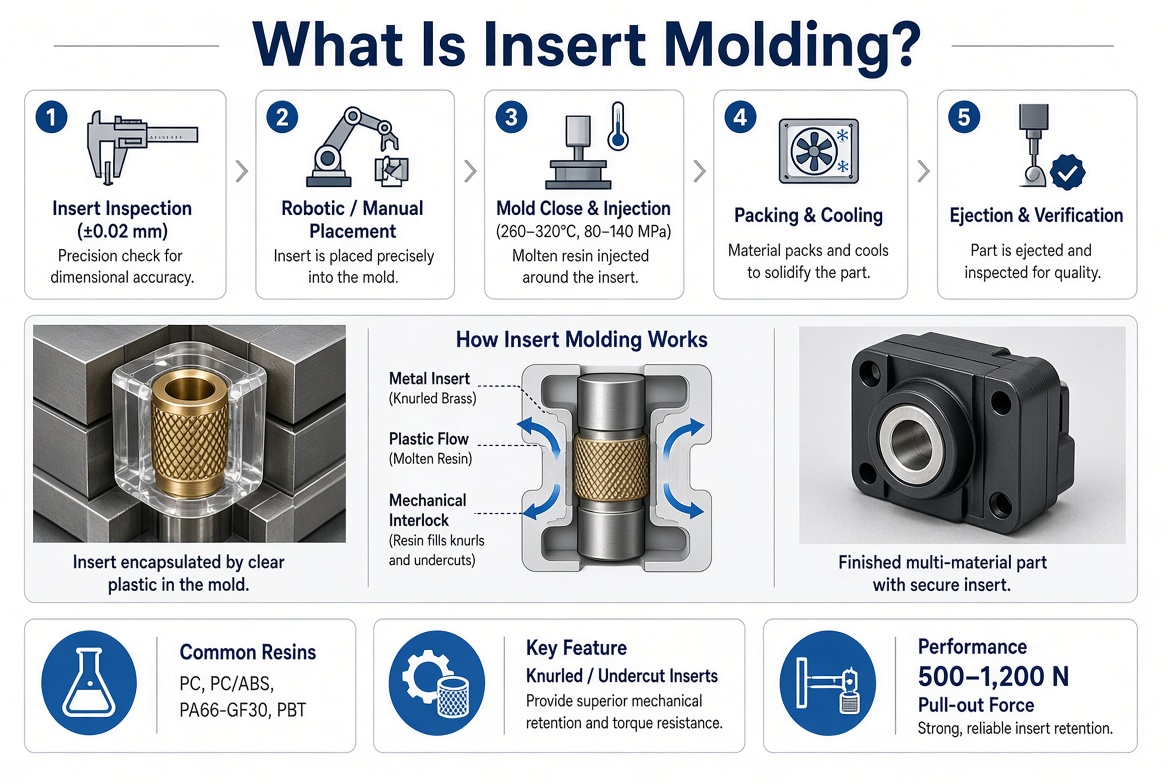

Insert molding loads a pre-formed component—typically brass, stainless steel 316, or stamped copper contacts—into the mold cavity. Molten thermoplastic is injected, flowing around the insert and forming a mechanical interlock as it cools.
Typical production sequence:
1. Insert inspection (dimensional check ±0.02 mm).
2. Manual or robotic placement into precision pockets.
3. Mold close and injection (melt temperatures 260–320 °C; pressures 80–140 MPa).
4. Packing and cooling.
5. Ejection and positional verification.
Common resins include PC, PC/ABS, PA66-GF30, and PBT. Knurled or undercut inserts significantly improve retention. Well-designed knurled M4–M6 brass inserts in glass-filled nylon routinely achieve pull-out forces of 500–1,200 N.
Overmolding first molds a rigid substrate, then injects a second material—usually TPE, TPU, or LSR—onto selected surfaces. Two-shot rotary-platen machines suit high volumes; sequential transfer works for lower volumes or complex geometries.
Typical parameters for soft-touch rubber handles:
· Substrate (PC or ABS) melt 280–310 °C, mold 60–90 °C.
· Overmold TPE melt 180–230 °C.
· Overmold thickness commonly 0.8–1.5 mm.
Compatible pairs such as ABS–SEBS TPE or PC–polyester TPE achieve chemical bonding with peel strengths often in the 15–30 N/mm range when process windows are controlled.
Criteria | Insert Molding | Overmolding |
Process shots | Single shot | Two shots or two-shot mold |
Primary strength | Plastic over metal, high retention | Soft-touch grips, seals, ergonomics |
Typical cycle time | 15–40 seconds | 30–80 seconds |
Tooling complexity | Lower (one mold + insert handling) | Higher (two cavities or rotary) |
Bond type | Mechanical interlock | Chemical + mechanical |
Best for | Threaded inserts, contacts, structure | Rubber handles, sealing, multi-hardness |
Volume suitability | Low to high | Medium to high |
Insert molding challenges include insert shift under pressure, flash at shut-off surfaces, residual stress from thermal expansion mismatch, and maintaining ±0.05 mm positional accuracy on critical features.
Solutions:
· Robotic loading with vision systems and mold-seat tolerances of ±0.03 mm.
· Aggressive mechanical interlocks (knurls, grooves, through-holes).
· Uniform mold temperature and optimized packing to reduce stress.
· Higher-shrinkage resins (PA, PBT) for pull-out strength or amorphous resins (PC) for dimensional stability.
· Process control targeting Cpk ≥1.33–1.67 on insert position.
Overmolding challenges include adhesion reliability, substrate warpage, incomplete filling of thin sections, and material compatibility under sterilization or thermal cycling.
Solutions:
· Validated material pairs and mechanical interlocks when needed.
· Controlled substrate cooling for optimal interface temperature.
· Gate and flow design for complete fill of 0.8–1.5 mm sections.
· Peel and aging tests as part of validation.
· Consistent overmold thickness to minimize warpage.
At Dawang Precision, mold tooling is produced on more than 400 advanced machines, including Roders and Mazak five-axis centers. This supports the precise cavities and shut-off features required for flash-free multi-material parts. With 26 years of experience, the team develops stable process windows for both insert molding plastic over metal and overmolding of rubber handles.
In handheld medical devices, insert molding embeds 316 stainless shafts, electrodes, or threaded fittings into biocompatible PC or PEEK housings. Overmolding then adds a 1.0–1.5 mm TPE grip that improves control and reduces fatigue. Materials must support autoclave, EtO, or gamma sterilization; validation includes retention testing after repeated cycles.
Automotive switches commonly use insert molding to encapsulate brass or copper terminals and threaded inserts within PA66 or PBT housings for vibration resistance and reliable contact. Overmolding applies soft-touch or sealing surfaces that enhance tactile feedback and environmental protection. Hybrid approaches—insert-molded cores followed by overmolding—are frequent when both metal integration and rubber handles are required.
Choose insert molding when the part needs metal hardware, durable threads, or electrical conductivity and simpler tooling is preferred. Choose overmolding when soft-touch rubber handles, integral seals, vibration damping, or multi-color aesthetics are primary. When both functions are needed, sequence the processes: insert mold first, then overmold. Early DFM review prevents costly issues around adhesion, insert shift, or tolerance stack-ups.
· Insert molding is the preferred route for plastic over metal and high mechanical retention.
· Overmolding is optimal for soft-touch rubber handles, seals, and ergonomic surfaces.
· Cycle times, tooling cost, and material compatibility drive the economic decision.
· Tight process control (±0.05 mm positional tolerance, validated bonding) is essential for medical and automotive success.
· Hybrid designs often deliver the best functional outcome.
What is the main difference between insert molding and overmolding?
Insert molding encapsulates a pre-formed insert (usually metal) in a single shot. Overmolding applies a second polymer layer onto a previously molded substrate.
When should I use insert molding for medical devices?
Use it when embedding metal components such as shafts, electrodes, or threaded fittings that require high pull-out strength and precise positioning.
Can I combine insert molding and overmolding?
Yes. Many handheld medical devices and automotive switches use an insert-molded structural core that is subsequently overmolded with TPE for grip or sealing.
What tolerances are realistic?
Positional accuracy of ±0.05 mm on inserts is routinely achievable with proper tooling and automated loading. Overall part tolerances typically range from ±0.05 to ±0.15 mm depending on geometry and material.
Selecting the right multi-material process starts with a thorough design-for-manufacturability review. At Dawang Precision our engineering team evaluates geometry, material pairing, tolerance strategy, and process feasibility.
