Lightweight Metal 3D Printed Aluminum Structural Clip Bracket

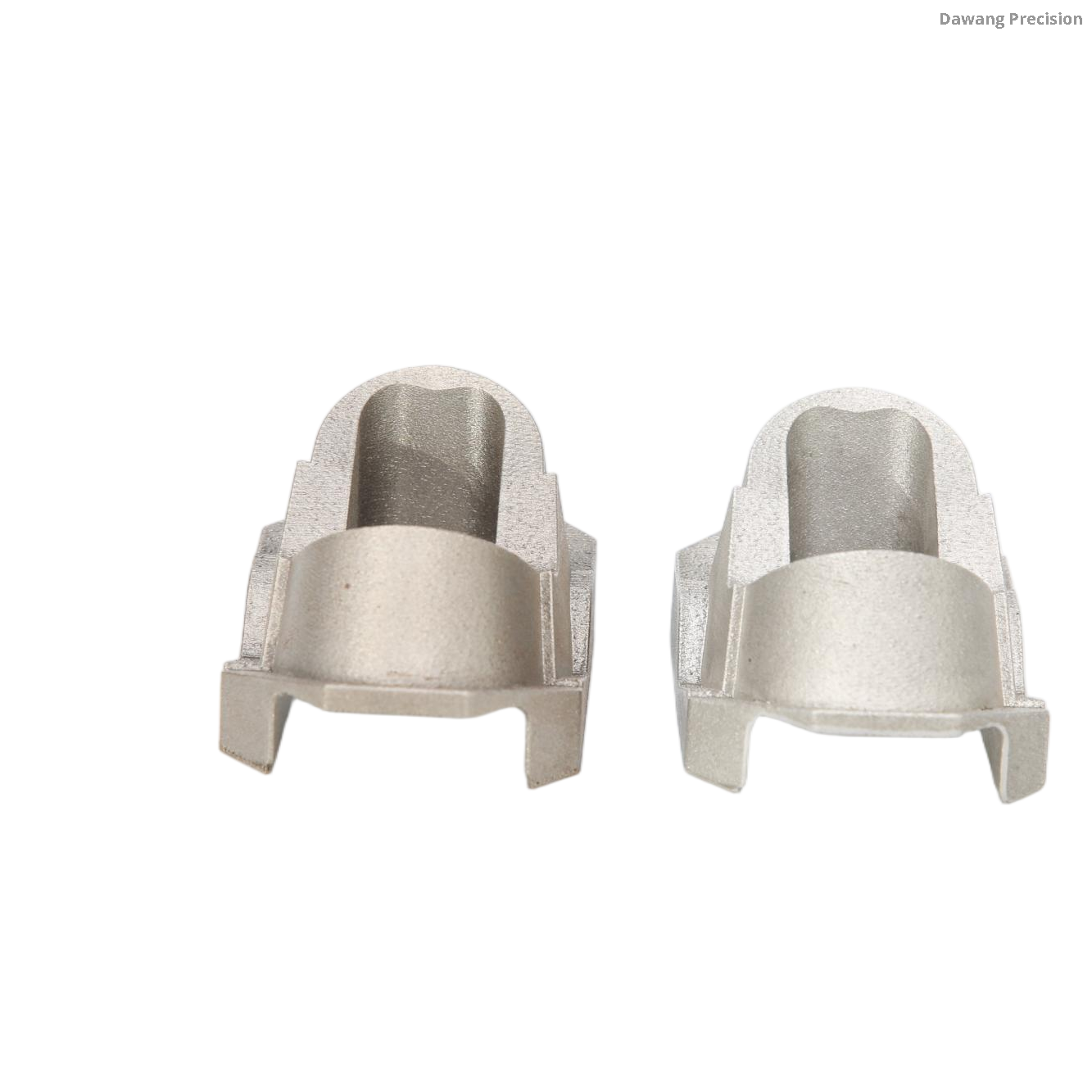

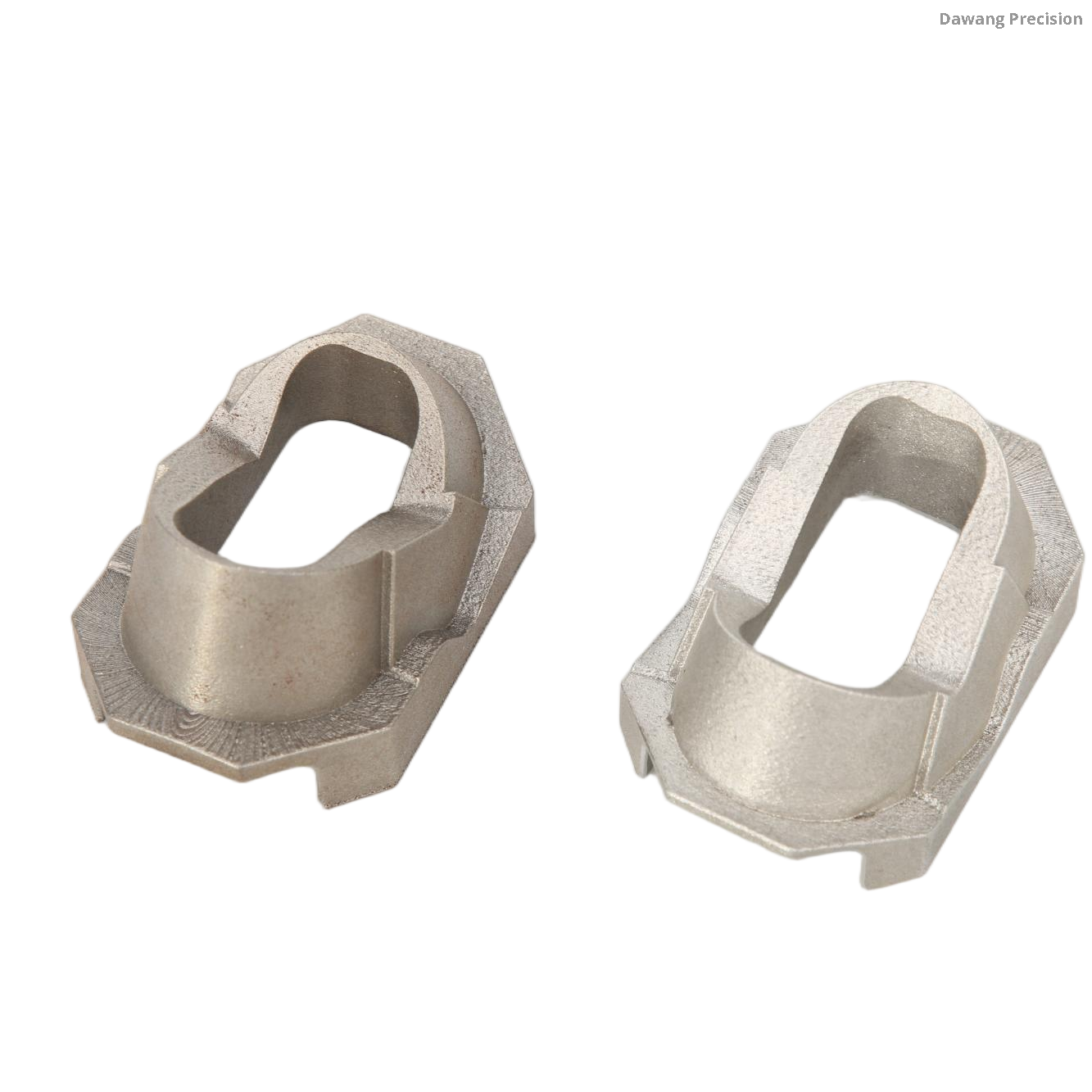

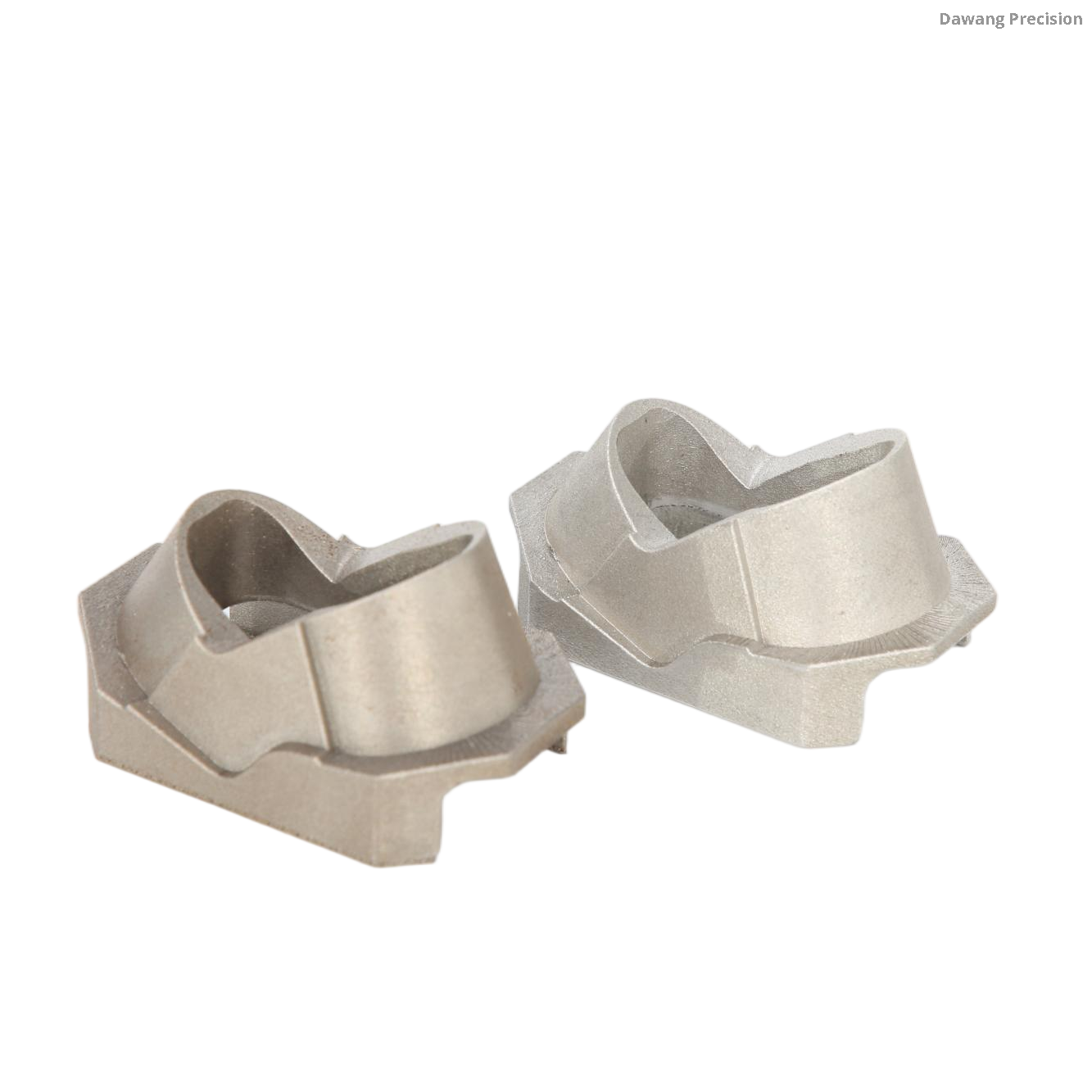

Dawang Precision’s lightweight metal 3D printed aluminum structural clip bracket represents a breakthrough in high-performance structural components, engineered using selective laser melting (SLM) additive manufacturing technology. Crafted from aerospace-grade AlSi10Mg aluminum alloy, this topology optimized 3D printed bracket eliminates traditional manufacturing limitations to deliver complex internal geometries that balance extreme strength with minimal mass. Featuring a robust hexagonal base, precision U-shaped clamping channel, and integrated mounting slots, the custom SLM aluminum mounting part provides secure, self-aligning retention even under severe vibration and thermal cycling conditions. Post-processed with sandblasting and anodizing for a smooth, corrosion-resistant surface, this additive manufactured aluminum fixture achieves 99.5%+ density and ±0.05mm tolerance on critical features, making it ideal for applications where weight reduction directly translates to enhanced system performance.

Core Advantages & Business Value

High Strength-to-Weight Ratio via Topology Optimization

Our precision 3D printed aluminum component leverages advanced topology optimization to remove non-essential material while preserving structural integrity. This results in a high strength aluminum clip holder that is up to 40% lighter than equivalent CNC-machined alternatives without sacrificing rigidity. The integrated internal lattice reinforcement distributes loads evenly across the part, ensuring reliable performance under dynamic operating conditions. For weight-sensitive systems, this translates directly to increased payload capacity, extended operational range, and reduced energy consumption.

Superior Vibration Resistance & Thermal Stability

The one-piece construction of our custom aluminum 3D printed mount eliminates the weak points inherent in multi-part assemblies, significantly improving vibration damping characteristics. The hexagonal base design creates a stable, self-centering interface that prevents component shift during high-speed maneuvers or temperature fluctuations. Unlike plastic alternatives, the aerospace grade aluminum structural clip maintains consistent mechanical properties across a wide temperature range, ensuring reliable performance in extreme operating environments.

Streamlined Production & Reduced Assembly Complexity

SLM additive manufacturing allows us to produce complex geometries in a single operation that would require multiple machining steps and assembly processes with traditional methods. This not only shortens lead times from weeks to days but also eliminates the need for fasteners, adhesives, and welding operations. Our lightweight drone bracket aluminum solution reduces assembly time by up to 87% compared to conventional designs, lowering labor costs and minimizing the risk of assembly errors.

We support clients from initial topology optimization and light weighting analysis through to final surface treatment and functional testing. Our metal 3D printing workflow shortens development from weeks to days, enables complex one-piece designs that replace multi-part assemblies, and delivers parts with superior performance-to-weight ratios. Whether for prototypes or series production, we help reduce overall system weight, improve vibration damping, and accelerate time-to-market.

OEM & ODM Customization Services

Dawang Precision offers comprehensive end-to-end customization services for original equipment manufacturers and industrial partners. We support clients from initial topology optimization and lightweighting analysis through to final surface treatment and functional testing. Our team of experienced engineers works closely with you to develop custom metal 3D printed aluminum bracket solutions tailored to your specific performance requirements, operating conditions, and production volumes. With 26 years of expertise in precision manufacturing and multi-system certifications including ISO 9001, ISO 14001, IATF 16949, and ISO 13485, we deliver consistent, high-quality parts for both prototype and series production needs.

Proven Client Success Story

A leading European unmanned aerial vehicle (UAV) manufacturer developing next-generation inspection drones faced a critical challenge: traditional CNC aluminum brackets were too heavy, limiting flight endurance and payload capacity, while plastic alternatives lacked the required stiffness and thermal stability for long-duration missions.

Dawang Precision redesigned their camera stabilization gimbal bracket as a lightweight aluminum structural clip using topology optimization and SLM 3D printing. The new design incorporated internal lattice reinforcement and a precision U-channel that snaps securely onto the gimbal shaft, eliminating the need for additional fasteners.

The implementation delivered exceptional results: component weight reduced by 52% compared to the previous CNC bracket, gimbal vibration damping improved by 35% during high-speed maneuvers, assembly time cut from 4 minutes to 45 seconds per unit, and flight endurance increased by 18 minutes per battery cycle. The client has now standardized this metal 3D printed aluminum bracket across their entire drone product family.

Industry Applications

• UAV and drone camera gimbals and payload mounts

• Lightweight robotics end-effectors and manipulators

• Aerospace sensor and antenna mounting systems

• Automotive lightweight structural clips and brackets

• Medical device positioning and fixation fixtures

• High-vibration industrial monitoring systems

• Satellite and space component structural supports
