High-Speed CNC Machining for Thin-Wall Packaging Mold Cavities and Venting Design

Focus Keyword: thin-wall mold manufacturing
Related Keywords: high-speed CNC machining mold, venting design, injection pressure
Search Intent Keywords: thin-wall mold design, thin-wall mold cavity machining, packaging mold manufacturing, injection mold venting design, CNC machining for injection molds

Quick Answer

Thin-wall mold manufacturing requires precise cavity machining, controlled venting, and stable tolerances to support high-speed injection molding. As wall thickness decreases, the filling window becomes shorter, making cavity accuracy and air evacuation increasingly important. High-speed CNC machining, 5-axis machining, EDM, and precision inspection help produce consistent mold cavities for applications such as food packaging containers and medical thin-wall tubes.

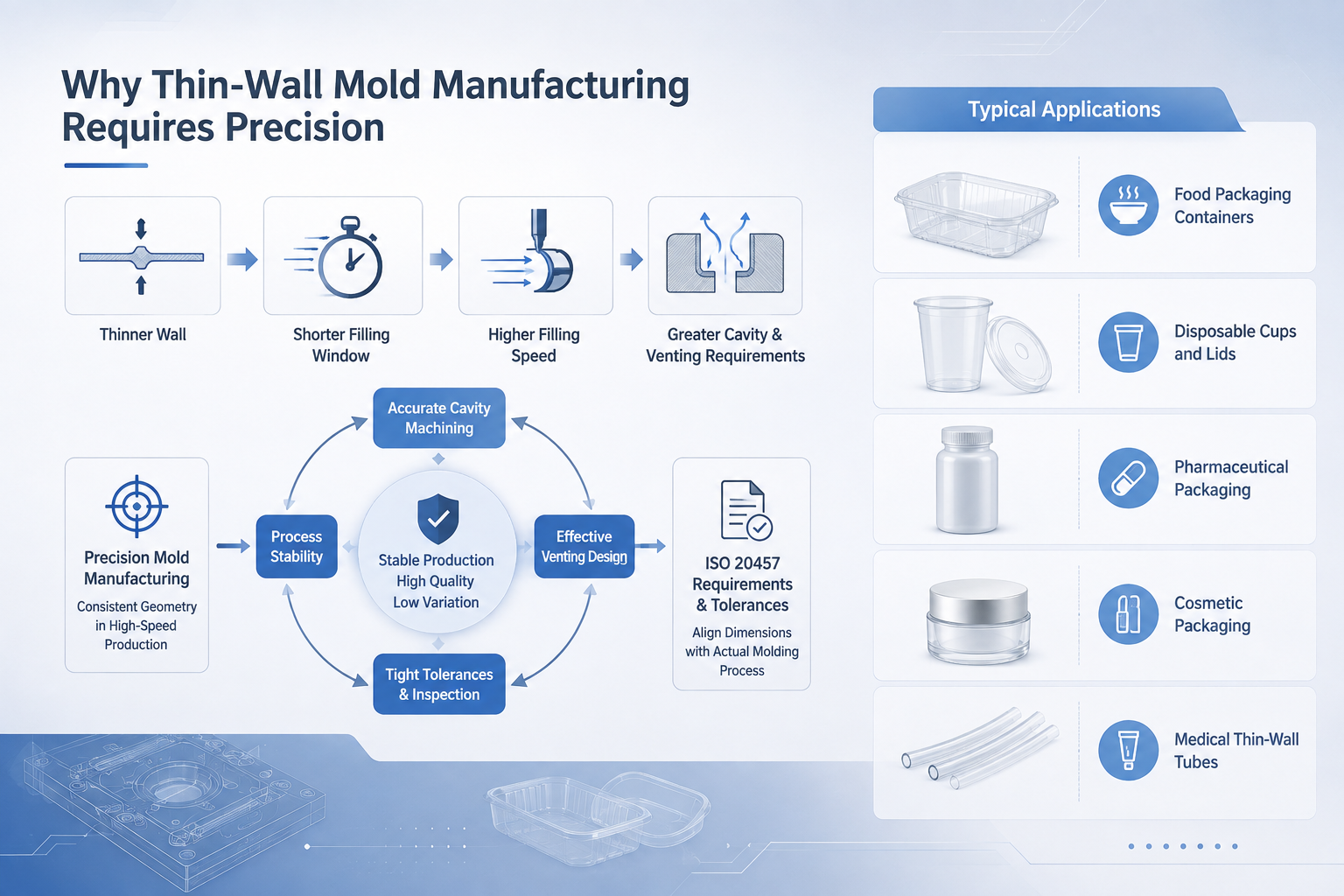

Why Thin-Wall Mold Manufacturing Requires Precision

Thin-wall injection molding is widely used for lightweight, high-volume plastic products. A thinner wall requires the molten polymer to fill the cavity quickly before cooling restricts flow.

The relationship is straightforward:

Thinner wall → shorter filling window → higher filling speed → greater cavity and venting requirements

For mold manufacturers, the challenge is maintaining consistent geometry during repeated high-speed production. ISO 20457 establishes requirements and tolerances for molded plastic parts, reinforcing the need to relate dimensional requirements to the actual molding process.

Typical applications include:

Food packaging containers

Disposable cups and lids

Pharmaceutical packaging

Cosmetic packaging

Medical thin-wall tubes

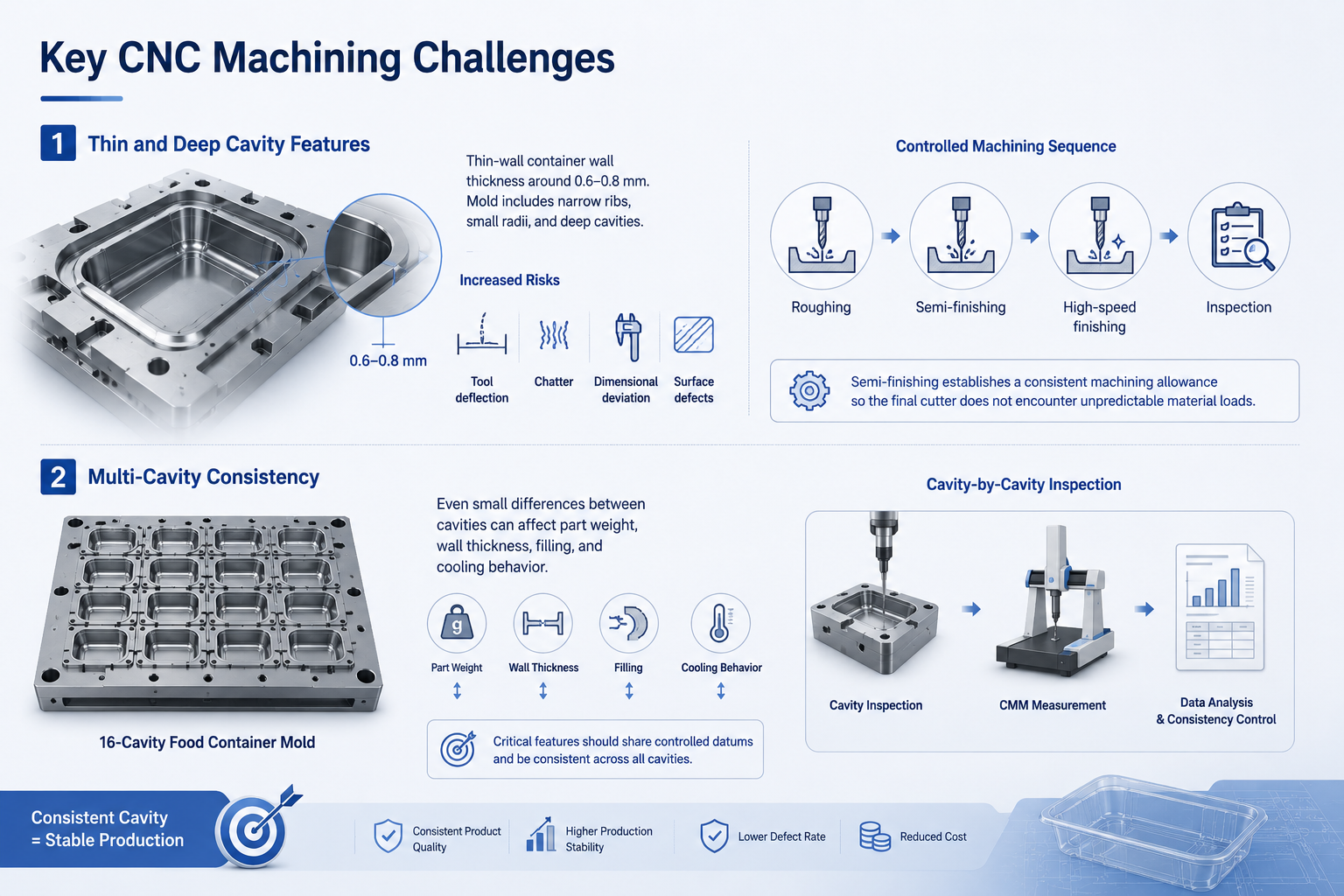

Key CNC Machining Challenges

Thin and Deep Cavity Features

A thin-wall container may have a wall thickness around 0.6–0.8 mm, while the corresponding mold can contain narrow ribs, small radii, and deep cavity surfaces.

These features increase the risk of:

Tool deflection

Chatter

Dimensional deviation

Surface defects

A controlled sequence is typically used:

Roughing → Semi-finishing → High-speed finishing → Inspection

Semi-finishing establishes a consistent machining allowance so the final cutter does not encounter unpredictable material loads.

Multi-Cavity Consistency

Consider a representative 16-cavity food container mold. Even small differences between cavities can affect part weight, wall thickness, filling, and cooling behavior.

Critical features should therefore share controlled datums and be inspected cavity by cavity using CMM or appropriate metrology.

High-Speed CNC Machining Strategies

High-speed CNC machining is not simply maximum spindle speed. Effective mold machining balances:

Spindle speed + feed rate + tool engagement + tool rigidity + machining allowance

Roughing focuses on stable material removal. Semi-finishing equalizes remaining stock, while high-speed finishing controls scallop height and surface quality.

For cosmetic cavity surfaces, smaller step-over may improve finish, but the strategy should be optimized according to geometry rather than minimized everywhere.

5-Axis CNC Machining for Complex Cavities

Deep packaging cavities often require long tools when machined from a fixed 3-axis direction. Excessive tool stick-out can increase vibration and reduce accuracy.

5-axis machining can change tool orientation to improve:

Tool accessibility

Rigidity

Surface consistency

Number of setups

Dawang Precision operates Röders and Mazak 5-axis machining centers, allowing multi-axis strategies to be applied where they provide practical manufacturing benefits.

Venting Design for Thin-Wall Molds

During rapid filling, molten plastic pushes air toward the end of the flow path. If air cannot escape efficiently, defects may occur.

Vents are commonly considered around end-of-fill areas, parting lines, deep pockets, ribs, and other potential air traps.

However, effective venting design depends on location, depth, geometry, and atmospheric connection. More vents do not automatically mean better venting.

How CNC Accuracy Affects Venting

A critical relationship in thin-wall mold manufacturing is:

CNC accuracy → vent geometry → air evacuation → filling behavior → part quality

A vent that is too shallow may restrict air evacuation, while excessive depth can increase flash risk.

CNC machining can produce many venting features, while EDM can complement milling for narrow or difficult-to-access structures. Mold-flow analysis can also help identify potential air traps before final machining.

Controlling Injection Pressure

Thin-wall parts generally require rapid filling, which can increase injection pressure. However, increasing pressure should not be the first response to a short shot.

Engineers should first review:

Gate location and size

Flow length

Venting efficiency

Cavity surface condition

Injection speed

A properly machined cavity with effective venting creates a more predictable filling environment.

Manufacturing Workflow

A representative thin-wall packaging mold workflow is:

DFM Review → Steel Preparation → CNC Roughing → Semi-Finishing → High-Speed Finishing → EDM → Vent Machining → Polishing → CMM Inspection → Mold Trial

During DFM, engineers review wall thickness, draft, parting lines, gates, cooling, venting, and critical tolerances.

For a representative 16-cavity food container mold, the goal is not simply shorter machining time. It is consistent cavity geometry and stable production across all cavities.

For medical thin-wall tubes, additional attention may be given to internal diameter, concentricity, wall thickness, core-to-cavity alignment, and surface quality.

Why Choose Dawang Precision?

Dawang Precision has 26 years of precision manufacturing experience and operates 400+ advanced machine tools, including Röders and Mazak 5-axis machining centers.

Our manufacturing process integrates DFM, high-speed CNC machining, EDM, venting analysis, tolerance control, and dimensional inspection to address the complete mold manufacturing requirement.

Conclusion

Successful thin-wall mold manufacturing depends on more than machining a cavity quickly. Accurate CNC machining, controlled tolerances, effective venting, and appropriate finishing must work together.

The key relationship is:

Cavity Accuracy → Venting → Injection Pressure → Filling Stability → Part Consistency

For thin-wall packaging or medical components, send your STEP or PDF drawings to the Dawang Precision engineering team for a free DFM evaluation covering cavity manufacturability, CNC strategy, venting, tolerances, and production risks.
