Quick Answer: Injection molding draft angles are tapered surfaces that help plastic parts release from the mold. For many smooth walls, 0.5°–1° per side is a practical starting point. Deeper walls and textured surfaces may require 1°–3° or more, depending on material, texture depth, shrinkage, surface finish, and ejection conditions.

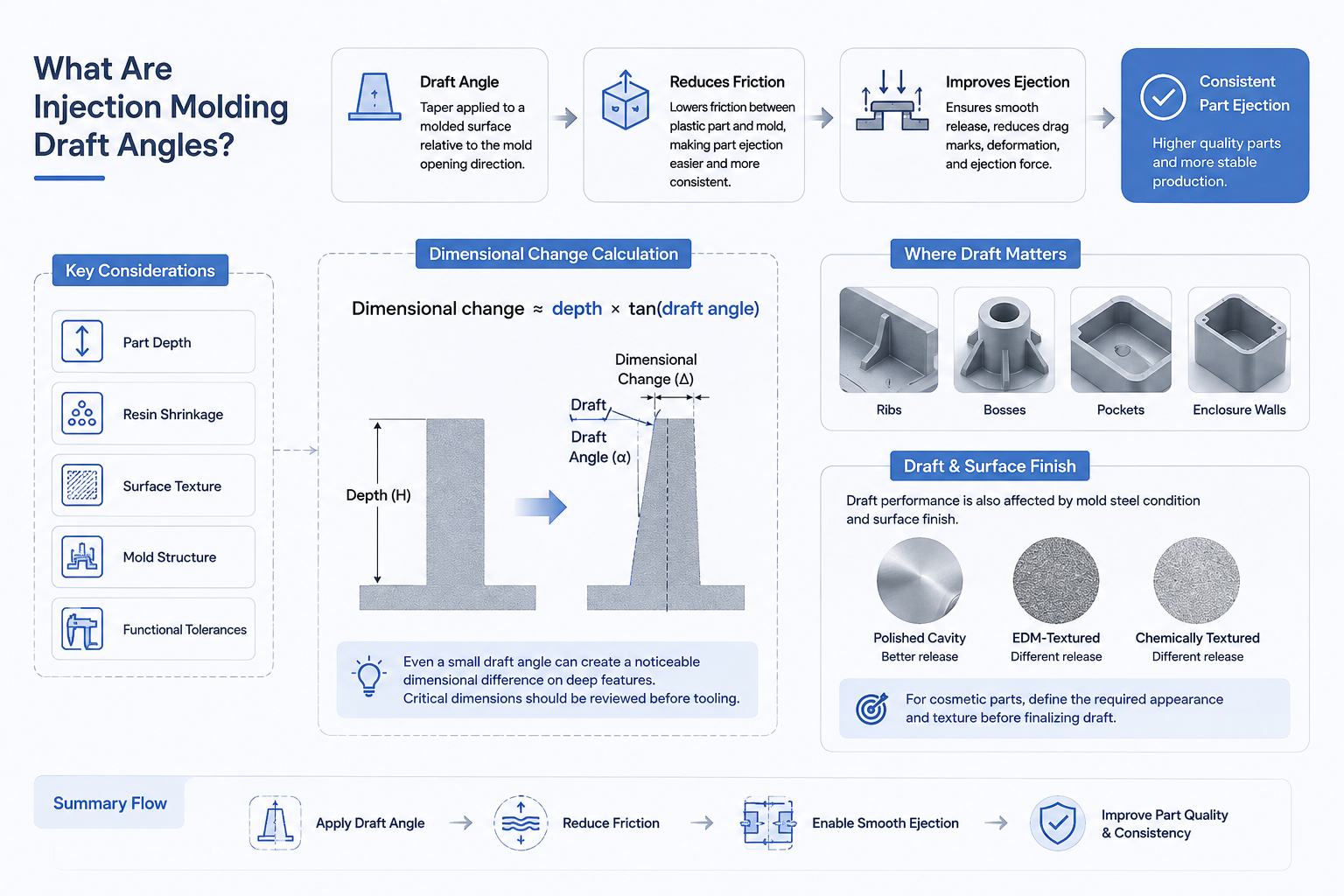

A draft angle is the taper applied to a molded surface relative to the mold opening direction. It reduces friction between the plastic part and the mold, making part ejection easier and more consistent.
Draft should be considered together with part depth, resin shrinkage, surface texture, mold structure, and functional tolerances.
A simplified calculation is:
Dimensional change ≈ depth × tan(draft angle)
This helps engineers evaluate the effect of draft on ribs, bosses, pockets, and enclosure walls. Even a small angle can create a noticeable dimensional difference on deep features, so critical dimensions should be reviewed before tooling.
Draft is also closely related to mold steel condition and surface finish. A polished cavity may release differently from an EDM-textured or chemically textured surface. For cosmetic parts, engineers should therefore define the required appearance and texture before finalizing draft.
Surface Condition | Starting Range |
Smooth wall | 0.5°–1° |
Deep wall | 1°–2°+ |
Light texture | 1°–2° |
Heavy texture | 2°–3°+ |
Deep ribs/bosses | Case-by-case |
These are general guidelines rather than universal specifications. Final draft requirements should be confirmed based on the actual material, geometry, texture, mold finish, and ejection method.

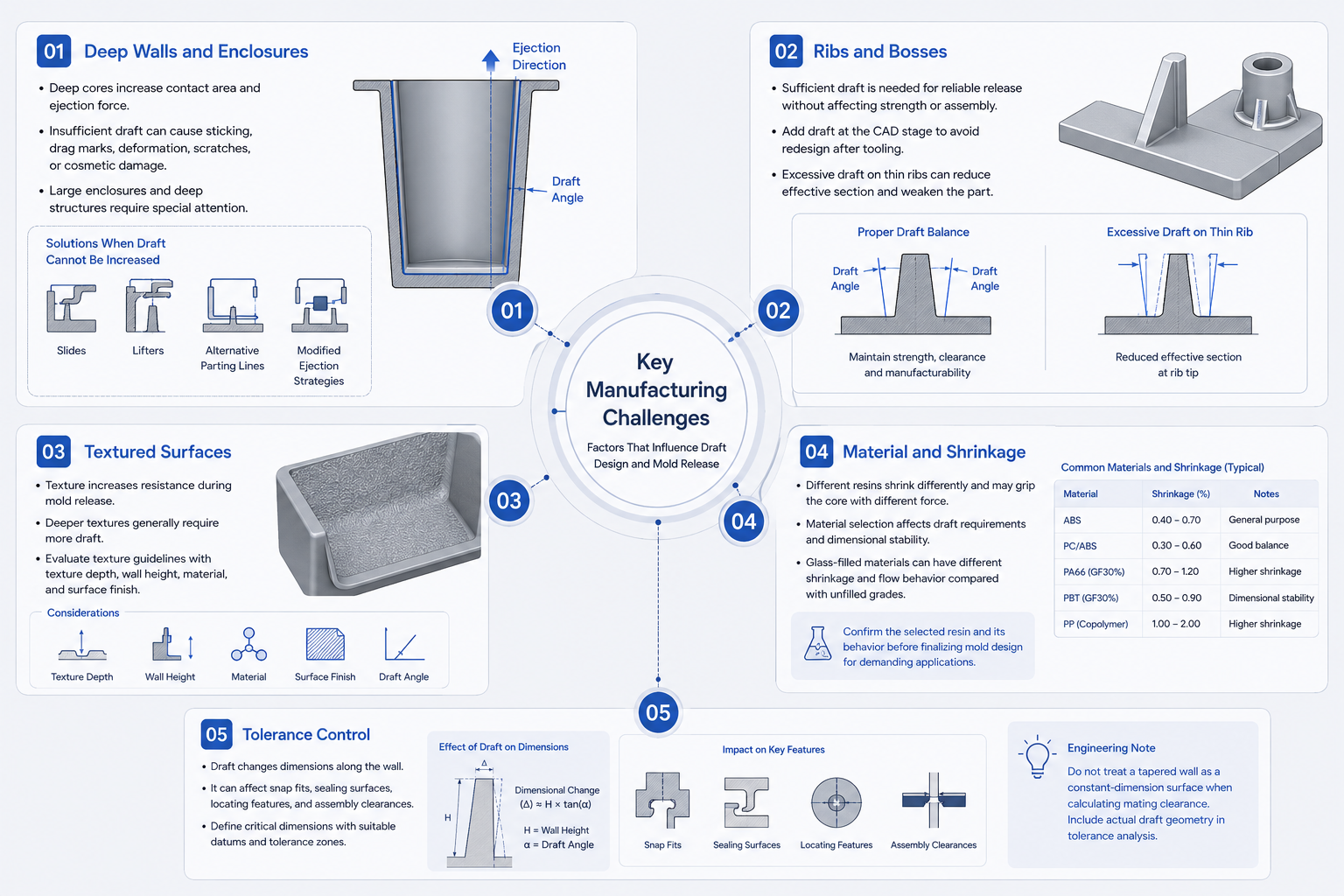

Deep cores create greater contact with molded surfaces. Insufficient draft can increase ejection force and cause sticking, drag marks, deformation, scratches, or cosmetic damage. Large housings and deep enclosures require particular attention.
When draft cannot be increased because of product geometry, engineers may need to consider slides, lifters, alternative parting lines, or modified ejection strategies to achieve reliable release.
Ribs and bosses need sufficient draft for reliable release without affecting structural strength, fastener engagement, or assembly clearance. Adding draft during the CAD stage is preferable to modifying the design after tooling begins.
For thin ribs, excessive draft can also reduce the effective section at the rib tip. The design should therefore balance draft, rib thickness, height, and required mechanical strength.
Texture increases resistance during mold release. Deeper textures generally require more draft. Engineers should evaluate texture guidelines together with texture depth, wall height, material, and surface finish.
Different resins shrink differently after cooling and may grip the core more strongly. Material selection therefore affects draft requirements as well as dimensional stability.
Materials such as glass-filled plastics can also introduce different shrinkage and flow behavior compared with unfilled grades. For demanding applications, the selected resin should be confirmed before finalizing mold design.
Draft changes dimensions along the wall and may affect snap fits, sealing surfaces, locating features, and assembly clearances. Critical dimensions should be defined with suitable datums and tolerance zones.
For example, a tapered enclosure wall should not be treated as a simple constant-dimension surface when calculating mating clearance. The actual draft geometry needs to be included in the tolerance analysis.
First, establish the mold pull direction and identify vertical walls, reverse draft, undercuts, deep pockets, parting lines, and ejection surfaces.
Draft should also be coordinated with molding parameters such as melt temperature, mold temperature, packing pressure, cooling time, and ejection timing. These factors influence shrinkage, deformation, and release stability.
On the tooling side, accurate draft depends on controlled CNC machining, EDM, polishing, and core-cavity alignment. Complex mold components can also benefit from precision 5-axis machining, particularly where deep cavities or multiple angled surfaces limit conventional tool access.
A well-designed ejection system is equally important. Ejector pins should be positioned to distribute force effectively and avoid excessive stress on thin walls, cosmetic surfaces, or delicate features.
For high-precision molds, inspection should verify critical draft surfaces, parting-line alignment, cavity dimensions, and functional features before mold trials. Early measurement can prevent repeated trial-and-error modifications.
Before mold construction, verify:
· Mold pull direction
· Draft on walls, ribs, and bosses
· Reverse-draft and undercut areas
· Texture draft requirements
· Material shrinkage behavior
· Ejection strategy
· Critical tolerances
· Parting-line location
· Machining and maintenance access
With 26 years of manufacturing experience and 400+ advanced machine tools, including Röders and Mazak 5-axis machines, Dawang Precision provides precision mold manufacturing and DFM support for complex plastic components.
Our engineers evaluate draft together with mold structure, ejection strategy, machining accessibility, surface finish, material behavior, and dimensional tolerances to identify tooling risks before steel cutting.
For complex components, the team can review the complete STEP or PDF design and assess draft, parting lines, slides, lifters, cooling layout, and critical mold features as part of the DFM process.
What is a good draft angle for injection molding?
For many smooth walls, 0.5°–1° per side is a practical starting point. Deeper or textured surfaces may require more.
Does texture require more draft?
Generally, yes. Deeper textures usually increase mold-release resistance and may require additional draft.
What happens with insufficient draft?
The part may stick to the core, causing drag marks, deformation, ejector marks, surface damage, and increased mold wear.
Can draft angles affect part dimensions?
Yes. Draft creates dimensional variation along the wall height, which should be considered when defining assembly clearances and critical tolerances.
Proper injection molding draft angles improve part ejection, mold release, surface quality, tooling durability, and production stability. The final angle should be determined by material, geometry, texture, tolerances, and tooling conditions.
Treating draft as part of the overall DFM process—not as a final CAD adjustment—can help reduce tooling modifications and improve production reliability.
