Bridge Tooling: Using Rapid Prototyping to Secure Market Launch Before Hard Tooling is Ready

By Dawang Precision Tooling Engineering Team | Reviewed by Injection Molding Engineers | Updated September 2026

Quick Answer

Bridge tooling is temporary or intermediate injection-molding tooling used after a product design has passed functional validation but before permanent hard tooling is ready for mass production. It gives teams a practical way to make production-representative parts for pilot runs, customer approvals, assembly checks, packaging validation, and early market launch.

For fast-moving consumer goods, bridge tooling can prevent a launch schedule from being dictated solely by the hard-tool build timeline. It is not a replacement for long-life production tooling. Instead, it is a controlled bridge from prototype validation to stable mass production.

What Is Bridge Tooling?

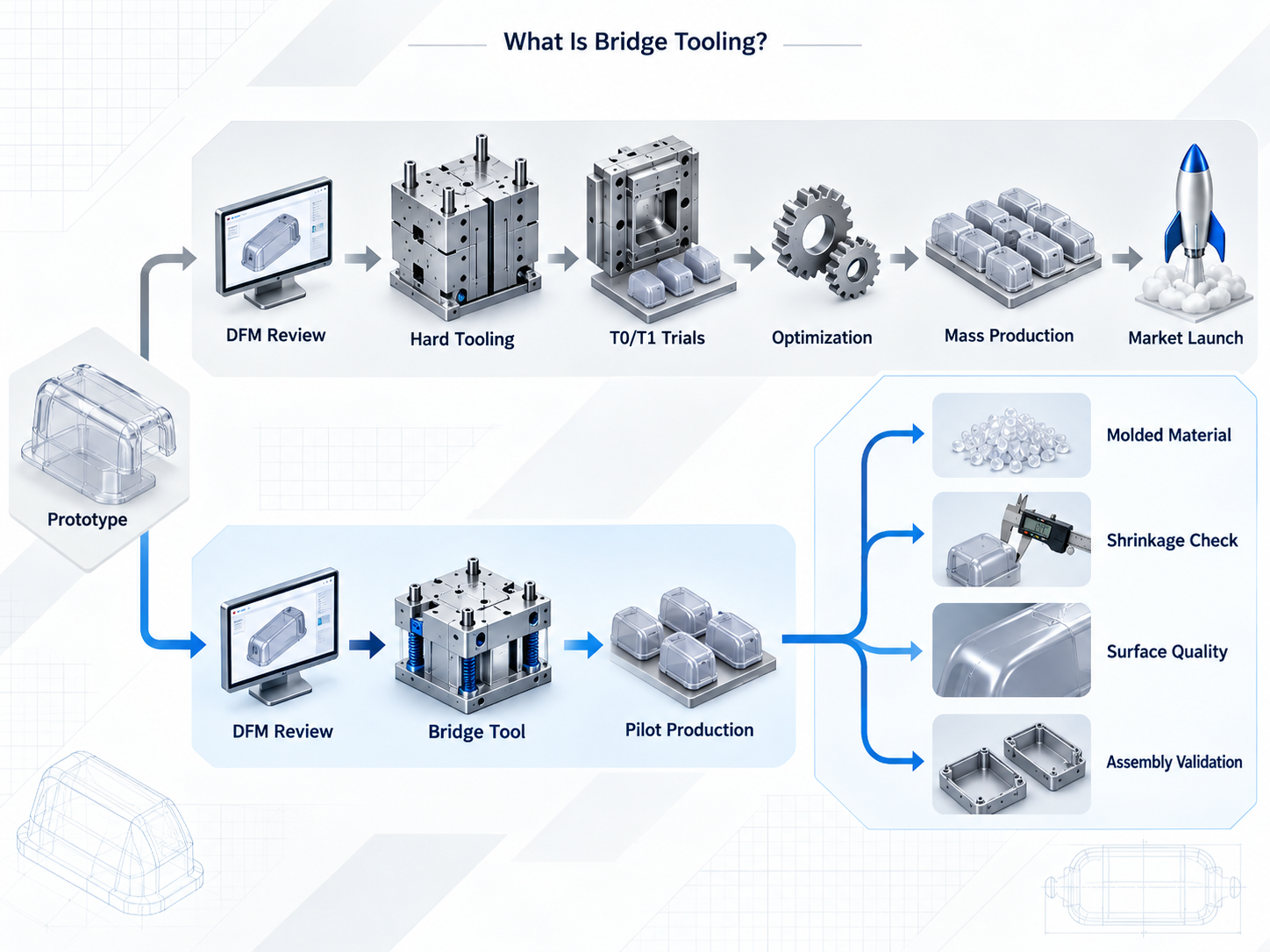

A conventional product-development path often looks like this:

Prototype → Hard Tooling → T0/T1 Trials → Production → Market Launch

This process is reliable, but permanent injection molds require time for tool design, steel sourcing, CNC machining, EDM, polishing, assembly, trial molding, inspection, and correction. If the product must reach customers quickly, waiting for every hard-tool milestone can delay launch.

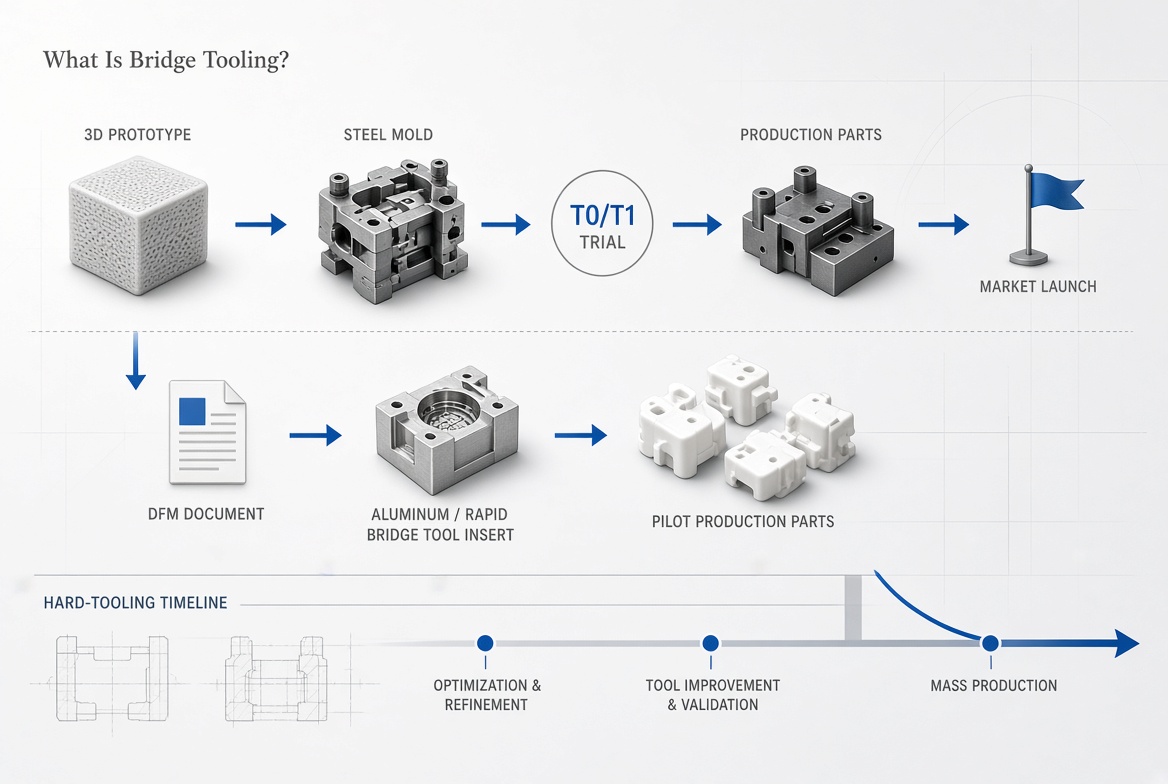

Bridge tooling creates a parallel route:

Validated Prototype → DFM Review → Bridge Tool → Pilot Production

At the same time:

Hard Tooling → T0/T1 Trials → Optimization → Mass Production

continues toward the final production release.

The purpose is not simply to make a lower-cost mold. The purpose is to produce parts that are closer to the final molded product than 3D-printed prototypes—using the intended resin, realistic shrinkage behavior, molded surface quality, and production-relevant assembly features.

When Should You Use Bridge Tooling?

Bridge tooling is most useful when the product is technically validated, but commercial timing requires parts before permanent tooling is fully released.

Common situations include:

• The design has passed functional prototype testing.

• Customer approval requires injection-molded samples rather than printed parts.

• Initial demand is limited, uncertain, or still being validated.

• Assembly, packaging, or logistics testing must begin before mass production.

• A product launch date cannot wait for long-life hard tooling.

• The team expects minor design refinement after early market feedback.

Consider a PC/ABS consumer enclosure with snap-fits, screw bosses, connector cutouts, and visible exterior surfaces. A 3D-printed sample can validate overall geometry, but it may not accurately represent the stiffness, shrinkage, cosmetic finish, clip behavior, or screw assembly performance of the final molded part.

In this situation, rapid tooling for injection molding can provide molded samples and pilot-run parts while the production tool is still being completed.

Bridge Tooling vs. Hard Tooling

The right option is not determined by volume alone. Engineers should also evaluate resin type, part size, dimensional requirements, surface expectations, expected tool life, design maturity, and the cost of a delayed launch.

Why 3D Printing Alone May Not Be Enough Before Launch

Rapid prototyping remains essential during early development. It is fast, flexible, and highly effective for validating shape, fit, and initial function. However, prototype parts may not behave like injection-molded production parts.

Bridge-molded parts can help teams verify:

• Material stiffness and impact behavior

• Shrinkage and dimensional repeatability

• Snap-fit deflection and retention

• Screw boss strength

• Connector and sealing interfaces

• Cosmetic texture and parting-line placement

• Packaging fit and assembly workflow

For products that will ultimately be injection molded, these checks reduce the risk of discovering production-related issues only after the final hard tool is built.

Manufacturing Challenges That Affect Launch Timing

Shorter tooling lead time does not eliminate molding requirements. A bridge tool still needs disciplined DFM, tool design, machining, trial molding, and inspection.

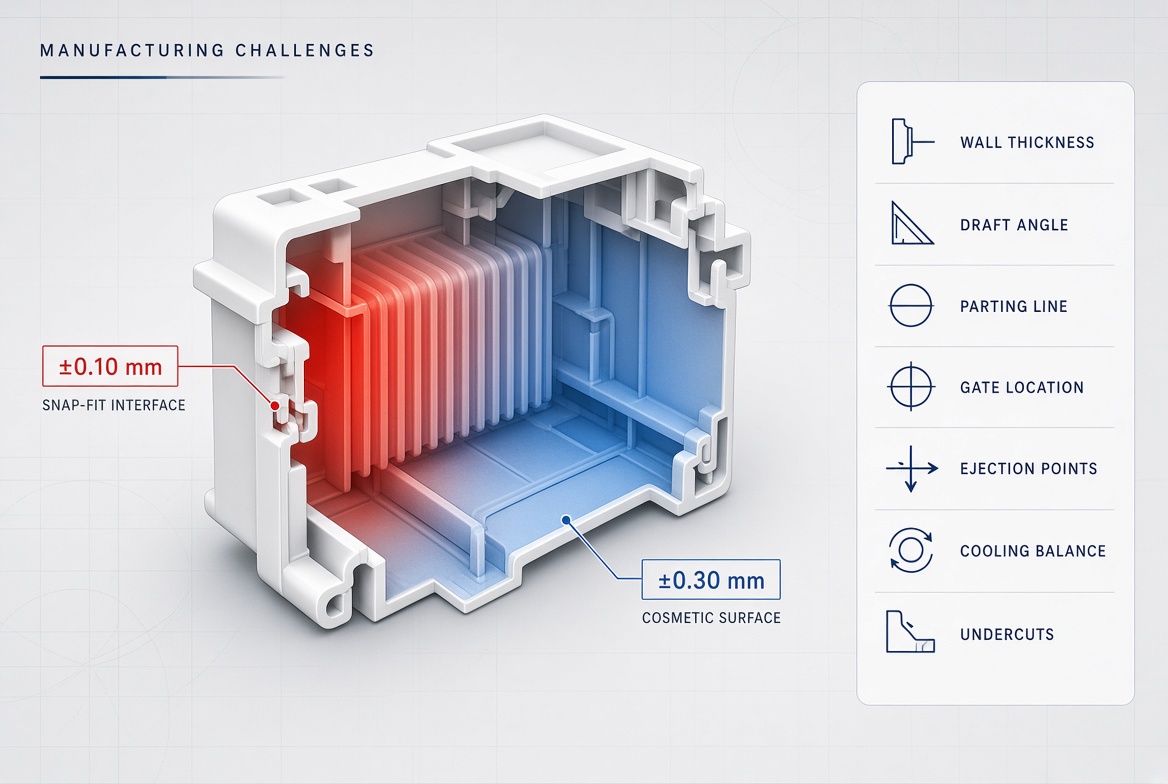

For a housing with nominal wall thicknesses around 2.0–2.5 mm, ribs, bosses, and snap-fits may cool at different rates from the exterior wall. This can create differential shrinkage, sink marks, warpage, or variation at critical assembly features.

Before bridge-tool manufacture, the DFM review should assess:

• Wall-thickness consistency

• Draft angle

• Gate location

• Parting line placement

• Ejection-point location

• Cooling strategy

• Undercuts and side actions

• Tolerance requirements

• Cosmetic-surface expectations

Critical-to-function features should receive the highest level of process control. For example, a snap-fit interface may require a tighter tolerance than a non-functional exterior surface. The appropriate tolerance must always be based on the drawing, resin, geometry, measurement method, and assembly requirement—not on a universal number.

From DFM to Pilot Production

At Dawang Precision, bridge-tool projects follow an engineering-led workflow:

STEP Review → DFM → Tool Design → CNC/EDM Machining → Mold Assembly → Trial Molding → Inspection → Pilot Run

The first review confirms whether the model is suitable for the selected molding process and identifies design risks before machining begins. During tool construction, multi-axis machining can reduce setups and help control the position of complex mold features.

Dawang Precision supports tooling and precision manufacturing projects with 26 years of experience and more than 400 advanced machine tools, including Röders and Mazak 5-axis machines.

During trial molding, engineers may adjust parameters such as:

• Melt temperature

• Mold temperature

• Injection speed

• Injection pressure

• Holding pressure

• Cooling time

If a snap-fit, boss, or mating feature is outside specification, the engineering team should identify the actual cause before changing the tool. The issue may originate in tool geometry, material shrinkage, packing conditions, cooling balance, measurement variation, or part handling.

The objective is not merely to produce one acceptable sample. It is to establish repeatable dimensions and stable molding conditions for the pilot run.

How Bridge Tooling Supports Market Launch

Bridge tooling allows product teams to move several launch-critical activities forward in parallel with permanent-tool development.

Customer evaluation
Provide production-representative molded parts for approvals, demonstrations, and customer feedback.

Assembly validation
Check screws, clips, seals, connectors, mating components, and operator assembly steps using molded parts.

Packaging validation
Confirm that the finished product fits trays, cartons, inserts, labels, and retail packaging as intended.

Pilot production
Produce an initial quantity for controlled distribution, field testing, or pre-launch preparation.

Market validation
Support early sales samples, channel feedback, and initial demand testing before committing fully to long-term production.

This changes the launch path from:

Prototype → Wait for Hard Tool → Production → Launch

to:

Prototype → Bridge Tool → Pilot Run → Market Validation

while hard tooling continues toward mass-production readiness.

When to Move From Bridge Tooling to Hard Tooling

Bridge tooling is most effective when it is treated as part of a defined prototype-to-production strategy. Teams should transition to hard tooling when product demand, design stability, annual volume, and tool-life requirements justify a permanent production mold.

Hard tooling is usually the stronger choice when:

• The design is stable and unlikely to change.

• Forecast volume requires longer tool life.

• Automated production requires highly consistent cycle performance.

• Tight dimensional control must be sustained over extended production.

• The long-term unit-cost benefit outweighs the higher initial tooling investment.

A clear transition plan prevents bridge tooling from becoming an unplanned production bottleneck.

Bridge Tooling FAQ

What is bridge tooling?

Bridge tooling is intermediate tooling used to manufacture limited quantities of injection-molded, production-representative parts before permanent hard tooling is ready.

Can bridge tooling be used for injection molding?

Yes. It is commonly used for pilot production, customer qualification, assembly validation, market testing, and urgent pre-launch requirements.

Is bridge tooling the same as rapid prototyping?

No. Rapid prototyping usually produces early models directly from digital designs. Bridge tooling uses a mold-based process to make parts that more closely represent injection-molded production components.

What materials can be used with bridge tooling?

Material suitability depends on the tool design, selected tooling material, part geometry, temperature requirements, and production quantity. The resin should be confirmed during DFM review.

How many parts can bridge tooling produce?

There is no single answer. The practical quantity depends on the tool construction, resin, geometry, molding conditions, quality requirements, and intended tool life. Confirm the target volume with the tooling engineer before release.

Can bridge-molded parts be used for customer testing?

Yes. This is one of the main applications. They can help customers evaluate fit, appearance, assembly behavior, and material performance before mass production begins.

When should I choose hard tooling instead?

Choose hard tooling when the product design is stable and expected demand requires repeatable, long-term production at scale.

Start Your Bridge Tooling Project

If your prototype is validated but permanent tooling is delaying pilot production or launch preparation, send your STEP or PDF drawings to Dawang Precision for a free DFM evaluation.

Our engineering team will review tooling feasibility, material and tolerance risks, critical part features, and the most practical path from prototype to production. You will receive a response within 24 hours.
