Views: 0 Author: Lee Publish Time: 2026-09-24 Origin: Site
Automotive repair and aftermarket programs increasingly need aluminum parts that are no longer available, no longer fit modified vehicle systems, or must be validated before a larger production run. CNC machining automotive aluminum parts is a practical answer because it produces functional components directly from a CAD model or approved drawing, without waiting for casting or forging tools. It is particularly effective for custom brackets, steering-related mounts, brake-system housings, and replacement components that require controlled material, functional tolerances, and repeatable quality.
For prototypes, service parts, and low-volume production, CNC delivers more than speed. It gives engineering and purchasing teams a traceable route to improve an existing design, protect critical mounting interfaces, and move from a single validated part to a controlled repeat batch.
The automotive repair sector is changing from a simple replacement-parts model into a more technical supply environment. Vehicles remain in service longer; older platforms can outlive the availability of their original components; and EV, ADAS, performance, and retrofit programs introduce new assemblies that standard catalog parts do not always support.
This creates a familiar problem for repair businesses, vehicle modifiers, fleet operators, and aftermarket brands: the required part may be discontinued, have an unacceptable lead time, or be unsuitable for an updated vehicle configuration. A suspension mount may need a revised sensor interface. A brake-system housing may need to accommodate a different connection, fastener pattern, or service procedure. A low-volume vehicle program may need production-intent parts before dedicated tooling is financially justified.
Conventional manufacturing can be slow to react. Die casting, forging, and stamping are excellent once a design is frozen and quantities are high, but they require investment in tooling and provide less flexibility for design changes. CNC machining shortens that loop. With a STEP model and controlled PDF drawing, a manufacturer can make a real aluminum part for fit, functional, and assembly evaluation before committing to hard tooling.
For the automotive aftermarket, this means better support for legacy repairs, custom upgrades, motorsport, specialty vehicles, and limited-run components. It also enables a more disciplined alternative to uncontrolled copy parts: material, tolerances, threads, surface finish, and inspection requirements can be specified instead of guessed.

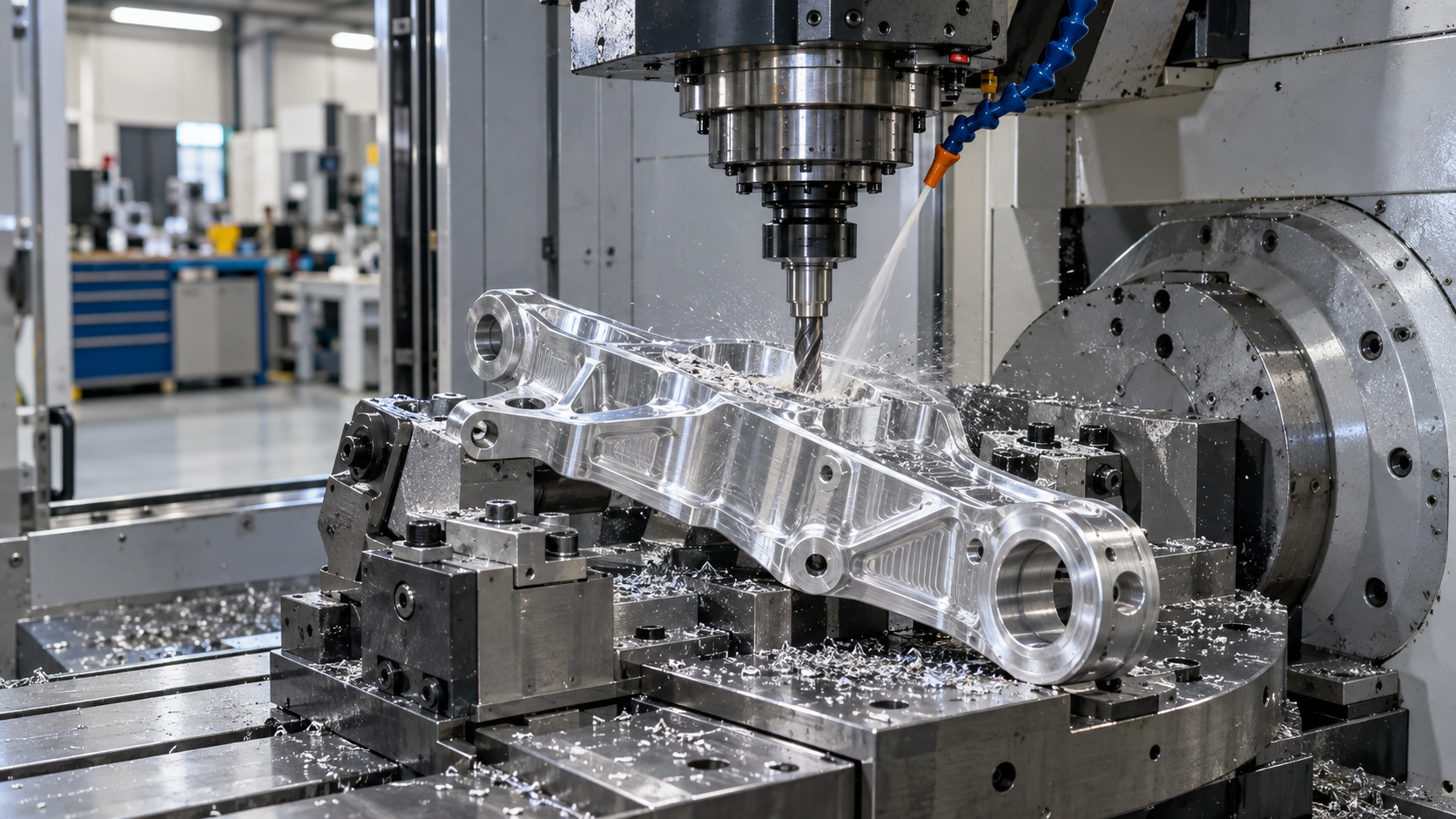

Aluminum is widely used in vehicle structures and systems because it offers a useful balance of low weight, corrosion resistance, thermal performance, and machinability. CNC machining makes these benefits accessible at prototype and low-volume quantities.
First, it eliminates the need for a dedicated mold before the first part. Engineers can revise wall thickness, hole position, mounting geometry, or clearance features quickly. Second, it supports production-intent materials. A bracket machined from 6061-T6 or 7075-T6 can be tested in a more meaningful way than a visual prototype made from an unrelated material. Third, CNC supports complex multi-face geometry, including contoured surfaces, angled holes, deep pockets, threaded ports, and functional datums.
The process is particularly effective where part failure, poor fit, or poor repeatability would create downstream cost. A replacement component that fits once but varies from batch to batch is not a reliable repair solution. Precision automotive machining gives teams the ability to define the dimensions that matter, validate them through inspection, and control the route when quantities increase.
For high and stable demand, CNC may transition to a supporting role: finish machining critical bores, sealing faces, and mounting features on a casting or forging. For low-volume, bridge-production, and high-complexity parts, machining directly from billet often remains the most flexible route.
Suspension brackets, steering-column supports, sensor mounts, linkage components, and chassis interfaces frequently require a lightweight shape with accurate hole relationships. They may include thin ribs, M6 or M8 threads, dowel holes, contoured mounting faces, and interfaces that must align with multiple assemblies.
These features make datum strategy essential. The important result is not merely a smooth-looking component; it is the correct relationship between mounting faces, holes, and functional centerlines. Five-axis machining can reduce re-clamping on complex parts and help preserve this relationship.
Brake-system housings, caliper mounts, master-cylinder supports, and fluid-management brackets require careful control of bores, ports, mounting faces, and sealing features. Depending on the design, CNC can produce a functional prototype from billet or finish-machine the critical areas of a supplied casting or forging.
For safety-related applications, a drawing must clearly define material, heat treatment or temper, thread specification, pressure or sealing requirements where relevant, critical tolerances, and inspection expectations. CNC machining supports the manufacturing requirement; it does not replace product engineering validation or vehicle-level testing.

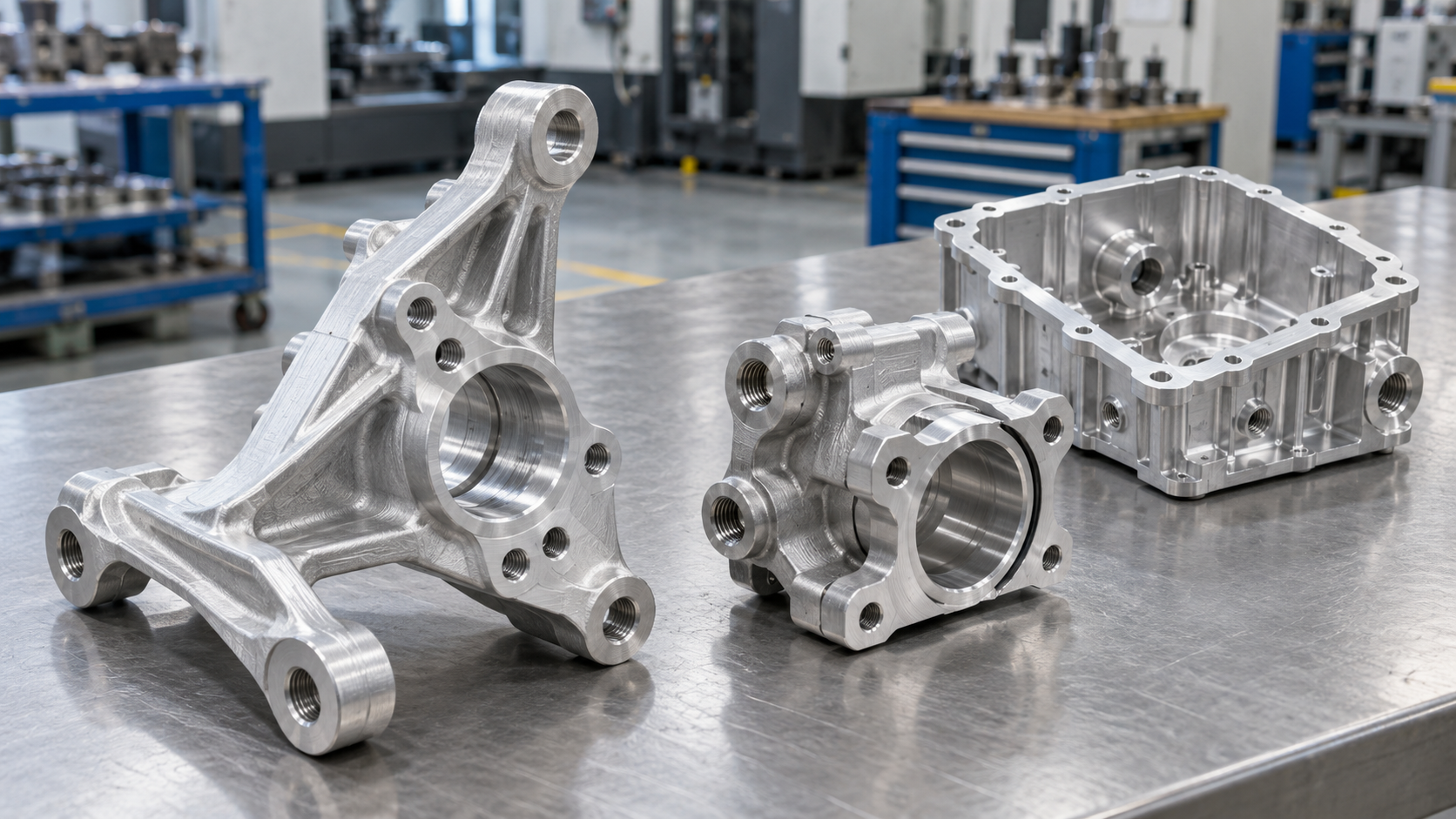

Other common CNC machined aluminum automotive parts include gearbox covers, motor and pump housings, fluid manifolds, electronics enclosures, adapter plates, repair fixtures, and limited-run performance parts. These parts often combine large flat faces, deep internal pockets, threaded features, and requirements for corrosion protection or cosmetic finishing.
Lightweight brackets and housings can lose a large percentage of their original material during machining. Residual stress in plate or billet may be released as material is removed, while heavy clamping can distort the part during machining and cause it to spring after release. Thin walls, large pockets, and broad sealing flanges are particularly sensitive.
Aluminum can be machined efficiently, but chip recutting, dull tools, or low chip load can lead to built-up edge, smearing, burrs, and inconsistent surface quality. On a sealing flange, bore, or gasket interface, this is not only a visual problem—it can influence final function.
Automotive parts commonly require holes and threaded features on several faces. Each additional setup creates a potential datum-transfer error. If a suspension bracket or brake mount has tight positional requirements, manual repositioning without a stable datum plan can reduce consistency.
Not every feature needs the same tolerance, yet many RFQs either omit functional priorities or apply extreme tolerances to everything. Both approaches add risk. Surface finishing adds another consideration: anodizing, coating, and deburring can affect dimensions, thread fit, and protected cosmetic surfaces.
The following representative case demonstrates the process logic used for a custom aluminum automotive component. It is not presented as a named customer delivery; final parameters and results must always be confirmed against the actual drawing and validation plan.
Part: 6061-T6 aluminum suspension/ADAS mounting bracket
Key features: thin reinforcement ribs, contoured chassis mounting surface, M6 threaded holes, two precision locating holes, and clear Type II anodizing
Primary risks: wall distortion, cumulative hole-position error, burrs around threads, and finish variation on the mounting face
Process solution: The bracket is first rough-machined with balanced stock removal rather than cutting one side heavily. The part is then supported in soft jaws or a dedicated fixture that locates on stable datum surfaces instead of clamping thin ribs. Semi-finishing is followed by light final passes on the contoured mounting surface and precision holes. Critical multi-face features are completed with five-axis access where appropriate, reducing repeated repositioning.
For aluminum milling, sharp polished carbide tools, reliable coolant or air chip evacuation, and toolpaths that maintain a stable cutter load help prevent rubbing and built-up edge. Adaptive roughing can reduce sudden changes in engagement. The exact spindle speed, feed, radial engagement, and finishing allowance are set through process validation according to cutter diameter, tool overhang, machine rigidity, material condition, and required finish.
Tolerance and quality controls: The drawing should identify the functional datum system first. Non-critical machined dimensions can use a practical general tolerance, often around ±0.10 mm as an initial planning reference, while critical hole location, flatness, perpendicularity, and bore requirements receive targeted process and inspection control. In-process probing can confirm relevant datums, and CMM inspection can verify the finished relationship between mounting faces and holes. Threads are checked to the specified standard; edge-break requirements are applied before anodizing.
This approach turns a machining problem into a controlled manufacturing plan: define what matters, create a stable setup, validate the process, and preserve the same logic for repeat production.
Selecting an aluminum car parts manufacturer involves more than reviewing a machine list. The supplier must be able to review the drawing, identify risks before production, select an appropriate machining route, and communicate clearly when tolerances or finishes require clarification.
Dawang Precision has 26 years of precision manufacturing experience and operates more than 400 advanced machines, including Röders and Mazak five-axis machining centers. Our capacity supports prototypes, custom automotive aluminum parts, and repeat production batches with machining strategies matched to part geometry and functional requirements.
Our engineering team reviews material selection, tool access, wall thickness, clamping approach, datum strategy, threaded features, finishing needs, and inspection requirements before machining begins. This early DFM work helps prevent avoidable delays caused by inaccessible features, unnecessarily tight tolerances, unstable thin walls, or unplanned finishing allowances.
For purchasing managers, this means a more predictable supply path: clear drawing review, practical manufacturing feedback, coordinated machining and finishing requirements, and inspection documentation aligned with the agreed project need. For engineers, it means design decisions can be reviewed before they become costly shop-floor changes.
Need a prototype, replacement part, custom bracket, or low-volume batch of automotive aluminum components?
Send your STEP file and PDF drawing to the Dawang Precision engineering team for a free DFM review. Within 24 hours, we will assess material selection, machining access, thin-wall distortion risk, critical tolerances, fixture strategy, surface-finishing requirements, and prototype-to-production feasibility.
Get engineering feedback before machining starts—and build a more reliable route from drawing to finished automotive aluminum parts.
