The main difference between a CNC turning center and a standard CNC lathe is the range of machining operations they can perform in one setup.
A CNC lathe is primarily designed for rotational machining such as turning, facing, boring, grooving, and threading. A CNC turning center extends these capabilities with features such as live tooling, C-axis turning, Y-axis movement, and sometimes a sub-spindle, allowing milling, drilling, tapping, and other secondary operations to be completed without moving the part to another machine.
For engineers and purchasing managers, the decision should not be based simply on which machine is more advanced. The better choice depends on part geometry, tolerance requirements, production volume, secondary operations, setup requirements, and total manufacturing cost.
A standard CNC lathe typically uses X- and Z-axis movement for precision turning. It is well suited to parts that are primarily rotational, including shafts, bushings, pins, sleeves, and threaded components.
A CNC turning center adds machining capabilities around the turning process. Depending on its configuration, it may include driven tools, C-axis positioning, Y-axis movement, and a sub-spindle.

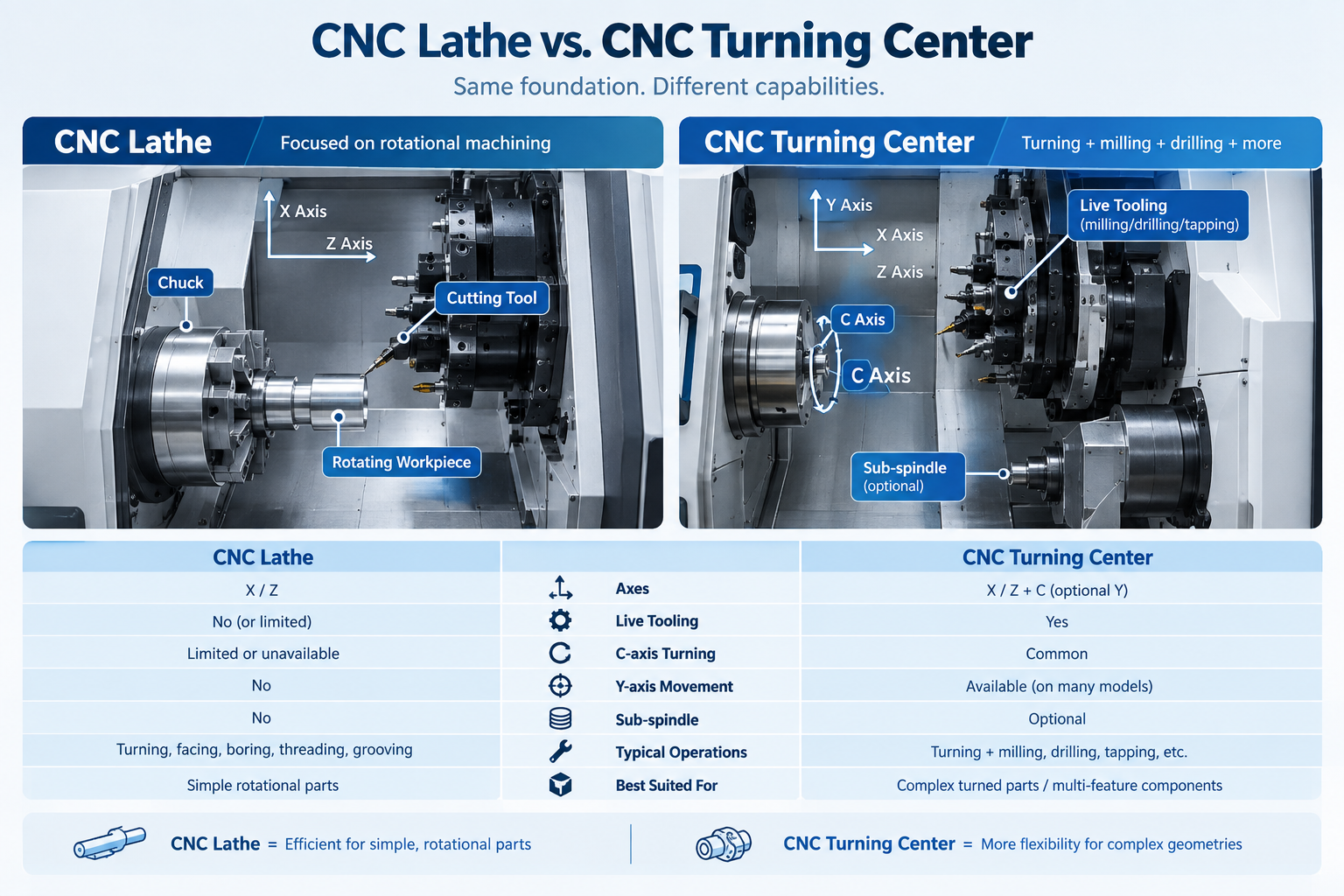

Feature | CNC Lathe | CNC Turning Center |
Primary machining | Turning | Turning + milling/drilling |
Typical axes | X/Z | X/Z + C, optional Y |
Live tooling | Usually unavailable | Available on many configurations |
C-axis turning | Limited or unavailable | Common |
Cross holes / flats | Secondary operation | Often completed in-cycle |
Sub-spindle | Less common | Available on advanced models |
Best suited for | Simple rotational parts | Complex turned parts |
Setup strategy | More secondary setups when needed | Fewer setups for integrated machining |
The exact distinction varies between machine manufacturers, so buyers should evaluate the actual machine configuration rather than relying only on the terms “lathe” or “turning center.”
A CNC lathe rotates the workpiece while cutting tools remove material along controlled axes.
Typical operations include:
· OD and ID turning
· Facing
· Boring
· Grooving
· Threading
· Chamfering
· Center drilling
For a component whose features are mostly concentric with the spindle axis, a CNC lathe can provide an efficient and economical manufacturing route.
For example, a precision shaft requiring several diameters, shoulders, grooves, and threads may not benefit from the additional capabilities of a turning center.
The key advantage is process simplicity: fewer machine functions, straightforward programming, and an efficient cycle for rotational geometry.
A CNC turning center combines turning with additional machining functions.
Depending on configuration, it may incorporate:
· Live tooling for milling, drilling, and tapping
· C-axis turning for controlled spindle positioning
· Y-axis movement for off-center machining
· Sub-spindle machining for rear-side features
· Automated tool management and bar-feeding systems
Live tooling allows powered cutting tools mounted in the turret to machine features while the workpiece remains clamped. C-axis positioning controls the angular position of the workpiece, making it possible to locate radial holes, flats, slots, and other features accurately.
This is the foundation of mill-turn machining, where turning and selected milling operations are integrated into one production process.
For complex turned parts, the most important benefit of a CNC turning center may be fewer setups, rather than simply having more axes.
Consider a cylindrical component with a precision OD, cross-holes, milled flats, and threaded holes.
A conventional process may require:
CNC turning → remove part → secondary milling → re-fixture → inspection
A suitable turning center may complete:
Turning → C-axis positioning → live-tool drilling/milling → finishing
Keeping multiple features within the same workholding setup can reduce handling and improve the positional relationship between turned and machined features. It can also reduce fixture requirements, intermediate inspection, and production queue time.
However, this does not mean a turning center is always cheaper. For a simple shaft, paying for unused live tooling or additional axes can add cost without providing a manufacturing benefit.
The drawing should determine the machine selection.
A standard CNC lathe is generally suitable when:
· The part is predominantly rotational
· OD/ID turning represents most operations
· Threads and grooves are concentric
· No significant off-axis features are required
· Secondary milling is minimal or unnecessary
A CNC turning center becomes more useful when the drawing includes:
· Cross-holes
· Milled flats
· Keyways
· Radial slots
· Off-center holes
· Multiple face features
· Front and rear machining
· Tight positional relationships between turned and milled features
For example, if a hydraulic valve component requires precision turning plus radial holes and milled flats, completing these features in one setup may simplify the manufacturing route.

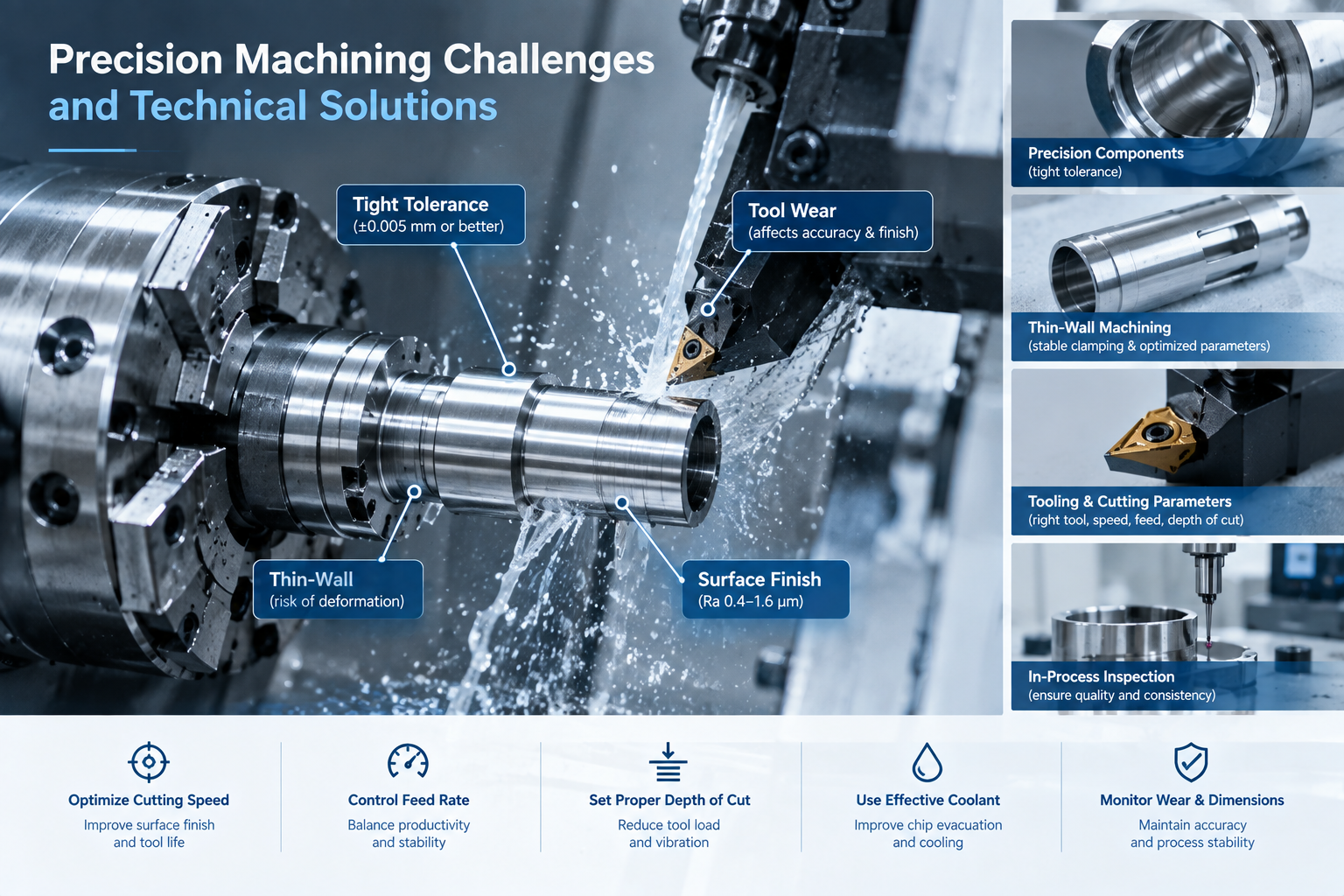

Precision turning is affected by tool wear, thermal expansion, workholding, cutting forces, and machine condition.
A reliable process therefore requires more than selecting a high-precision machine.
Engineers typically control:
· Cutting speed
· Spindle speed
· Feed rate
· Depth of cut
· Tool geometry
· Workholding pressure
· Roughing and finishing strategy
· Inspection frequency
Roughing should focus on stable material removal, while finishing passes should be optimized for dimensional accuracy and surface finish.
Thin-wall housings and long shafts can deform during machining or clamping.
Depending on the geometry, solutions may include optimized chuck pressure, appropriate tooling, controlled cutting loads, support devices, and dedicated finishing passes.
Titanium, stainless steel, hardened alloys, and engineering plastics require different cutting strategies.
Tool material, cutting speed, feed rate, coolant delivery, and chip evacuation should be selected according to the material and geometry rather than using generic parameters.
The same principle applies to CNC turning center work: additional machining capability does not replace process engineering.
Automotive components often combine cylindrical features with holes, grooves, splines, and other secondary details.
Turning centers are suitable for complex shafts, actuator components, connectors, bushings, and drivetrain-related parts where setup reduction can improve production efficiency.
Aerospace components often combine tight dimensional requirements with complex geometries and demanding materials.
CNC turning centers can be used when rotational features must be combined with accurately positioned holes, slots, or other secondary features.
Medical components may require precise diameters, controlled surface finishes, and repeatable dimensional accuracy.
CNC turning and mill-turn machining can support components such as instrument parts, precision shafts, housings, and other small complex components.
Robotic mechanisms often contain compact components with multiple functional interfaces.
Applications include:
· Joint components
· Actuator housings
· Precision shafts
· Sensor housings
· Gear-related components
For these complex turned parts, live tooling can reduce the number of separate machining operations.
Hydraulic fittings, valve components, sleeves, pistons, adapters, and industrial connectors frequently combine precision turning with threads, cross-holes, or milled surfaces.
A CNC lathe is efficient for purely rotational components, while a CNC turning center becomes more attractive as secondary features increase.
A turning center is not limited to high-volume production.
For low-volume production, its value can come from reducing the number of operations required to produce each finished component.
Instead of comparing only machine hourly rates, purchasing teams should evaluate:
Total cost = machining time + setup + tooling + secondary operations + handling + inspection + lead time
For a simple turned part, a CNC lathe may have the lower total cost.
For a complex component requiring turning and milling, a turning center may eliminate a secondary operation and reduce overall process complexity.
This is why machine selection should be based on the complete manufacturing route rather than the machine's purchase price or advertised axis count.
The simplest decision rule is:
Choose a CNC lathe when the part is primarily rotational and can be efficiently completed through turning operations.
Consider a CNC turning center when the part combines turning with milling, drilling, tapping, radial features, or multiple machining operations that benefit from a single setup.
For engineers, the priority is achieving the required geometry and tolerances.
For purchasing managers, the priority is the total cost, lead time, process stability, and supplier capability.
The best solution is therefore not necessarily the machine with the most axes. It is the machine and process combination that can produce the required part accurately, consistently, and economically.
They belong to the same family of CNC turning equipment, but their capabilities can differ significantly. A standard CNC lathe focuses on rotational machining, while a turning center may add live tooling, C-axis, Y-axis, or sub-spindle capabilities. Machine terminology also varies by manufacturer.
Live tooling refers to powered tools mounted in the turret that can rotate independently. These tools allow the machine to perform operations such as drilling, milling, and tapping while the part remains clamped.
C-axis control allows the spindle to position the workpiece at a specific angular orientation. Combined with live tooling, it enables machining of radial holes, flats, slots, and other indexed features.
It can be more suitable when a part combines turning with milling or drilling and those features benefit from being completed in one setup. For purely rotational parts, a standard CNC lathe may be more appropriate.
Yes. It can be particularly useful for low-volume production when reducing secondary operations, setups, and handling offsets the higher machine capability.
Start with the drawing. Review the rotational features, off-axis features, tolerances, material, quantity, and required secondary operations. A supplier should then evaluate the complete process route rather than selecting equipment based only on part diameter or axis count.
