High-Accuracy Milling for Dental Implants and Customized Prosthetics

Quick Answer

Dental implant CNC milling converts CAD/CAM designs into precision-machined implant components, abutments, and custom prosthetics. CNC milling is particularly valuable for titanium dental components because it provides repeatable control over complex geometries, functional interfaces, and patient-specific designs.

However, dental machining is not simply about achieving tight dimensional tolerances. Reliable results depend on material behavior, cutting parameters, tool runout, thermal control, surface integrity, burr prevention, geometric accuracy, inspection, and cleanliness.

For manufacturers, the objective is to establish a repeatable process that preserves the relationship between the digital design and the finished component.

What Is Dental Implant CNC Milling?

Dental implant CNC milling is the computer-controlled machining of dental components from digital CAD/CAM data.

Typical applications include:

· Dental implant components

· Custom implant abutments

· Implant-supported prosthetic frameworks

· Custom prosthetics

· Dental bars and bridges

· Precision connection components

· Titanium dental components

A typical digital dentistry workflow is:

Digital Scan → CAD Design → CAM Programming → CNC Milling → Inspection → Cleaning → Surface Treatment

This workflow allows patient-specific designs to move from digital geometry to physical components with fewer manual manufacturing steps.

Machining accuracy is sufficiently important that ISO 23298:2023 provides test methods for evaluating the machining accuracy of computer-aided milling machines used in dental CAD/CAM systems.

The engineering question is therefore not simply whether a CNC machine can reproduce the shape, but whether the process can reproduce critical dimensions, interfaces, and geometric relationships consistently.

Key Challenges in Dental Implant Machining

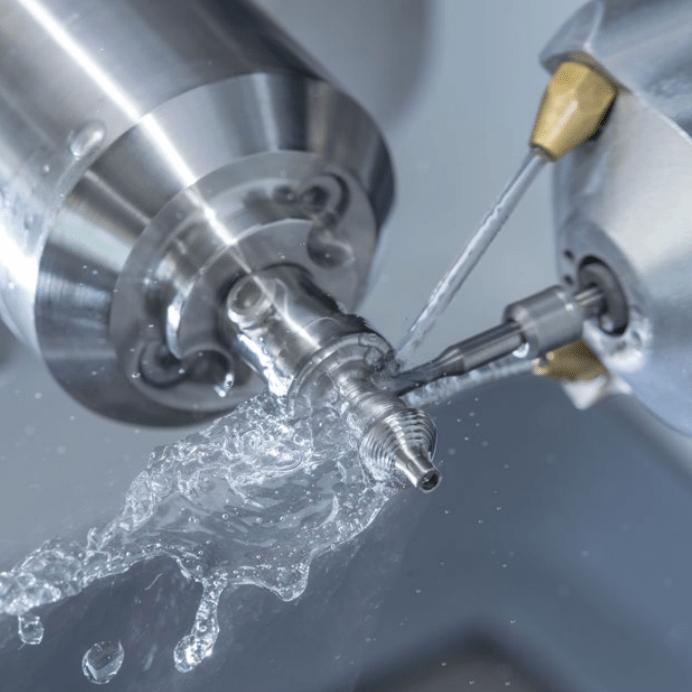

1. Titanium Requires Controlled Cutting

Titanium is widely used in dental implant systems, but titanium alloys can be challenging to machine.

Their relatively low thermal conductivity can concentrate heat near the cutting zone. Excessive heat can accelerate tool wear and affect dimensional stability and surface quality.

For high-accuracy titanium milling, engineers need to control:

· Cutting speed

· Feed per tooth

· Radial engagement

· Axial depth of cut

· Tool geometry and coating

· Coolant delivery

· Tool overhang

· Machine rigidity

The goal is not simply to maximize cutting speed. Stable chip formation and predictable thermal behavior are more important for consistent precision.

2. Small Features Amplify Errors

Dental components often contain small functional features such as:

· Implant interfaces

· Internal bores

· Screw holes

· Threads

· Indexed connections

· Thin walls

· Micro-slots

· Angled seating surfaces

A small dimensional error can become significant when several features must work together.

For example:

Implant interface → Abutment → Screw axis → Prosthetic seating surface

Therefore, inspection should consider both individual dimensions and their relationship to common functional datums.

Tolerances should be assigned according to functional requirements rather than applying an unnecessarily tight tolerance to every feature.

Engineering Solutions for High-Accuracy Dental Milling

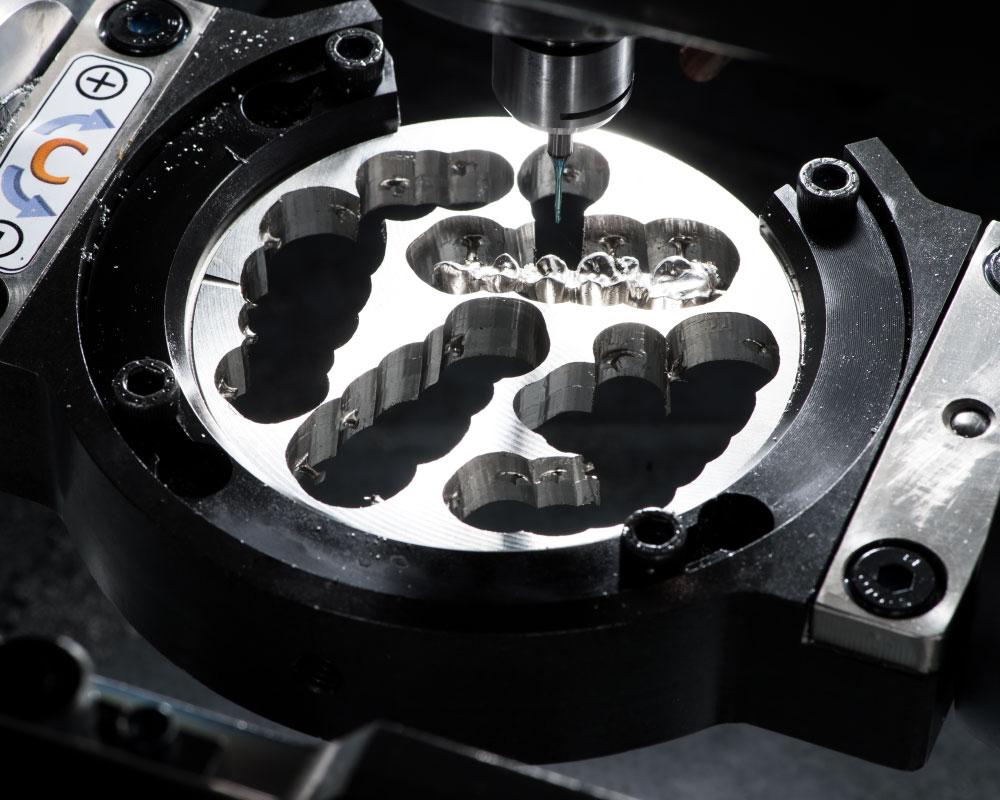

1. Use 5-Axis Machining for Complex Geometry

Five-axis CNC machining is well suited to customized dental components containing multiple angled surfaces and difficult-to-access features.

Compared with multiple 3-axis setups, 5-axis machining can reduce:

· Re-fixturing

· Datum transfer errors

· Setup variation

· Tool accessibility limitations

This is particularly useful for custom prosthetics, where freeform surfaces and functional interfaces may need to remain accurately aligned.

Fewer setups can also improve repeatability for low-volume and patient-specific production.

2. Control Tool Runout and Deflection

Small dental features frequently require small-diameter cutting tools. At this scale, tool runout and deflection can have a disproportionate effect on dimensional accuracy.

A stable process should combine:

Low tool runout + short tool overhang + rigid workholding + controlled cutting engagement

For micro-drilling and internal features, chip evacuation is equally important. Poor chip removal can cause recutting, heat accumulation, surface damage, and premature tool failure.

3. Use a Multi-Stage Machining Strategy

Final accuracy is generally easier to control when material removal is divided into stages:

Roughing → Semi-finishing → Finishing → Inspection

Roughing removes material efficiently. Semi-finishing establishes the near-final geometry. Finishing then focuses on critical dimensions, interfaces, and surface quality.

This approach reduces the cutting load carried by small finishing tools and provides better control when machining titanium.

Surface Finish and Burr Control

Surface quality is a functional consideration for dental components, not simply a cosmetic requirement.

Research indicates that titanium implant surface roughness, morphology, and chemistry can influence biological interactions. At the same time, there is no single surface roughness value that is optimal for every implant application.

Therefore:

The correct surface finish depends on the function of the surface and the subsequent treatment process.

Different areas may require different specifications for roughness, edge condition, or surface treatment.

Burrs also require special attention. They can form around threads, cross-holes, slots, and interrupted cuts.

Burr formation should be minimized through:

· Appropriate tool geometry

· Controlled toolpaths

· Optimized cutting parameters

· Finishing passes

· Controlled deburring

· Microscopic inspection

The objective is to prevent loose particles and machining debris from becoming part of the finished component.

Inspection and Cleanliness

Dimensional inspection should follow the functional structure of the component rather than treating every dimension independently.

Depending on the design, manufacturers may use:

· CMM inspection

· Optical measurement

· Vision systems

· Precision gauges

· Thread gauges

· Surface roughness measurement

· Microscopic inspection

A practical sequence is:

Datum establishment → Critical interface → Feature position → Form/orientation → Surface condition → Burr inspection

Cleanliness should be controlled throughout the manufacturing process:

Machining → Chip removal → Deburring → Cleaning → Inspection → Packaging

For regulated medical-device projects, material traceability, cleaning procedures, inspection records, and process controls should be established as part of the quality system.

Materials for Dental Components

Material selection depends on the intended application, design requirements, and applicable regulatory requirements.

Common materials include:

Titanium remains an important material for dental implant systems because of its established biomedical use. For regulated projects, material grade, certification, and lot traceability should be defined before production.

What Should Be Included in a Dental CNC Drawing?

A production-ready package should contain more than a 3D model.

For dental implant CNC milling, provide:

Material

· Exact grade and standard

· Material certification requirements

Critical dimensions

· Implant interface

· Bore diameters

· Threads

· Wall thickness

· Feature locations

GD&T

· Datums

· Position

· Profile

· Flatness

· Perpendicularity

Surface requirements

· Ra or applicable surface specification

· Edge-break requirements

· Burr restrictions

· Surface treatment

Quality requirements

· Inspection method

· Traceability

· Cleaning

· Packaging

Clear specifications allow the CNC manufacturer to identify DFM risks before production.

How to Choose a Dental CNC Machining Supplier

When sourcing dental implant machining, do not evaluate suppliers solely by quoted tolerance or unit price.

Consider whether the manufacturer can demonstrate:

1. Experience with titanium and medical-grade materials

2. Stable 5-axis machining capability

3. Appropriate metrology and inspection equipment

4. Understanding of functional GD&T

5. Material traceability

6. Controlled cleaning and contamination practices

7. Repeatable production processes

8. A quality management system appropriate for medical-device manufacturing

For medical projects, these capabilities are often more important than simply having a high machine count.

CNC Machining and Digital Dentistry

The growth of digital dentistry is making customized manufacturing increasingly practical.

CAD/CAM systems can generate patient-specific geometries, while CNC machining provides a repeatable method for manufacturing the physical component.

The most reliable workflow connects:

Digital Design + DFM + CNC Process Engineering + Inspection + Cleaning + Traceability

This is particularly useful for custom abutments, implant-supported frameworks, prototypes, and low-volume custom prosthetics.

FAQ: Dental Implant CNC Milling

Q1:What tolerances can CNC machining achieve for dental implants?

The achievable tolerance depends on material, feature size, geometry, machine capability, tooling, and inspection method. Critical implant interfaces should receive functional tolerances and GD&T rather than relying on one general tolerance for the entire component.

Q2:Is titanium difficult to CNC mill?

Yes. Titanium can concentrate heat around the cutting zone, increasing tool wear and making thermal control important. Cutting parameters, tool geometry, coolant, chip load, and tool engagement must be optimized for stable machining.

Q3:Can 5-axis CNC machining be used for custom dental prosthetics?

Yes. Five-axis machining is well suited to complex abutments, prosthetic frameworks, and other customized components because it improves tool access and can reduce the number of setups and associated alignment errors.

Q4:How is surface finish controlled on dental components?

Surface finish is controlled through tool selection, cutting parameters, toolpath strategy, finishing passes, and measurement. The required finish should be specified according to the function of the surface and any subsequent surface treatment.

Q5:How are burrs and contamination controlled?

Burrs are minimized through appropriate tooling and machining parameters, followed by controlled deburring and inspection. Cleaning should remove chips, machining debris, and other contaminants before final inspection and packaging.

Q6:What files are needed for a dental CNC machining quote?

A STEP or other suitable 3D CAD file is preferred for geometry review. A PDF drawing should define material, critical tolerances, GD&T, surface finish, threads, inspection requirements, and any cleaning or packaging specifications.

Q7:What should I look for in a dental implant CNC machining supplier?

Look for demonstrated experience with titanium machining, 5-axis capability, precision inspection, material traceability, cleanliness controls, and a medical-device quality system. A supplier should also be able to perform a DFM review before production.

Conclusion

High-accuracy dental manufacturing depends on controlling the entire process—not simply achieving a tight CNC tolerance.

For dental implant CNC milling, the critical chain is:

Material → Tooling → Cutting Parameters → 5-Axis Machining → Tolerance Control → Surface Integrity → Inspection → Cleaning

Titanium requires careful thermal and tooling management. Small implant interfaces require functional GD&T and accurate inspection. Surface requirements must match the intended application and subsequent treatment. Cleanliness and traceability are equally important for regulated dental components.

As digital dentistry continues to connect CAD/CAM data with manufacturing, a well-controlled CNC process provides the bridge between patient-specific digital design and repeatable physical components.
