Low-Volume Production of Complex Geometries Using Advanced 5-Axis Milling

As product development cycles become shorter and component designs more sophisticated, manufacturers face increasing pressure to produce complex precision parts faster, without sacrificing quality or driving up production costs. This trend is particularly evident in industries such as robotics, semiconductor equipment, aerospace, medical devices, and high-end customized machinery, where product updates are frequent and production volumes are relatively low.

For these applications, traditional manufacturing methods often struggle to balance flexibility, precision, and cost. Injection molding and casting require expensive tooling that is difficult to justify during prototype development or small-batch production, while conventional 3-axis machining may require multiple setups that increase both machining time and dimensional variation.

This is why low-volume 5-axis production has become the preferred solution for many OEMs. By combining simultaneous multi-axis machining with high-speed milling technology, manufacturers can produce highly complex components in small batches while maintaining production-grade quality and shorter lead times.

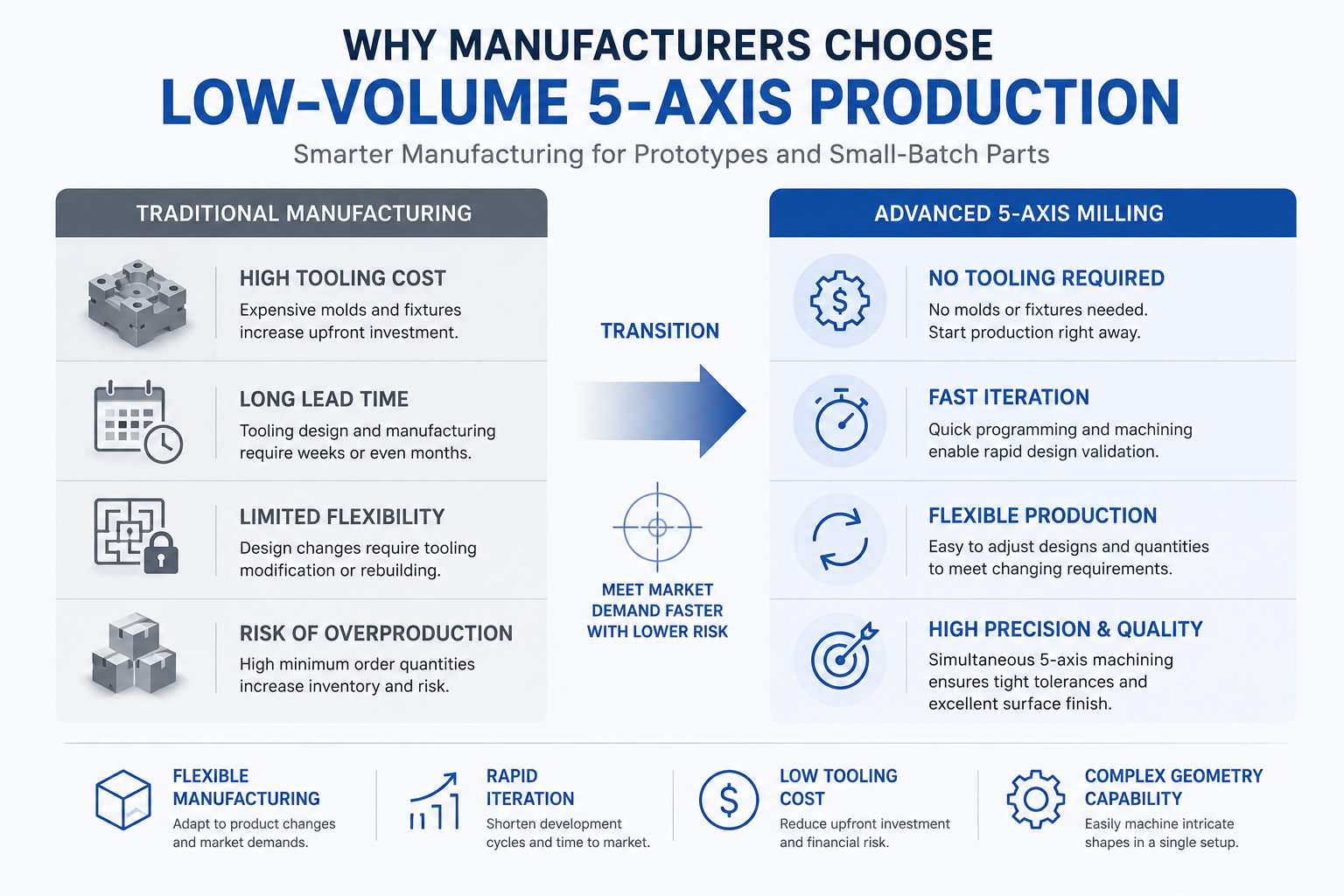

Why Low-Volume 5-Axis Production Is the Smarter Manufacturing Choice

Manufacturing today is no longer defined by mass production alone. Engineers need suppliers who can quickly respond to design changes, while procurement teams seek to reduce inventory, minimize tooling costs, and shorten product launch cycles.

Compared with conventional manufacturing methods, low-volume 5-axis production offers three clear advantages.

1. Faster Product Development

Because CNC machining requires no dedicated molds or dies, production can begin immediately after engineering approval. Design modifications can be implemented by updating the machining program rather than rebuilding tooling, making it ideal for prototype validation, engineering changes, and bridge production.

2. Greater Manufacturing Flexibility

Modern OEMs often manage multiple product variants in small quantities. Advanced flexible manufacturing enables these parts to be produced efficiently without disrupting production schedules, allowing manufacturers to respond quickly to changing market demands.

3. Lower Total Development Cost

For production volumes ranging from a few prototypes to several hundred parts, CNC machining is frequently more economical than molding or casting. Eliminating tooling investment not only reduces upfront costs but also lowers the financial risk associated with new product development.

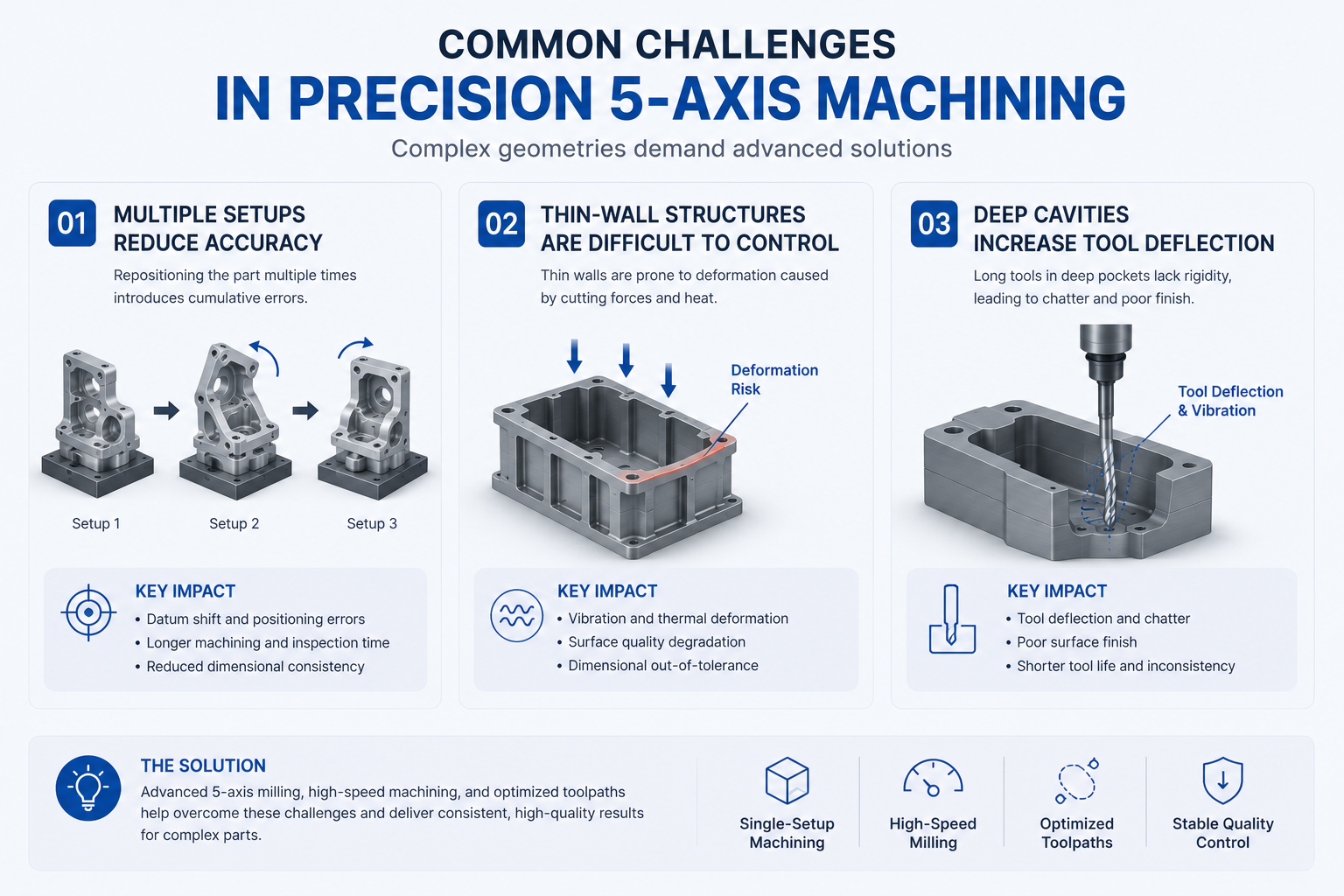

Three Challenges of Machining Complex Geometries

Complex components deliver higher performance, but they also introduce greater manufacturing challenges. Without the right machining strategy, even advanced CNC equipment may struggle to achieve consistent results.

Challenge 1: Multiple Setups Reduce Accuracy

Traditional 3-axis machining often requires the workpiece to be removed and repositioned several times in order to access different features.

Each setup introduces the possibility of:

· Datum shift

· Fixture variation

· Positioning errors

· Increased inspection time

For parts with intersecting holes, compound angles, or multi-face features, these accumulated errors can significantly affect dimensional consistency.

Why 5-axis helps

Simultaneous 5-axis machining allows nearly all machining operations to be completed in a single setup. Maintaining a common datum throughout the process improves positional accuracy while reducing both machining and inspection time.

Challenge 2: Thin-Wall Structures Are Difficult to Control

Lightweight aluminum and titanium components are increasingly designed with wall thicknesses below 1 mm to reduce weight while maintaining strength.

However, these thin sections are highly sensitive to:

· Cutting vibration

· Thermal deformation

· Tool pressure

· Residual stress

Without optimized machining parameters, deformation may occur before the part is even removed from the fixture.

Why high-speed milling matters

High-speed machining reduces cutting forces while improving chip evacuation, allowing delicate structures to be machined more consistently with better surface quality.

Challenge 3: Deep Cavities Increase Tool Deflection

Deep pockets and narrow internal features often require long cutting tools, reducing tool rigidity and increasing the likelihood of chatter, poor surface finish, and dimensional deviation.

This is particularly challenging when machining stainless steel, titanium alloys, or complex aluminum housings.

The engineering solution

Instead of relying on extended tooling, simultaneous 5-axis machining continuously repositions the workpiece so shorter, more rigid tools can reach difficult features. This improves machining stability while extending tool life.

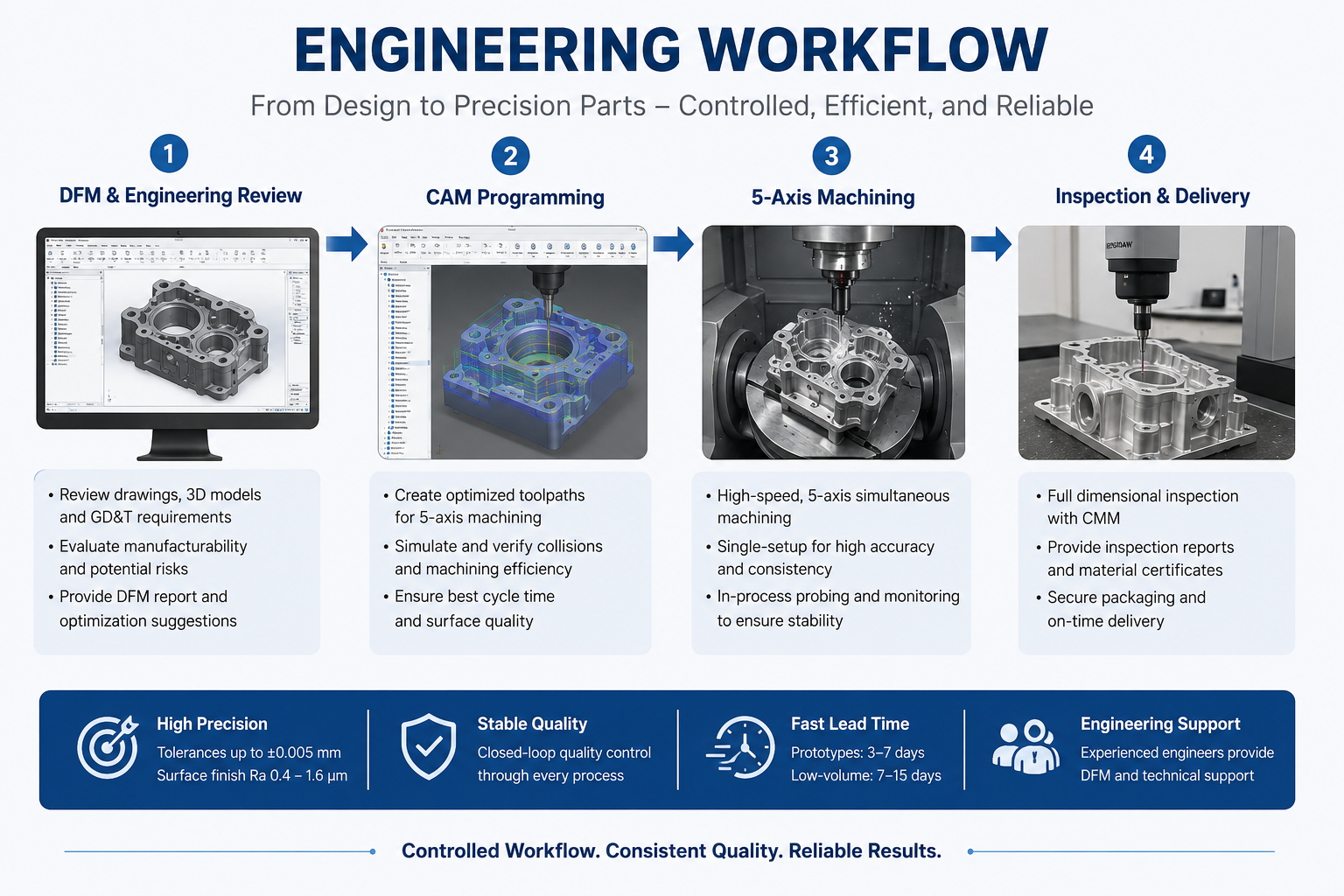

Engineering Solutions for Stable PrecisionEngineering Solutions for Stable Precision

The success of low-volume 5-axis production depends on more than machine capability. It requires a manufacturing strategy that combines advanced equipment with optimized programming and strict process control.

At Dawang Precision, every project follows four key engineering principles.

1. Single-Setup Machining

Completing multiple operations in one setup minimizes accumulated errors and improves geometric consistency. It also shortens production cycles by reducing fixture changes and manual intervention.

The benefits include:

· Higher positional accuracy

· Better repeatability

· Reduced inspection time

· Improved efficiency in batch production

2. High-Speed Milling for Better Surface Quality

High-speed milling is not simply about increasing spindle speed. It is a machining strategy that balances spindle speed, feed rate, tool engagement, and chip load to reduce heat generation while maintaining cutting stability.

For precision components, this approach delivers:

· Lower cutting forces

· Reduced vibration

· Longer tool life

· Superior surface finish

· More consistent dimensional accuracy

Typical machining capability at Dawang Precision includes:

Unlike conventional machining, high-speed milling maintains stable cutting conditions throughout the machining cycle, making it particularly suitable for thin-wall structures and precision components with complex geometries.

3. Intelligent Toolpath Optimization

Advanced equipment alone cannot guarantee precision. The quality of the CAM strategy directly affects machining efficiency, surface finish, and dimensional consistency.

At Dawang Precision, our CAM engineers optimize every toolpath based on material properties, part geometry, and tolerance requirements. Depending on the application, we apply techniques such as:

· Adaptive roughing for constant cutter engagement

· Trochoidal milling to reduce cutting forces in deep cavities

· Rest machining for fine details

· Automatic collision avoidance

· Feed-rate optimization through corners

These strategies help maintain stable cutting conditions, resulting in lower tool wear, improved surface quality, and more consistent dimensions throughout low-volume 5-axis production.

4. Closed-Loop Tolerance Control

Producing a precision part is only half the challenge—producing every part to the same standard is what defines a reliable manufacturing partner.

At Dawang Precision, quality control is integrated into every stage of production:

· Engineering Review: Analyze drawings, GD&T requirements, and machining risks before production.

· In-Process Verification: Use on-machine probing and tool compensation to detect variation early.

· Final Inspection: Verify critical dimensions with Coordinate Measuring Machines (CMMs) and provide inspection reports when required.

This closed-loop approach helps maintain stable quality from prototypes to repeat batch production, reducing rework and ensuring predictable results.

Why Choose Dawang Precision?

Selecting a machining supplier is about more than machine capacity. Engineering expertise, process control, and production flexibility determine whether a project is delivered on time and within specification.

With 26 years of precision machining experience, Dawang Precision supports global OEMs through:

· 400+ advanced CNC machines for scalable production

· ROEDERS high-speed machining centers for demanding surface finish and precision requirements

· Mazak simultaneous 5-axis machining centers for complex geometries

· Experienced engineering teams providing free DFM support

· Comprehensive CMM inspection for critical dimensions

· Flexible production from prototypes to repeat low-volume orders

Whether you need a functional prototype or ongoing production for high-end customized machinery, our goal is to help you reduce manufacturing risk while improving quality and lead time.

5-Axis Machining vs. Rapid Tooling

Choosing the right process depends on production quantity, design maturity, and project objectives.

Engineering Recommendation:
If your design is still evolving or production quantities are below a few hundred parts, 5-axis CNC machining typically provides the best balance of flexibility, precision, and cost. Once the design is finalized and demand increases significantly, rapid tooling may become a more economical option.

Conclusion

As products become more sophisticated and production cycles continue to shorten, manufacturers need machining partners that combine precision, flexibility, and engineering expertise. Advanced low-volume 5-axis production enables companies to manufacture complex geometries efficiently while avoiding the high costs and long lead times associated with dedicated tooling.

Through high-speed milling, optimized toolpaths, single-setup machining, and rigorous quality control, manufacturers can achieve tighter tolerances, better surface finishes, and greater consistency from prototype to repeat production.

With 26 years of experience, 400+ advanced CNC machines, including ROEDERS and Mazak 5-axis systems, Dawang Precision provides reliable flexible manufacturing solutions for customers developing high-end customized machinery and other precision products.

Request a Free DFM Review

Have a complex part ready for production?

Send your STEP/STP or PDF drawings to Dawang Precision for a free Design for Manufacturability (DFM) assessment.

Within 24 hours, our engineering team will provide:

· Manufacturability analysis

· Tolerance evaluation

· Material recommendations

· Machining strategy suggestions

· Cost optimization opportunities

· Lead time estimate and quotation

Whether you need a prototype or repeat low-volume production, Dawang Precision is ready to help you bring complex designs to market with confidence.

Frequently Asked Questions

Q1:What is considered low-volume production?

Although it varies by industry, low-volume production generally refers to quantities between 10 and 500 parts. This range is ideal for prototypes, bridge production, replacement components, and customized equipment because it avoids the cost of dedicated tooling.

Q2:What tolerances can Dawang Precision achieve?

Typical machining tolerance is ±0.01 mm, while critical features can be controlled to ±0.005 mm, depending on material, geometry, and inspection requirements.

Q3:What materials do you machine?

We machine a wide range of engineering materials, including:

· Aluminum (6061, 7075)

· Stainless Steel (304, 316L, 17-4PH)

· Titanium alloys

· Brass and copper

· PEEK, POM (Delrin), Nylon, and other engineering plastics

Our engineers can also recommend the most suitable material during the DFM review.

Q4:What file formats do you accept?

We accept most industry-standard design files, including:

· STEP / STP

· IGES

· Parasolid

· DWG / DXF

· PDF drawings

Providing a 3D model together with a detailed drawing helps us evaluate manufacturability more accurately.

Q5:Can you help optimize my design before production?

Yes. Every quotation includes a free Design for Manufacturability (DFM) review. Our engineers evaluate your design and provide practical recommendations on machining strategy, material selection, tolerance optimization, and cost reduction before production begins.
