Rapid Prototype Assembly Testing: How to Control Functional Tolerances for Precision Mechanical Validation

Quick Answer

Maintaining functional tolerances in rapid prototype assembly testing requires three key factors: selecting the right manufacturing process, controlling critical dimensions, and verifying prototype accuracy through professional inspection.

CNC machining is commonly used for precision functional prototypes because it provides tight tolerance control, production-grade materials, and excellent surface finishes. Additive manufacturing is suitable for complex geometries and rapid design iterations.

By combining DFM analysis, optimized process parameters, and dimensional inspection, manufacturers can create prototypes that accurately simulate final production assemblies before mass manufacturing.

Why Functional Tolerances Matter in Rapid Prototype Assembly Testing

Modern engineering teams use rapid prototypes to validate more than appearance. Functional prototypes must demonstrate real-world performance, including:

· Mechanical fit

· Component alignment

· Assembly compatibility

· Motion performance

· Structural reliability

During rapid prototype assembly testing, even small dimensional errors can affect validation results.

For example:

· Incorrect hole positioning may prevent component assembly.

· Excessive clearance may create unwanted movement.

· Insufficient clearance may cause friction or mechanical failure.

Therefore, controlling prototype dimensional accuracy is essential for reliable mechanical assembly validation.

Understanding Interference Fit and Clearance Fit

Mechanical assemblies depend on precise relationships between mating components. Two important concepts determine assembly performance:

Interference Fit

An interference fit occurs when one component is slightly larger than the mating feature, creating a secure connection.

Common applications:

Poor tolerance control can cause:

· Difficult assembly

· Component deformation

· Reduced product reliability

Clearance Fit

A clearance fit requires controlled space between components to allow movement or easy installation.

Common applications:

· Hinges

· Sliding mechanisms

· Robotic joints

· Electronic enclosures

Proper clearance ensures:

✓ Smooth movement
✓ Reduced friction
✓ Reliable operation

During prototype testing, controlling clearance is critical for accurately predicting final product behavior.

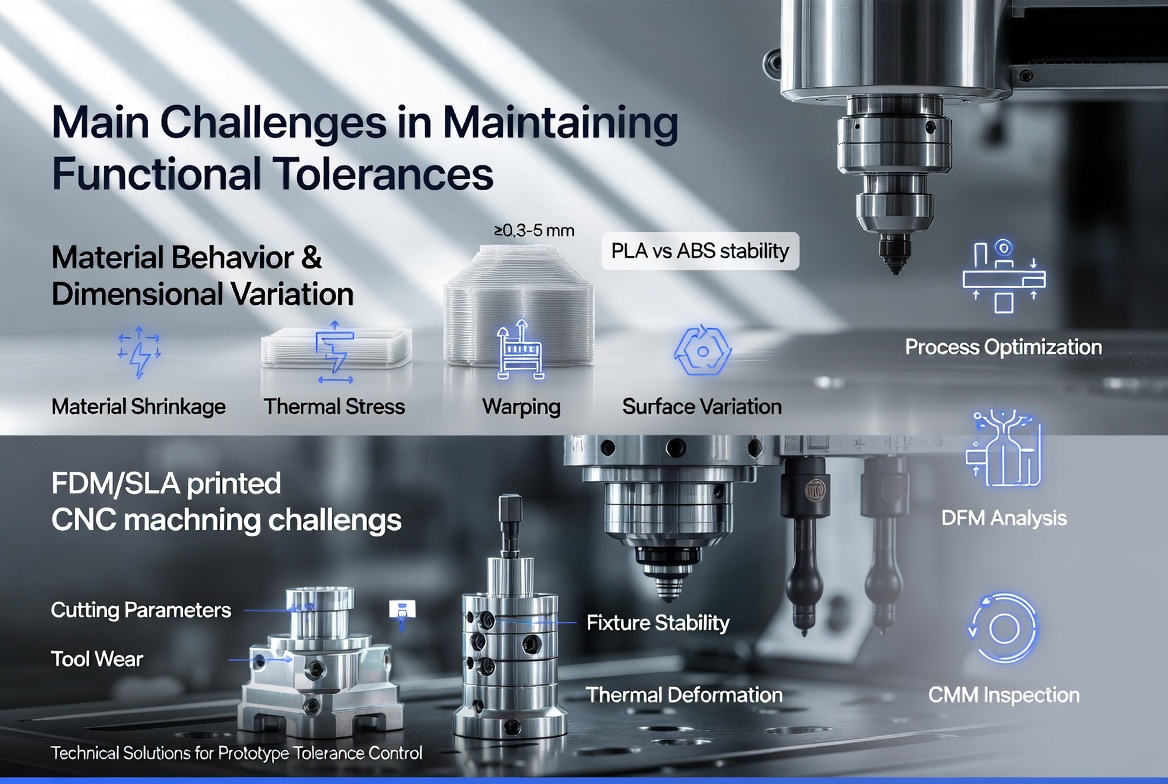

Main Challenges in Maintaining Functional Tolerances

1. Material Behavior and Dimensional Variation

Different manufacturing technologies introduce different accuracy challenges.

Additive Manufacturing Challenges

Layer-by-layer manufacturing can cause:

· Material shrinkage

· Thermal stress

· Warping

· Surface variation

For example, FDM 3D printing typically achieves approximately ±0.3 mm to ±0.5 mm tolerance, depending on:

· Material selection

· Part size

· Geometry complexity

· Printing parameters

PLA generally provides better dimensional stability than ABS because of its lower warping tendency.

CNC Machining Challenges

Although CNC machining provides higher precision, manufacturers must control:

· Cutting parameters

· Tool wear

· Fixture stability

· Thermal deformation

· Machine calibration

These factors directly influence prototype dimensional accuracy.

Technical Solutions for Prototype Tolerance Control

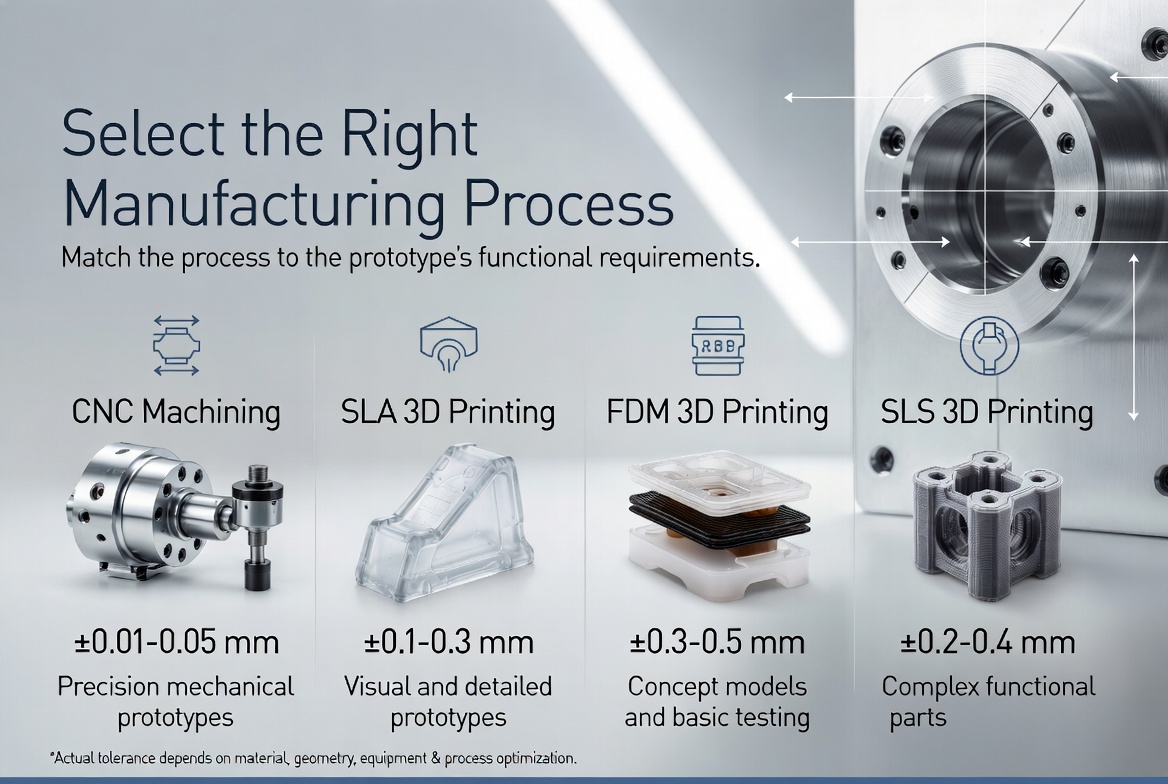

1. Select the Right Manufacturing Process

The manufacturing process should match the prototype’s functional requirements.

Actual tolerance depends on material, geometry, equipment, and process optimization.

2. Optimize Manufacturing Parameters

Reliable prototype accuracy requires process optimization.

CNC Machining Optimization

Key factors include:

· Cutting speed

· Feed rate

· Tool selection

· Fixture design

· Thermal control

At Dawang Precision, advanced Röders and Mazak 5-axis machining centers support stable machining performance for complex prototype components.

3D Printing Optimization

For additive manufacturing, engineers must consider:

· Build orientation

· Layer height

· Printing temperature

· Cooling conditions

· Support structure design

For critical assembly surfaces, secondary CNC machining or finishing operations can improve tolerance performance.

3. Apply DFM Analysis Before Manufacturing

A professional DFM (Design for Manufacturing) review helps identify tolerance risks before production.

Engineering teams evaluate:

· Critical dimensions

· Assembly interfaces

· Machining accessibility

· Material selection

· Manufacturing feasibility

Not every dimension requires the same tolerance level.

For example:

This approach helps balance:

· Precision

· Cost

· Manufacturing efficiency

4. Verify Accuracy Through Inspection

Before assembly testing, prototypes should undergo dimensional verification.

Common inspection methods include:

· CMM (Coordinate Measuring Machine)

· Precision measurement tools

· Dimensional reports

· Surface inspection

Typical Prototype Validation Workflow

CAD Design

↓

DFM Analysis

↓

Manufacturing Process Selection

↓

Prototype Production

↓

Dimensional Inspection

↓

Assembly Testing

↓

Design Optimization

This process ensures prototype results accurately represent final production conditions.

Real Manufacturing Example: Precision Housing Prototype Validation

A customer developing an industrial automation system required an aluminum housing prototype for mechanical assembly testing.

Project Requirements

The prototype required:

· Accurate mounting hole positions

· Flat mating surfaces

· Internal support structures

· Stable assembly interfaces

Manufacturing Challenges

The main challenge was maintaining alignment between the housing and internal components while reducing prototype development time.

Dawang Precision Solution

The engineering team applied:

1. DFM review to identify critical dimensions

2. 5-axis CNC machining for complex geometry

3. Optimized fixture design for stability

4. CMM inspection before assembly validation

The final prototype successfully completed mechanical assembly testing and provided reliable feedback for the next design iteration.

Choosing a Reliable Functional Prototype Manufacturing Supplier

A professional functional prototype manufacturing supplier should provide more than manufacturing capability.

Key factors include:

✓ Engineering support
✓ Precision equipment
✓ Quality inspection
✓ Fast communication
✓ Manufacturing experience

For industries such as aerospace, robotics, medical devices, and EV development, choosing the right supplier reduces development risks.

As an experienced:

· CNC prototype machining supplier

· EV prototype machining supplier

· Precision rapid prototyping service provider

Dawang Precision helps global engineering teams manufacture reliable prototypes for real-world validation.

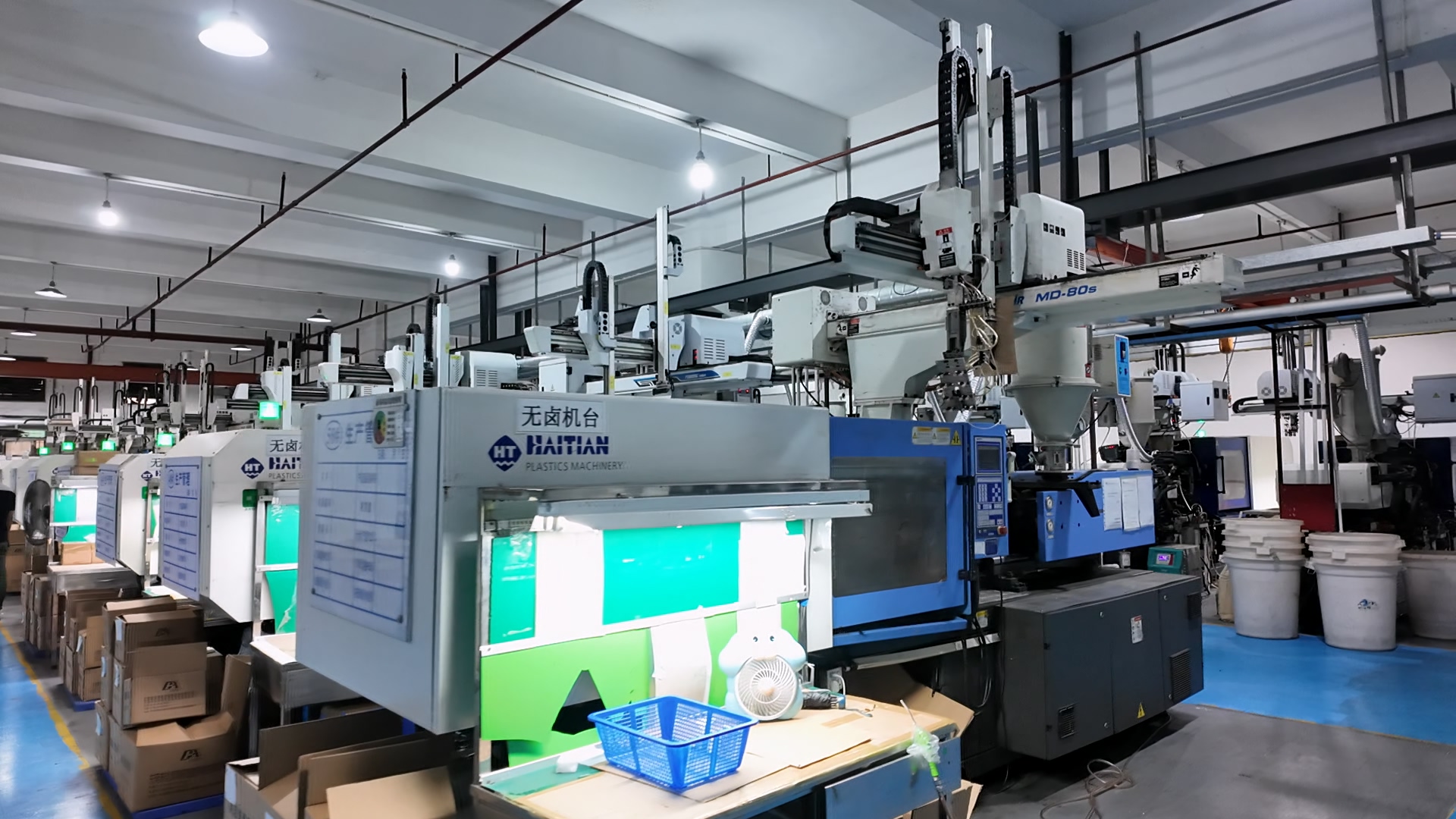

Why Choose Dawang Precision?

Dawang Precision has:

· 26 years of precision manufacturing experience

· 400+ advanced machine tools

· Röders and Mazak 5-axis machining capabilities

· Professional engineering support

· Strict quality inspection processes

Our capabilities include:

· CNC prototype machining

· Complex precision components

· Functional prototype manufacturing

· DFM optimization

· Dimensional inspection

We help customers transform CAD designs into production-ready prototypes with reliable tolerance control.

Frequently Asked Questions

What tolerance can rapid prototypes achieve?

Tolerance depends on manufacturing technology, material, geometry, and process control. CNC machining generally provides tighter tolerances than most additive manufacturing methods.

Why are functional tolerances important in assembly testing?

Functional tolerances ensure prototypes accurately simulate final production parts and provide reliable engineering feedback.

Is FDM suitable for precision mechanical prototypes?

FDM is suitable for early-stage validation. For tight interference fits and precision assembly requirements, CNC machining or hybrid manufacturing is usually preferred.
