2-shot mold making uses two sequential injection stages to combine different materials or colors into one finished component. It is widely used for ergonomic handles, sealing gaskets, and multi-color buttons, where rigid plastics and elastomers perform different functions. Compared with separate molding and manual assembly, 2K injection molding can reduce component count, assembly steps, and positioning variation. Key engineering controls include material compatibility, shrinkage, rotary mold plate alignment, shut-off design, injection parameters, cooling, flash, and functional tolerances.
A typical workflow is:

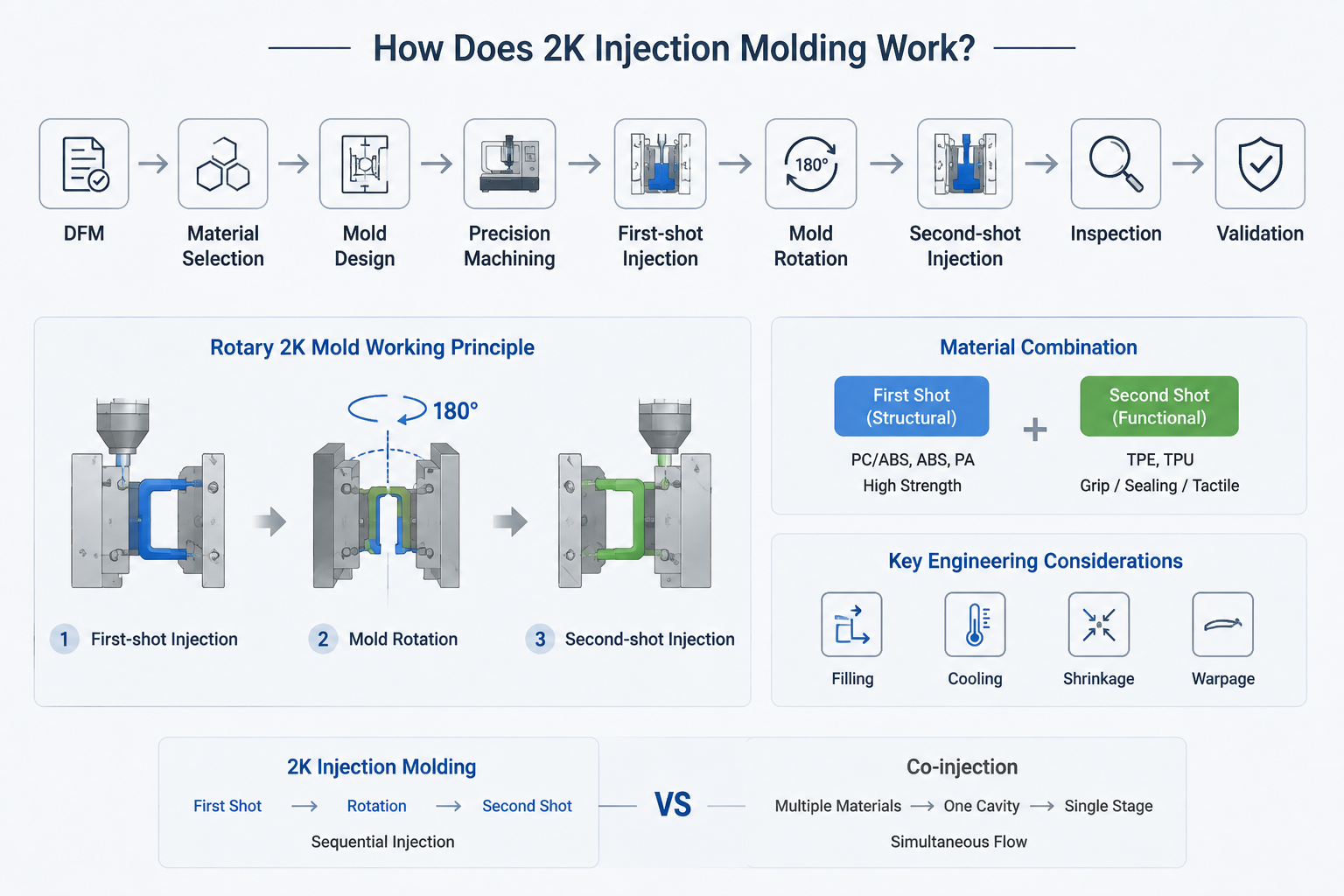

DFM → material selection → mold design → precision machining → first-shot injection → mold rotation → second-shot injection → inspection → validation.
In a rotary 2K mold, the rotary mold plate transfers the first-shot component into the second cavity while maintaining its reference position. The first shot may use PC/ABS, ABS, or PA for structural strength, while the second shot commonly uses TPE or TPU for grip, sealing, or tactile functions.
The first-shot geometry must remain stable before the second material is injected. Engineers therefore evaluate filling, cooling, shrinkage, and warpage during mold trials.
Unlike co-injection, which generally introduces multiple materials through controlled flow into one cavity, 2K molding uses sequential injection stages.

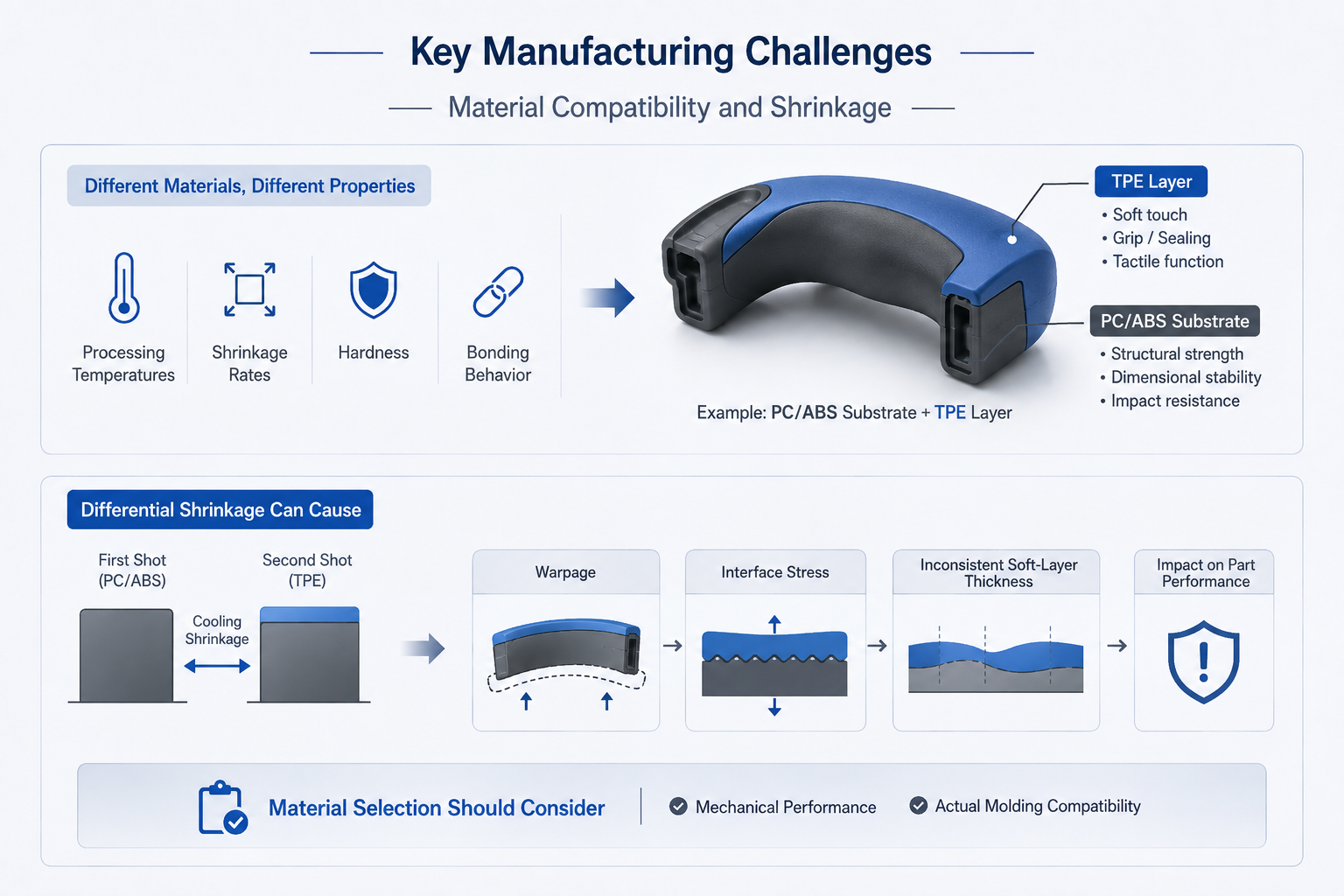

Different materials have different processing temperatures, shrinkage rates, hardness, and bonding behavior. For example, a PC/ABS substrate + TPE layer must maintain dimensional stability and reliable adhesion.
Differential shrinkage can cause warpage, interface stress, or inconsistent soft-layer thickness. Material selection should therefore consider both mechanical performance and actual molding compatibility.
Rotary positioning directly affects second-shot geometry. If the first-shot component shifts during rotation, the soft layer or sealing lip can move relative to the functional datum.
TPE and TPU can also enter very small mold clearances. Shut-off surfaces, parting lines, vents, and insert interfaces therefore require precise machining and inspection.
Injection speed, melt temperature, mold temperature, holding pressure, and cooling time should be optimized for the selected material and part geometry. Thin sealing sections require controlled filling and effective venting to prevent short shots and trapped air, while excessive pressure may increase flash.
A production mold should distinguish between functional, assembly, and cosmetic dimensions.
For sealing gaskets, critical features may include:
Seal thickness
Compression height
Groove geometry
Contact width
Material interface position
For ergonomic handles, grip thickness, mounting datums, soft-touch coverage, and hole locations may be more important.
ISO 20457 provides a useful reference for dimensional tolerances of molded plastic parts, but actual tolerances should be linked to assembly and functional requirements.
A common structure is:
Rigid PC/ABS or PA substrate + TPE/TPU soft-touch layer
The rigid substrate provides strength and dimensional stability, while the elastomer provides grip, comfort, slip resistance, and vibration damping.
The mold must maintain consistent soft-material coverage around curved grips, finger grooves, ribs, and mounting areas. Soft-layer thickness should therefore be defined as a functional feature during DFM rather than treated as a cosmetic detail.
2K molding can integrate a TPE or TPU sealing lip directly onto a rigid plastic housing, reducing separate gasket assembly.
Critical considerations include:
Seal compression
Elastomer thickness
Groove dimensions
Contact geometry
Parting-line location
Flash control
Dimensional repeatability
The sealing feature must maintain its designed relationship with the mating component after molding, cooling, and assembly.
The first shot can form the structural button body, while the second shot creates a contrasting-color or soft-touch section.
For visible components, engineers should control gate position, filling pattern, weld lines, color boundaries, surface texture, and flash. Accurate cavity registration helps maintain consistent separation between the two materials.
Factor | Manual Assembly | 2K Injection Molding |
Components | Multiple | Integrated |
Assembly | Required | Greatly reduced |
Positioning | Assembly-dependent | Mold-controlled |
Sealing | Separate gasket | Molded-in feature |
Soft touch | Secondary operation | Integrated |
2K molding does not always have the lowest initial tooling cost. However, the investment can be justified when production volume, part consolidation, repeatability, reduced assembly labor, and integrated functionality are important.
A production-oriented supplier should connect:
DFM → material selection → mold design → CNC/EDM machining → assembly → trial molding → inspection → process optimization.
Complex cavity surfaces may benefit from 5-axis machining to reduce setups and improve geometric consistency. During mold trials, engineers evaluate filling, interface bonding, flash, warpage, dimensions, and surface quality before production release.
A reliable 2K injection mold manufacturer should have capabilities covering both precision tooling and production validation.
Dawang Precision has 26 years of manufacturing experience and more than 400 advanced machine tools, including Röders and Mazak 5-axis equipment. Our engineering and machining capabilities support complex mold components, precision cavities, multi-material interfaces, and production-oriented tooling.
2-shot mold making is particularly valuable when two materials need to perform different functions within one component. It can combine structural strength with soft-touch grip, integrate sealing features, or reduce assembly for multi-color buttons.
The key factors are material compatibility, rotary mold plate accuracy, shut-off design, machining precision, process parameters, cooling, and functional tolerance control.
