Optical lens mold making requires far tighter control than conventional injection mold manufacturing because the mold surface directly determines the geometry of the molded optical component. For optical lenses and light guide plates, manufacturers must control form accuracy, surface roughness, microstructure geometry, thermal stability, and critical tolerances throughout machining and inspection. A typical process combines ultra-precision machining, 5-axis CNC machining, diamond turning, polishing, and precision metrology to reproduce optical surfaces consistently.
For engineers and procurement teams, the key is not simply choosing a high-accuracy machine. The mold-making process must connect the optical design, machining strategy, material behavior, inspection method, and final injection-molding requirements.

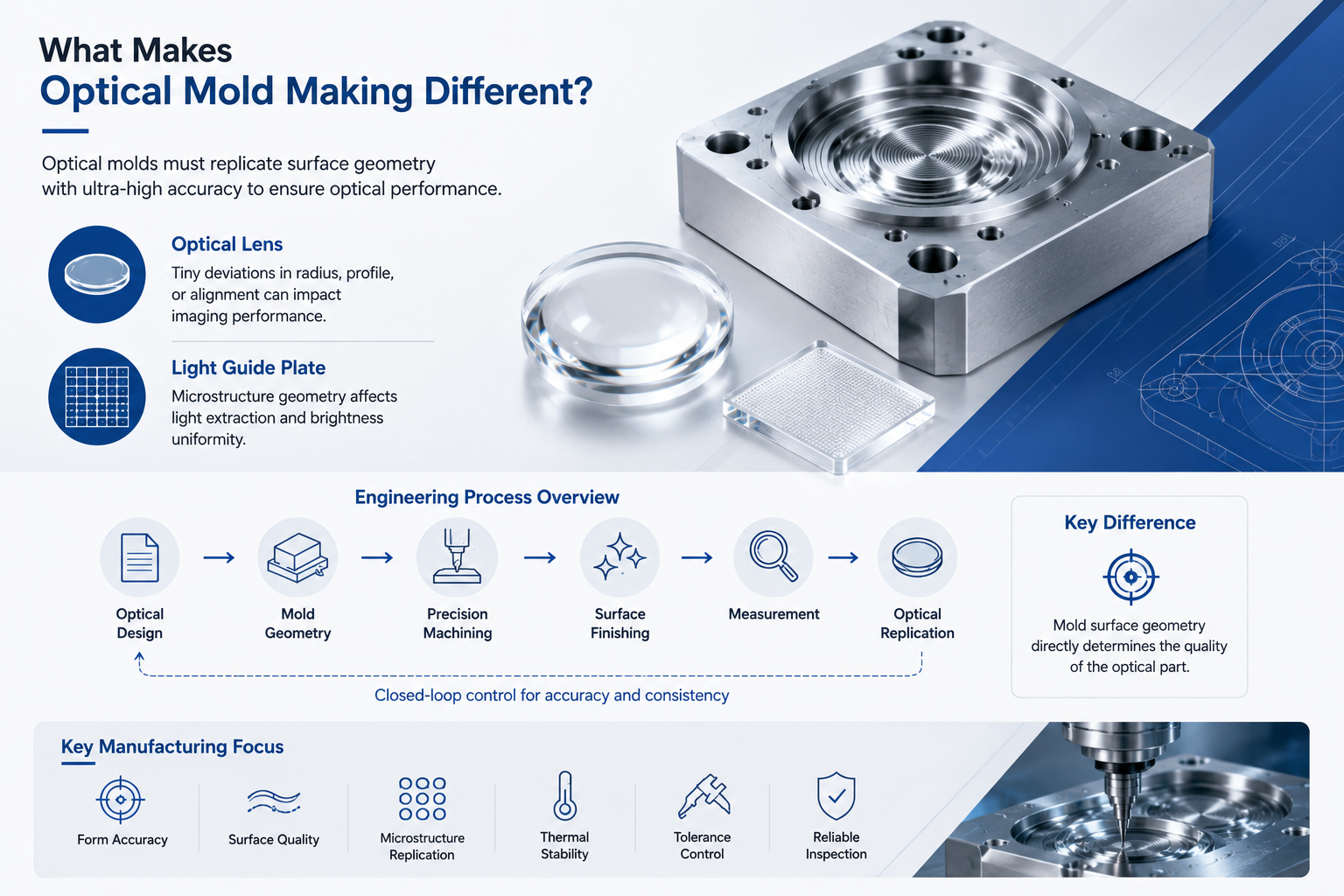

A conventional injection mold is primarily evaluated by dimensional accuracy, assembly fit, tool life, and cycle stability. An optical mold has an additional requirement: its surface geometry must be accurately transferred to the final optical component.
For an optical lens, small deviations in radius, profile, or optical-axis alignment can influence imaging performance. For a light guide plate, the geometry of microstructures can affect light extraction and brightness uniformity.
This makes optical mold manufacturing a closed engineering process:
Optical design → Mold geometry → Precision machining → Surface finishing → Measurement → Optical replication
NIST's work in precision engineering and dimensional metrology highlights the importance of traceable measurement when controlling high-accuracy manufactured features. In practice, this means critical optical features should be defined and measured according to their actual functional requirements rather than applying one generic tolerance to the entire mold.
The two applications require different manufacturing priorities.
Factor | Optical Lens Mold | Light Guide Plate Mold |
Geometry | Spherical, aspherical or freeform | Large-area surface with microstructures |
Critical feature | Radius and optical profile | Pattern pitch, depth and geometry |
Main concern | Form accuracy and surface quality | Microstructure replication |
Surface requirement | Highly controlled optical surface | Controlled surface and structured features |
Applications | Cameras, sensors, optical devices | LED lighting, displays, illumination |
A lens mold may contain a curved optical surface with an effective diameter of several tens of millimeters, while a light guide plate mold can combine a relatively large working area with thousands of repeated optical features. These are illustrative engineering examples; actual dimensions and tolerances must come from the optical design and drawing.
The process begins with material selection and DFM review. Depending on the application, mold inserts may use hardened tool steels, stainless steels, nickel-based materials, or other specialized materials.
Engineers evaluate:
· Material hardness and machinability
· Heat-treatment stability
· Optical surface requirements
· Expected production volume
· Finishing method
· Critical inspection features
Stable datums are then established for the insert, optical center, mounting features, and parting surfaces.

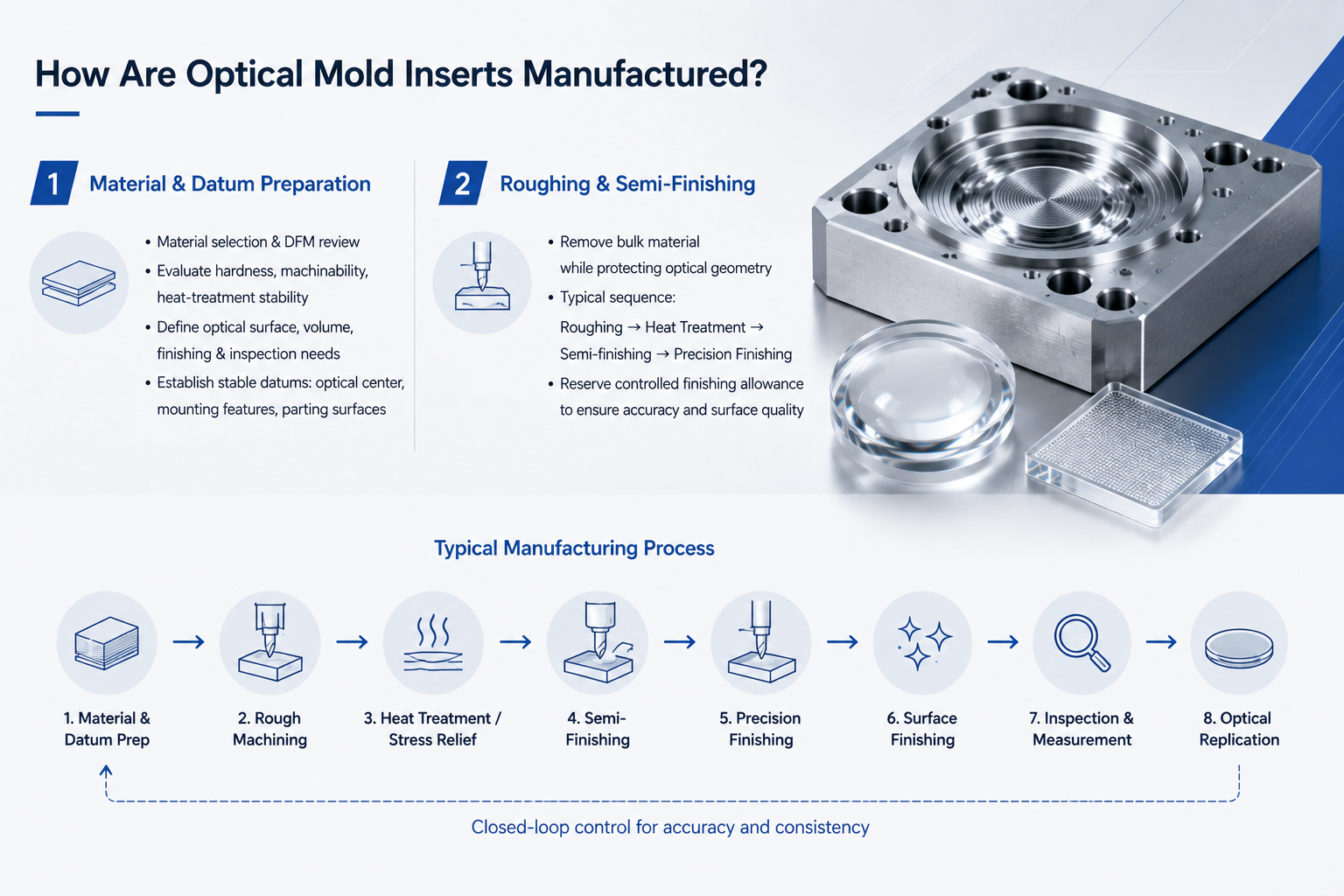

The initial machining removes bulk material while protecting the final optical geometry.
A typical sequence is:
Rough machining → Heat treatment/stress relief → Semi-finishing → Precision finishing
Rather than cutting directly to final size, engineers normally reserve a controlled finishing allowance. The amount depends on material, geometry, tool diameter, machine stability, and the subsequent finishing process.
This reduces the risk of excessive material removal during the final operation.
Complex optical mold inserts can benefit from 5-axis CNC machining because continuous tool-axis adjustment improves access to curved surfaces and can reduce the number of setups.
However, 5-axis machining alone does not guarantee ultra-precision results. Machine geometry, thermal stability, tool condition, workholding, CAM strategy, and inspection all contribute to final accuracy.
For suitable rotational or highly controlled optical surfaces, diamond turning can provide extremely fine surface control. It is particularly useful for appropriate optical-radius or axisymmetric geometries.
A project may therefore use:
5-axis CNC roughing → Precision finishing → Diamond turning → Polishing → Metrology
or, depending on the geometry:
Precision CNC machining → Fine finishing → Polishing → Inspection
The correct route should be selected from the optical surface specification rather than assuming one process is suitable for every mold.
Surface roughness and form accuracy are different parameters.
Form accuracy describes how closely the manufactured surface follows the designed optical profile. Surface roughness describes smaller-scale surface irregularities.
A mold can therefore have acceptable overall dimensions while still showing tool marks, waviness, or polishing defects that affect optical performance.
Critical inspection may include:
· Profile deviation
· Radius accuracy
· Surface roughness
· Waviness
· Optical-axis alignment
· Local surface defects
The appropriate measurement method should be selected according to the geometry and drawing requirements.
For a light guide plate mold, microstructure consistency is often the major challenge.
Features such as grooves, dots, prisms, or other extraction structures may be distributed across a large effective area. Tool wear, machining vibration, thermal drift, or incorrect cutting conditions can change feature geometry.
A controlled process can therefore include:
Tool inspection → Test machining → Feature measurement → Production machining → Periodic verification
This process is especially important when small feature variations can influence light distribution.
Thermal effects can influence dimensional stability during long machining cycles. Machine warm-up, cutting heat, workpiece temperature, environmental conditions, and heat-treatment history should therefore be considered when planning an ultra-precision mold.
The objective is to minimize dimensional drift between machining and final inspection.
A professional optical lens mold making process does not assign the same tolerance to every feature.
Engineers should separate:
Optical features: profile, radius, aspherical geometry, optical center
Mechanical features: locating holes, mounting surfaces, parting interfaces
Surface requirements: roughness, form accuracy, polishing quality
The manufacturing loop then becomes:
STEP/PDF drawing → DFM review → Datum definition → Rough machining → Heat treatment → Precision machining → Finishing → Measurement → Correction
For example, a micron-level profile requirement may be appropriate for a specific optical surface, but it should not be presented as a universal industry tolerance. The actual value depends on optical design, material, component size, measurement capability, and functional requirements.
The relationship is straightforward:
Mold geometry → Polymer replication → Final part geometry → Optical performance
For lenses, deviations in radius or profile can affect focal characteristics and image quality.
For light guide plates, variations in microstructure depth, pitch, or geometry can influence light extraction and illumination uniformity.
This is why optical mold insert machining should be considered part of the optical system development process rather than simply a tooling operation.
Dawang Precision has 26 years of manufacturing experience and operates 400+ advanced machine tools, including Röders and Mazak 5-axis machining centers.
Our engineers evaluate optical mold projects from the complete manufacturing perspective—from DFM review and datum planning to machining sequence, finishing, tolerance control, and inspection.
For optical lenses, this means focusing on controlled profiles, surface quality, and alignment. For light guide plate molds, the process places greater emphasis on microstructure replication, large-area stability, and tool-wear control.
Send your STEP or PDF drawings to the Dawang Precision engineering team.
We provide a free DFM evaluation covering manufacturability, critical tolerances, machining strategy, surface requirements, tool accessibility, and potential production risks.
Send your drawings today. Our engineering team will review your project and reply within 24 hours.
