Speeding Up Prototype Iterations for a Next-Gen Humanoid Robot Startup

Quick Answer

For a humanoid robot startup, faster prototyping depends on more than shortening CNC machining lead times. The most effective approach connects DFM, CNC machining, dimensional inspection, assembly, and design verification into one continuous engineering loop. A well-structured workflow allows teams to move efficiently from STEP file to parts, test physical components, and incorporate results into the next design iteration.

For Robot R&D startups, robot prototype CNC machining is therefore not simply a manufacturing step. It is an important part of the product-development process.

The objective is to shorten the complete cycle:

Design → DFM → CNC Prototype → Inspection → Assembly → Testing → Revision

Why Fast Iteration Matters for Humanoid Robot Startups

Humanoid robot development rarely follows a straight path from CAD to final production. Engineers often need multiple prototype generations to validate joint geometry, actuator interfaces, structural stiffness, weight, and assembly accuracy.

A CAD model may look correct but reveal problems only after physical testing:

· Interference between mating components

· Incorrect bearing or shaft fit

· Structural deformation

· Misaligned mounting features

· Cable or sensor interference

· Tolerance stack-up

· Excessive component weight

Physical prototypes provide engineering data that CAD alone cannot fully validate.

The faster a startup can manufacture, assemble, and test a revised component, the faster its engineers can turn test results into the next design decision.

For this reason, fast iteration should be treated as an engineering capability rather than simply a manufacturing target.

Where CNC Prototype Development Often Slows Down

The machining operation itself is not always the main source of delay. Problems frequently appear during design review, setup, inspection, or communication.

Manufacturing Problems Found Too Late

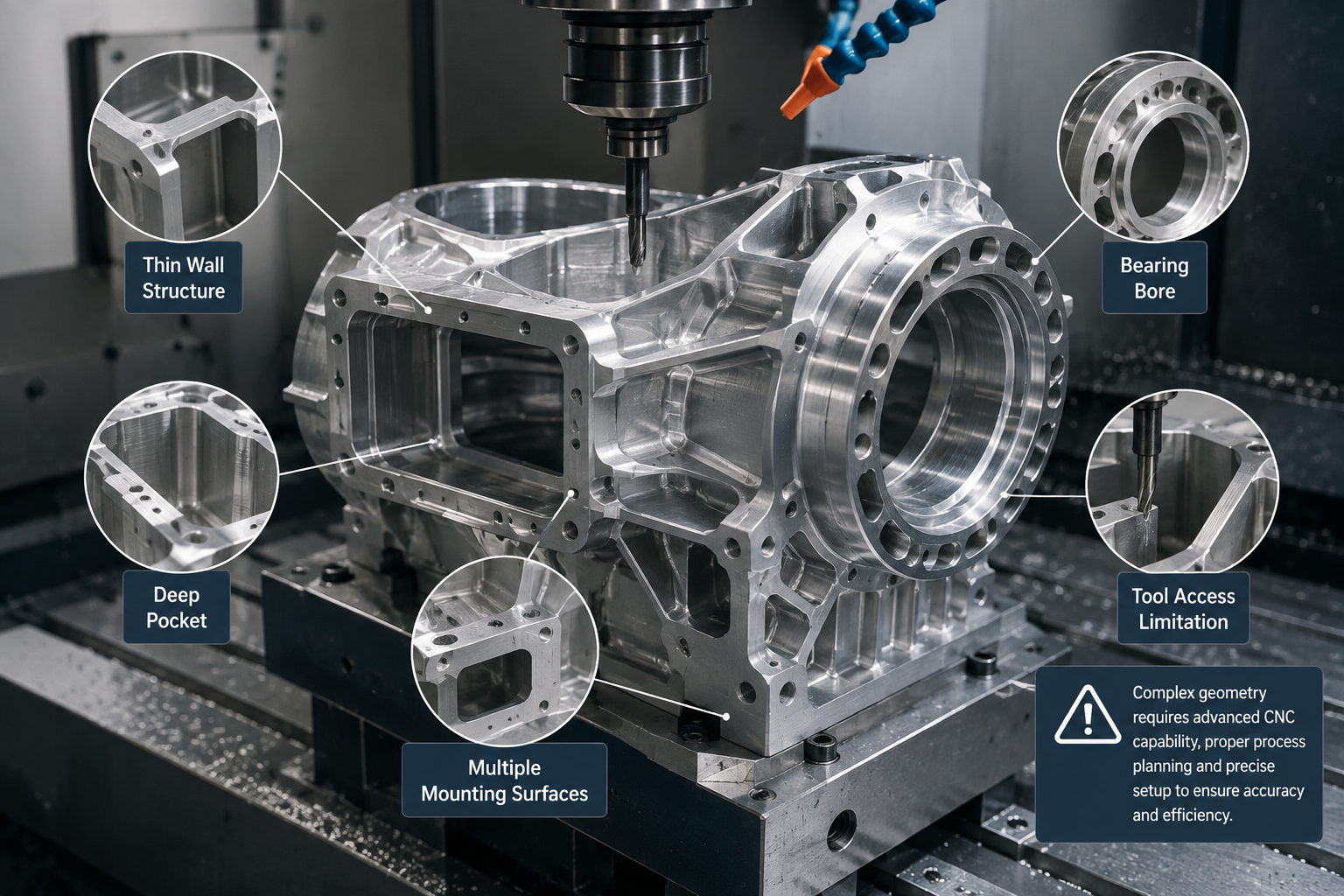

Humanoid robot components can combine thin walls, deep pockets, bearing bores, threaded holes, and multiple mounting surfaces.

Without an early DFM review, engineers may discover:

· Poor tool accessibility

· Excessive thin-wall deflection

· Difficult workholding

· Unnecessary tight tolerances

· Too many machining setups

· Difficult inspection requirements

Finding these issues after machining begins can result in additional revisions and another prototype cycle.

Tight Tolerances Applied Everywhere

Robot components often contain critical interfaces, but not every feature requires the same level of precision.

A bearing seat or actuator locating feature may need tighter control than an external pocket with no direct effect on assembly.

Over-tolerancing increases machining time, inspection requirements, and cost without necessarily improving performance.

The better approach is to define tolerances according to functional requirements.

Multiple Machining Setups

Complex robot structures frequently contain features on several faces. Multiple setups increase handling time and can introduce positioning errors.

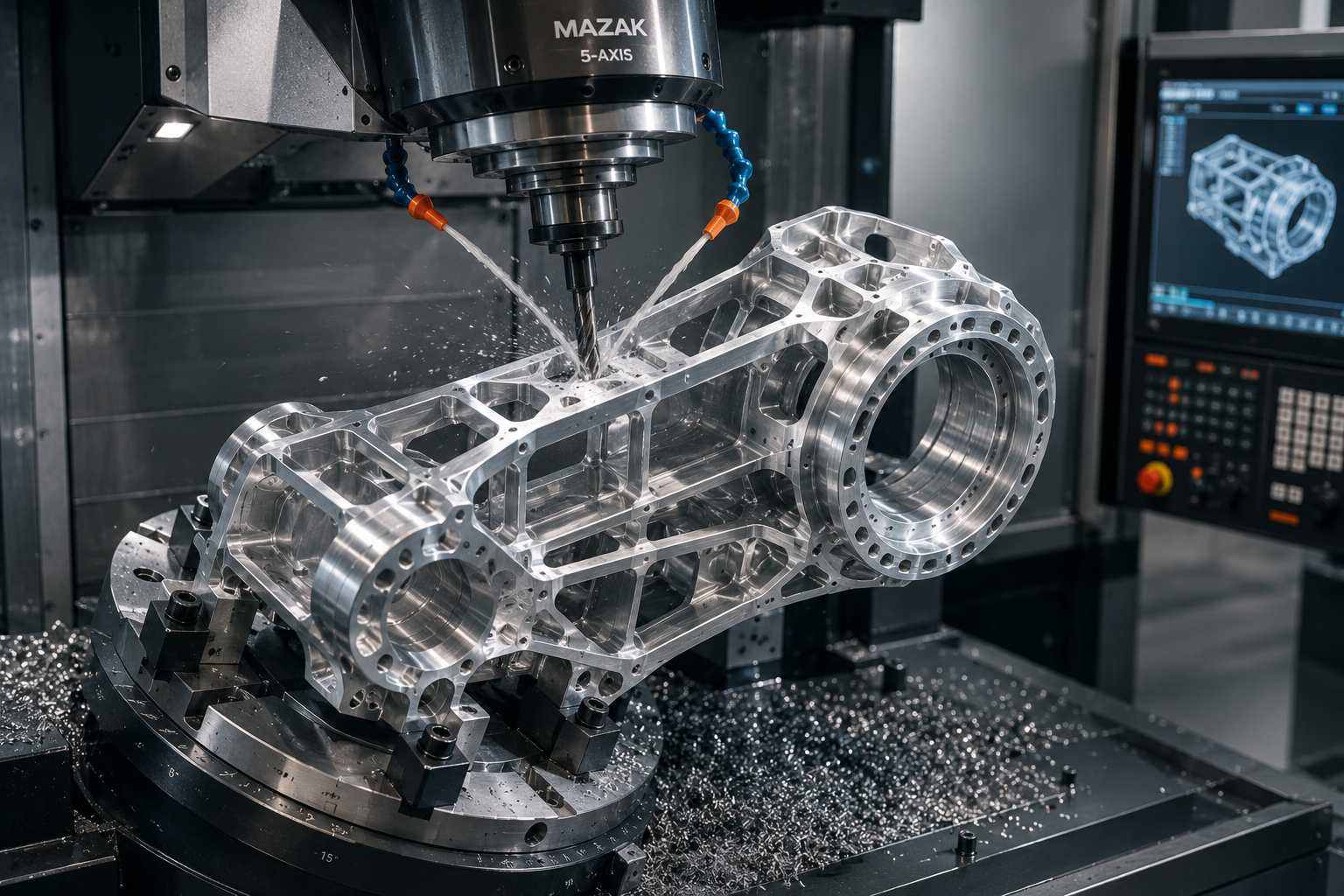

For suitable geometries, 5-axis CNC machining can reduce setups and provide better access to angled or multi-face features.

The goal is not to use 5-axis machining for every part, but to select the process that provides the best balance of accessibility, accuracy, and efficiency.

Build DFM Into the Prototype Cycle

One of the most effective ways to accelerate robot prototype CNC machining is to perform design-for-manufacturing review before production.

A practical DFM review should consider:

Early DFM turns manufacturing feedback into part of the engineering process.

For startups, this is especially valuable because correcting a manufacturability issue in CAD is usually faster and less expensive than discovering it after production.

Control Machining Parameters for Lightweight Robot Parts

Lightweight structures are common in humanoid robot design, but thin walls and deep pockets can make parts less rigid during machining.

Simply increasing cutting speed is not always the best solution.

Machining parameters should be selected according to material, tool geometry, machine rigidity, feature geometry, and required surface finish.

Important parameters include:

· Spindle speed

· Feed rate

· Axial depth of cut

· Radial engagement

· Tool diameter

· Step-over

· Cutting strategy

· Coolant method

For thin-wall components, controlling cutting forces is particularly important.

A typical process may use:

Roughing → Semi-finishing → Stabilization → Finishing → Critical-feature machining → Inspection

Controlled material removal helps reduce deformation as the remaining wall becomes thinner.

For critical bores, mounting faces, and locating features, dedicated finishing operations may also be required to achieve stable dimensional results.

Control Tolerances Around the Robot Assembly

Tolerance planning should begin with the complete assembly rather than individual dimensions.

Consider a simplified robot joint:

Motor → Gearbox → Housing → Bearing → Shaft → Structural Link

Small dimensional variations across these components can accumulate and affect alignment, fit, or motion.

A practical tolerance-control strategy is to:

1. Define the functional datum.

2. Identify critical mating interfaces.

3. Analyze the tolerance stack-up.

4. Apply tighter tolerances only where function requires them.

5. Inspect critical features after machining.

The objective is not maximum precision everywhere.

It is controlled precision where it affects robot performance.

This approach helps balance dimensional accuracy with machining time and prototype cost.

Make the STEP File to Parts Workflow Faster

A major source of prototype delay can be the communication gap between the engineering team and manufacturer.

A streamlined STEP file to parts workflow can follow this sequence:

STEP File + PDF Drawing → DFM Review → Material Confirmation → Machining Strategy → CNC Production → Inspection → Shipment

For each revision, the manufacturing package should clearly identify:

· CAD revision

· Material

· Critical dimensions

· Tolerances

· Surface finish

· Quantity

· Inspection requirements

· Required delivery date

The STEP file communicates the 3D geometry, while the PDF drawing defines critical tolerances, datums, surface requirements, and other manufacturing specifications.

Providing both whenever possible reduces ambiguity and allows the machining team to identify potential problems earlier.

For Robot R&D startups, this simple workflow can significantly reduce unnecessary engineering communication during repeated prototype cycles.

Use Modular Design to Speed Up Iterations

Modular mechanical interfaces can reduce the number of components that need to be redesigned during each iteration.

Standardized mounting patterns, bearing interfaces, actuator mounts, and fastener schemes allow engineers to modify one subsystem while keeping validated components unchanged.

This can reduce prototype cost and make the transition toward low-volume production easier.

For humanoid robot development, modularity is particularly useful when mechanical designs are still evolving and different subsystems are being tested independently.

CNC Machining Should Support Design Verification

The value of a CNC prototype is not simply the physical part. It is the engineering information obtained from that part.

After machining, teams can verify:

· Dimensional accuracy

· Assembly fit

· Bearing and shaft alignment

· Weight

· Structural behavior

· Interference

· Functional movement

The results can then feed directly into the next CAD revision.

A practical engineering loop becomes:

Prototype → Test → Learn → Redesign

The goal is not to eliminate iterations.

The goal is to make every iteration faster and more informative.

Prepare for Production During Prototyping

Prototype machining can also provide useful data for future production.

Engineering teams can track machining time, setup requirements, tooling, tolerance results, material utilization, and recurring manufacturing problems.

Recording this information during early iterations helps improve DFM decisions and makes the transition to low-volume production more predictable.

This is particularly useful for startups that expect their successful prototype design to move rapidly toward pilot production.

CNC Prototype Manufacturing for Humanoid Robot R&D

Dawang Precision combines 26 years of precision machining experience with more than 400 advanced machine tools, including Röders and Mazak 5-axis equipment.

Its experience with humanoid robot joint structural components includes lightweight designs and tight-tolerance assembly interfaces.

The focus is straightforward: helping engineering teams move from CAD revision to functional prototype with fewer manufacturing delays.

Final Takeaway

For a next-generation humanoid robot startup, fast iteration is an engineering strategy, not simply a shorter machining lead time.

The most effective workflow connects:

Design → DFM → Robot Prototype CNC Machining → Inspection → Assembly → Design Verification → Revision

When manufacturing feedback is incorporated early, engineering teams can move more efficiently from STEP file to parts, validate physical performance, and make better decisions in the next design cycle.

The goal is simple:

Shorten the learning cycle, not just the machining cycle.

Need a Faster CNC Prototype Iteration?

Send your STEP file or PDF drawing to the Dawang Precision engineering team for a free DFM evaluation.

Our engineers can review your part geometry, material, critical tolerances, machining approach, and potential manufacturing risks before production.

Submit your STEP/PDF drawings today and receive engineering feedback within 24 hours.

FAQ

Q1:What is robot prototype CNC machining?

Robot prototype CNC machining uses CNC milling or turning to manufacture functional robot components directly from CAD data. It is well suited to low-volume development because prototypes can be produced without dedicated production tooling.

Q2:How does CNC machining support fast iteration?

CNC machining allows engineers to manufacture functional parts, assemble them, identify mechanical issues, and revise the design without waiting for production tooling. This shortens the physical design-verification cycle.

Q3:What files are needed for CNC prototype machining?

A STEP file provides the 3D geometry, while a PDF engineering drawing defines critical tolerances, datums, surface finish, and other manufacturing requirements. Providing both can reduce clarification time.

Q4:When should 5-axis CNC machining be used for robot parts?

5-axis machining is useful when complex geometry, angled surfaces, or multiple setups make conventional machining inefficient or less consistent. The appropriate process depends on the part geometry and critical features.

Q5:How can robot startups reduce prototype machining costs?

Start with DFM, identify functional tolerances, avoid unnecessary precision, standardize interfaces, and provide complete CAD and drawing information. These steps can reduce rework and unnecessary machining operations.
