In large enclosure mold making, side openings, ribs, snap-fits, bosses, and recessed features can create undercuts that prevent straight ejection. Engineers should first eliminate unnecessary undercuts through DFM. When the geometry is functional, complex slides and lifters can release external and internal features. For large home-appliance housings and electronic cases, reliable results depend on slide travel, lifter angle, shut-off accuracy, ejection, cooling space, machining tolerances, and the overall mold layout.

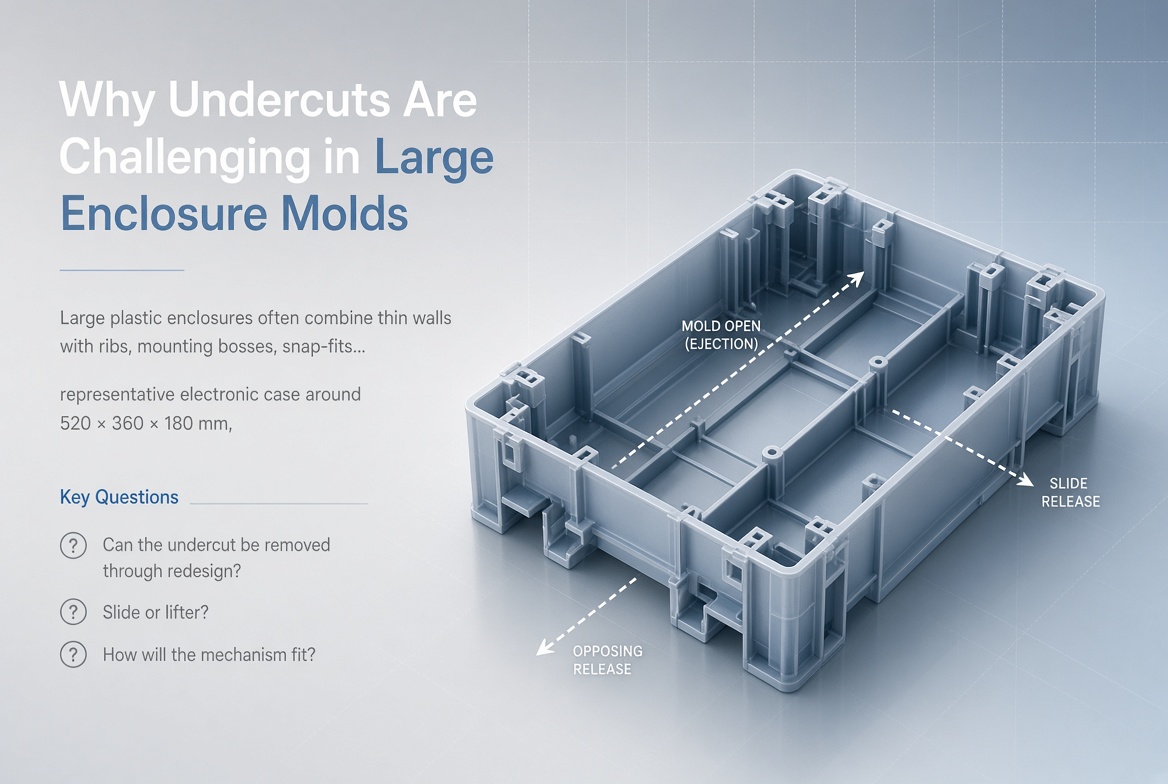

Large plastic enclosures often combine thin walls with ribs, mounting bosses, snap-fits, ventilation openings, and connector recesses.
Consider a representative electronic case around 520 × 360 × 180 mm with a 2.5–3.0 mm nominal wall. When features face different directions, the part may not release along one primary mold-opening direction.
The key engineering questions are:
Can the undercut be removed through redesign?
If not, should the mold use a slide or lifter?
How will the mechanism fit within the complete mold layout?
Injection molding requires the solidified part to be released from the mold, making ejection direction a fundamental design constraint.

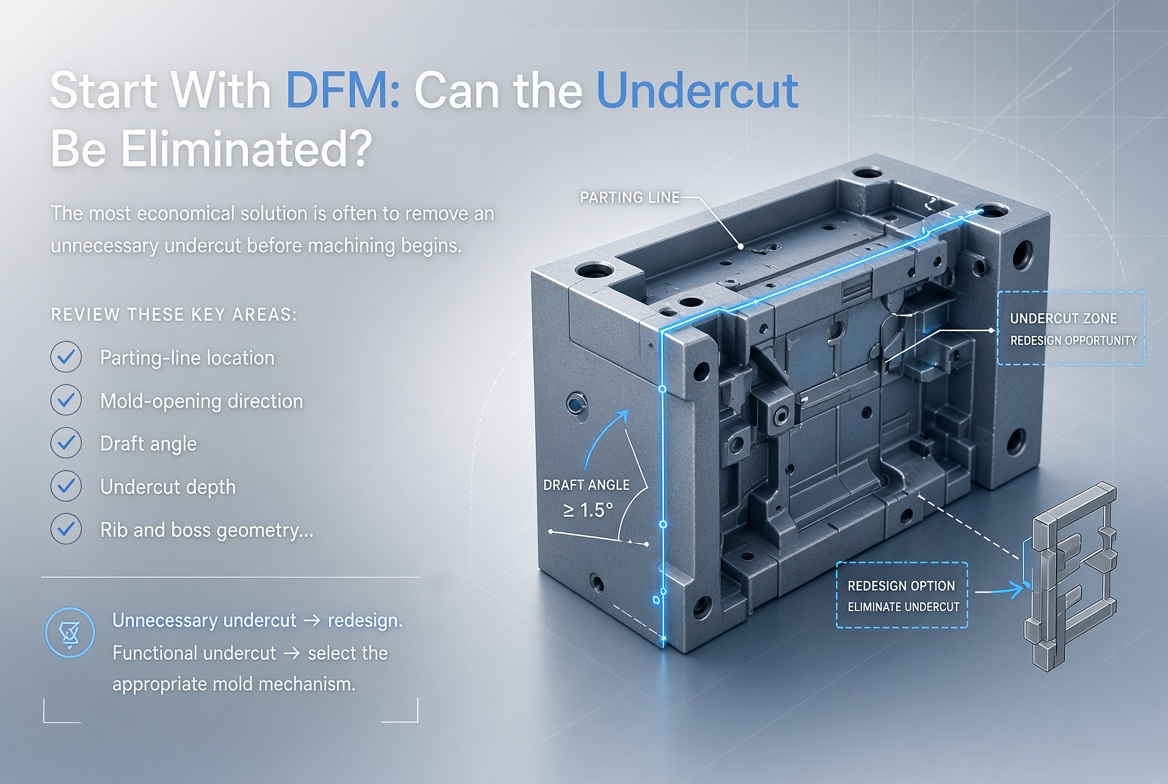

The most economical solution is often to remove an unnecessary undercut before machining begins.
During DFM, engineers review:
Parting-line location
Mold-opening direction
Draft angle
Undercut depth
Rib and boss geometry
Snap-fit design
Ejection direction
Tool accessibility
A cosmetic recess may sometimes be redesigned to follow the mold-opening direction, while a functional snap-fit may need to remain.
The basic rule is:
Unnecessary undercut → redesign.
Functional undercut → select the appropriate mold mechanism.
This can reduce tooling complexity before steel is cut.

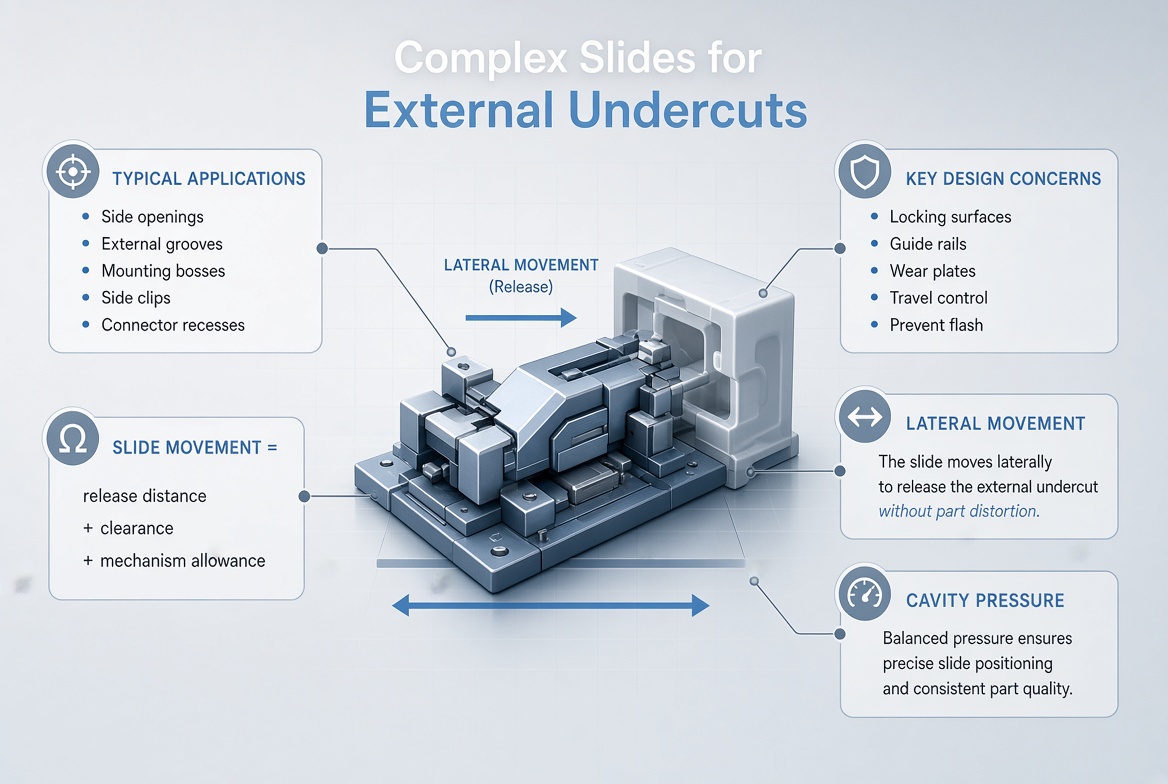

A slide is commonly used when an external feature prevents straight mold opening.
Typical applications include:
Side openings
External grooves
Mounting bosses
Side clips
Connector recesses
The slide moves laterally to clear the feature before ejection.
For a representative 8 mm external undercut, the slide must travel beyond the interference point and provide sufficient release clearance.
The design relationship can be simplified as:
Slide movement = release distance + clearance + mechanism allowance
During injection, cavity pressure acts against the slide, so suitable locking and supporting surfaces are required to prevent movement and flash. Large slides also require careful control of guide rails, wear plates, travel, and adjacent mold components.

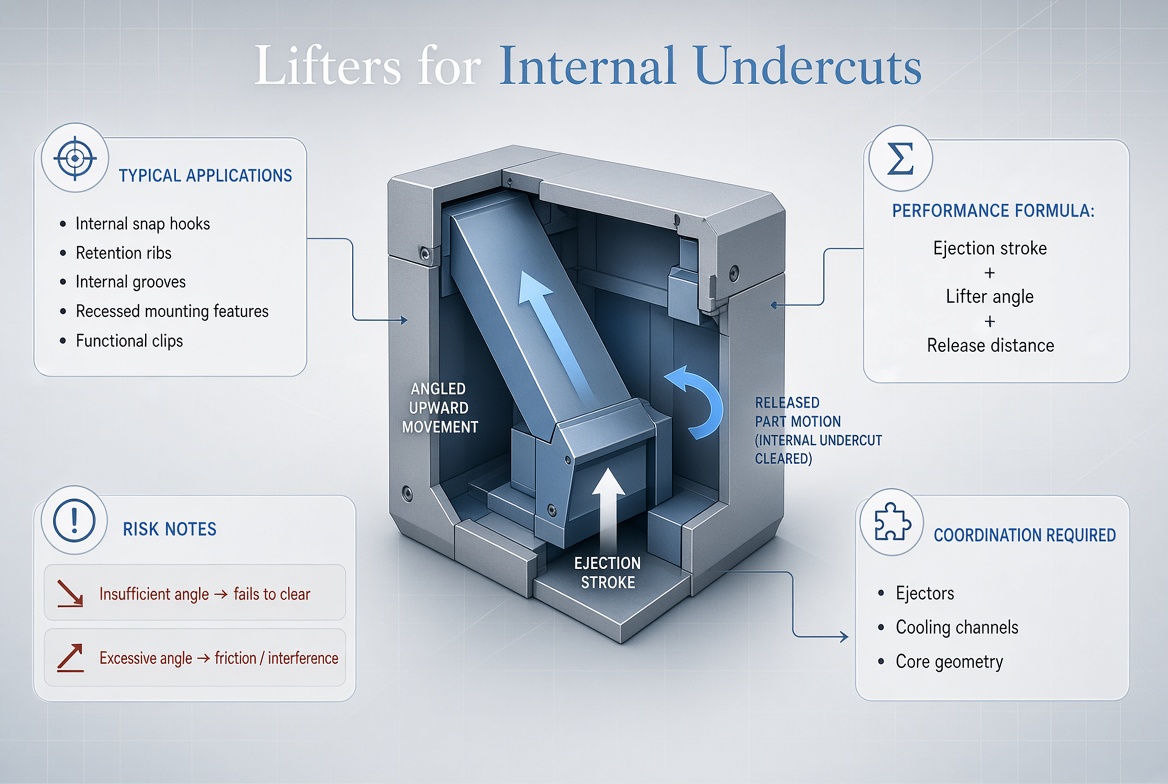

A lifter is typically used for internal undercuts that cannot be released through straight ejection.
Typical applications include:
Internal snap hooks
Retention ribs
Internal grooves
Recessed mounting features
Functional clips
A lifter combines upward ejection with angled movement. Its performance depends on:
Ejection stroke + lifter angle + release distance
An insufficient angle may not clear the undercut, while an excessive angle can increase friction or interference with surrounding ribs.
In large electronic cases, lifters must also be coordinated with ejectors, cooling channels, and core geometry.
Factor | Slide | Lifter |
Typical feature | External undercut | Internal undercut |
Main movement | Lateral | Angled with ejection |
Common application | Openings, bosses, grooves | Ribs, snap-fits, hooks |
Main variable | Slide travel | Angle and stroke |
Key concern | Locking and alignment | Interference and ejection |
This is a practical guideline, not an absolute rule. Complex parts may require a combination of slides, lifters, or specialized core mechanisms.
The real challenge begins when the mechanism moves from CAD into steel.
A representative process is:
Steel preparation → Rough CNC machining → Heat treatment/stress relief → Semi-finishing → Five-axis machining → EDM → Grinding → Fitting → Assembly → Inspection → Trial injection
Rough machining removes most material while leaving controlled stock on critical surfaces. Semi-finishing establishes stable geometry before final finishing.
For complex slide and lifter components, five-axis machining can improve tool access and reduce setups. EDM is useful for narrow slots, deep features, sharp details, or difficult-to-access areas.
Critical shut-off and moving surfaces should be inspected before assembly because dimensional errors can cause flash, misalignment, or premature wear.
Dawang Precision has 26 years of manufacturing experience and 400+ advanced machine tools, including Röders and Mazak five-axis machining centers, supporting complex mold components and precision machining requirements.
Tolerance should be assigned according to function rather than making every dimension unnecessarily tight.
Critical inspection areas include:
Slide positioning
Lifter location
Shut-off surfaces
Guide alignment
Cavity/core matching
Ejector positioning
Functional part dimensions
For example, if a slide controls a connector opening, its position directly affects the molded feature. A non-functional surface may not require the same tolerance.
A controlled strategy is:
Roughing allowance → Semi-finishing → Final finishing → Inspection
This balances dimensional control and machining cost.
A large enclosure may require multiple slides, lifters, ejectors, and cooling circuits.
Engineers must check:
Slide travel → Lifter stroke → Ejection → Cooling clearance → Mold-base envelope → Machine installation
A slide that works independently may become impractical when a cooling channel or ejector bank occupies the same space.
Therefore, mold layout should be reviewed before detailed machining. The goal is not to add mechanisms, but to create the simplest reliable structure capable of producing the required geometry repeatedly.
The first mold trial should provide engineering data rather than simply a pass/fail result.
For large enclosures, engineers may inspect:
Flash
Parting-line mismatch
Ejection marks
Warpage
Sink marks
Critical dimensions
Snap-fit engagement
Connector alignment
If a mounting boss is out of position, the cause may involve mold geometry, material shrinkage, packing, cooling imbalance, or ejection stress.
ABS, PC/ABS, polycarbonate, and glass-filled plastics also have different shrinkage and processing characteristics. Injection parameters should therefore follow the selected material grade and supplier recommendations.
A reliable large enclosure mold making workflow is:
STEP/PDF → DFM Review → Undercut Analysis → Parting Line → Mold Layout → Slide/Lifter Design → CNC/EDM → Inspection → Assembly → Trial Injection → Optimization
This helps identify mechanism conflicts before major machining begins.
For procurement teams, tooling cost depends on more than mold size. Slide/lifter quantity, machining complexity, EDM, steel selection, tolerances, cooling, assembly, and trial optimization all contribute to the final cost.
Successful large enclosure mold making is not simply about adding slides and lifters. The better approach is to identify undercuts during DFM, eliminate unnecessary geometry where practical, and select the simplest reliable mechanism for functional features.
For large home-appliance housings and electronic cases, the key is coordinating complex slides and lifters, machining accuracy, mold layout, cooling, ejection, tolerances, and trial feedback into one repeatable production system.
