Precision Mold Core Making: The Synergy of Mirror EDM and 5-Axis Milling

Quick Answer

Precision mold core making often requires both high-speed 5-axis milling and mirror EDM. 5-axis milling efficiently handles bulk material removal and complex 3D cavity surfaces, while mirror EDM is better suited to deep narrow features, fine ribs, sharp internal details, and controlled cavity texture. For high-precision multi-cavity molds, combining the two processes helps balance machining efficiency, dimensional accuracy, surface quality, and cavity-to-cavity consistency.

Why Mold Core Machining Is Challenging

Precision mold cores may combine deep cavities, freeform surfaces, thin ribs, small radii, and tight positional requirements. Multi-cavity molds add another challenge: every cavity must match the others.

For an illustrative H13 mold core measuring 220 × 160 × 85 mm, with four cavities, a 65 mm cavity depth and 1.2 mm narrow ribs, different features require different machining strategies.

Large cavities favor high-speed milling, while deep narrow ribs may make small, long-reach cutters prone to deflection and vibration. This is why precision mold core machining should be treated as a process-allocation problem.

High-Speed 5-Axis Milling

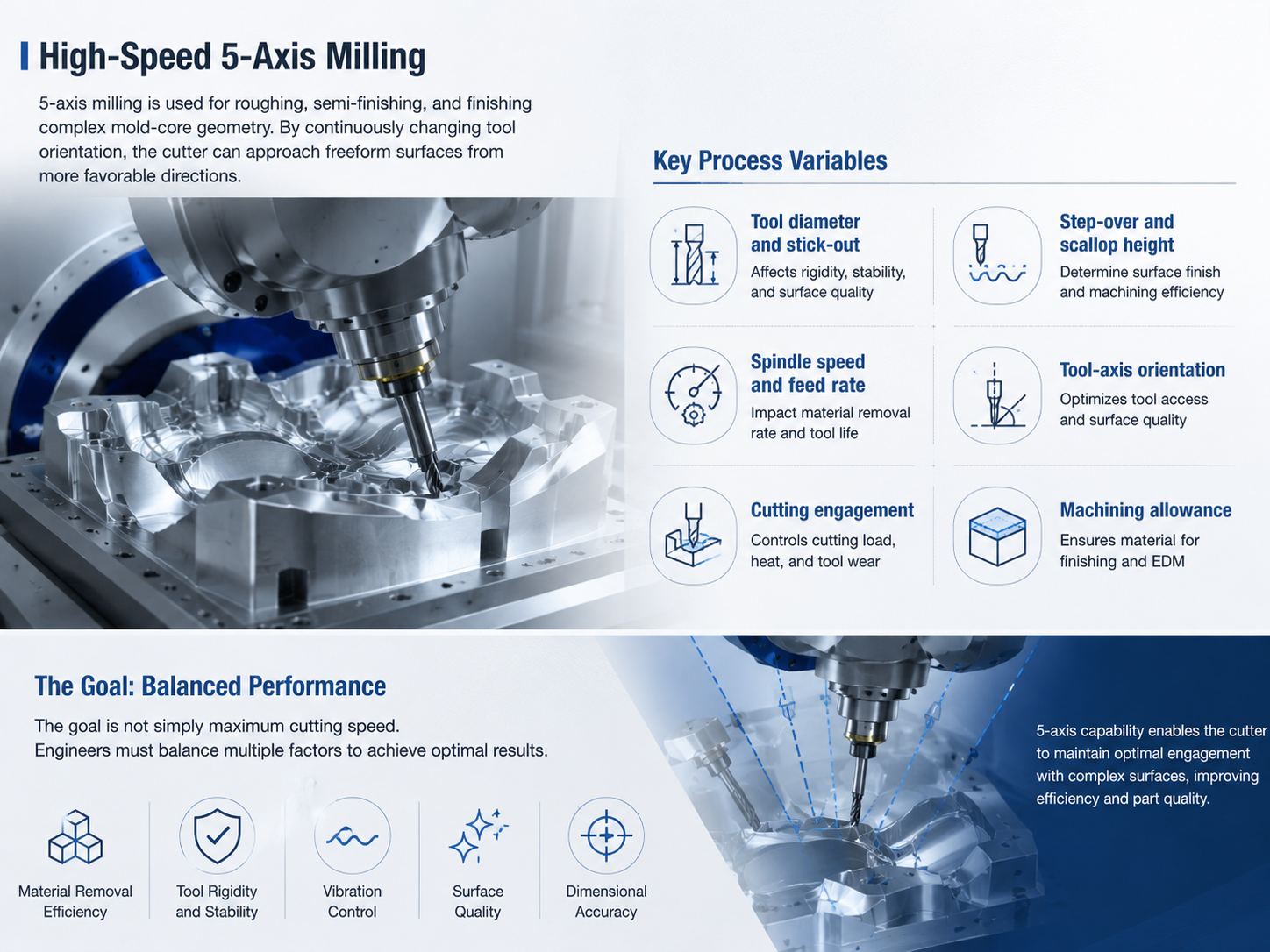

5-axis milling is primarily used for roughing, semi-finishing, and finishing complex mold-core geometry. By continuously changing tool orientation, the cutter can approach freeform surfaces from more favorable directions.

Important process variables include:

Tool diameter and stick-out

Spindle speed and feed rate

Cutting engagement

Step-over and scallop height

Tool-axis orientation

Machining allowance

The goal is not simply maximum cutting speed. Engineers must balance material removal, tool rigidity, vibration, surface quality, and dimensional accuracy.

Where Mirror EDM Adds Value

Some mold-core features are difficult to machine efficiently with rotating tools. Deep narrow cavities, fine ribs, small internal features, and sharp details may require extremely small or long tools.

Mirror EDM removes conductive material through controlled electrical discharge rather than conventional cutting. It is therefore useful for localized features that reach the practical limits of milling.

The objective is not 5-axis milling vs. EDM, but using each process where it is technically most effective.

Hybrid Manufacturing Workflow

A typical workflow is:

DFM → 5-Axis Roughing → Semi-Finishing → 5-Axis Finishing → Inspection → Mirror EDM → Final Inspection

During DFM, engineers determine which features should be milled and which should be transferred to EDM. Semi-finishing establishes controlled machining allowance, while EDM is reserved for features where small cutting tools would be inefficient or unstable.

For cavity texture, EDM parameters such as discharge energy, pulse conditions, electrode condition, and flushing influence the final surface characteristics.

Tolerance Control for Multi-Cavity Molds

Achieving one accurate cavity is not enough. A high-precision multi-cavity mold also requires consistent relationships between cavities.

Inspection may include probing, optical measurement, or CMM verification depending on the geometry and tolerance requirements.

An Illustrative Manufacturing Example

For the H13 mold core described above, 5-axis milling can first remove bulk material and generate the main cavity surfaces. Controlled stock is left on EDM areas.

After finishing and inspection, the 1.2 mm ribs and selected deep features can be processed by mirror EDM. Electrode wear and discharge conditions are controlled before final dimensional and cavity-to-cavity inspection.

This illustrative scenario demonstrates the key principle: the best process is selected according to feature geometry rather than forcing one technology to manufacture the entire mold core.

Dawang Precision

Dawang Precision has 26 years of manufacturing experience and operates 400+ advanced machine tools, including Röders and Mazak 5-axis machining centers.

Our engineering team combines DFM analysis, 5-axis machining, EDM, process planning, and dimensional inspection for complex mold-core projects, particularly high-precision multi-cavity molds where repeatability is critical.

FAQ

Q1: When should Mirror EDM be used instead of milling?
A: For deep, narrow, fine, sharp, or difficult-to-access features where conventional milling becomes inefficient.

Q2: Can 5-axis milling replace EDM?
A: Not completely. 5-axis milling is better for bulk removal and complex surfaces, while EDM provides advantages for specific fine features.

Q3: How is cavity-to-cavity accuracy controlled?
A: Through controlled datums, stable machining parameters, tool and electrode wear management, and dimensional inspection.

Q4: How does EDM affect cavity texture?
A: Discharge energy, pulse conditions, electrode condition, and flushing influence the resulting cavity surface.
